Description:
Brand:
YT-86140
PET CHAIN EXCAVATOR MAX DEPTH 60CM, CAPACITY 420 CM3
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Power
9 kW
12.24 HP
Engine capacity
420 cm³
Revolutions
3600 min⁻¹
Digging width
100 mm
Max. digging depth
600 mm
Fuel type
unleaded petrol E10
Fuel tank capacity
6.5 l
Oil type
SAE 15W-40
Oil tank capacity
1.1 l
Starting type
manual
Cooling
air
Emergency stop
Engine type
Loncin G420F
Spark plug type ignition
F7RTC
Housing material
metal
Dimensions
2100x720x1100 mm
Number of teeth
27
Wheels
yes
Number of wheels
2
Wheel type
pneumatic
Number of strokes in the engine
4
Number of cylinders in the engine
1
Operating temperature range
5~30 ˚C
Storage temperature
5~30 ˚C
Sound pressure
88.6 ± 2.5 dB(A)
Sound power
109.28 ± 1.61 dB(A)
Vibrations
9.99 ± 1.5 m/s²
Weight
188 kg
Application
for precise excavations for water and electrical installations, irrigation systems
Symbol
YT-86140

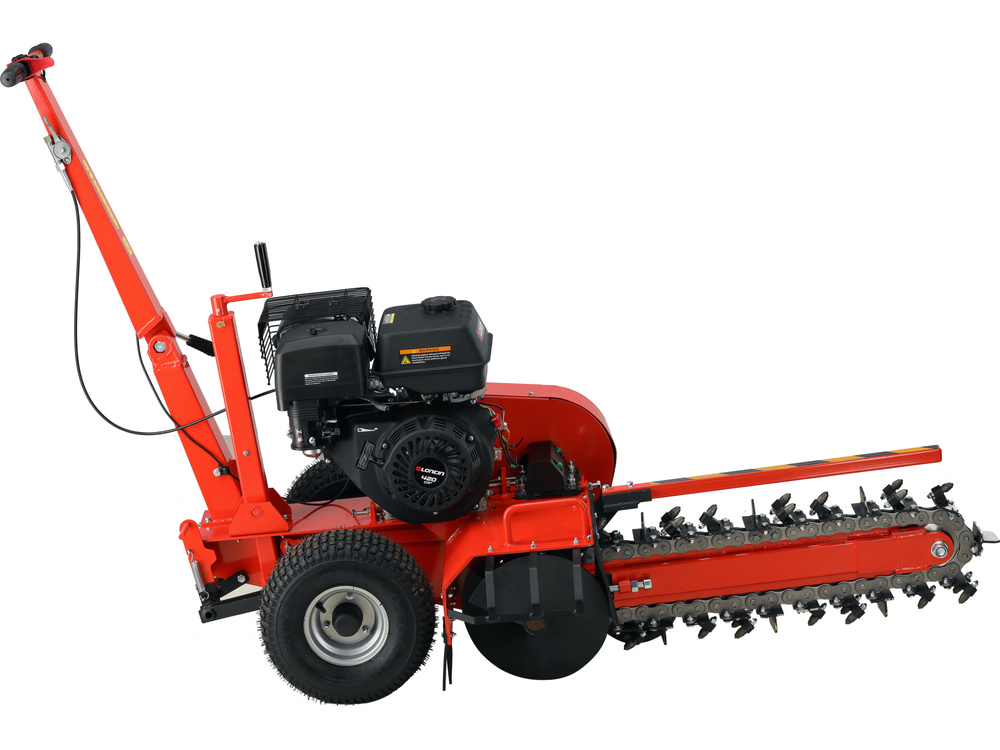

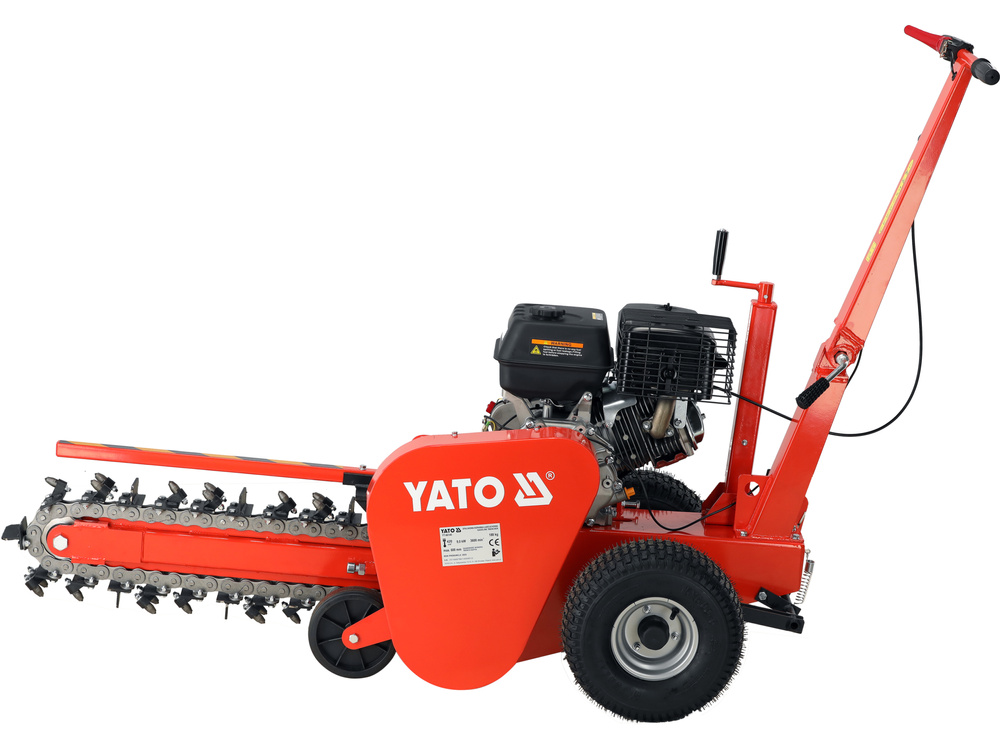

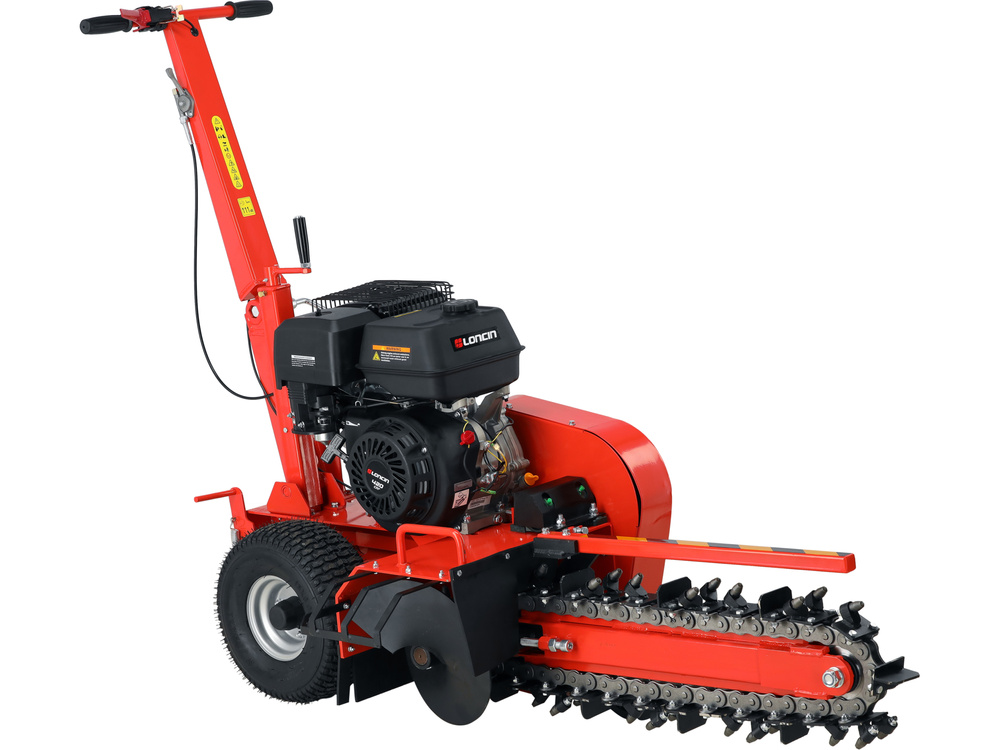

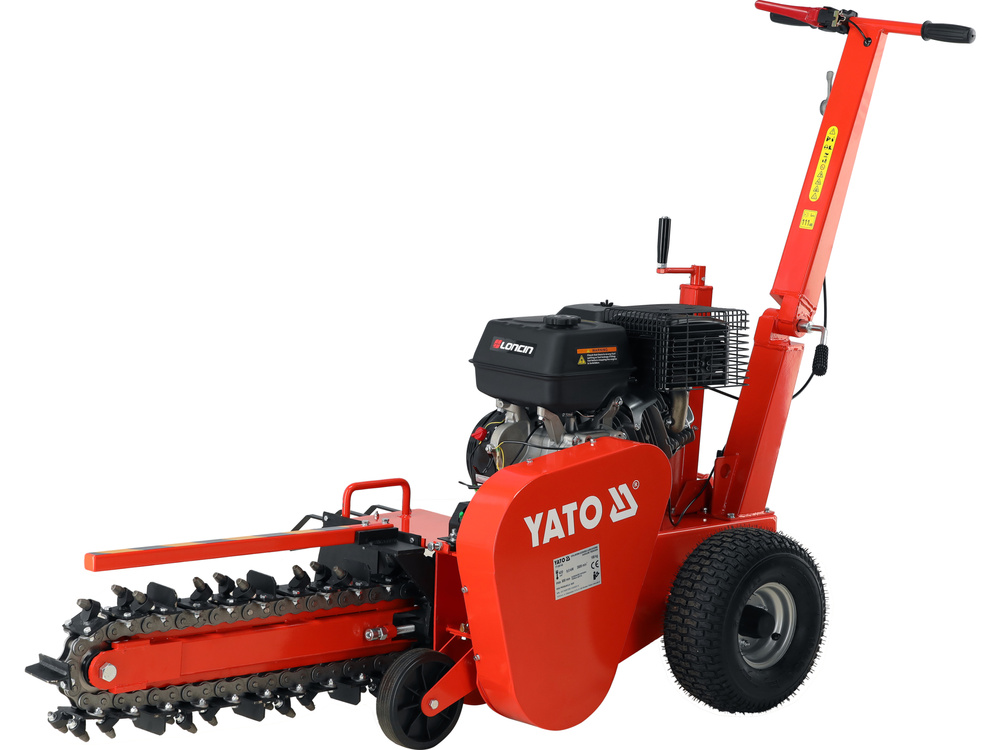

The petrol chain excavator is a professional tool designed for precise excavations for water and electrical installations, irrigation systems. Thanks to the powerful four-stroke engine with a capacity of 420 cm³ and a power of 9 kW, it ensures high efficiency and reliability.
The excavator is equipped with a 100 mm wide chain digging mechanism, which allows work to a maximum depth of 600 mm. The solid construction and optimally selected operating parameters make the machine fast, very effective and easy to use. It is perfect for the construction and gardening industries and for installation work related to laying cables, pipes, drainage systems and foundations for fences.
Thanks to its compact dimensions, the excavator allows for precise excavations even in places with limited space.
Parameters:

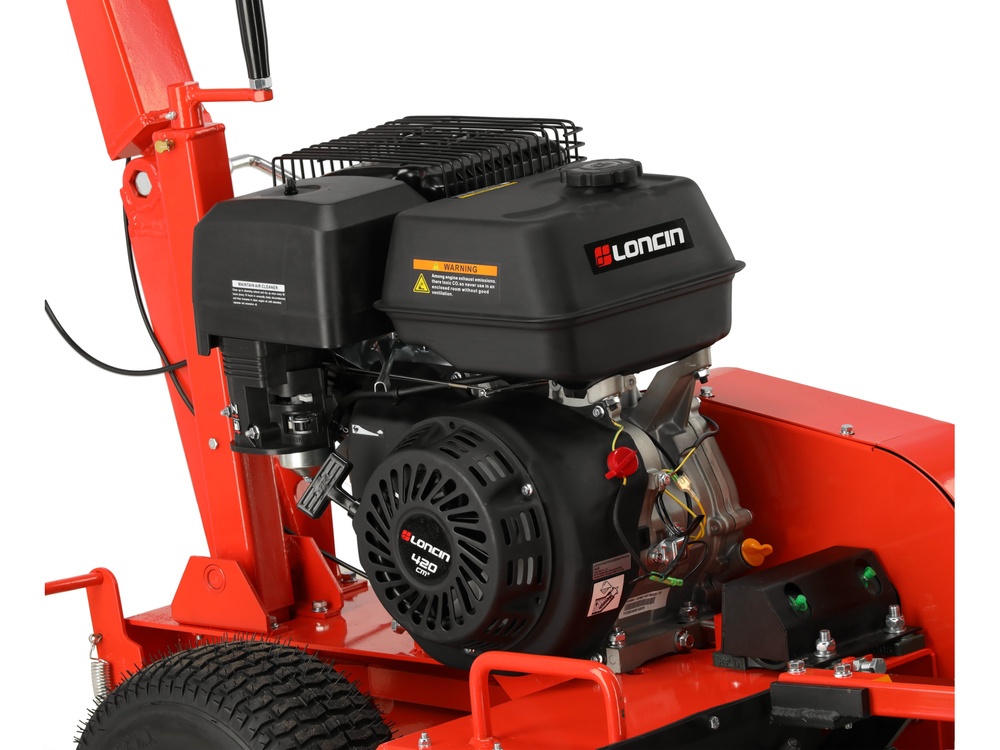

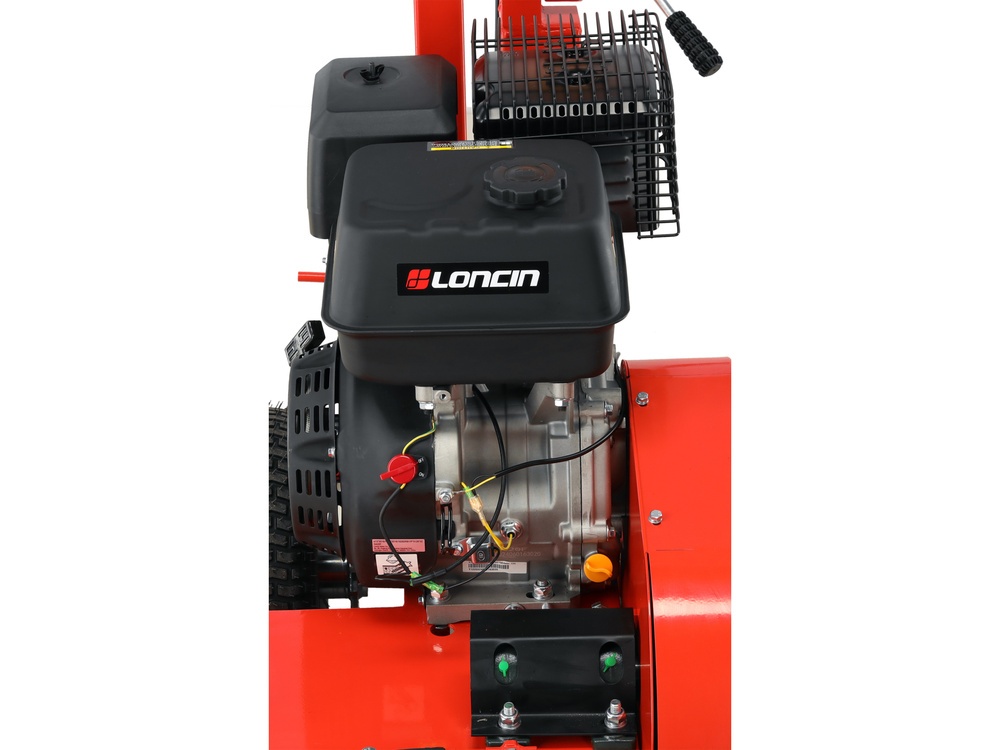

LONCIN G420F engine
combustion, four-stroke
power: 9 kW
capacity: 420 cm³
max. torque: 3600 rpm
starting: manual
spark plug type: F7RTC
fuel type: unleaded petrol E10
oil type: SAE 15W-40
fuel tank capacity: 6.5 l
oil tank capacity: 1.1 l
air cooling
emergency stop function
number of teeth: 27
digging width: 100 mm
max. digging depth: 600 mm
metal housing

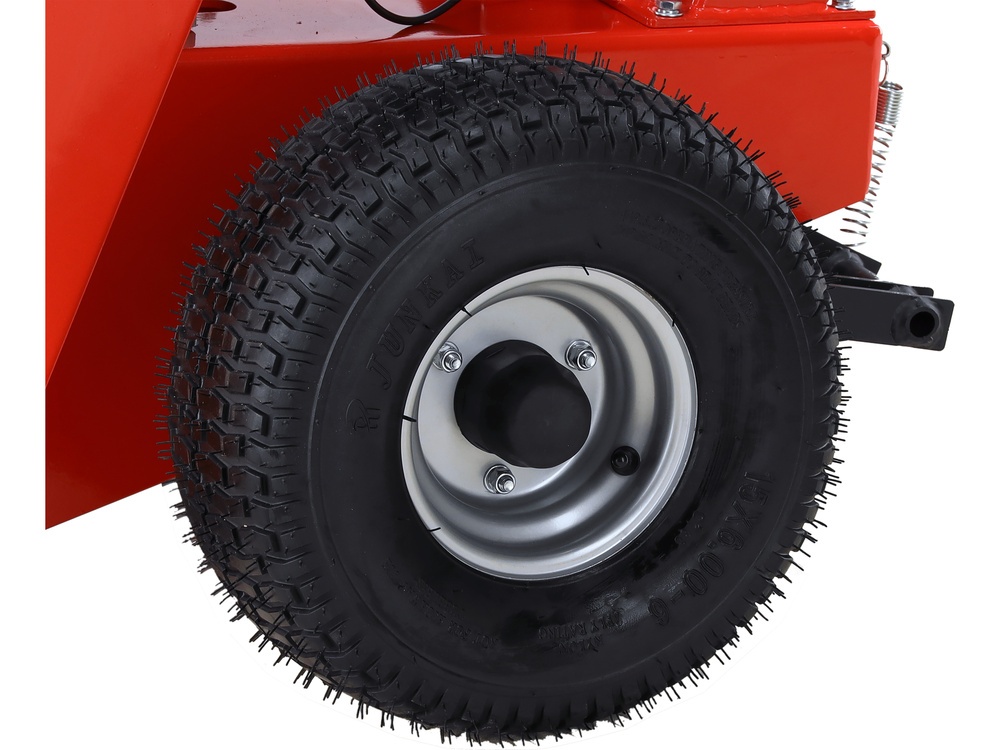

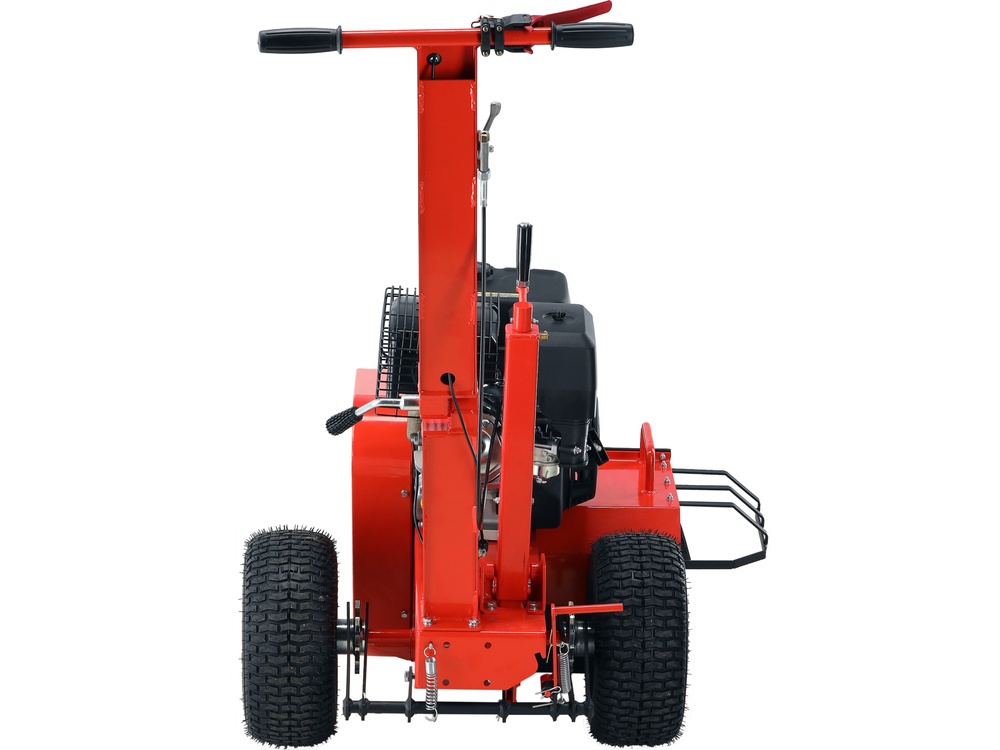

2 pneumatic wheels
operating temperature range: 5-30°C
weight: 188 kg
