Description:
Brand:
Index
YT-07076
Barcode
5906083139703
Unit of measure
PCE
Volume
5.792
Weight
0.75

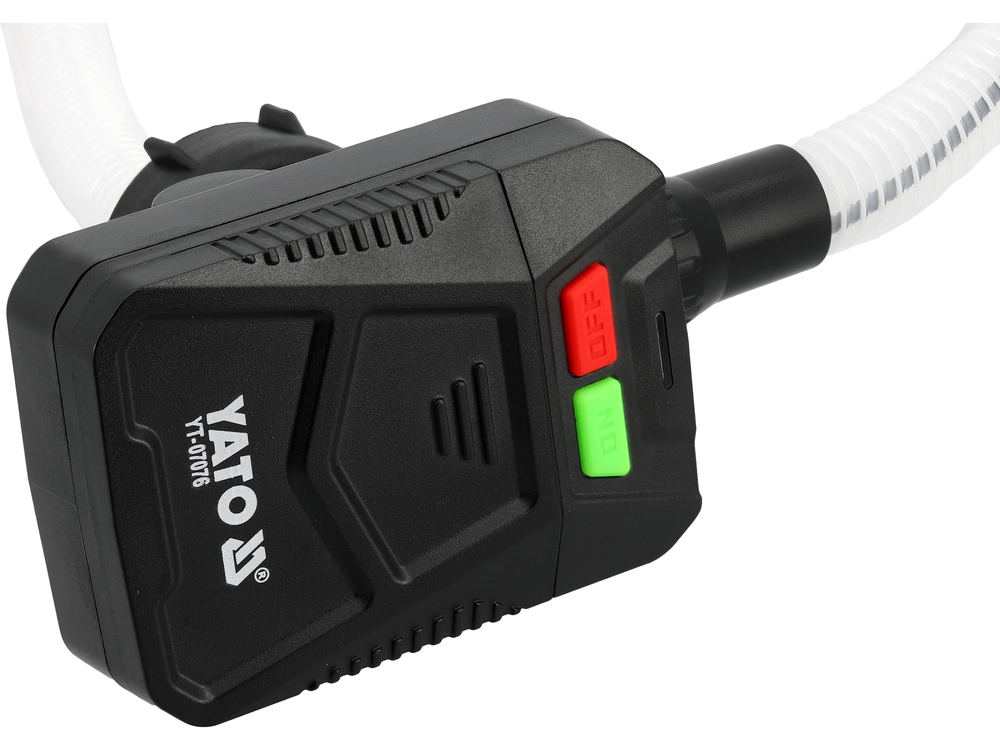

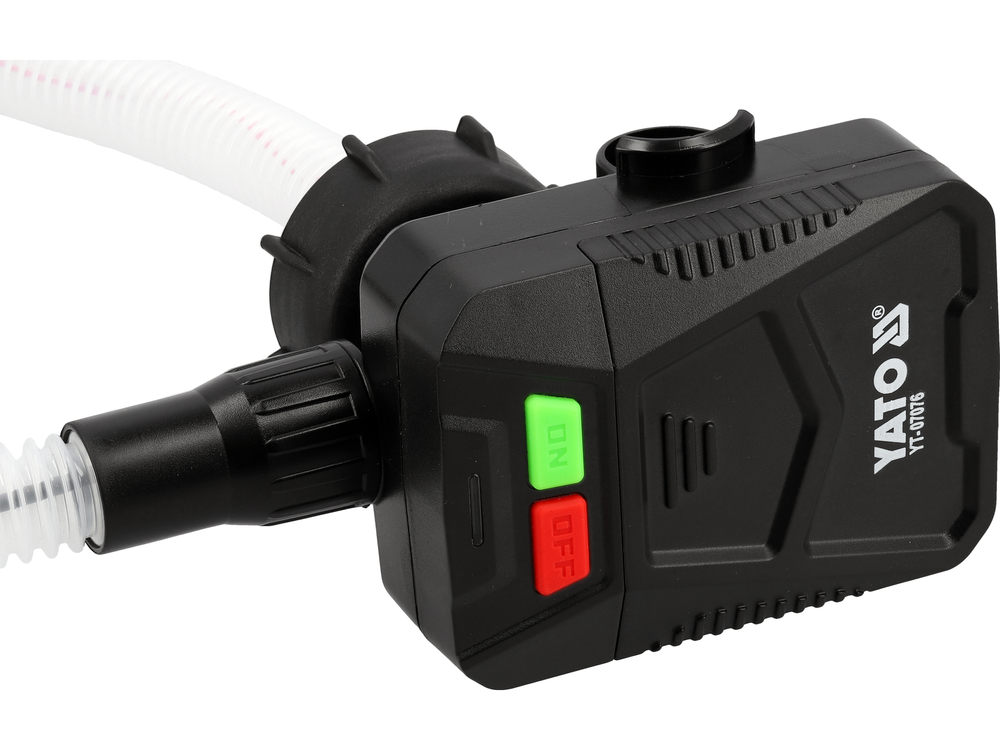

The YT-07076 electric fluid transfer pump is a portable device designed for the controlled transfer of fluids during maintenance work on passenger cars and delivery vehicles. Powered by 6 V DC batteries, it operates independently of the vehicle's electrical system. The pump delivers a flow rate of up to 10 l/min, enabling efficient emptying and filling of reservoirs.
The unit features a fluid level sensor that monitors the fill level of the receiving container. The pump automatically stops once the appropriate level is reached, minimizing the risk of overflow. It also shuts off automatically if there is no flow for approximately 30 seconds. The kit includes hoses with nozzles and three adapters, allowing the pump to fit various reservoir openings. Key features:
flow rate of up to 10 l/min – enables efficient fluid transfer during maintenance work
automatic stop – the pump shuts off when the receiving tank is full or if no flow is detected for 30 seconds
fluid level sensor – monitors the liquid level in the receiving tank and minimizes the risk of overflow
6 V DC power supply via 4 AA batteries – ensures device portability (batteries not included)

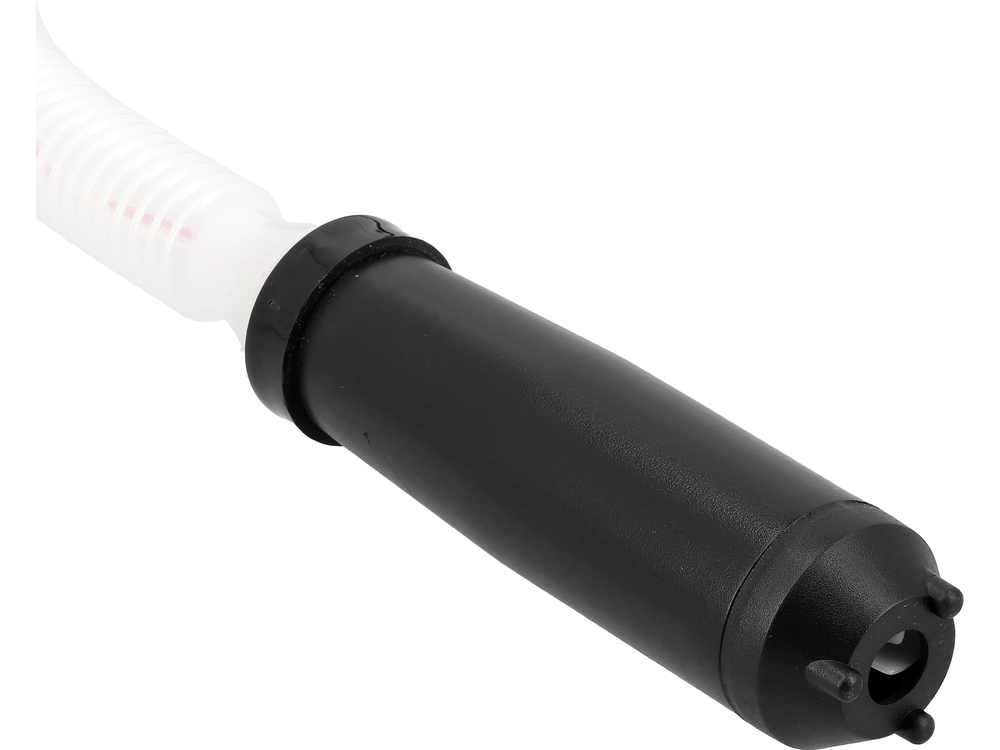

flexible 59 cm suction hose – facilitates access to tanks and fluid extraction
130 cm discharge hose – ensures convenient fluid transfer to the receiving tank

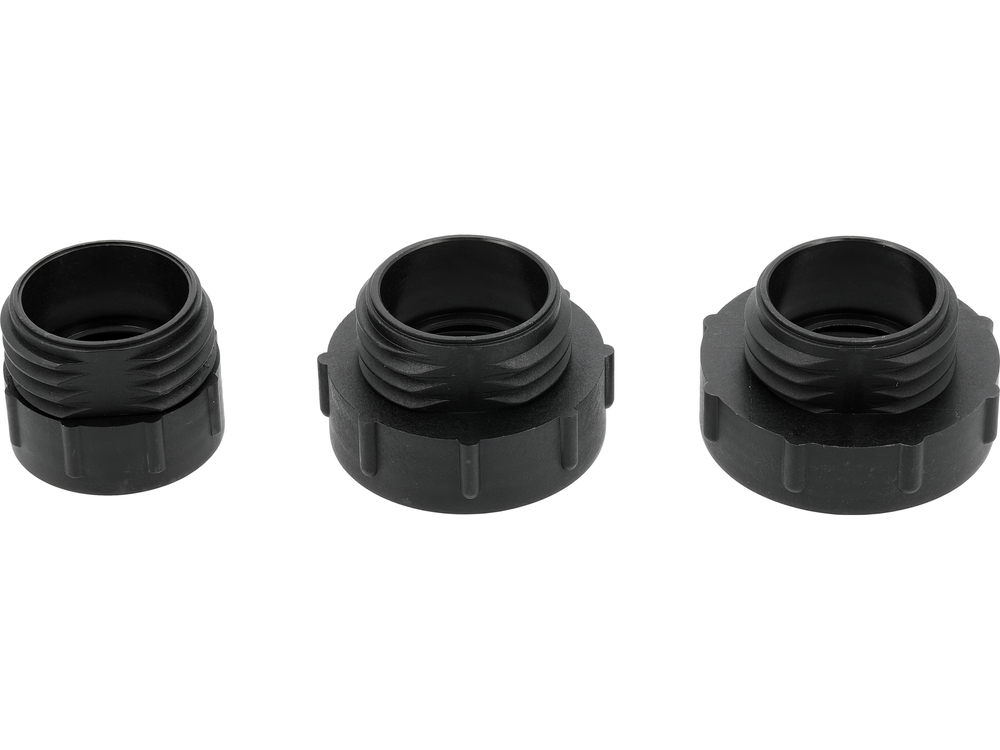

3 adapters (diameters: 1.8", 2.3", and 2.5") – allow for compatibility with various tank openings

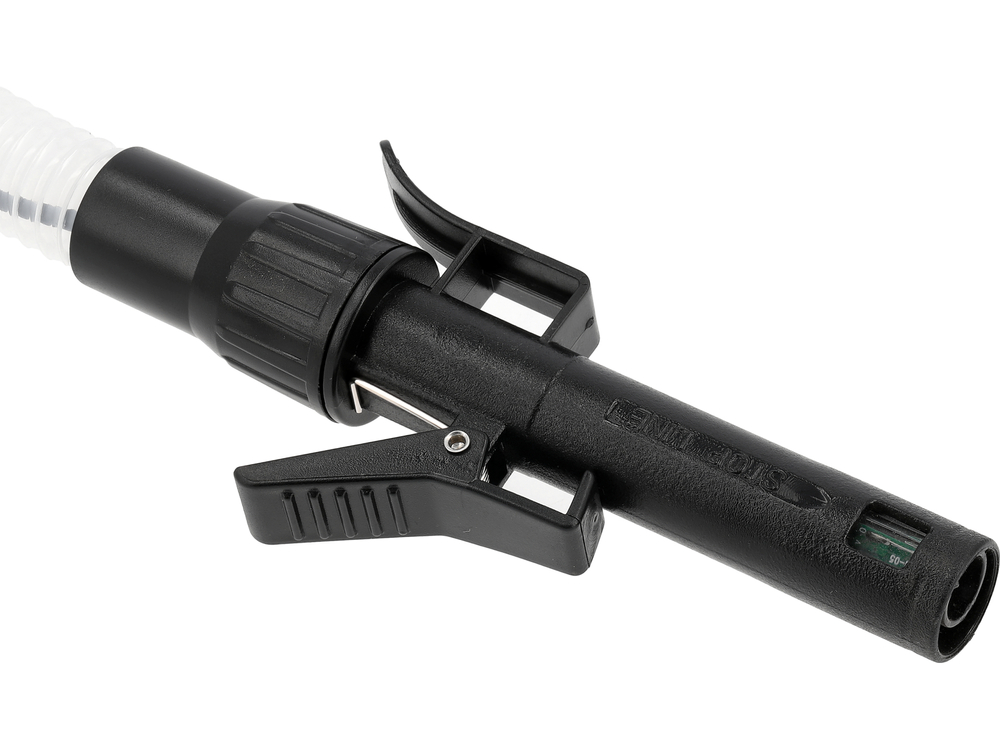

discharge hose clip – stabilizes the hose tip during operation
housing and hoses made of PP, PVC, and EVA materials – suitable for use with specific operating fluids
compact and lightweight design (0.6 kg) – facilitates transport and storage
Fluid compatibility:
methanol
ethanol
AdBlue® fluid
baking soda solution
windshield washer fluids (especially ethanol-based)
brake cleaner
non-potable water
Technical specifications:
power supply: 6 V DC / 4 AA batteries (not included)
flow rate: 10 l/min
suction hose length: 59 cm
discharge hose length: 130 cm cm
adapter diameters: 1.8" (4.57 cm), 2.3" (5.84 cm), 2.5" (6.35 cm)
material: PP + PVC + EVA
weight: 0.6 kg
automatic shut-off: yes
liquid level sensor: yes

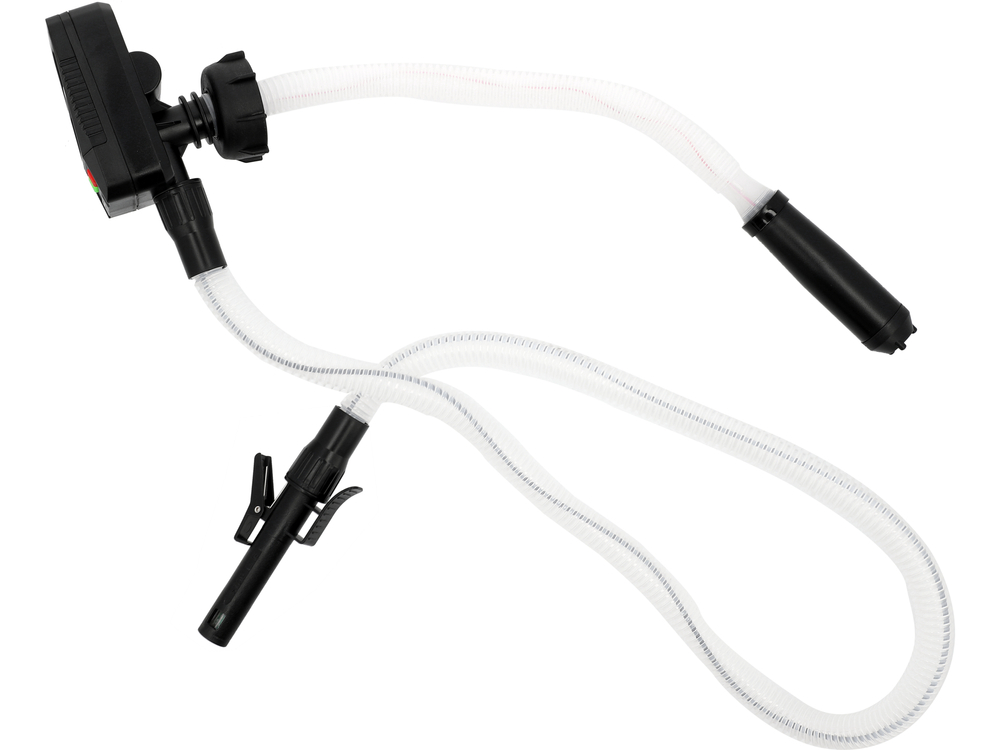

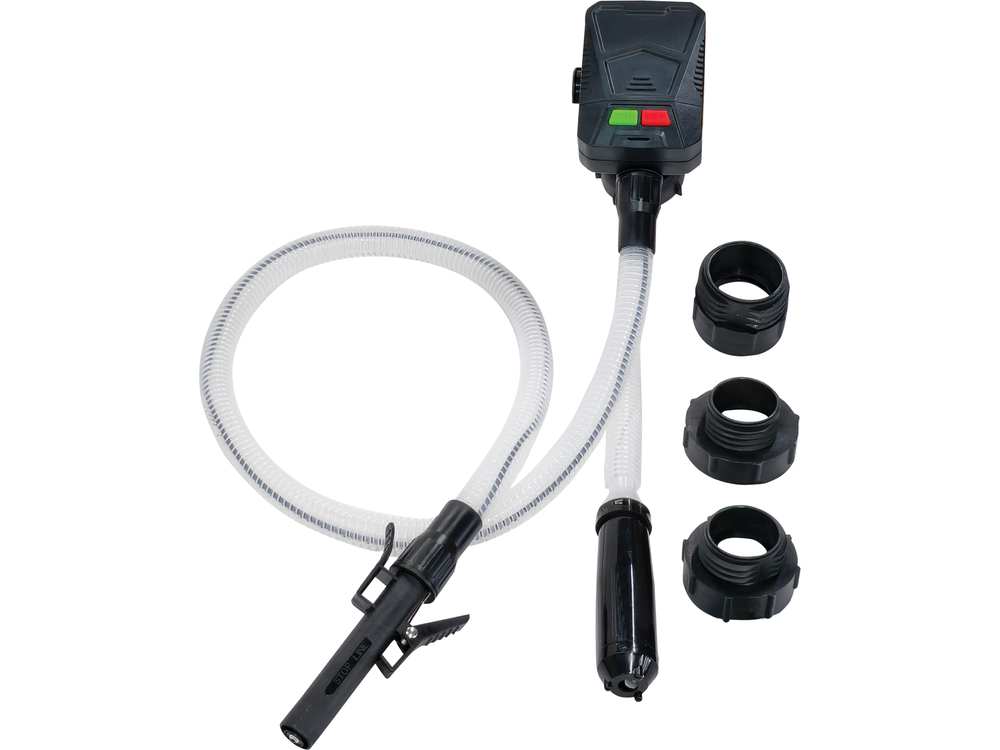

Included: pump, suction hose with nozzle, discharge hose with nozzle, 3 adapters, mounting clip.
Note: Before starting operation, select the adapter that fits the tank opening and ensure the suction hose is securely connected to the pump and fully submerged in the liquid being transferred.
