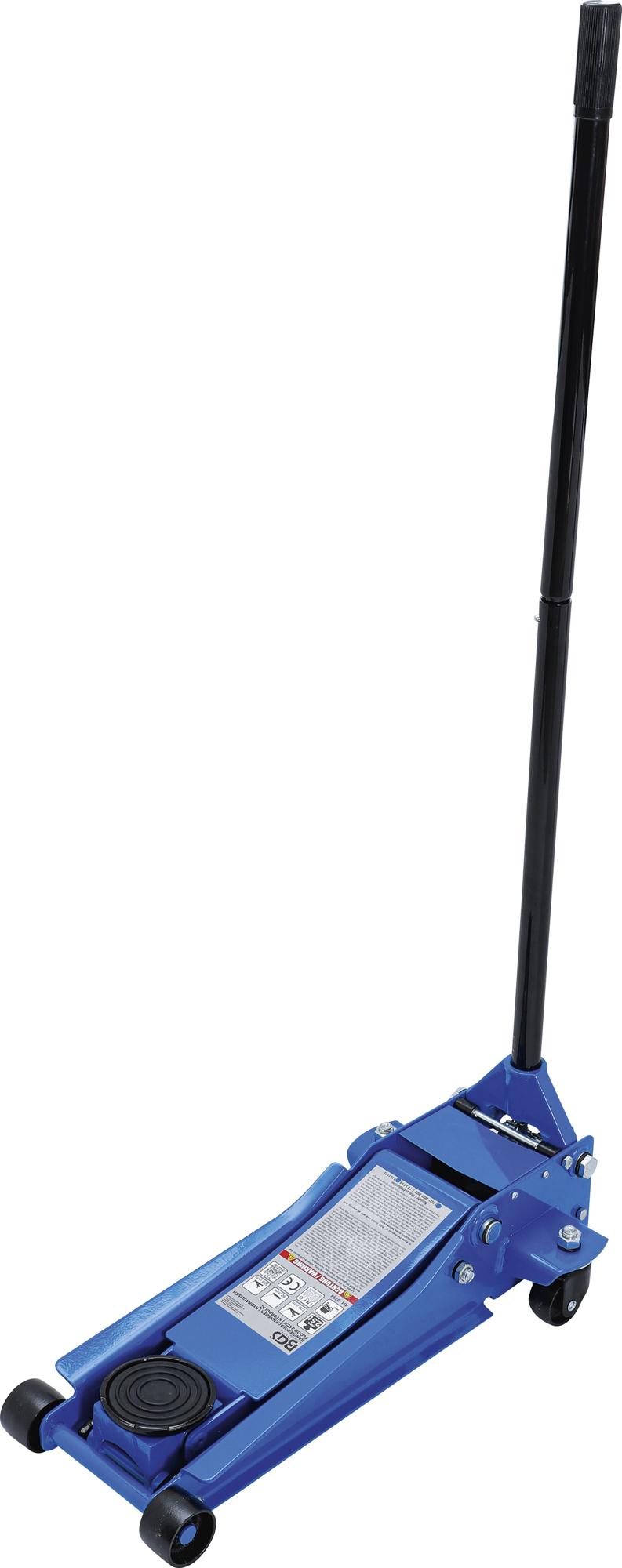

Description
steel construction
easy to manoeuvre and transport
low height clearance, especially suitable for lowered racing cars
lifting height (rated load): 360 - 508 mm
overall dimension (lowest position): 720 x 326 x 150 mm
front wheel dimensions: Ø 60 x 43 mm
rear wheel dimensions: Ø 60 x 30 mm
lever dimensions: Ø 32 x 610 x 2.5 mm / Ø 32 x 615 x 1.5 mm
lever total length: 1173 mm
lifting pad diameter: 110 mm
lifting beam thickness: 5 mm
side plate thickness: 5 mm

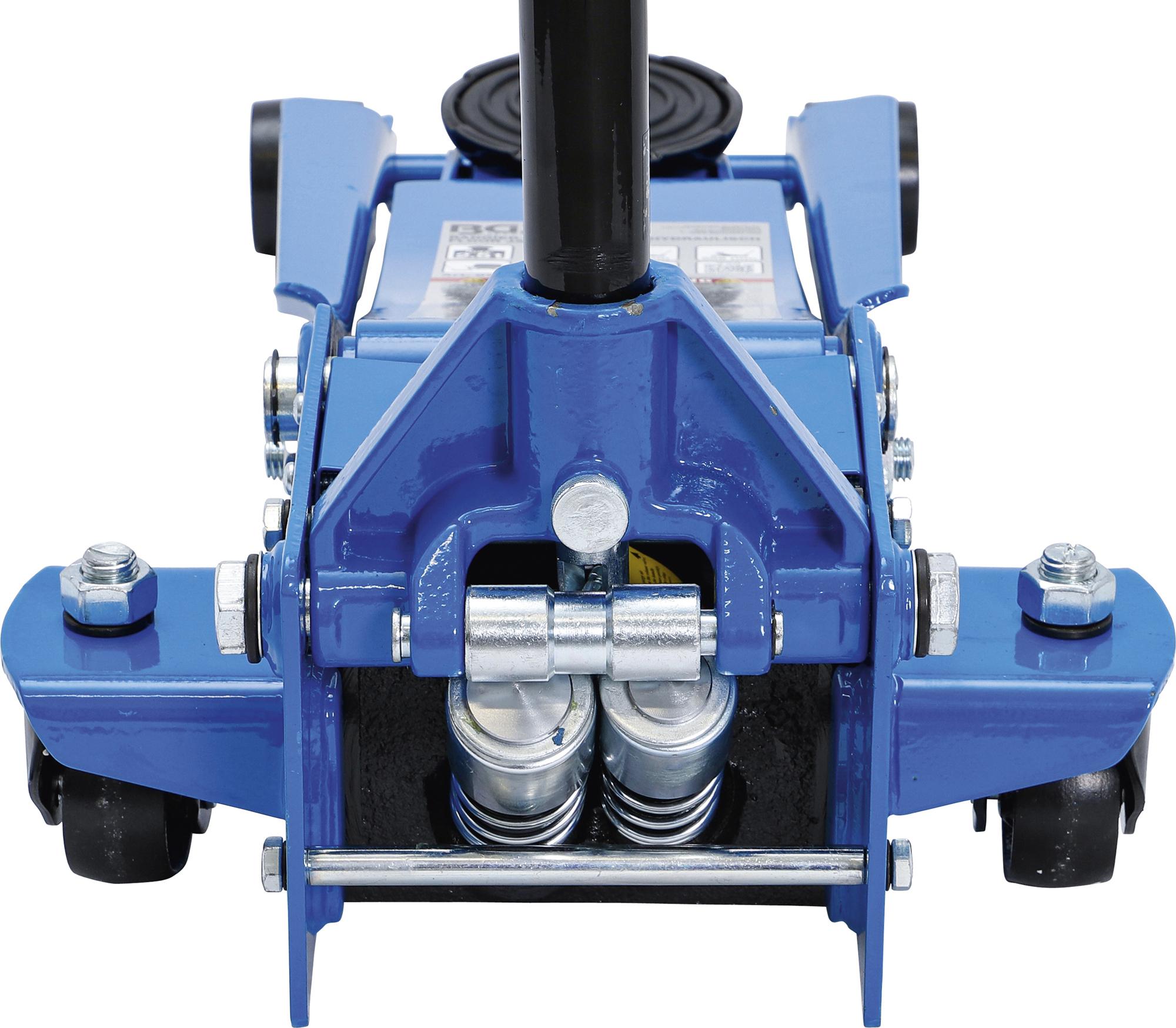

diameter of pump piston shaft: Ø 22 / Ø 15 mm
diameter of working piston shaft: Ø 30 mm
Technical data
Gross weight 32800 g
Weight 31,5 kg
Max. height 508 mm
Min. height 80 mm
Rated load capacity 2,5 t
