Description:
Brand:
Description
Technical data

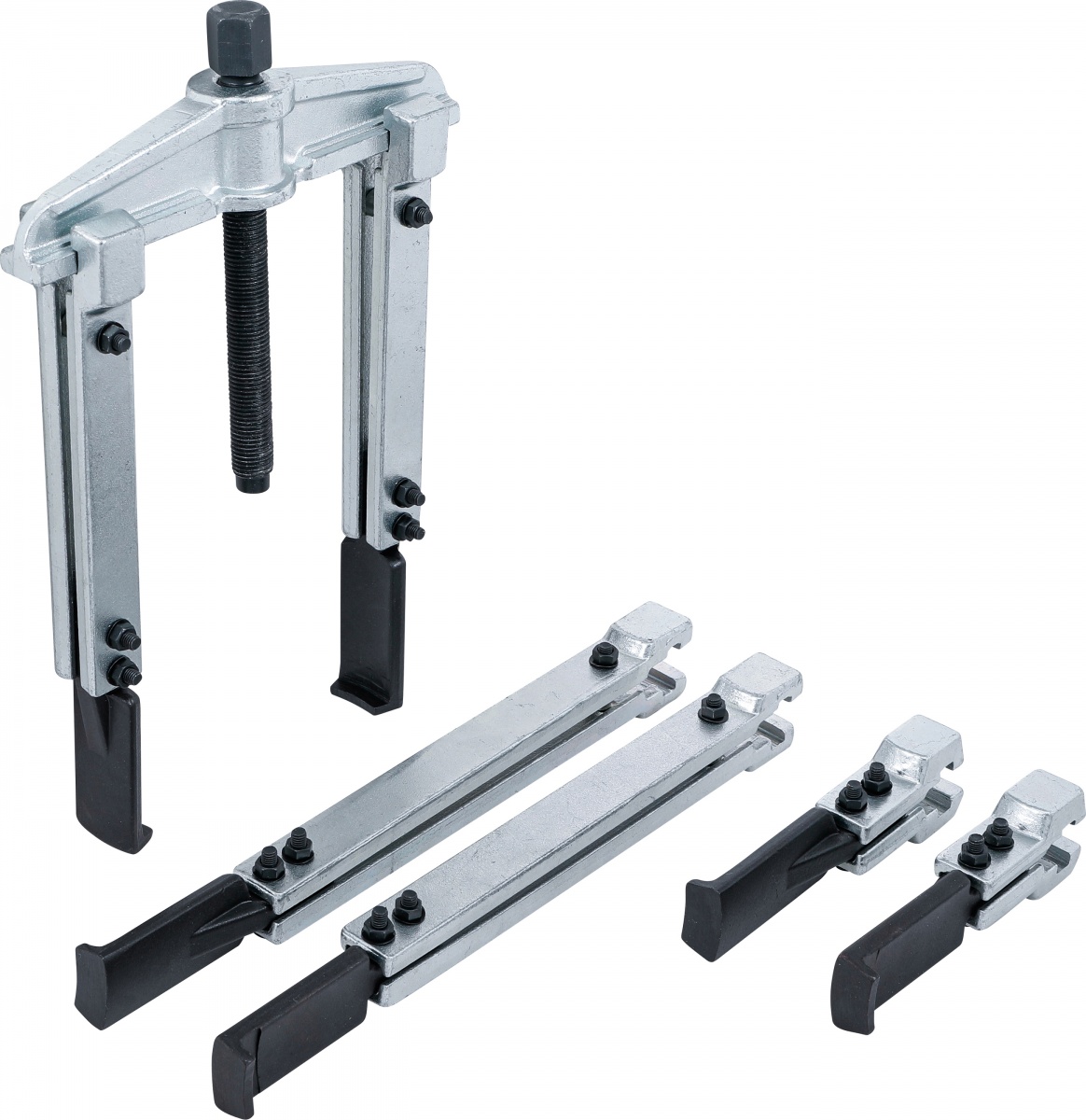

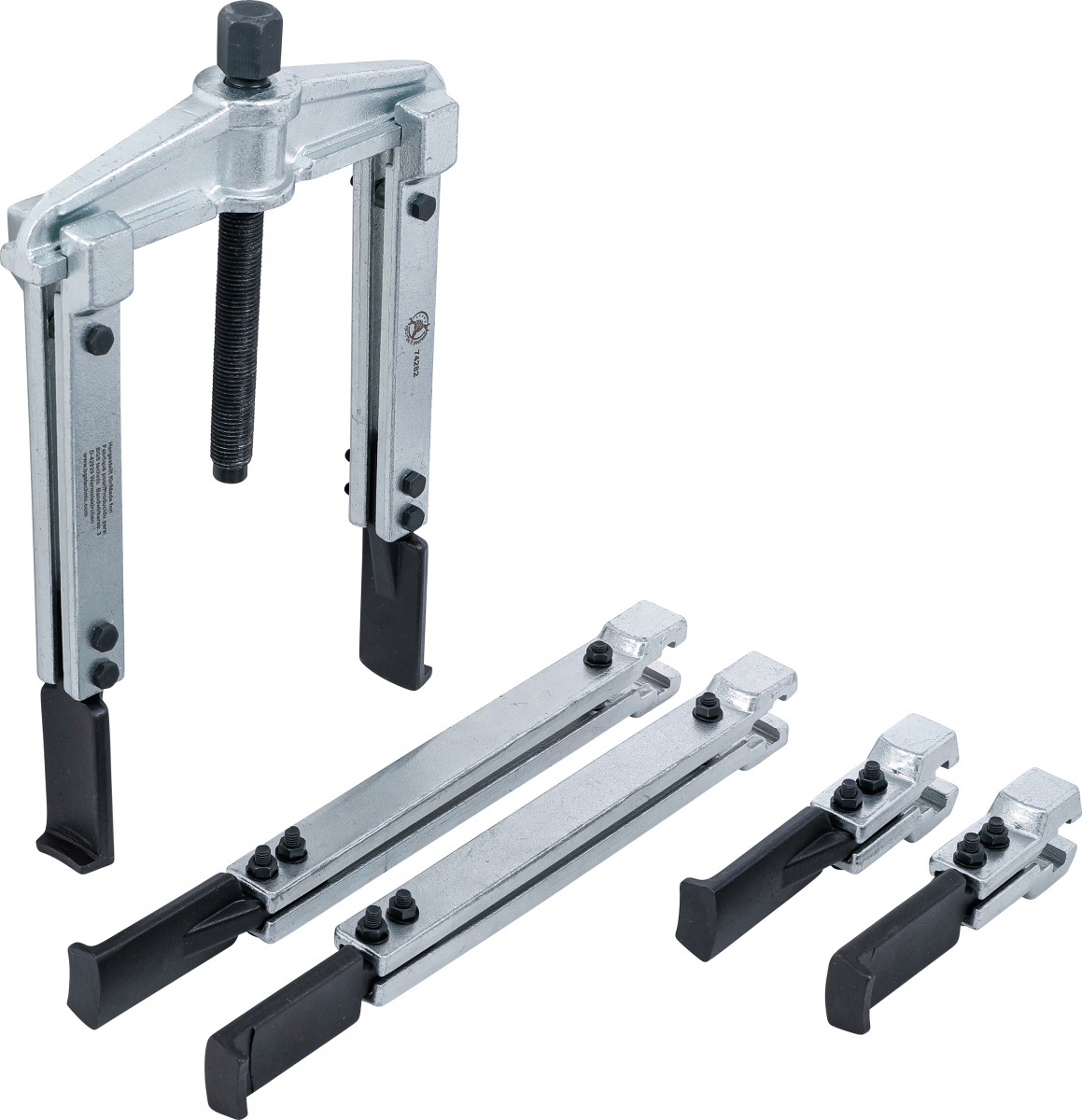

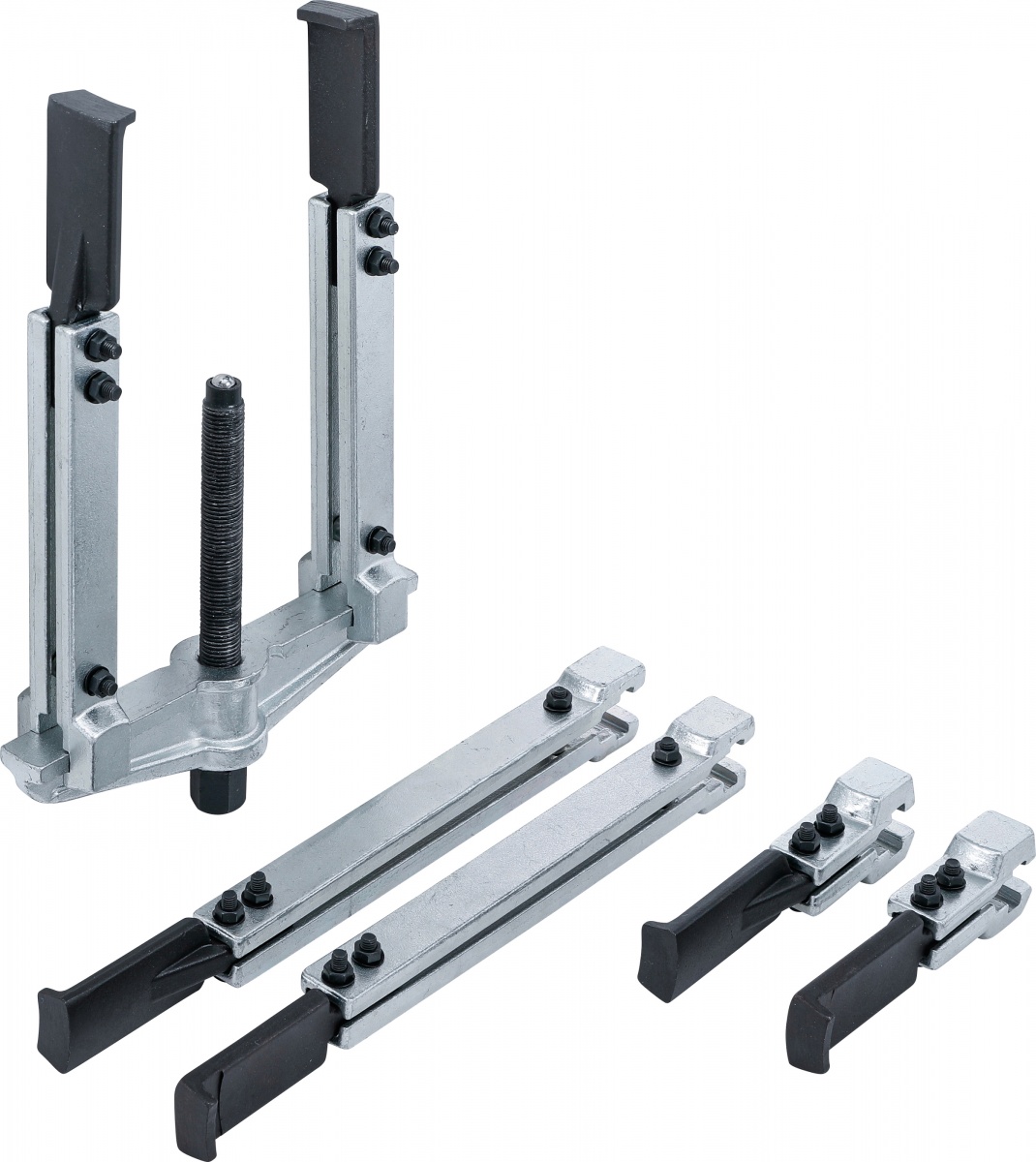

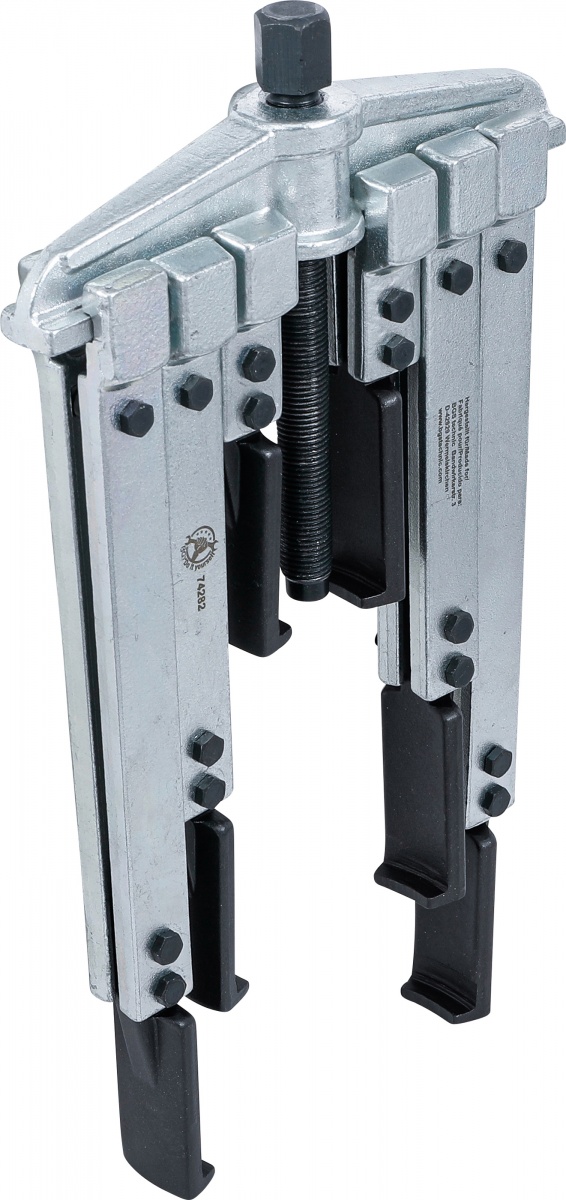

through reversing the puller legs internal and external applications are possible
puller legs in different length
puller legs are suitable for 2-leg crossbars
slim hooks
perfect for hard to reach areas
extremely robust spindle with inductively hardened thread

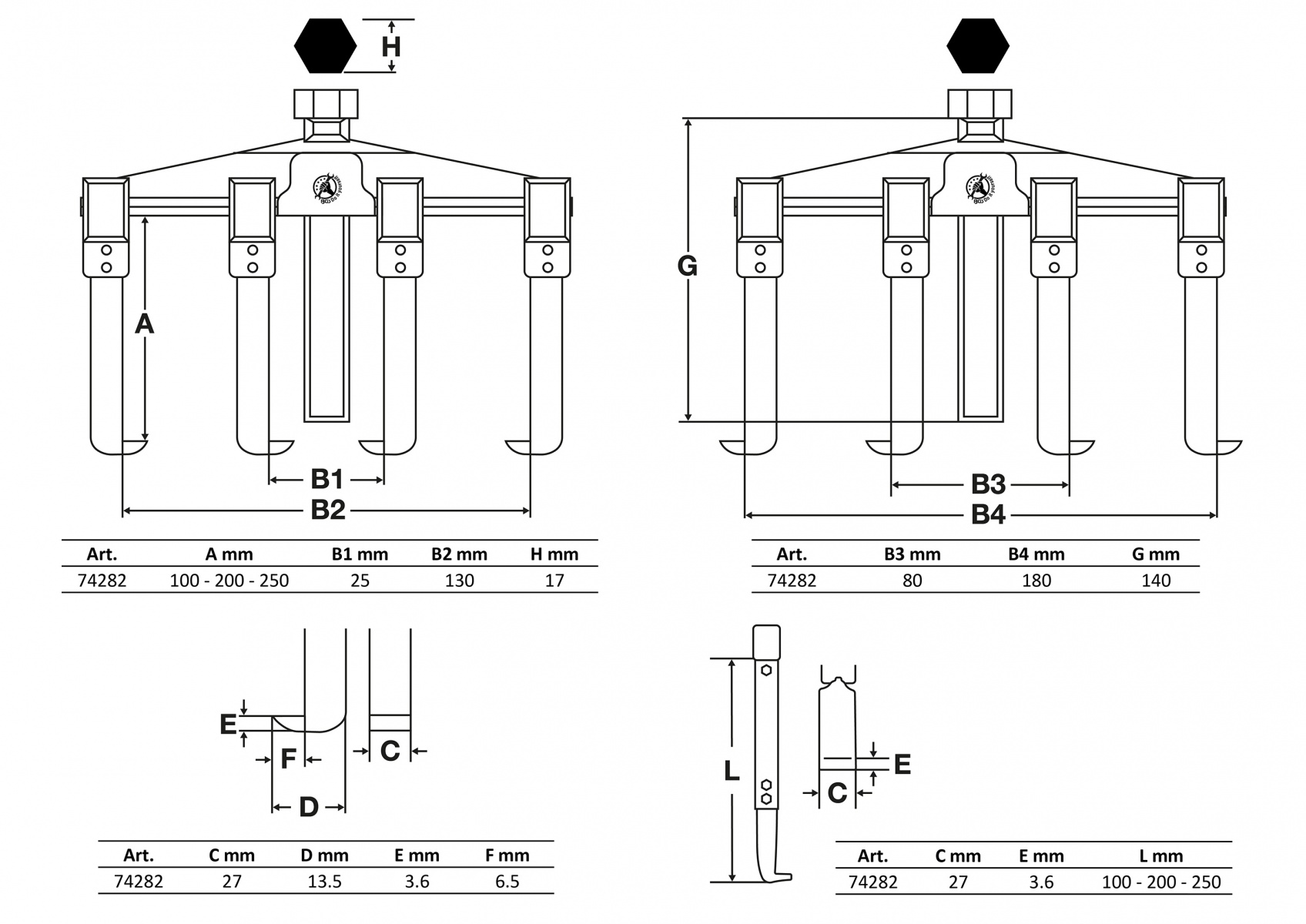

hook foot thickness at the top: 3.6 mm
hooked footh: 6.5 mm
hook length: 13.5 mm
hex drive size: 17 mm
clamping depth: 100 - 200 - 250 mm
max. clamping width (external): 180 mm
min. clamping width (external): 80 mm
max. clamping width (internal): 130 mm
min. clamping width (internal): 25 mm
spindle length: 140 mm
