Description
for checking and setting the engine timing when e.g. replacing the timing belt
suitable for the following Opel / Vauxhall models:
Cascada (15-17)
Insignia / Country Tourer (14-17)
Zafira C Tourer (14-17) with 2.0 CDTi engine
EcoFLEX engine (engine code: LFS/B20DTH)

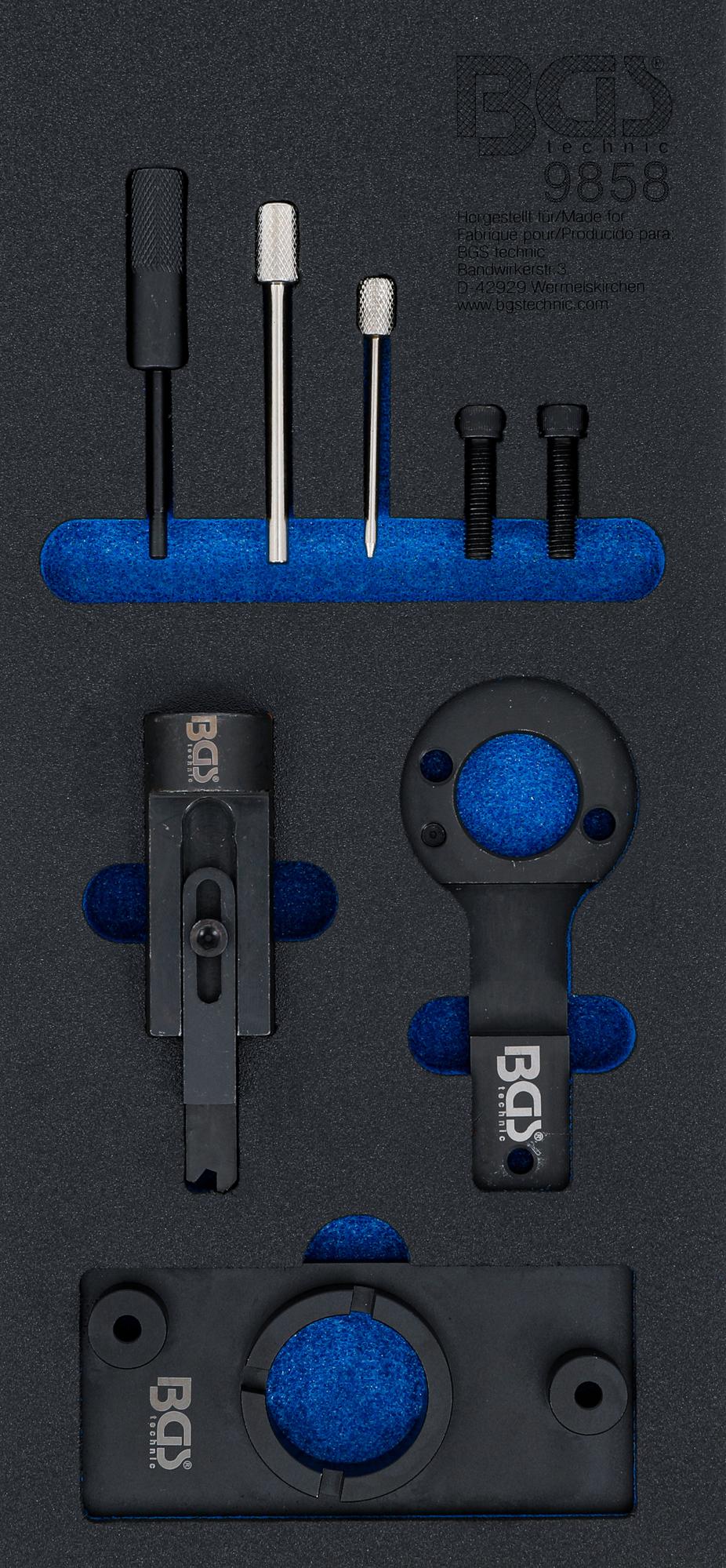

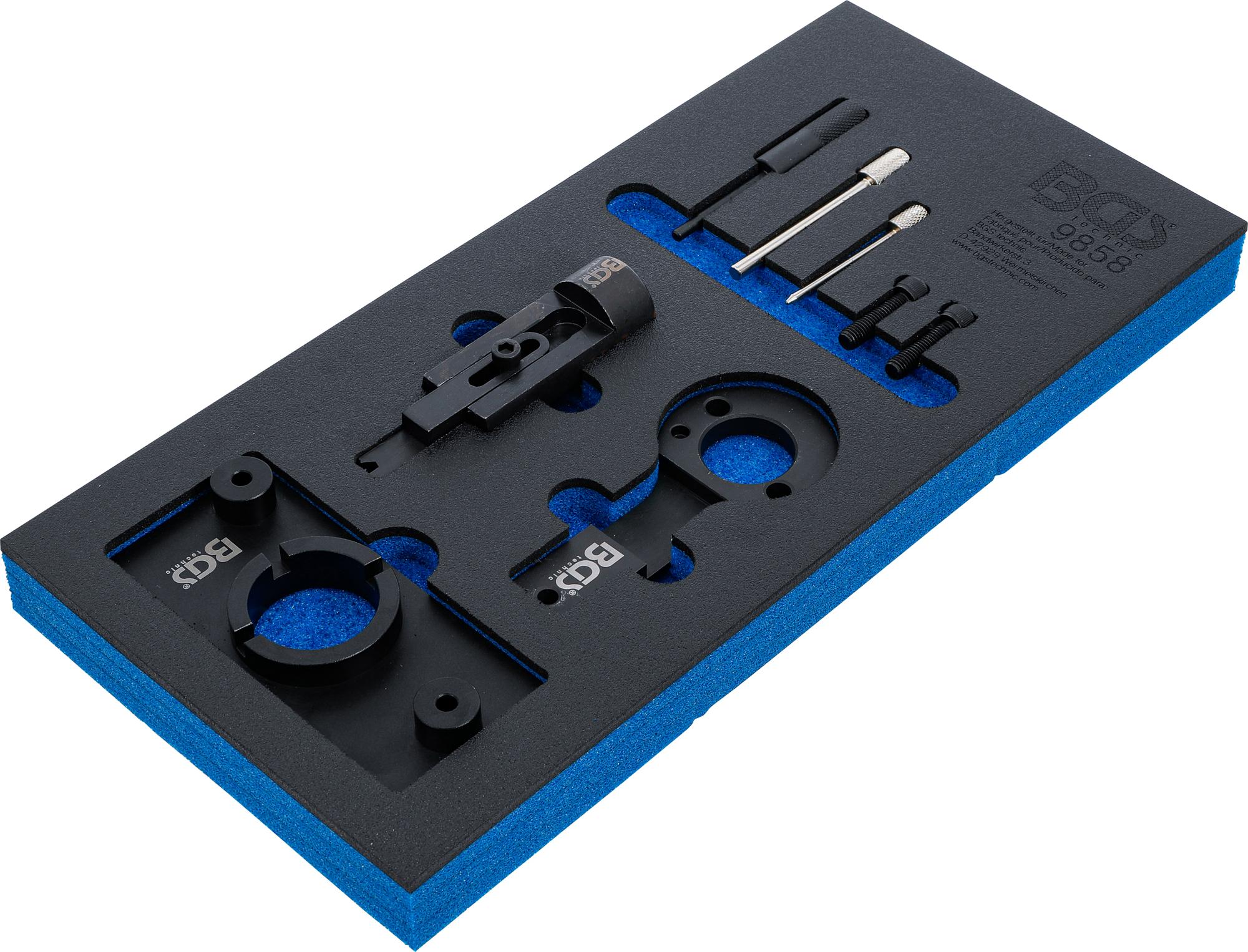

scope of delivery:
high-pressure fuel pump sprocket locking tool, to be used as OEM EN-51413
auxiliary drive belt tensioner locking pin, to be used as OEM EN-955-2
crankshaft timing tool, 3-piece, to be used as OEM EN-51412
camshaft locking pin, to be used as OEM EN-51414
crankshaft pulley holding tool (automatic transmission), to be used as OEM EN-51411
Technical data
To be used as OEM1 EN-955-2 | EN-51411 | EN-51412 | EN-51413 | EN-51414 Opel
To be used as OEM2 EN-955-2 | EN-51411 | EN-51412 | EN-51413 | EN-51414 Vauxhall
Length 408 mm
Width 189 mm
Height 32 mm
Gross weight 1260 g
