Description:
Brand:
Description
for adjusting and checking the engine timing
required for e.g. working on valve drive and renewing the cylinder head gasket
suitable for 3.2, 3.5, 4.0, 4.2, 4.4L engines in the following models:
Jaguar XJ8 (97-09), engine AJ26 AC, BC, LC, 1B, 5G, SB
Jaguar XJR (97-09), engine AJ27 KB, CC, MA, 2B, 9G, TB
Jaguar S-Type (99-08), engine AJ28 KC, CE, MB, 3B, HB, PC
Jaguar XF (08-09), engine AJ34 3.5, DC, NB, 1G, HG
Jaguar XK8 (97-09), engine RB, EC, NC
Jaguar XKR (98-09), engine GB, PA
Range Rover (new) (06-09), 4.2L engine (428 HP)
Range Rover (05-09), 4.2L engine (428 HP)
Land Rover Discovery III (05-09)

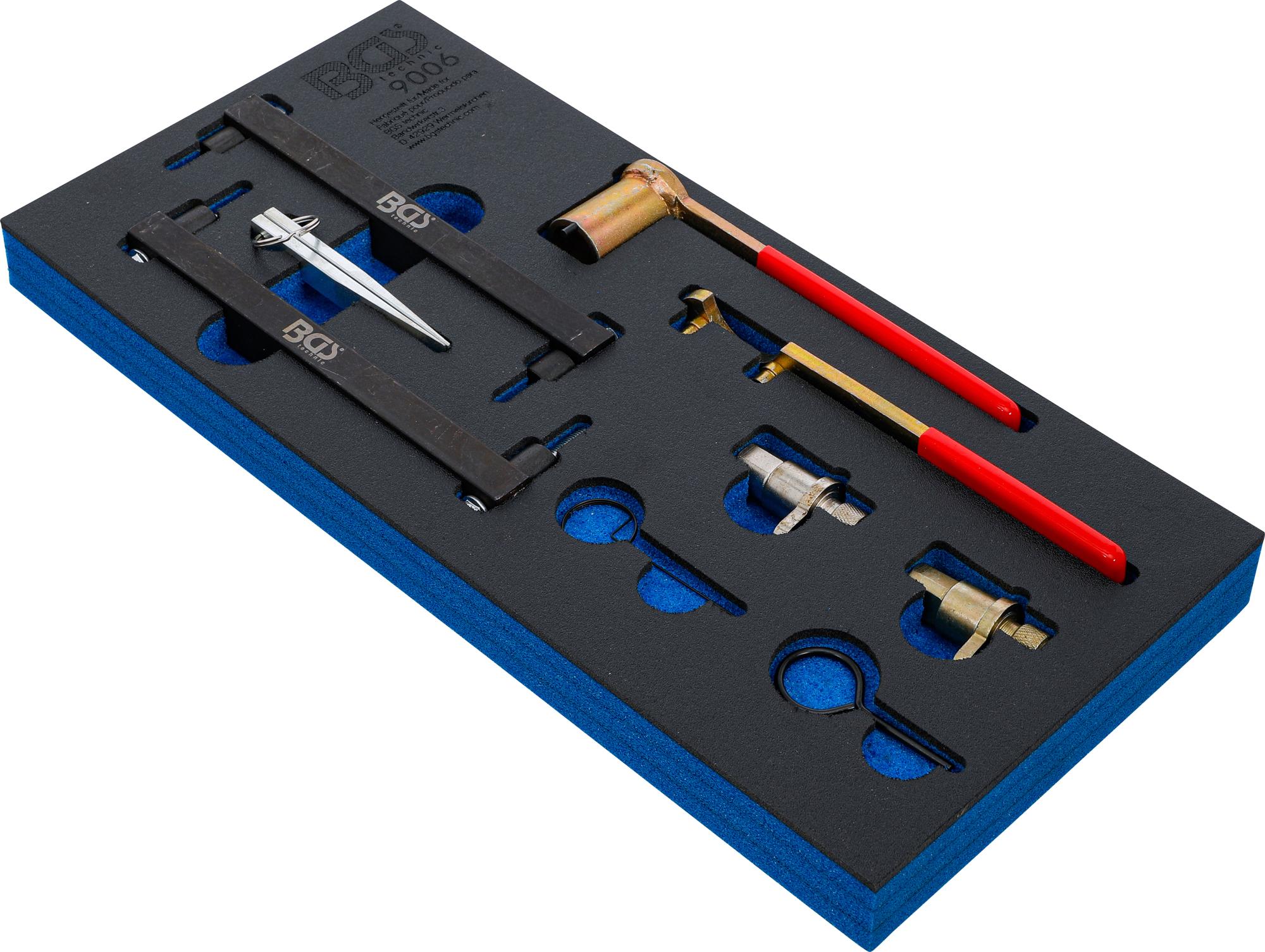

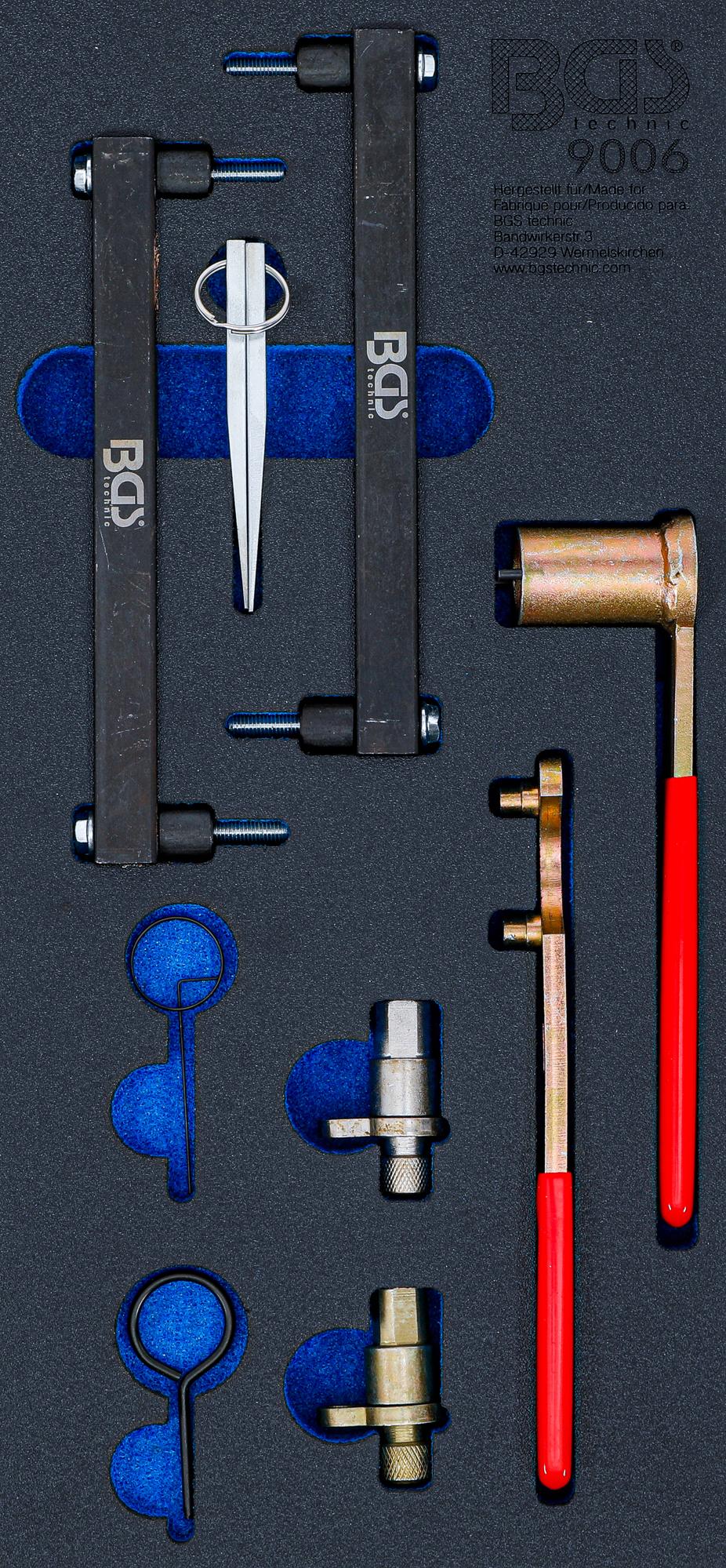

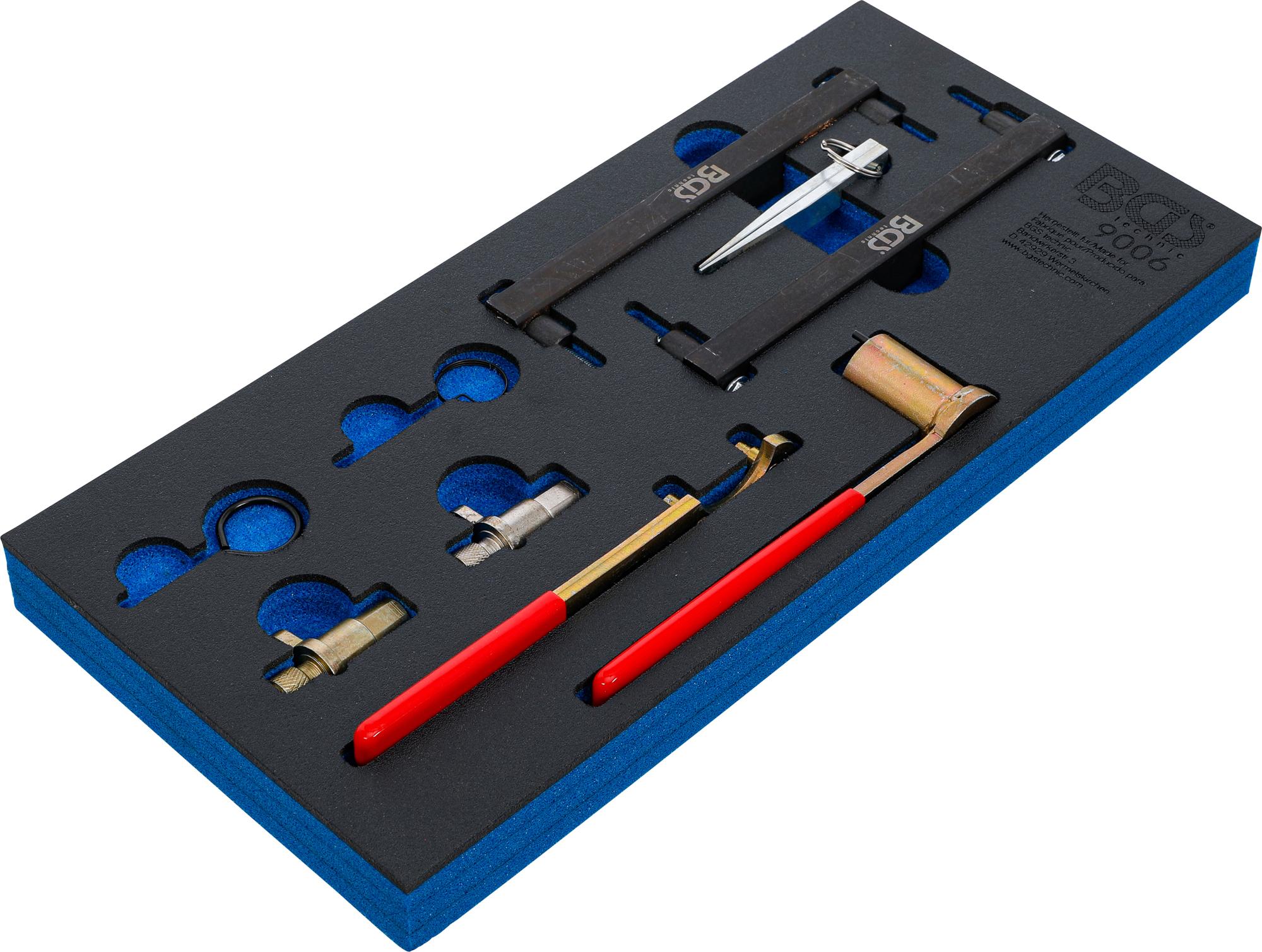

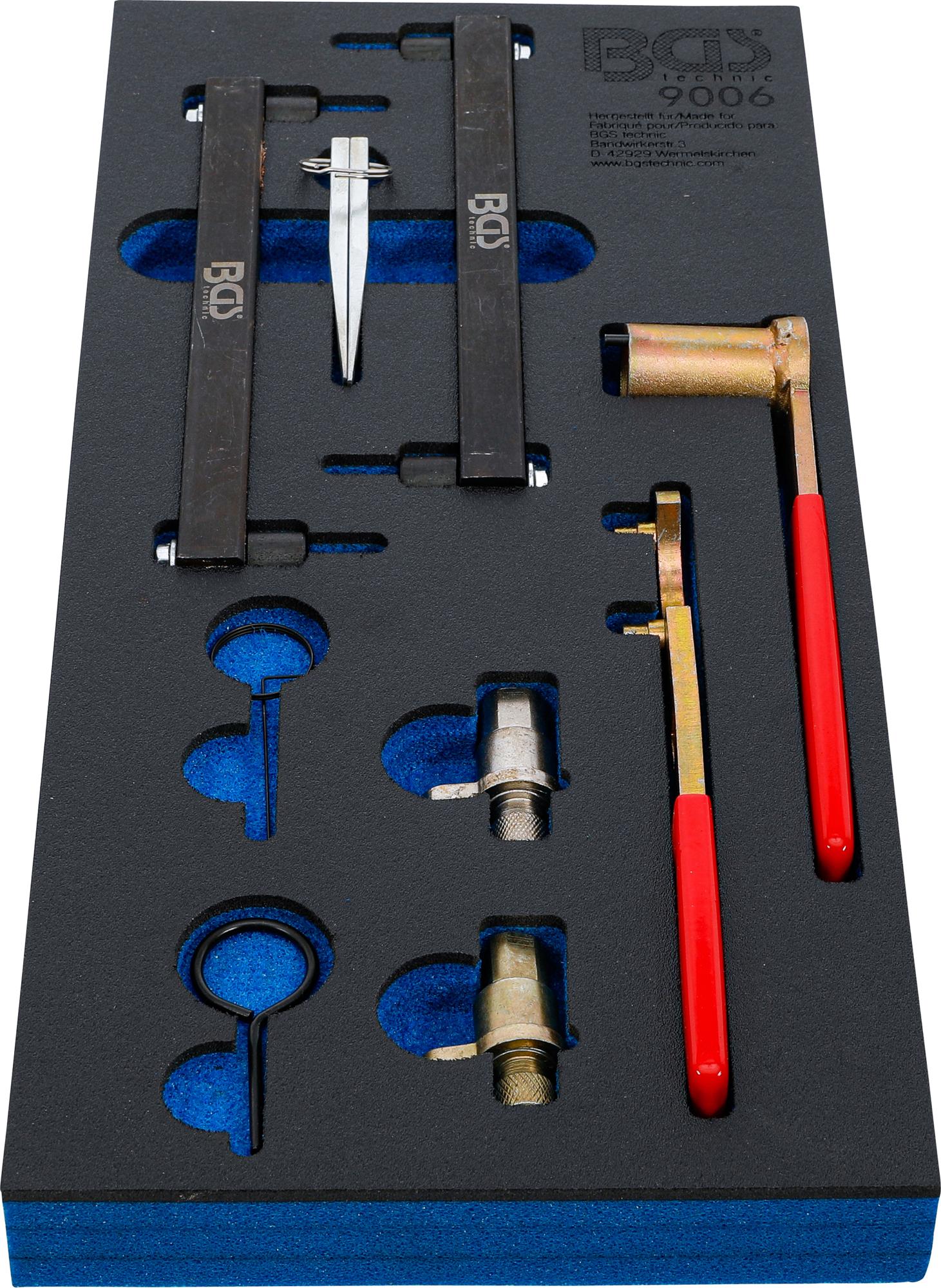

scope of delivery:
flywheel locking pin (silver), to be used as OEM 303-531
flywheel locking pin (gold), to be used as OEM 303-645
2 camshaft setting plates, to be used as OEM 303-530
camshaft gear holding tool, to be used as OEM 303-532
2 tensioner wedges, to be used as 303-533
primary tensioner locking pin, to be used as OEM T40011
setting tool for VVT unit, to be used as OEM 303-654
tensioner depress pin
Technical data
Gross weight 2050 g
To be used as OEM1 303-531 | 303-645 | 303-530 | 303-532 | 303-533 | 303-654 Jaguar
To be used as OEM2 303-531 | 303-645 | 303-530 | 303-532 | 303-533 | 303-654 Land Rover
To be used as OEM3 T40011 Audi
To be used as OEM4 T40011 Seat
To be used as OEM5 T40011 Skoda
To be used as OEM6 T40011 Volkswagen
