Description
for replacing the cam belt on Ford Focus 1.6 TI-VCT engines, engine code HXDA (2003-2007) and 2.0 TDCI with engines codes G6DA, G6DB, G6DC 2003-2007

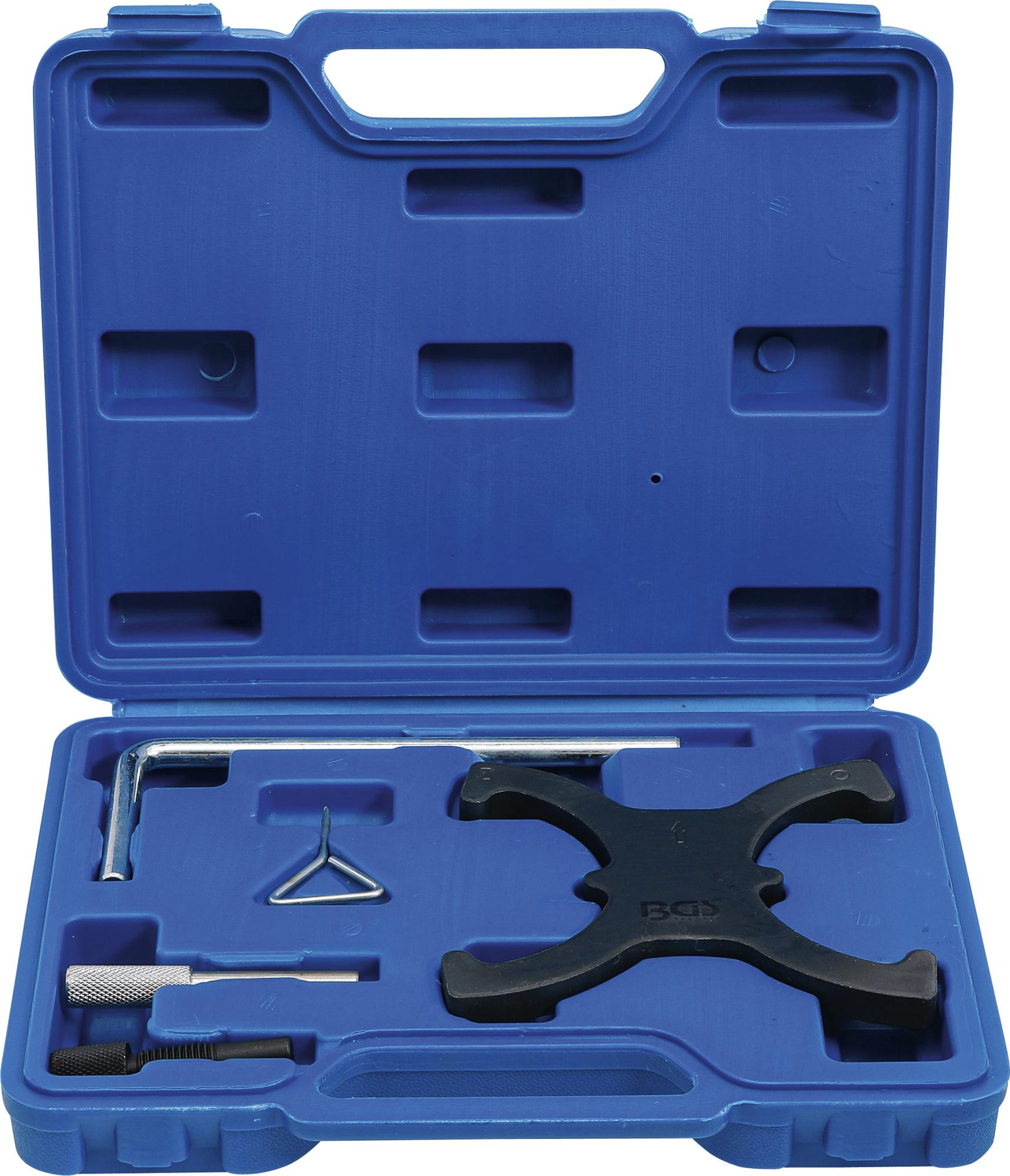

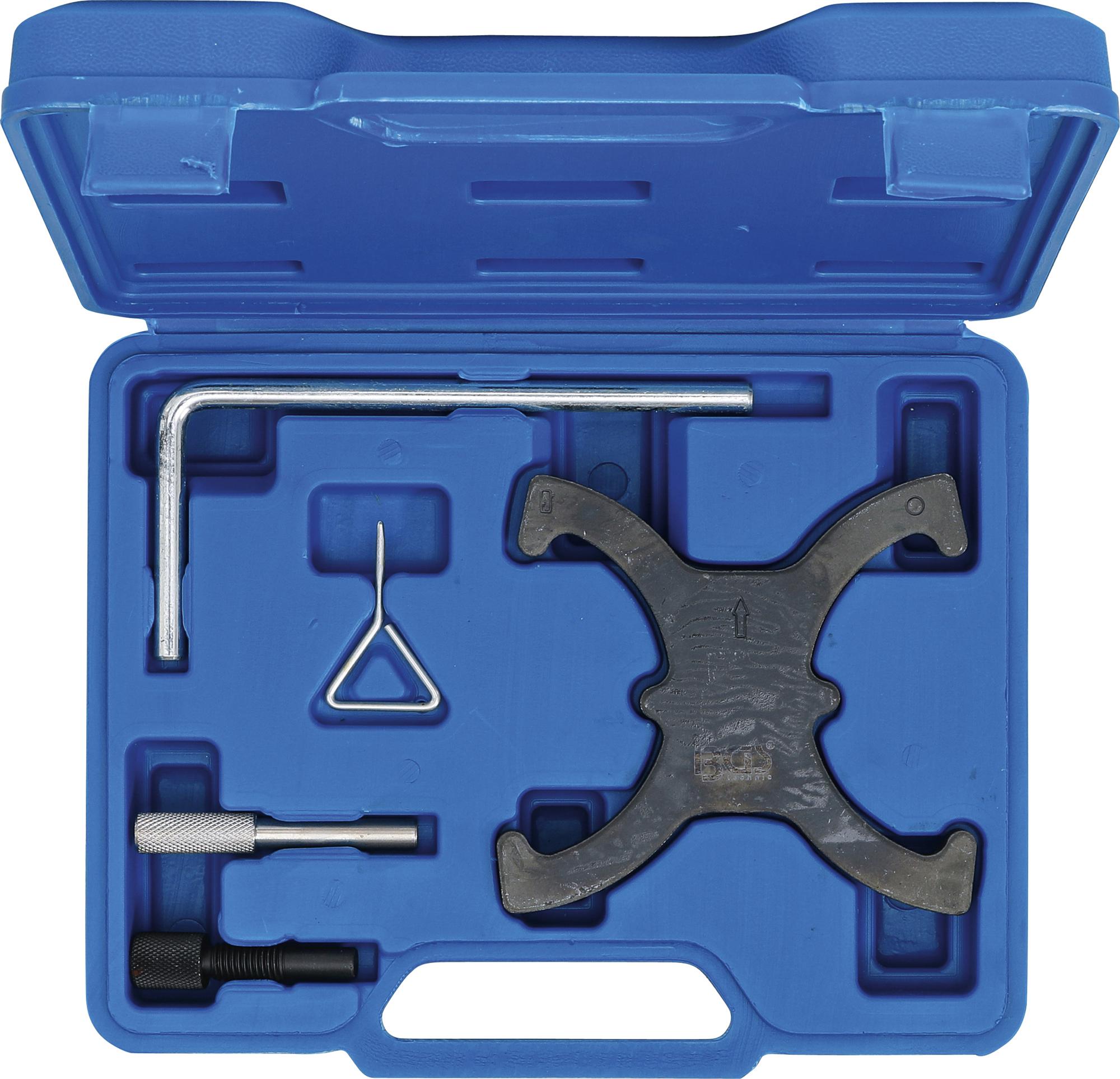

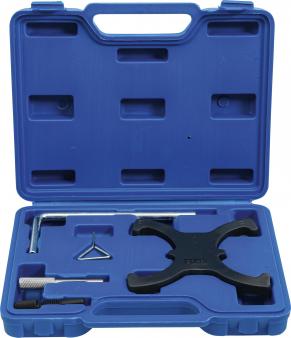

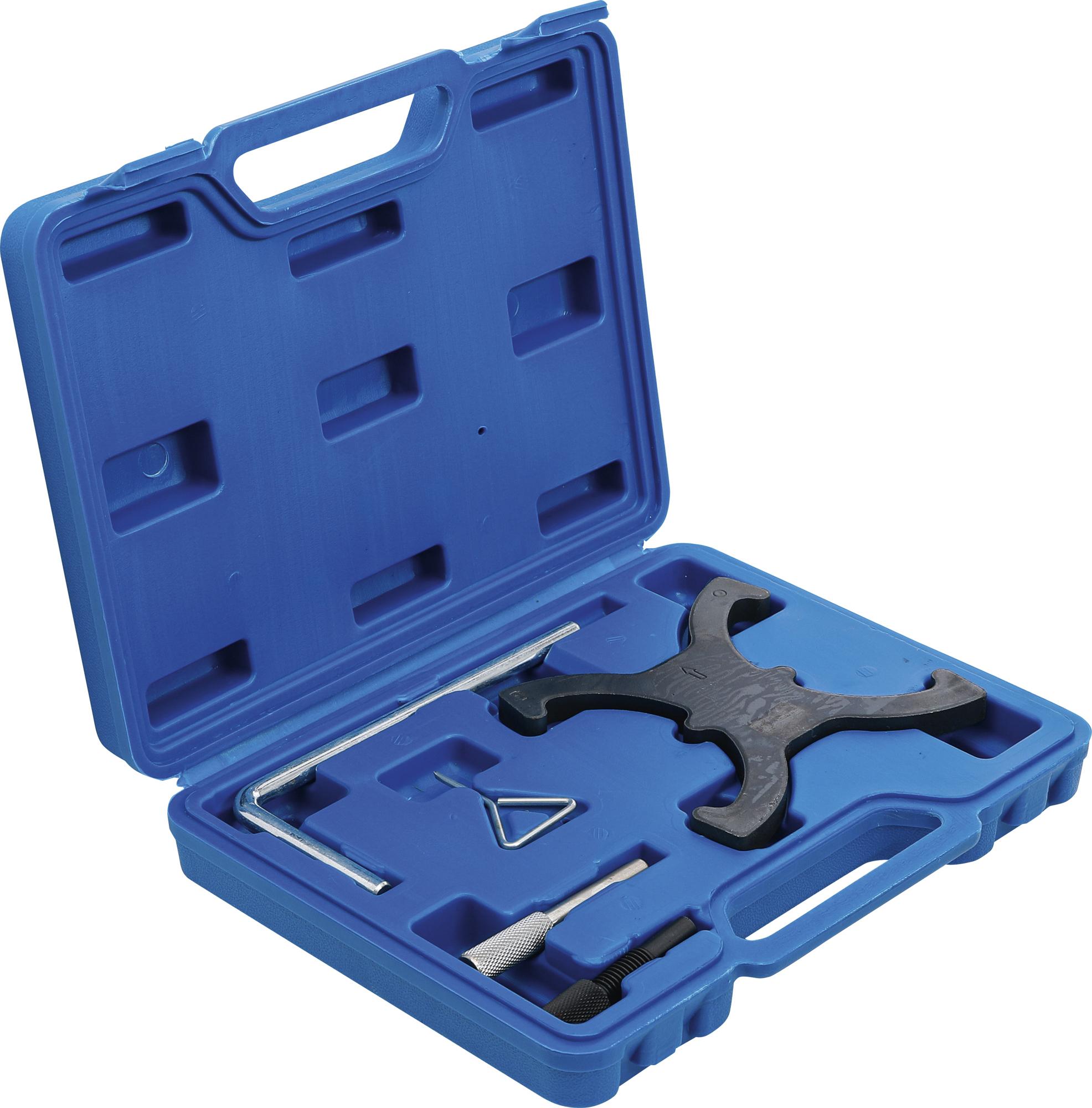

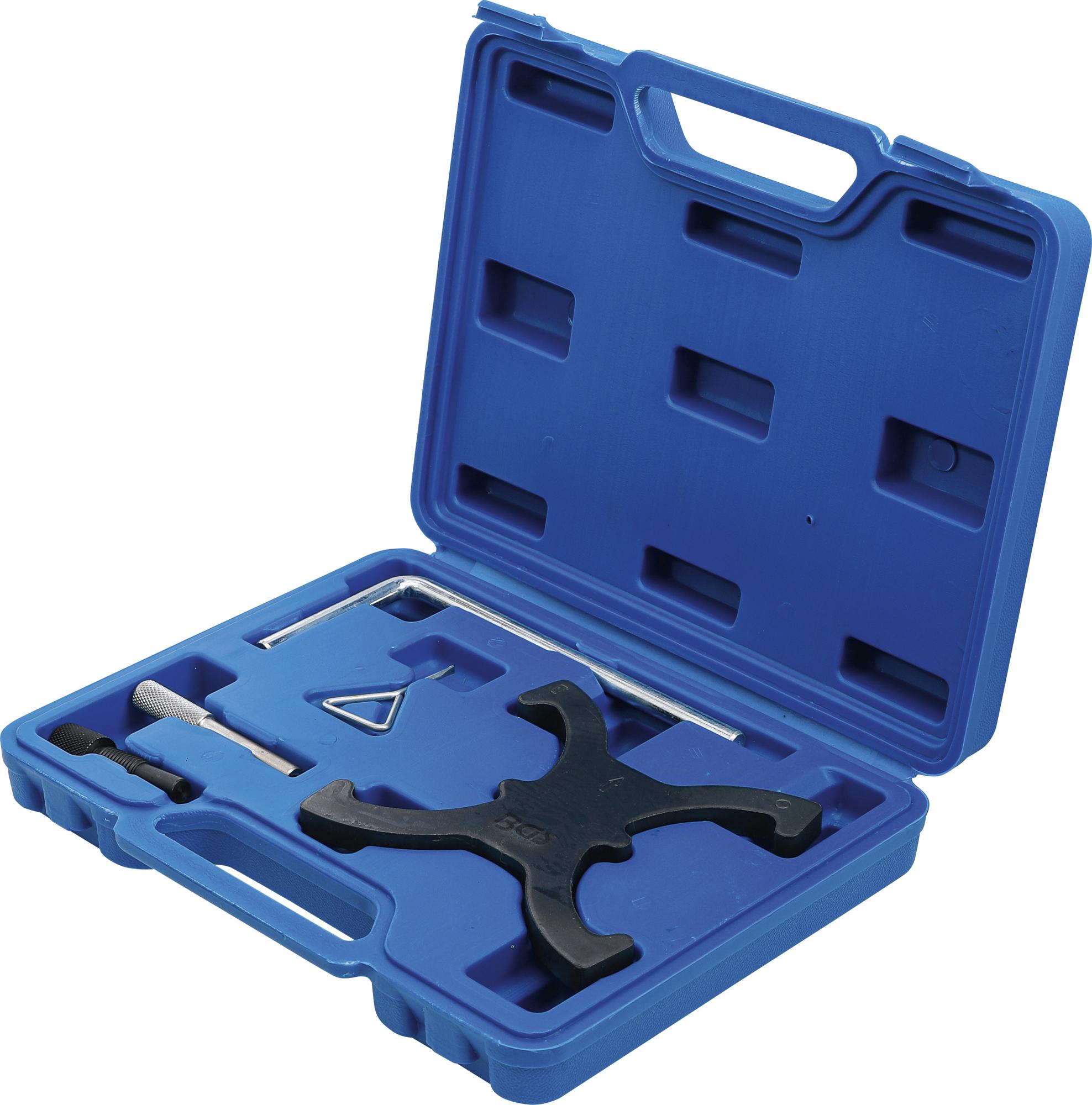

includes the following tools:
camshaft sprocket holding tool to be used as OEM 303-1097
tensioner pulley locking pin to be used as OEM 303-1054
flywheel timing pin to be used as OEM 303-1059, 303-1270, 0188X, 999-7121
crankshaft timing pin to be used as OEM 303-748, 999-7152, 21-259
camshaft sprocket locking tool to be used as OEM 303-735, 999 7122, 0187B,0189B, 0132AJ1, 21-263, 0188M, MOT 1430, 303-1277, 0194B
Technical data
To be used as OEM1 303-1097 | 303-1054 | 303-1059 | 303-1270 | 303-748 | 303-735 | 303-1277 | 21-259 | 21-263 Ford
To be used as OEM2 0188X | 0187B | 0189B | 0188M | 0194B | 0132AJ1 Peugeot
To be used as OEM3 0188X | 0187B | 0189B | 0188M | 0194B | 0132AJ1 Citroen
To be used as OEM4 MOT1430 Renault
To be used as OEM5 9997121 | 9997152 | 9997122 Volvo
