Description:
Brand:
suitable for daily workshop use
for checking and adjusting the engine timing
1.0L EcoBoost Motor with timing chain:
Ford C-MAX (2018-2020)
Ford Grand C-MAX (2018-2020)
Ford Fiesta (2019-)
Ford Fiesta Active (2018-)
Ford Focus (2018-)
Ford Focus Active (2019-)
Ford Puma (2019-)
Ford Tourneo Connect (2018-2021)
Ford Transit Connect (2018-2021)
Ford Transit Connect Active (2021-)

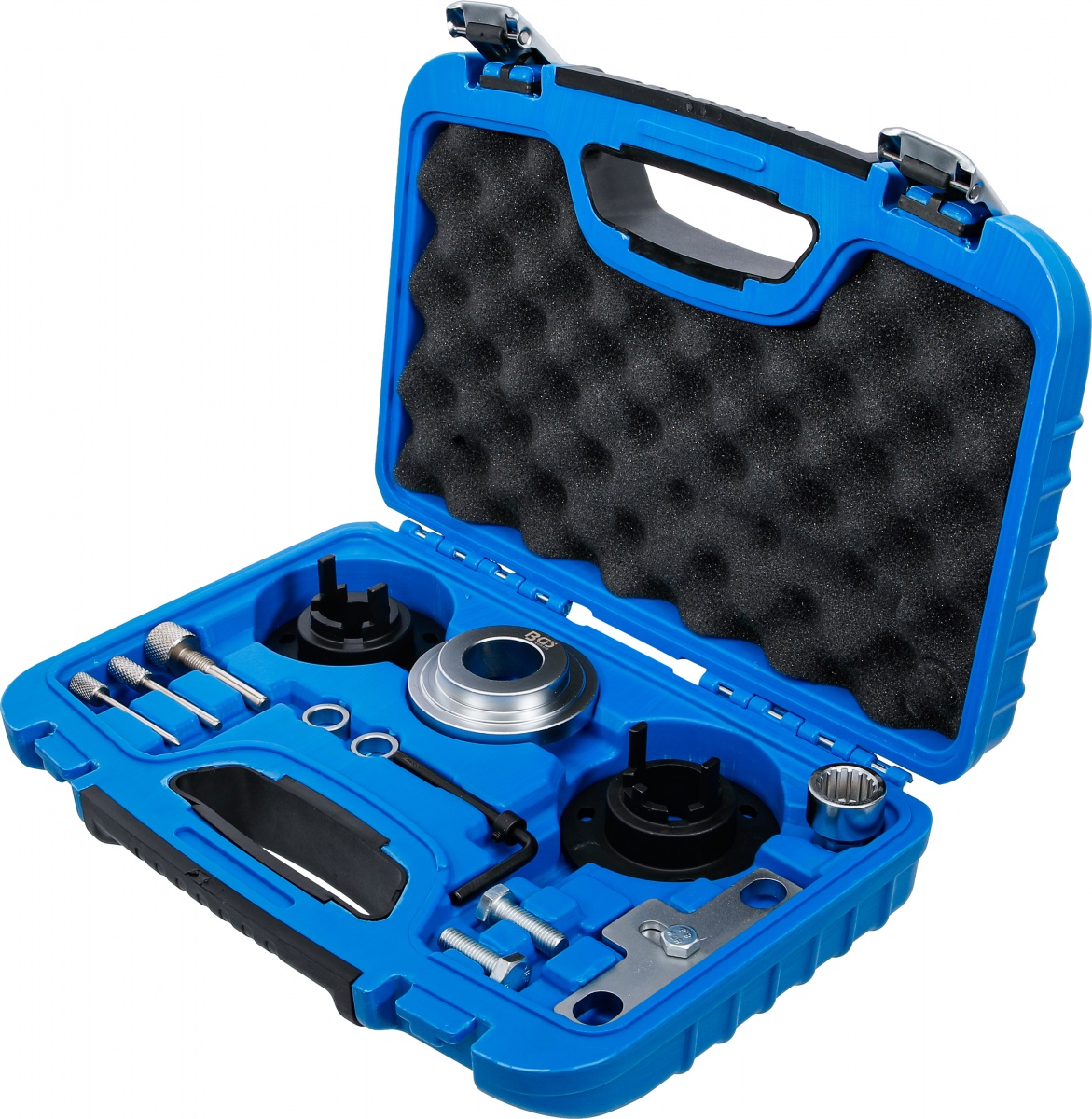

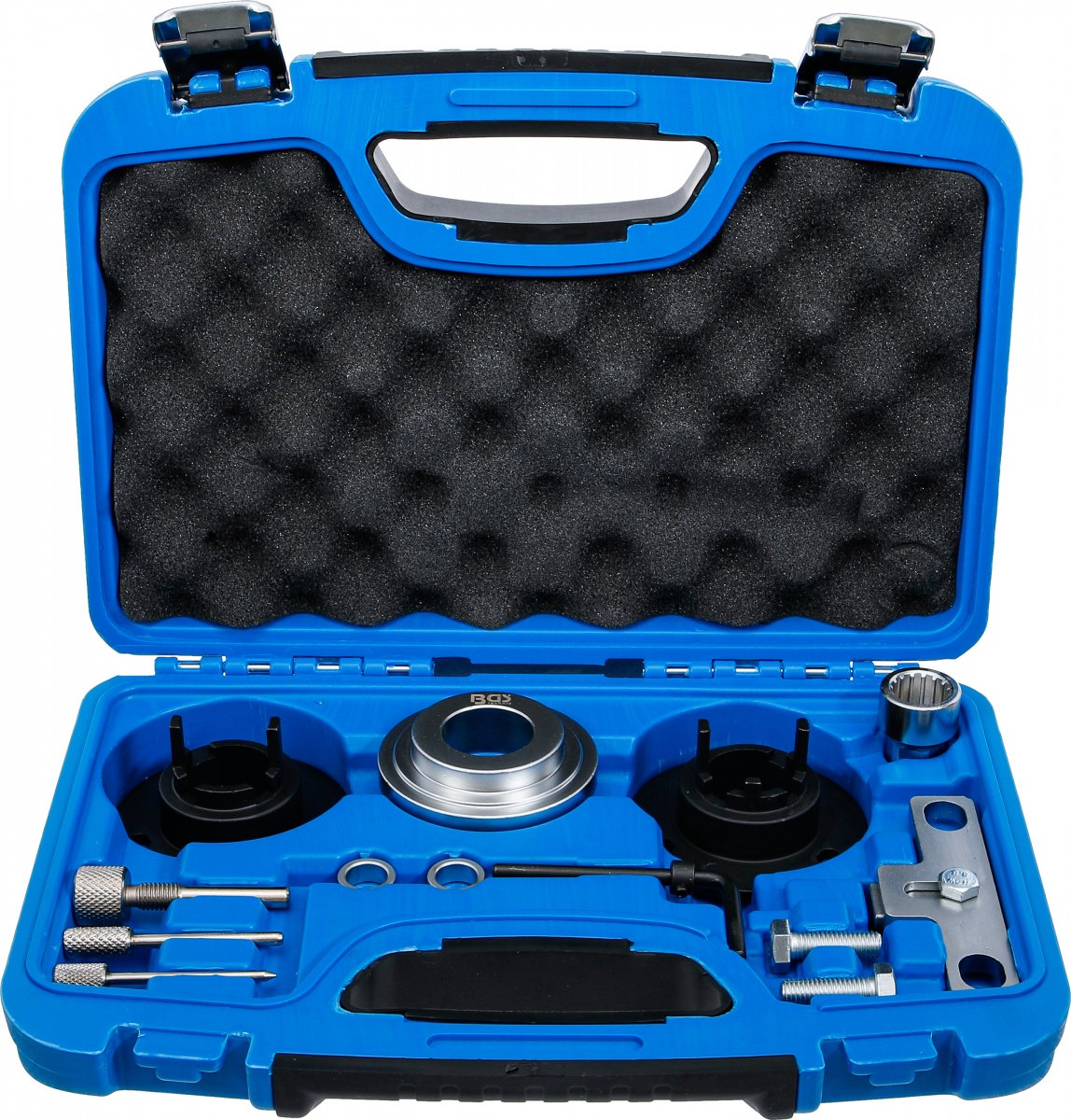

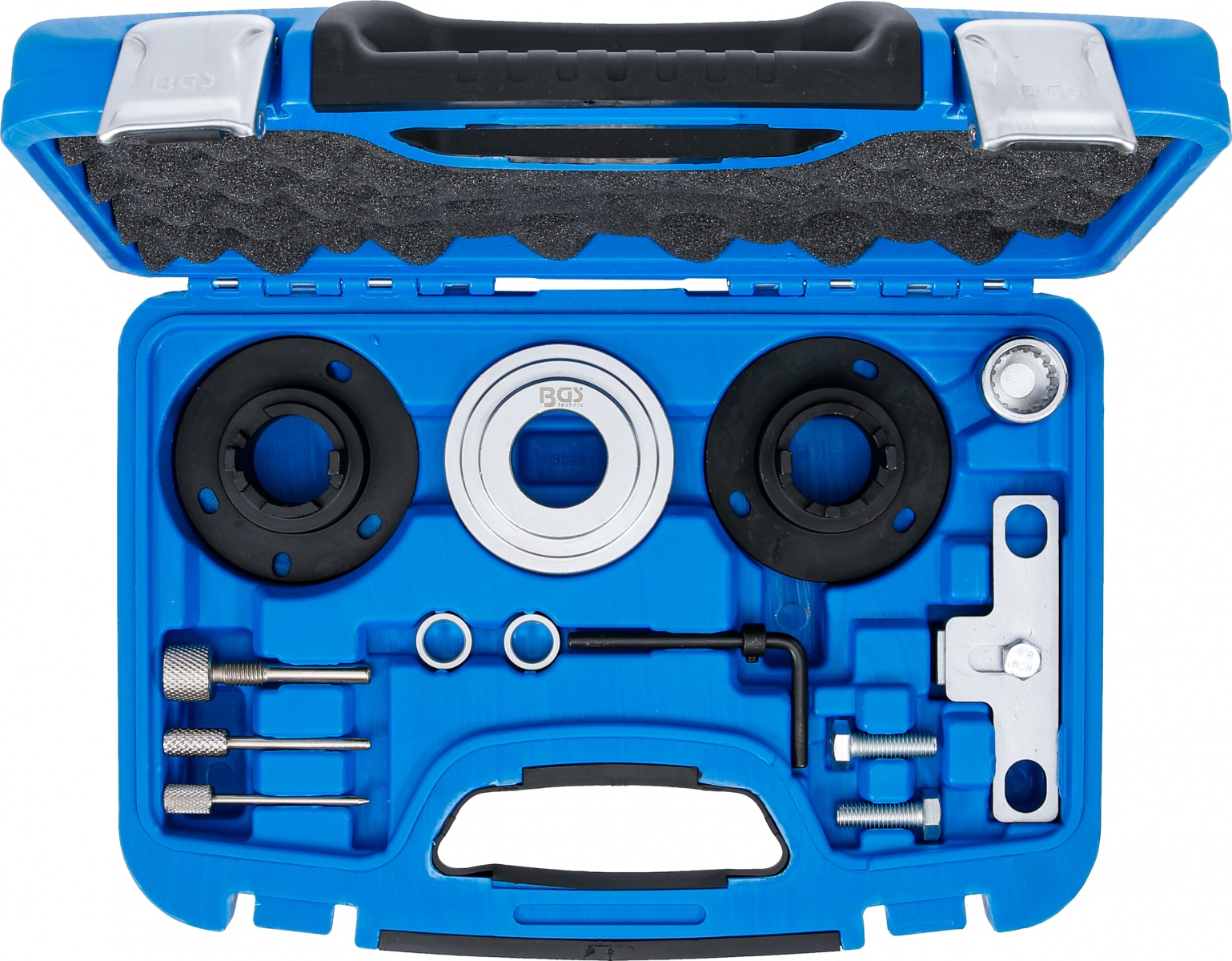

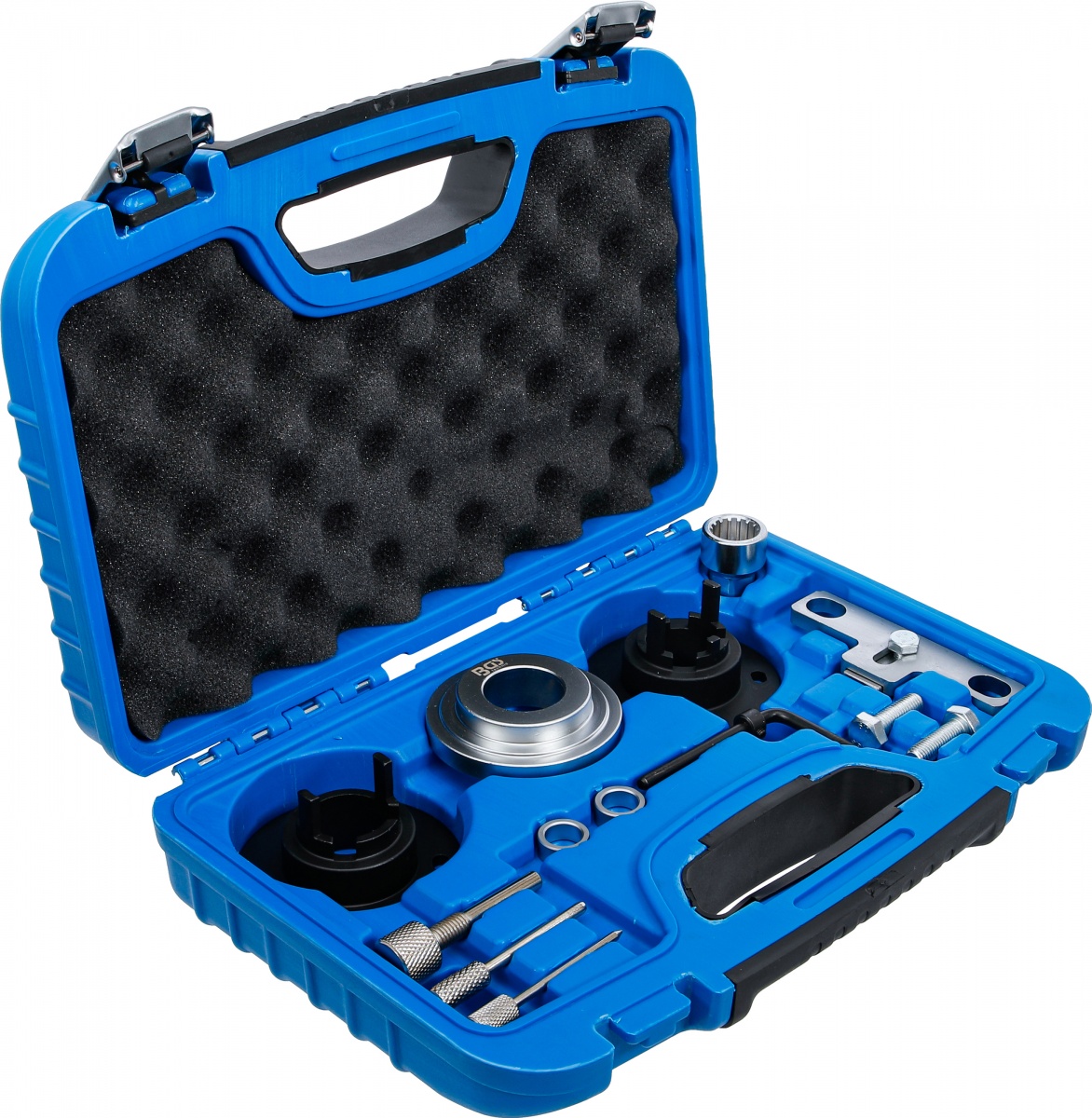

scope of delivery:
1 intake camshaft phasing unit, to be used as OEM 303-1661-2
1 exhaust camshaft phasing unit, to be used like OEM 303-1661-1
1 camshaft phasing unit adjusting pin, to be used as OEM 310-0187
1 radial Seal Ring Mounting Tool, to be used as OEM 303-1603
1 socket for camshaft sprockets, to be used as OEM 303-1661-3
1 crankshaft adjusting pin, to be used as OEM 303-1604
1 adjusting pin for crankshaft pulley, to be used as OEM 303-732
1 tensioner locking pin, 4 mm
1 flywheel Locking Tool incl. Screws and spacer sleeves, to be used as OEM 303-1643
To be used as OEM1:
Ford
303-1661-2
303-1661-1
310-0187
303-1603
303-1661-3
303-1604
303-732
303-1643
Package dimensions (LxwxH) :
346 x 242 x 89 mm
Gross weight: 2.948 kg
