Description:
compact set composition
suitable for daily workshop use
for checking and setting the engine timing
the tools are protected in the hard foam tray and are stowed in the recesses in a non-slip manner

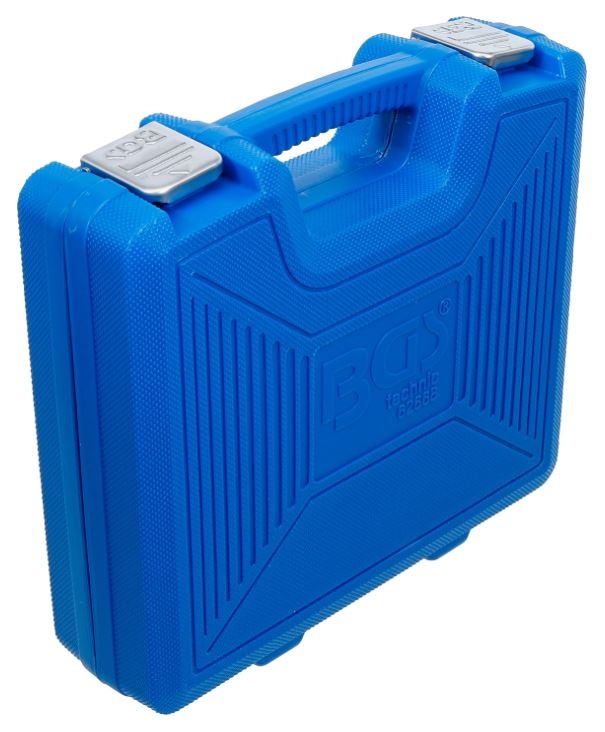

safe and tidy storage in blow mold case
suitable for:
Fiat 1.0 3-cylinder petrol engines (engine code: 46341162) up to 2020
fitted in Fiat mild-hybrid electric vehicles (MHEV)
Fiat 500
Fiat 500C
Fiat Panda
Lancia Ypsilon 1.0L Hybrid

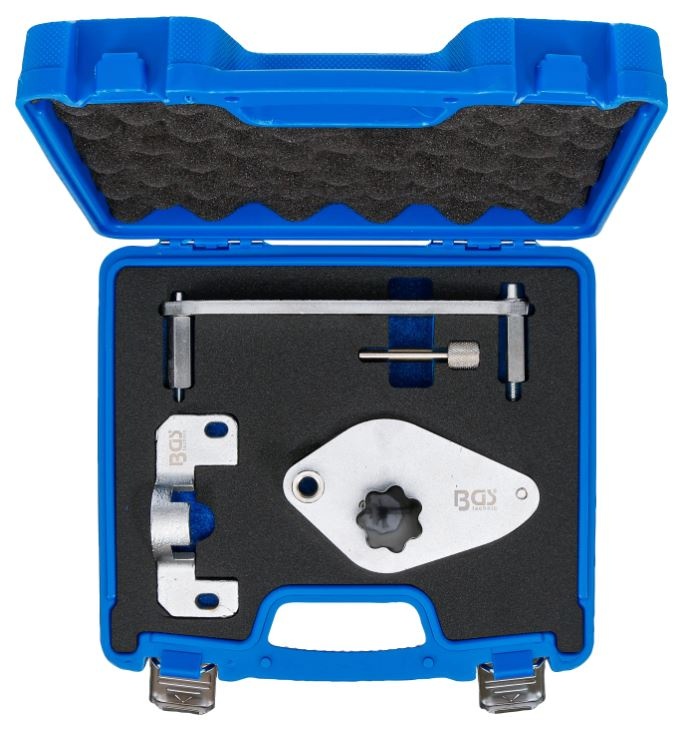

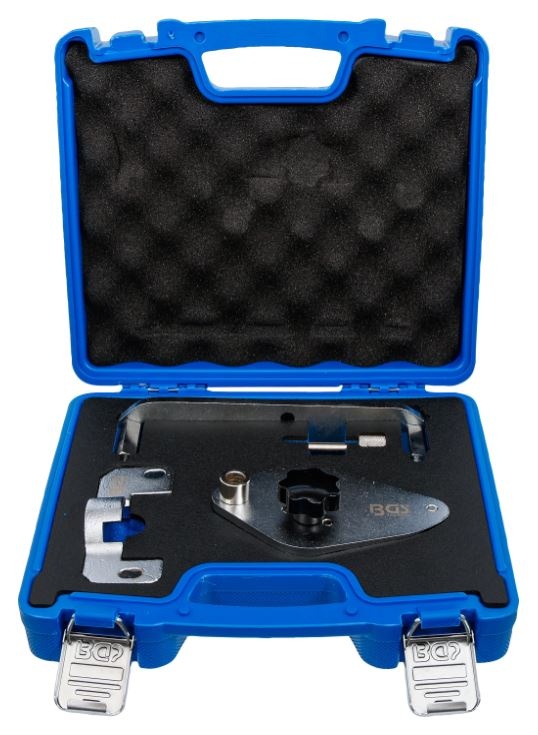

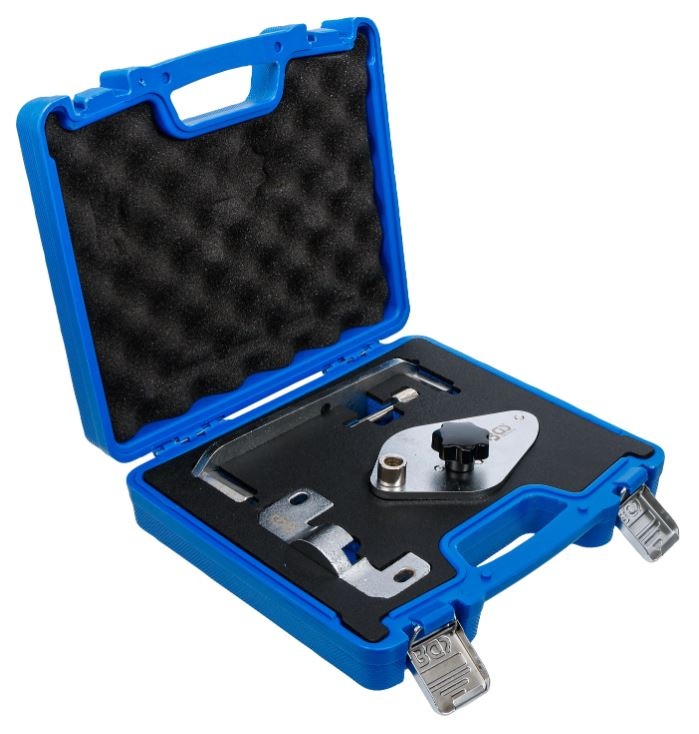

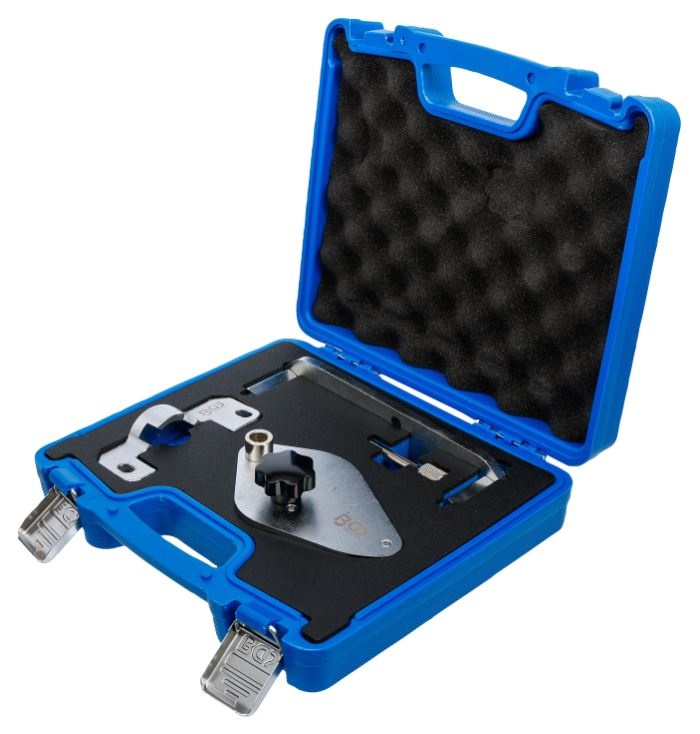

Scope of delivery:
1 crankshaft locking tool, to be used as OEM 2.064.000.090
1 crankshaft pulley locking pin, to be used as OEM 2.064.000.090
1 camshaft locking tool, to be used as OEM 2.072.000.090
1 flywheel locking tool, to be used as OEM 2.031.900.091

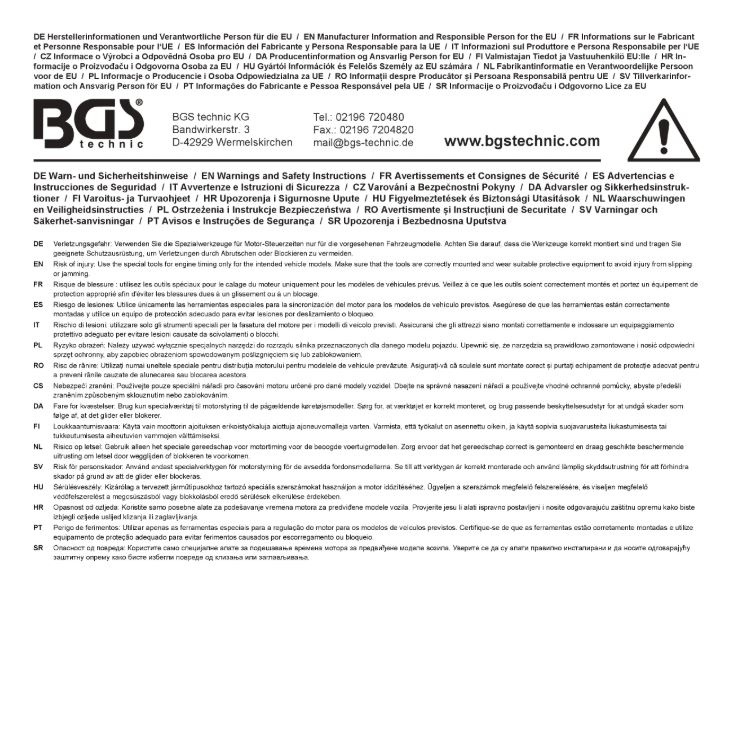

Warnings and Safety Instructions
Risk of injury: Use the special tools for engine timing only for the intended vehicle models. Make sure that the tools are correctly mounted and wear suitable protective equipment to avoid injury from slipping or jamming.
To be used as OEM1:
Fiat
2064000090
2072000090
2031900091
To be used as OEM2:
Alfa Romeo
2064000090
2072000090
2031900091
To be used as OEM3:
Lancia
2064000090
2072000090
2031900091
To be used as OEM4:
Jeep
2064000090
2072000090
2031900091
Packaging suitable for wall hanging:
No
Number of parts:
4
Package dimensions (LxwxH) :
315 x 270 x 91 mm
Gross weight: 2.656 kg
