Description:
Brand:
Functions
charging support, maintenance charging (maintaining the correct voltage in batteries operating in rest mode), power socket (cigarette lighter)
Charging voltage
12 V d.c.
Charging current
2/6/10/15/BOOST - 20 A
Voltage
220-240 V a.c.
Frequency
50-60 Hz
Max. charging battery capacity
300 Ah
Charging battery capacity
2-300 Ah
Charging battery type
wet, gel, AGM, EFB, MF
Power network current
2.5 A
Microprocessor
yes
Switch
yes
Display type
LED
Electric insulation class
II
Protection grade
IP20
Weight
2.1 kg
Symbol
YT-83037
Collapse parameters

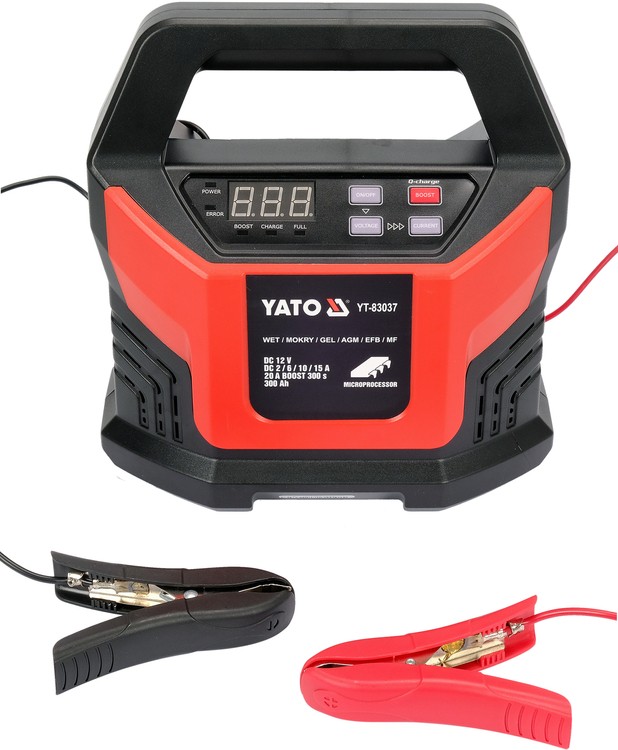

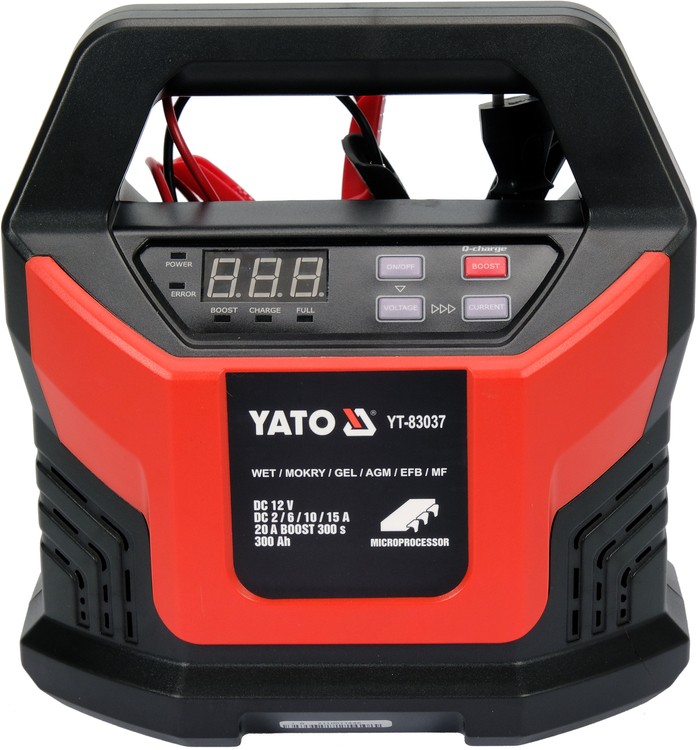

Electronic rectifier YT-83037 is a professional device for charging 12 V batteriesós in motorcycles, cars and vans, tractors, motor boats. They make it possible to charge the so-called. wet batteriesós, gel batteriesós, AGM, EFB and MF batteries
function of maintaining the correct voltage in batteries working in the resting mode – maintenance charging<
short-circuit protection
battery overcharging protection

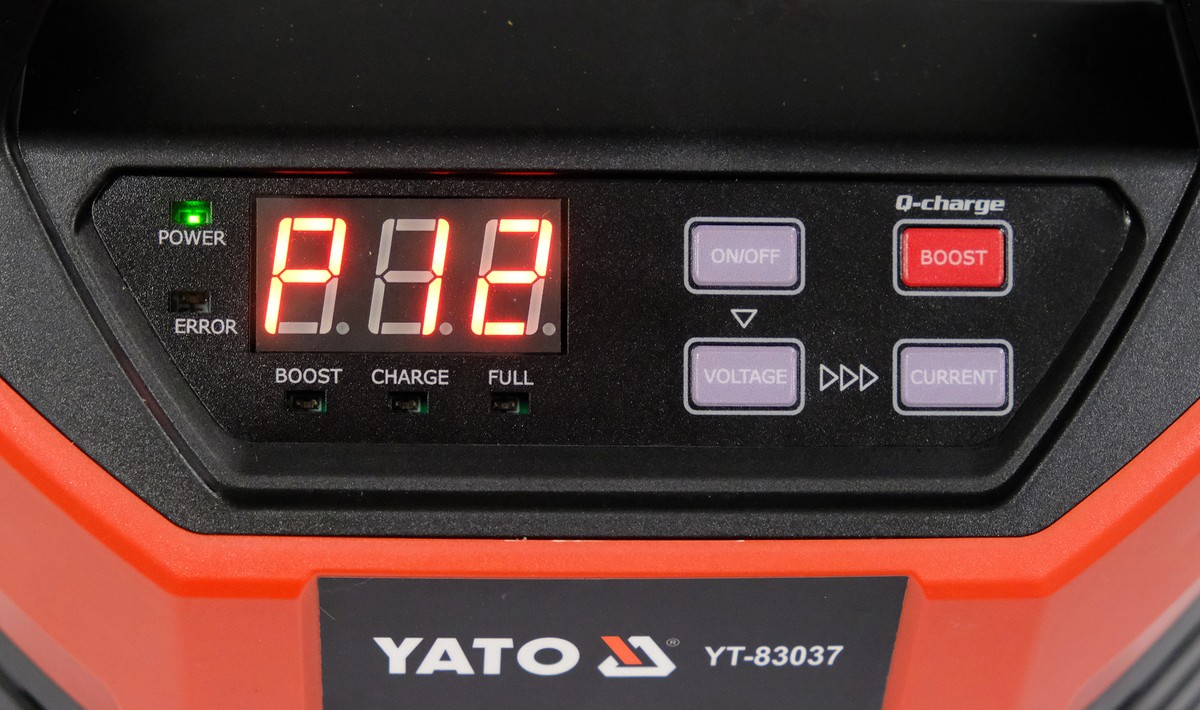

readable display
high-frequency microprocessor.
Recommended for batteriesów up to 300 Ah capacity. It also has a power socket (cigarette lighter). It has a built-in function to support charging with a current of 20 A for a duration of 300 seconds.
