Description:
Brand:
YT-23306

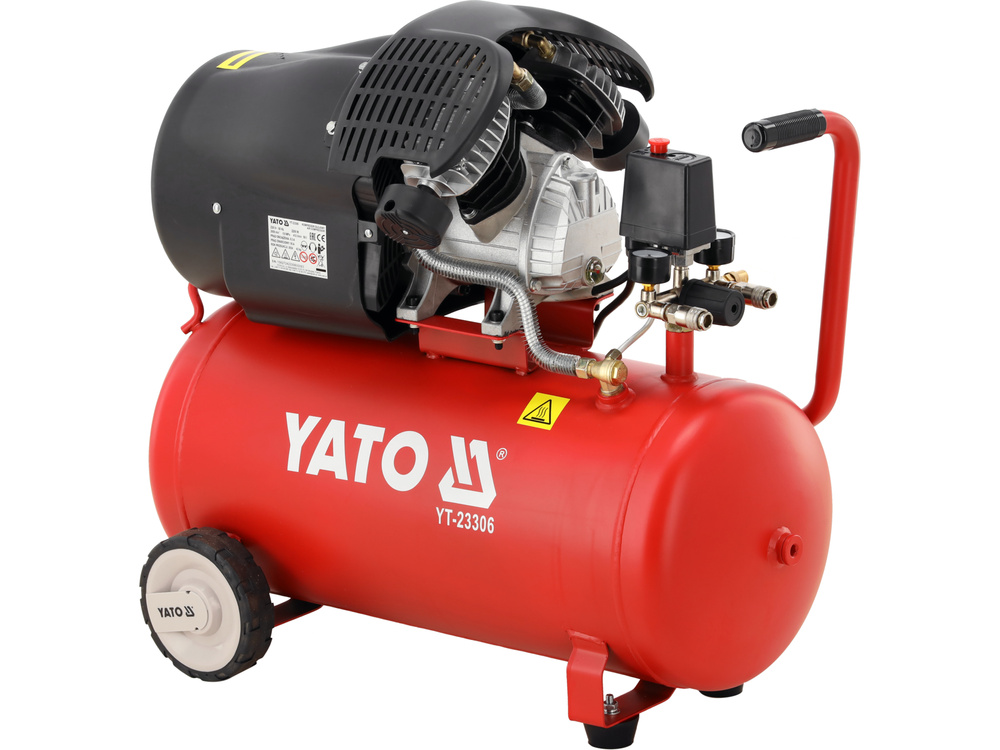

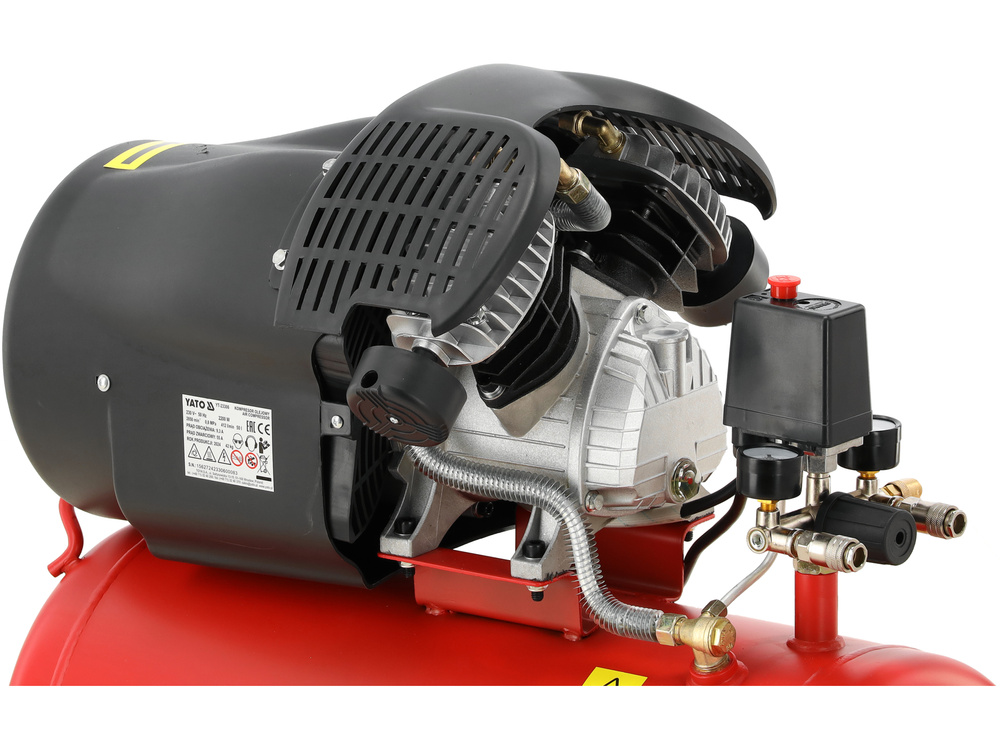

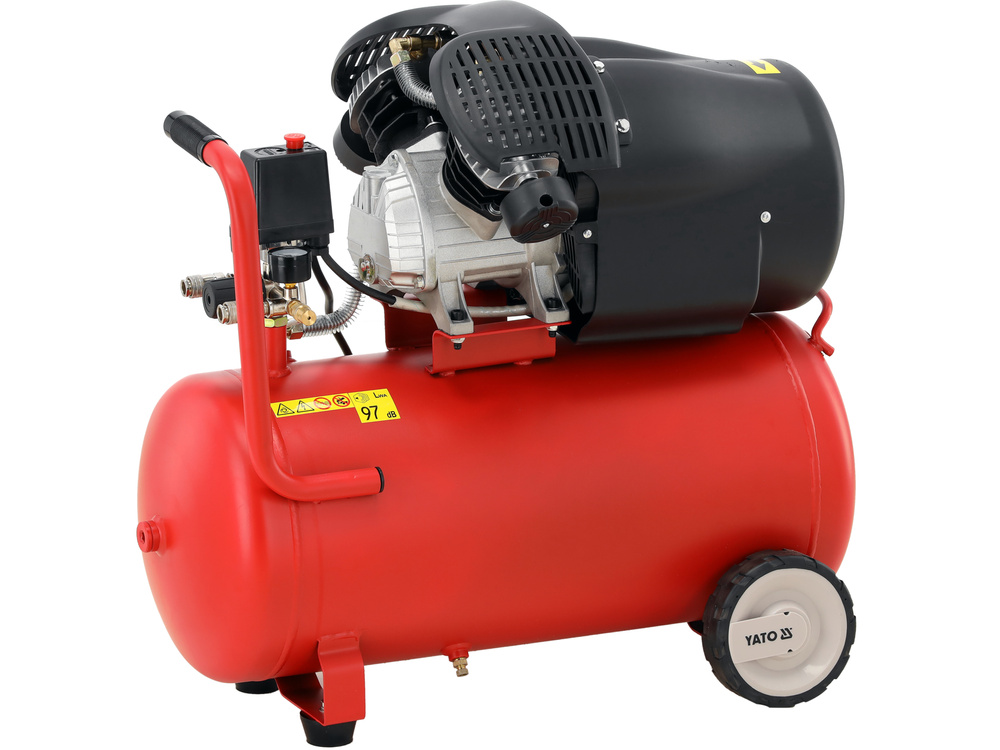

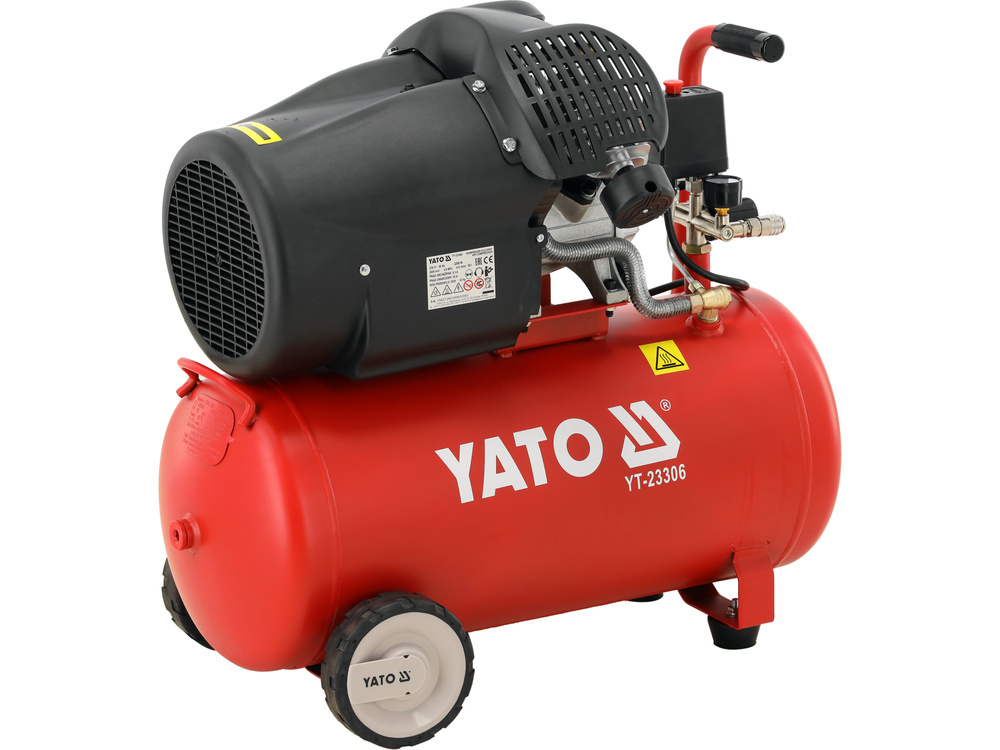

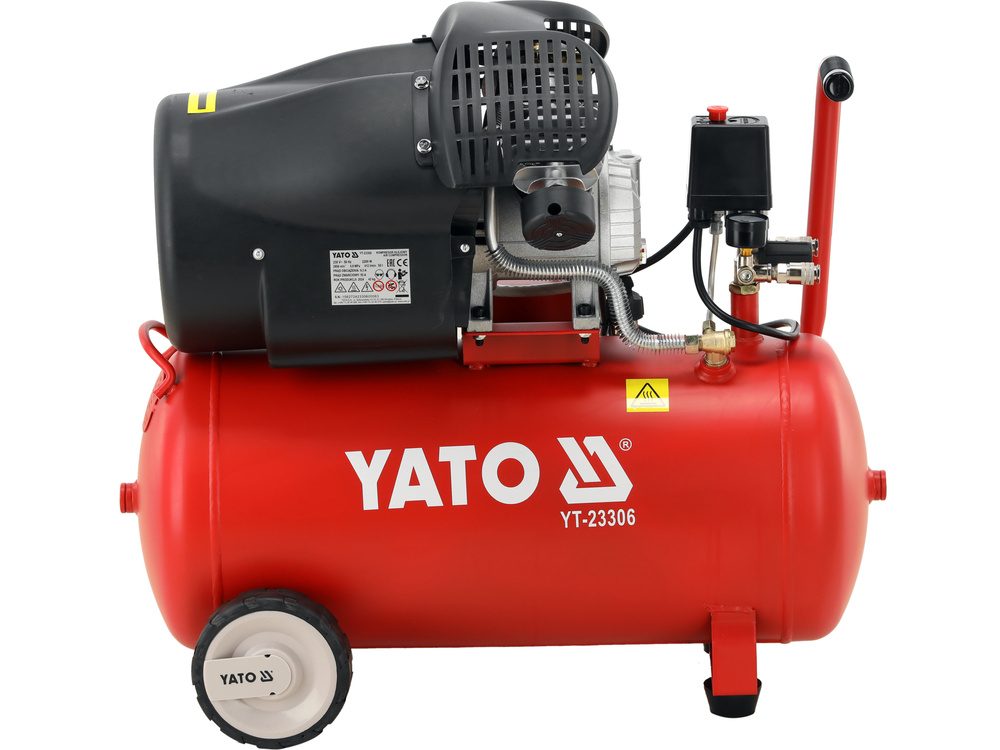

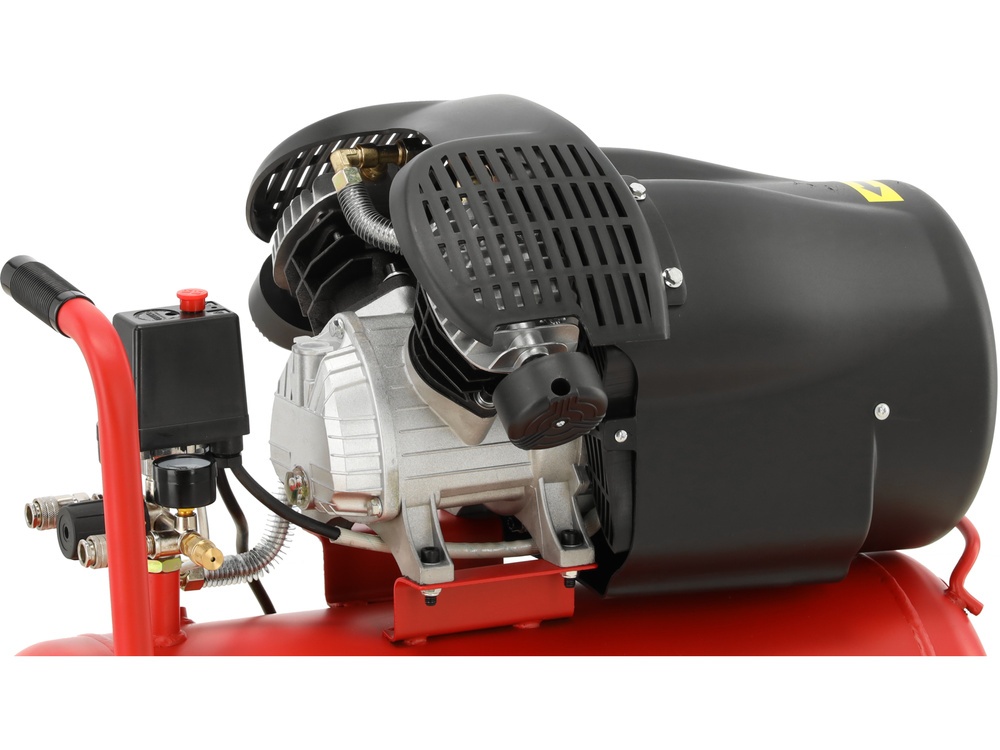

50L OIL COMPRESSOR TWO CYLINDERS
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Tank capacity
50 l
Power
3 HP
2200 W
Max. pressure
0.8 / 8 / 116 MPa/bar/PSI
Efficiency
412 l/min
Revolutions
2850 min⁻¹
Voltage
230 V a.c.
Frequency
50 Hz
Short-circuit current
55 A
Load current
9.3 A
Number of cylinders in the engine
2
Wheels
yes
Number of wheels
2
Manometer
yes
Electrical insulation class
I
Protection class
IPX0
Sound pressure
75.1 ± 2.11 dB(A)
Sound power
95.1 ± 2.11 dB(A)
Weight
42 kg
Set contents
compressor, quick connector x2
Symbol
YT-23306
Two-cylinder oil compressor with two connections and pressure regulation. Used to drive devices with compressed air, blow drilling and cleaning surfaces in industry, workshops, agriculture, on construction sites.
power: 2200 W (3 HP)
engine speed: 2850 rpm
capacity: 412 l/min
max. pressure: 0.8 MPa/8 bar
tank capacity: 50 l

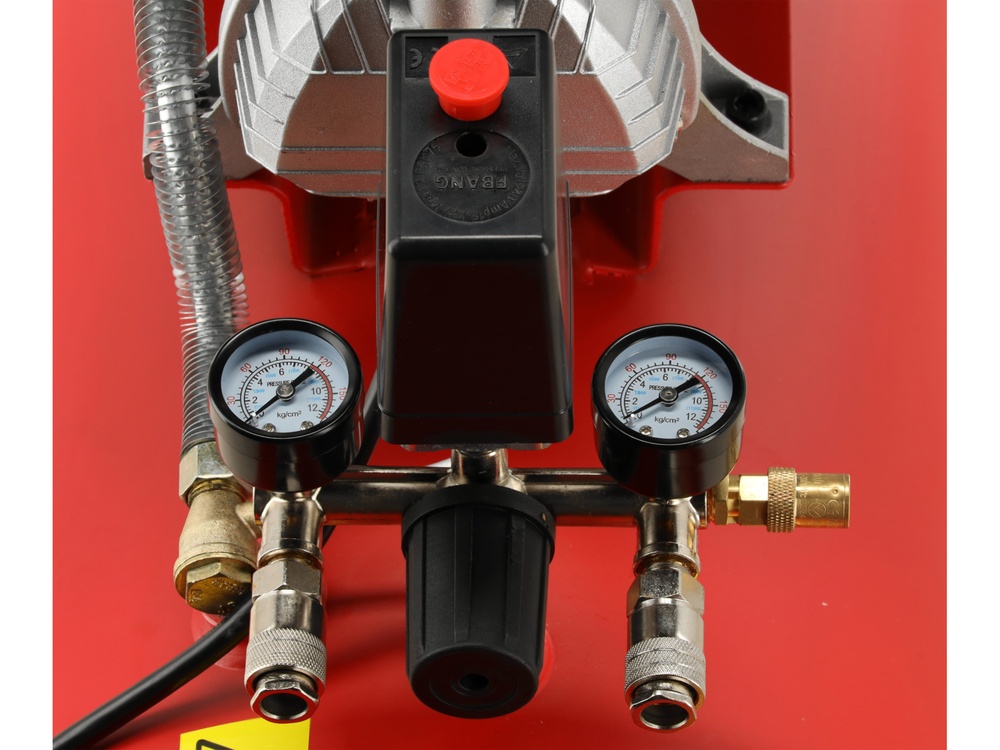

pressure gauge
protection class: IPX0
electrical insulation class I
2 wheels
weight: 42 kg
2 quick connectors included
Use warnings:
Note! Before first use, top up the oil and replace the transport plug with the supplied oil plug.
