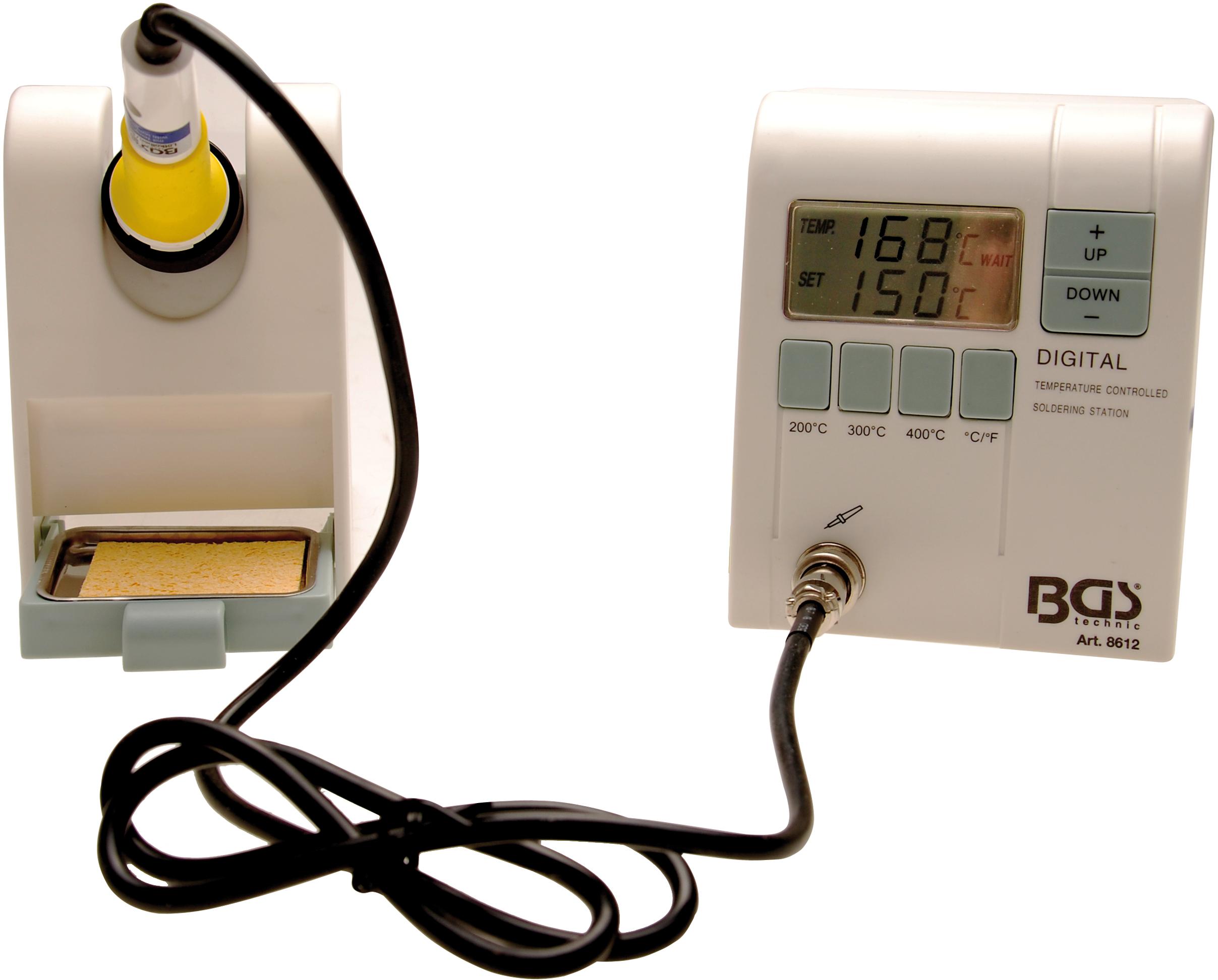

Digital Electronic Soldering Station (8612)

(1)

Description:

Description
ideal for electricians, schools, car electricians and for development and production
soldering iron holder and cleaning sponge
digital LCD temperature display simultaneously shows the set and actual temperature
compact design
electronic temperature control
reaches set temperature after a short time
secure, low operating voltage on soldering iron
temperature pre-selection by 200°, 300°, 400° buttons, fine adjustment is done via + and - buttons
conversion button for switching the unit from °C to °F
potential equalization socket for protecting sensitive components
error is shown on the display and by an acoustic signal
power supply: 220 to 240 volts / 50 Hz
fuse: T1 A/250 V 50 x 20 mm glass tube
temperature range: 150° C to 450 ° C
soldering iron power: 48 Watt (24 V)
temperature display: LCD display 2x 3 ½ digits
display area: 150 ° C to 450 ° C
accuracy: 5% air pressure: 600 hPa to 1000 hPa
working temperature range: +5 ° C to +40 ° C
relative humidity: 85%
weight approx. 1.8 kg
tool dimensions: 210 x 125 x 135 mm
Technical data
CE Standard Yes
Width 125 mm
Height 135 mm
Length 210 mm
Gross weight 2100 g
