Description:
Brand:
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Series
GRF
Measuring range
0-300 mm
Measurement accuracy
±0.03 mm
Measuring system
linear capacitive measurement system
Material
stainless steel 4Cr13
DIN
862
Metric scale
yes
Inch scale
yes
Reading type
electronic
Display type
liquid crystal LCD
Display resolution
2,4";2,4 colio"
Reading resolution
0.01mm, 0.0005"
Power supply
battery
cell type
3V; CR2032
Battery capacity
220 mAh
Working temperature range
5~40 ËšC
Application
performing external measurements, performing internal measurements, performing height measurements, performing depth measurements
Symbol
YT-72022
Collapse parameters

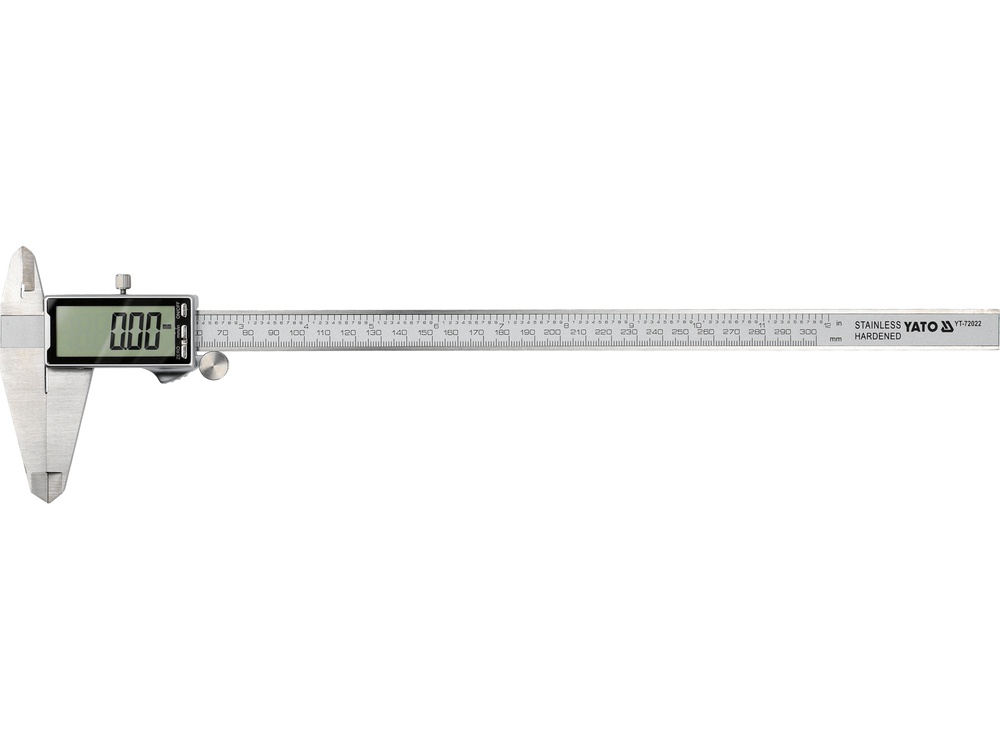

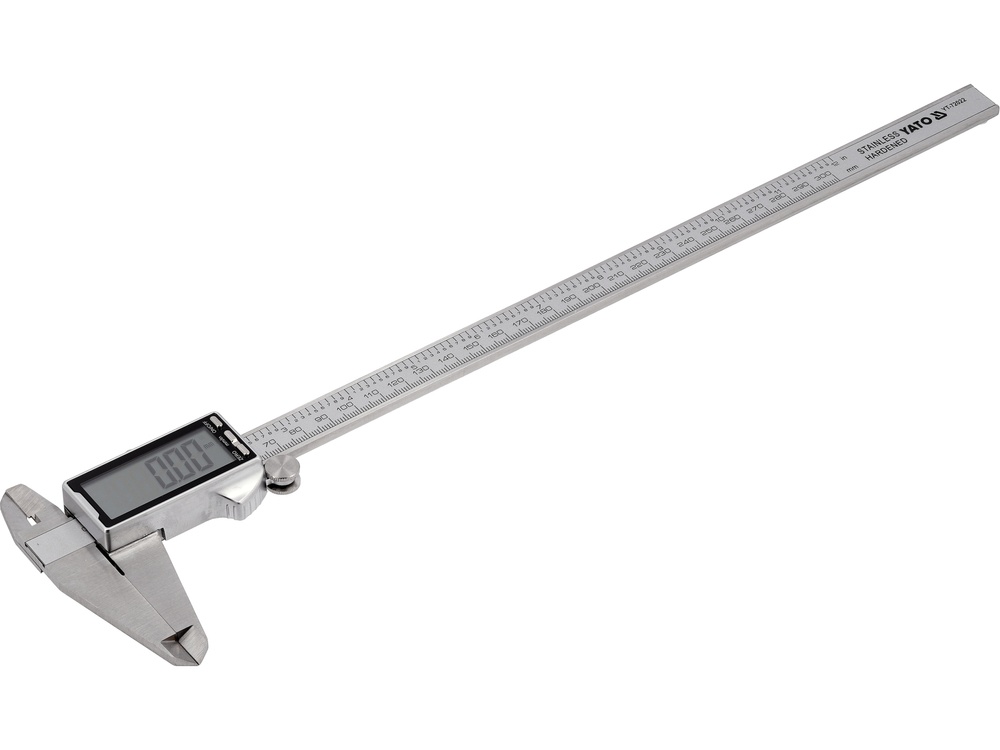

An electronic caliper is a practical tool designed for accurate internal, external, height, and depth measurements. It is suitable for workshops, technical services, production, and assembly work. The solid construction and clear readout make it easier to work in places where precision and repeatability of results matter.
Main features and functions:
high measurement accuracy - the device ensures accuracy at the level of ±0.03 mm, allowing precise checking of dimensions even of small elements
metric and inch scale - the ability to switch between metric and inch units facilitates work with technical documentation and elements from different standards
clear 2.4" LCD screen - the large LCD display ensures quick and clear result readings, even in low light conditions
compliance with DIN 862 standard - the caliper meets the requirements of the DIN 862 standard, confirming its suitability for professional and inspection applications
durable stainless steel SS 4Cr13 - the body made of hardened stainless steel is resistant to wear, corrosion, and mechanical damage, maintaining dimensional stability even with intensive use
battery powered - the use of CR2032 type batteries ensures long working time and easy replacement of the power source
Technical parameters:
type: electronic caliper
accuracy: ±0.03 mm | ±0.001"
measurement units: mm / inches
display: liquid crystal LCD 2.4"
reading resolution: 0.01 mm | 0.0005"
standard: DIN 862
material: stainless steel SS 4Cr13
power supply: 1 x CR2032 battery
operating temperature: 5-40ËšC
