Description:
Brand:
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Series
GRF
Measuring range
0-150 mm
Measurement accuracy
±0.03 mm, ±0.001"
Measuring system
linear capacitive measurement system
Material
stainless steel 4Cr13
DIN
862
Metric scale
yes
Inch scale
yes
Reading type
electronic
Display type
liquid crystal LCD
Display resolution
2,4";2,4 colio"
Reading resolution
0.01mm, 0.0005"
Power supply
battery
Waterproof
yes
cell type
3V; CR2032
Battery capacity
220 mAh
Protection grade
IP54
Working temperature range
5~40 ËšC
Application
performing external measurements, performing internal measurements, performing height measurements, performing depth measurements,
Application contÂ’d
taking measurements in conditions with increased humidity or dust
Symbol
YT-72025
Collapse parameters

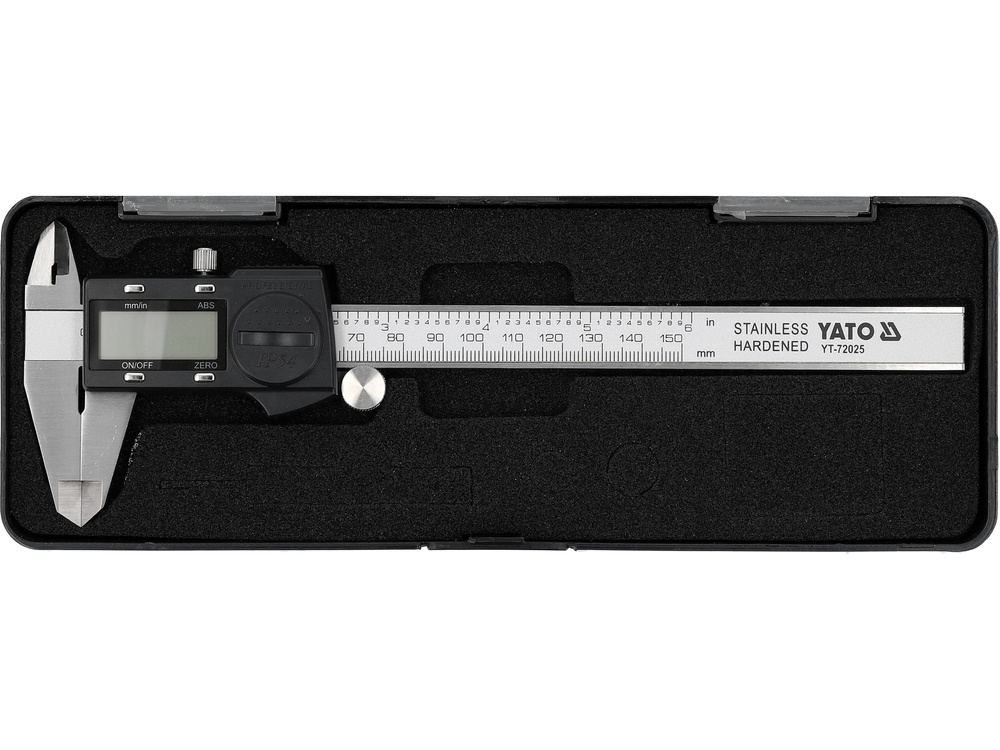

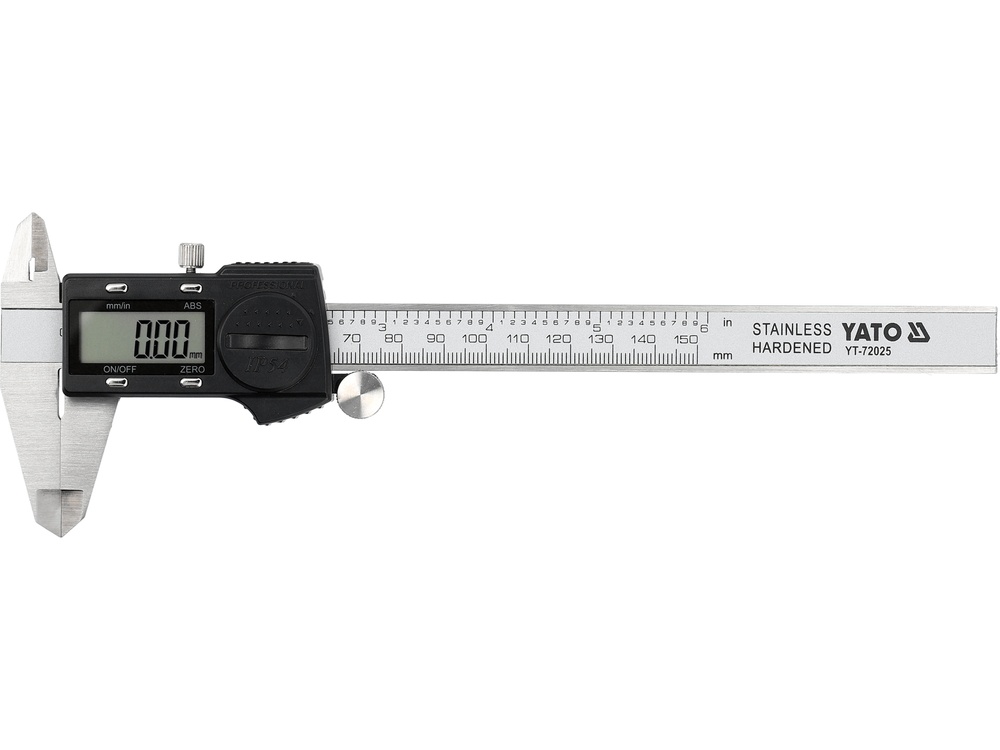

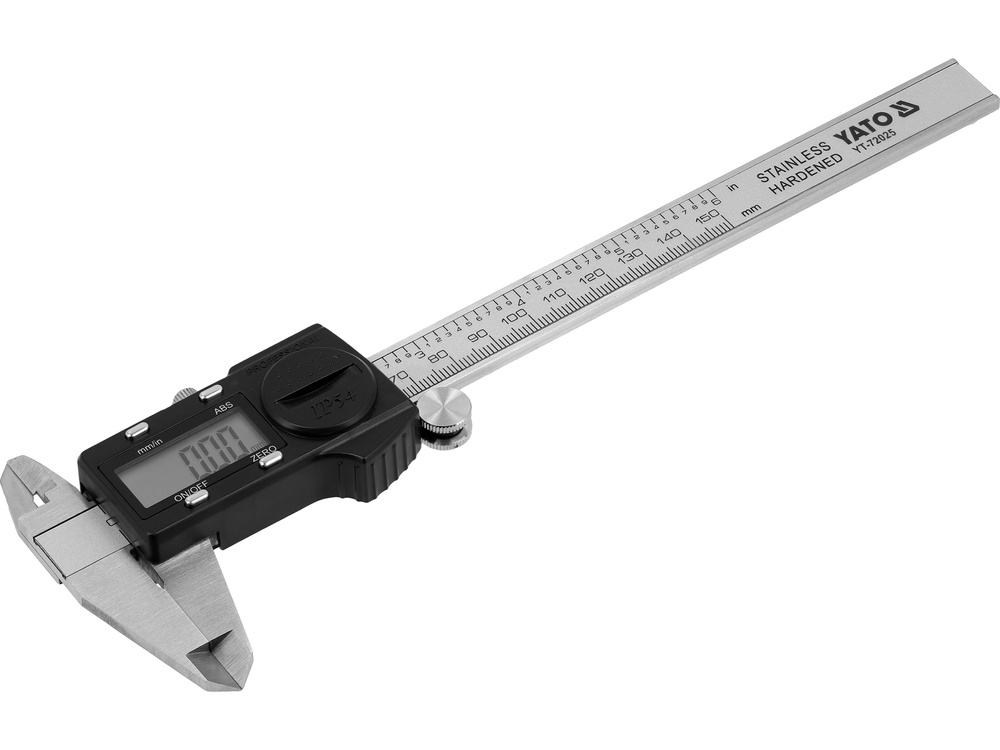

The electronic waterproof caliper has been designed with the idea of working in environments where standard measuring tools do not always perform well. Thanks to its increased resistance to moisture and dust, as well as its solid construction, it provides a practical solution for workshops, service centers, production, and field work. It ensures precise external, internal, height, and depth measurements, regardless of environmental conditions.
This reliable measuring tool is for users who expect reliability, precision, and resistance to working conditions, especially with high levels of humidity or dust. Its waterproof construction makes it a practical choice for professional and technical applications.
Key features and functions:
measurement accuracy ±0.03 mm - allows for precise measurement of external, internal, and depth dimensions
metric and inch units - the ability to quickly switch between mm and inches facilitates work with different technical standards and documentation
clear 2.4" LCD display - the large screen provides a clear readout of results, even in poor lighting conditions
IP54 waterproof rating - IP54 sealing class protects the mechanism and electronics from splashes and dust, allowing for work in humid environments and dusty areas
compliance with DIN 862 standard - meeting the DIN 862 standard confirms that the tool meets the requirements for professional measuring instruments
stainless steel SS 4Cr13 - the body made of hardened stainless steel is resistant to corrosion and wear, maintaining stability and accuracy even with intensive use

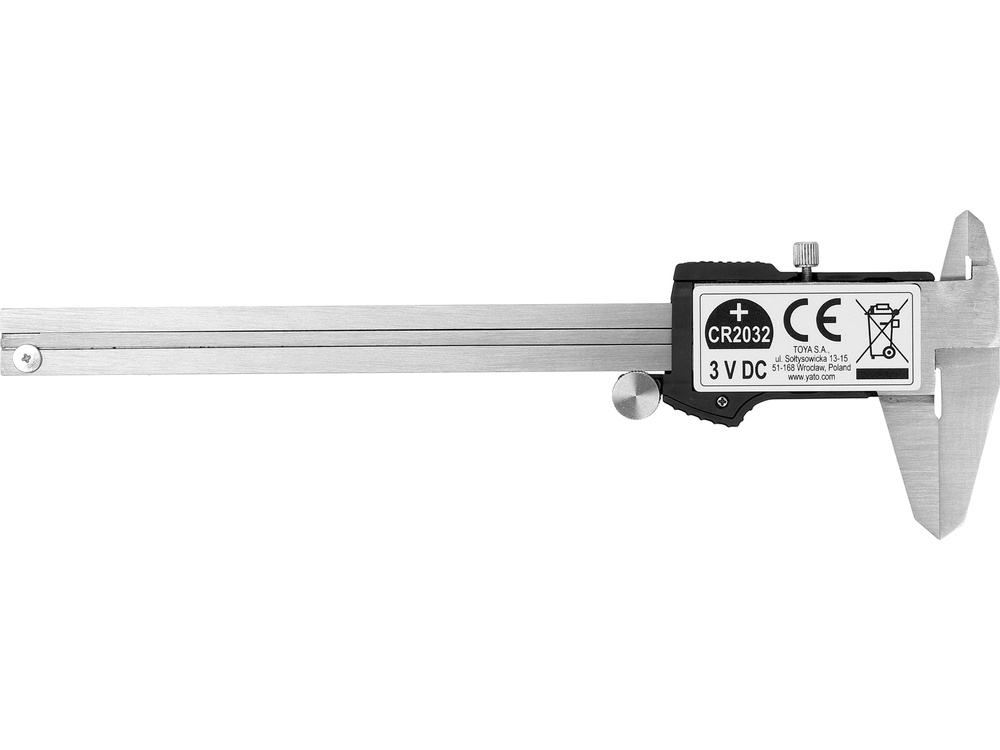

CR2032 battery power - the popular CR2032 battery ensures long working hours and easy replacement, without the need for special accessories
Technical specifications:
type: electronic waterproof caliper
accuracy: ±0.03 mm | ±0.001"
measurement units: mm / inches
display: liquid crystal LCD 2.4"
reading resolution: 0.01 mm | 0.0005"
standard: DIN 862
protection level: IP54
material: stainless steel SS 4Cr13
battery power: 1 x CR2032
operating temperature: 5-40ËšC
