Description:
Brand:
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Series
GRF
Measuring range
0-150 mm
Measurement accuracy
±0.03 mm, ±0.001"
Measuring system
linear capacitive measurement system
Material
stainless steel 4Cr13
DIN
862
Metric scale
yes
Inch scale
yes
Reading type
electronic
Display type
liquid crystal backlit LCD
Display resolution
2,4";2,4 colio"
Reading resolution
0.01mm, 0.0005"
Power supply
battery
cell type
3V; CR2032
Working temperature range
220 ËšC
Application
performing external measurements, performing internal measurements, performing height measurements, performing depth measurements,
Application contÂ’d
taking measurements in low light conditions or at dusk
Symbol
YT-72030

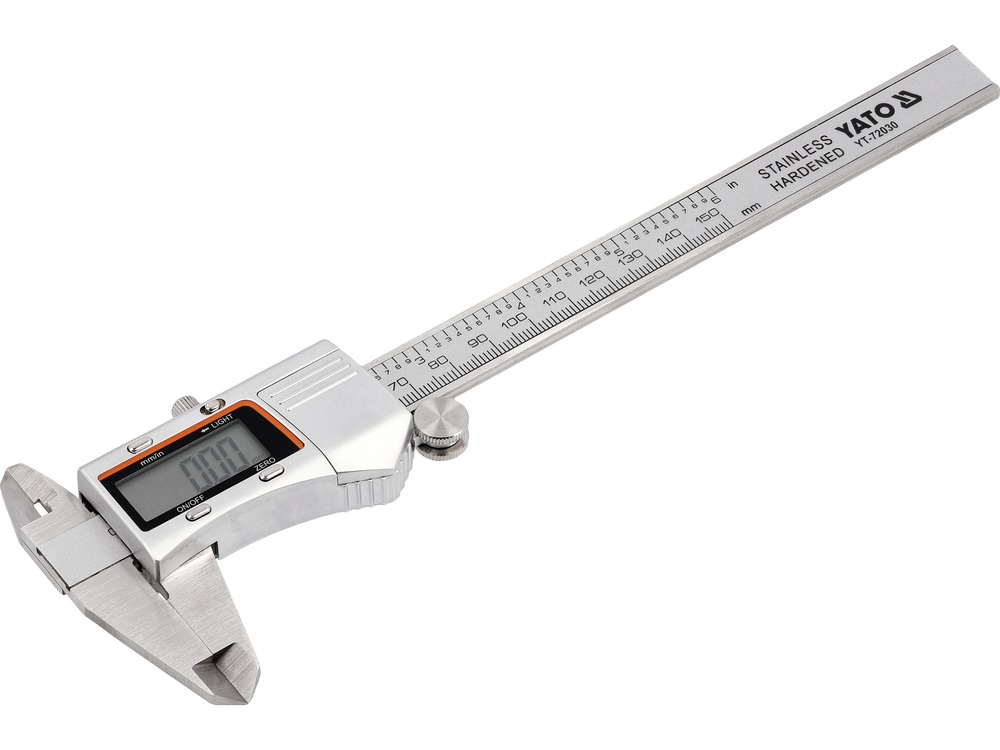

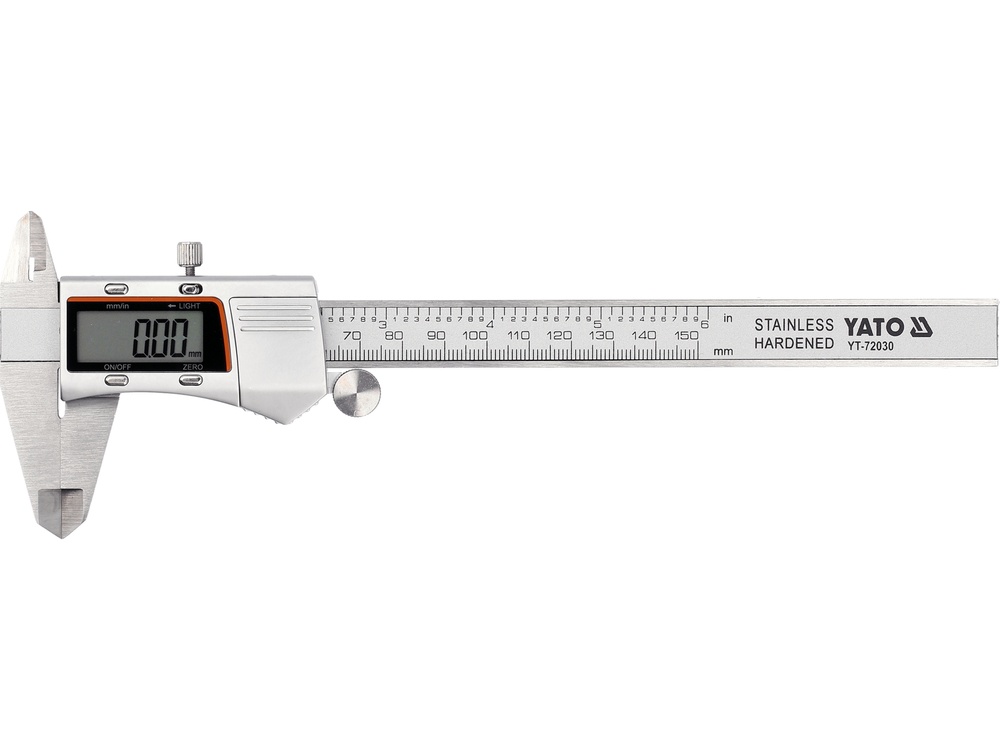

The electronic caliper with a backlit display has been designed with convenient and precise work in mind, in various lighting conditions. It combines a solid, metal construction with modern electronics, making it a practical tool for precise measurements and comfortable readings in workshops, service centers, as well as during assembly and inspection work.
Designed for performing external, internal, height, and depth measurements in low light conditions or at night.
Features and functions:
measurement accuracy ±0.03 mm - the tool enables precise external, internal, and depth measurements, proving useful for checking details requiring high accuracy
metric and inch scale - the ability to switch between measurement units in millimeters and inches facilitates work with technical documentation and elements in different standards

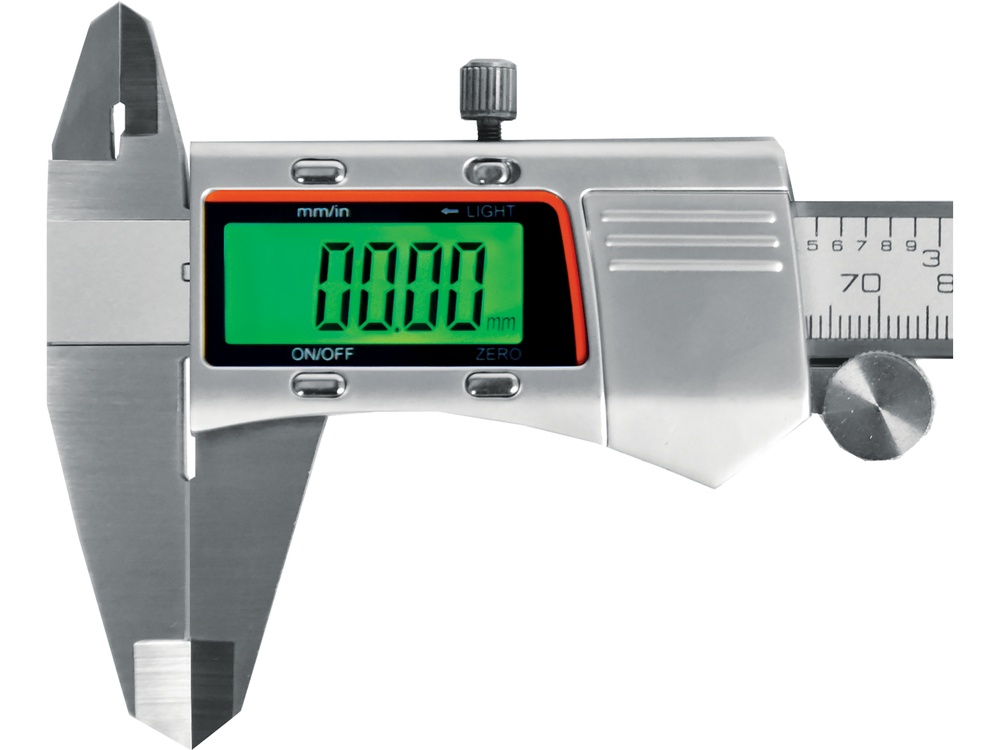

backlit 2.4" LCD screen - a large backlit display ensures quick and clear result readings, even in poorly lit areas, increasing comfort and reducing the risk of errors
compliance with DIN 862 standard - the caliper meets the requirements of the DIN 862 standard, confirming its suitability for professional applications and inspection measurements
corrosion-resistant SS 4Cr13 stainless steel body - made of hardened stainless steel, it provides resistance to corrosion, wear, and dimensional stability during intensive use

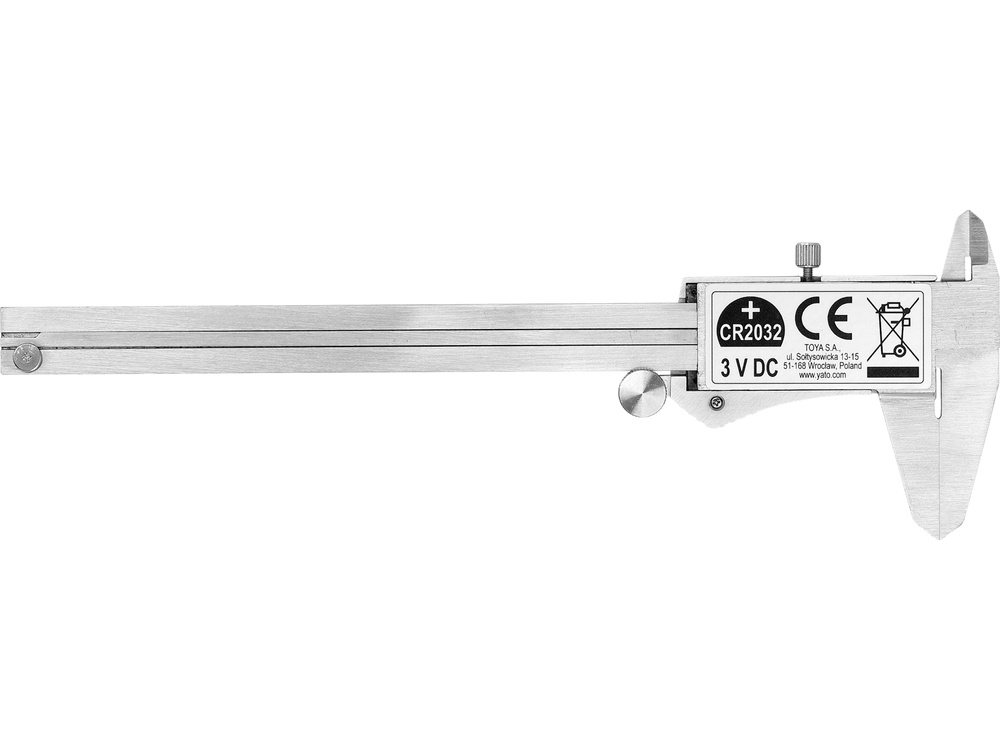

CR2032 battery power supply - the popular CR2032 battery ensures long working hours and easy replacement, without interruptions in use
Technical parameters:
type: electronic caliper with backlit screen
accuracy: ±0.03 mm | ±0.001"
measurement units: mm / inches
display: backlit LCD 2.4" liquid crystal display
reading resolution: 0.01 mm | 0.0005"
standard: DIN 862
material: stainless steel SS 4Cr13
battery power supply: 1 x CR2032
