Description:
Brand:
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Diameter
125 mm
Mounting diameter
22.2 mm
Cutting segment height
10 mm
Cutting segment thickness
1.6 mm
Cutting segment chemical composition
Fe 20%, Cu 55%, Sn 7%, Ni 8%, Co 10%, diamond coating 15%
Material
65Mn steel
Max. speed
12000 min⁻¹
Max. linear blade speed
80 m/s
Application
ceramic tiles, glaze, stone tiles, glass, porcelain, ceramics, stoneware, roof tiles
Type of work
dry, wet

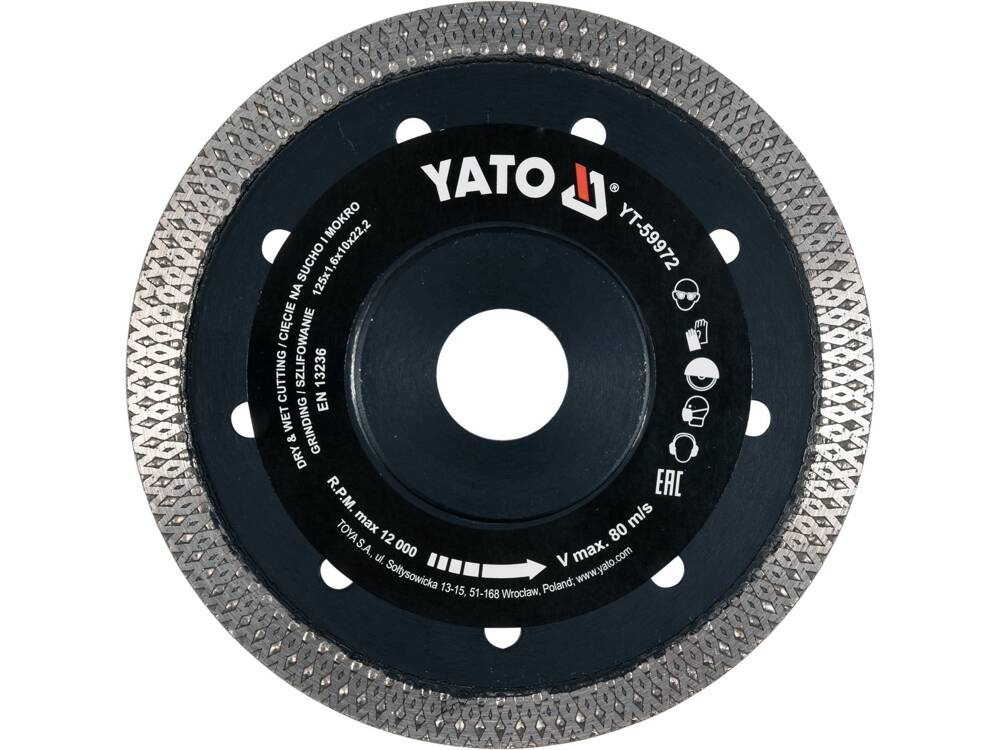

Symbol
YT-59972
Designed for precise and clean dry cutting.
high 10 mm segment increases the life of the disc
reduced cross-section allows for faster and more precise cutting, without jagging the cut edges and with less load on the grinder
segment with optimally selected cobalt hardness and selected class A industrial diamond granulate
precise grinding of tile edges at an angle of 45° (even when working manually)
centered disc flange ensures no lateral run-out and cutting without damaging the edges
beveling stoneware tiles
cutting the valley edges of roof tiles at an angle
