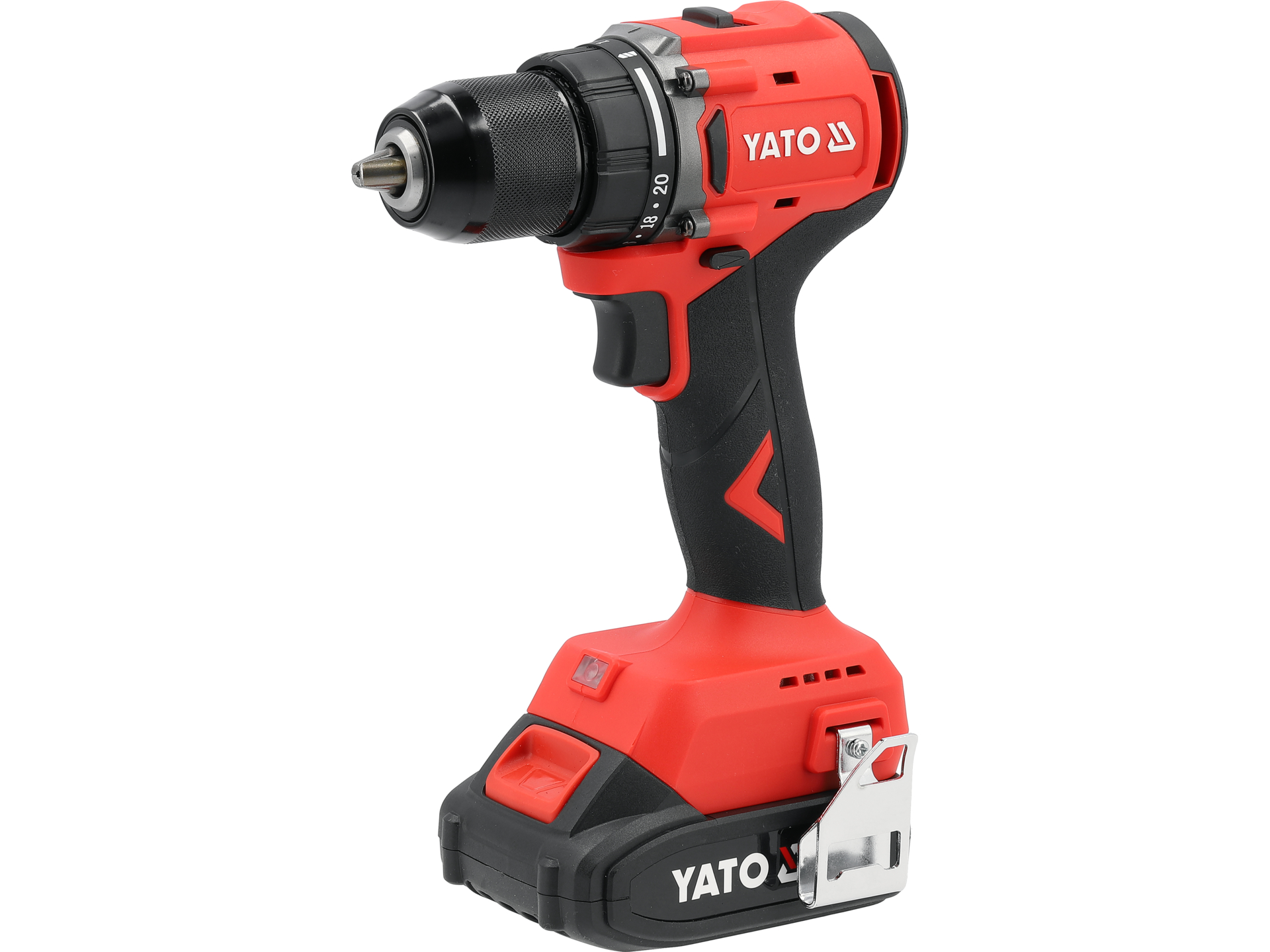

Cordless Drill/Driver | 60 Nm | 18 V | 2.0 Ah (YT-827680)

(1)

Description:

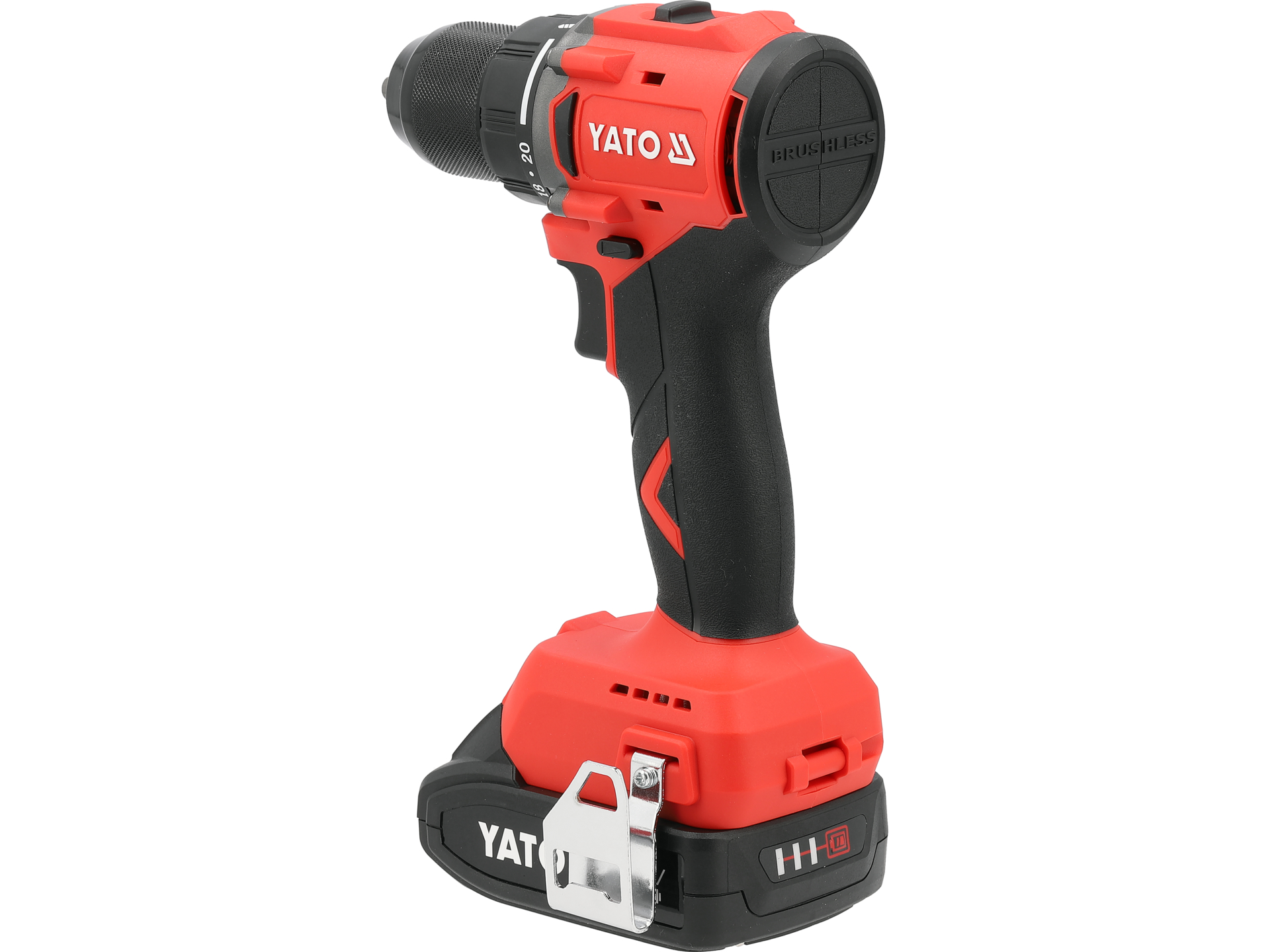

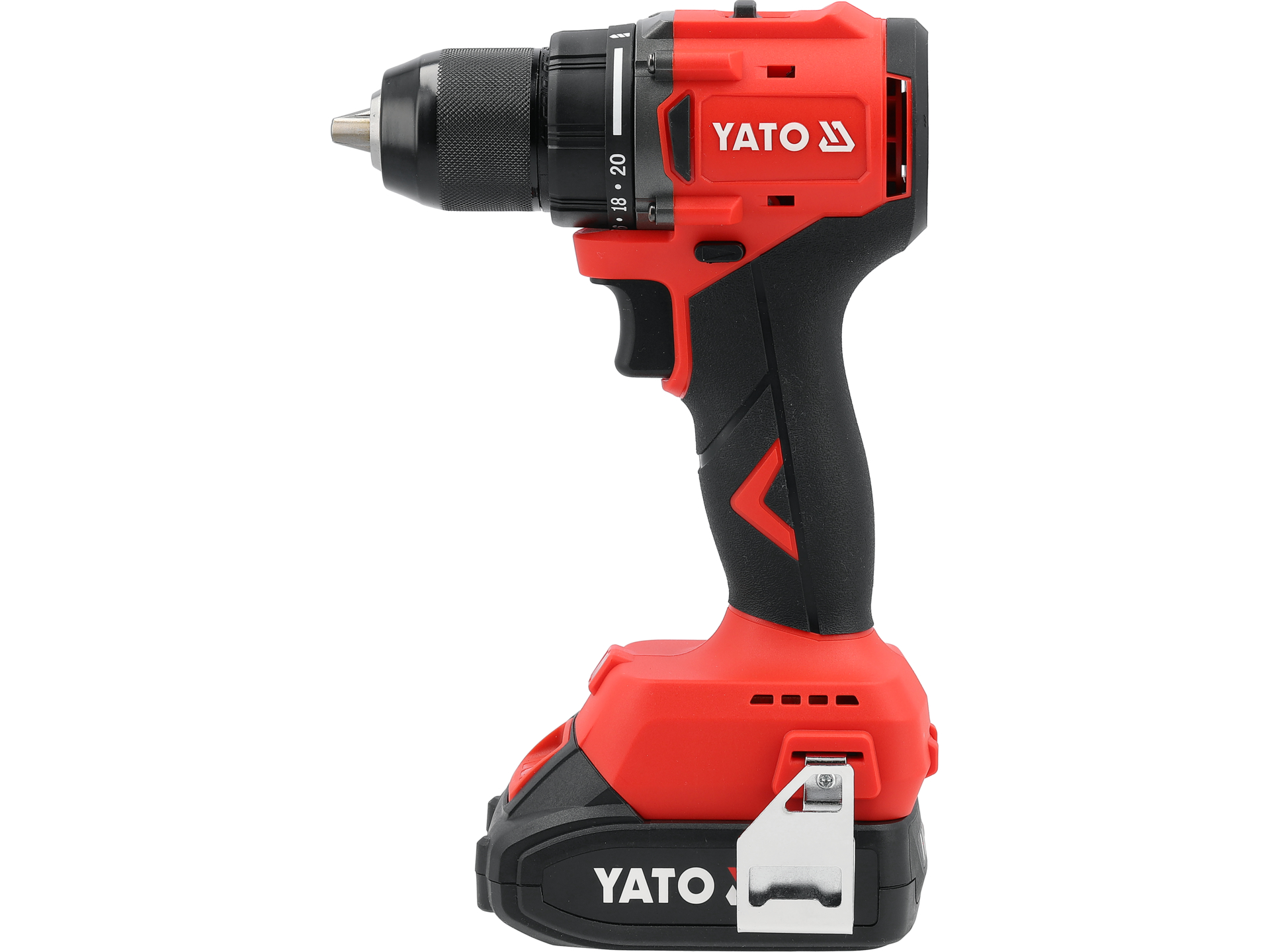

YATO 18 V Brushless Cordless Drill/Driver is a versatile tool designed for drilling and driving screws and fasteners. The brushless motor ensures efficient torque transfer and allows for effective use of battery energy. Its compact design, weighing 0.98 kg, makes it easier to work during assembly, finishing tasks, and jobs that require frequent tool relocation.

The drill/driver allows for drilling holes in wood, wood-based materials, metal, tiles, soft brick, and plaster, as well as assembling screwed connections. The maximum torque of 60 Nm and 19-stage clutch adjustment enable you to match the tightening force to the type of work being performed.

Key Features:

• brushless motor – efficient use of battery energy and durable drive system


• maximum torque of 60 Nm – suitable for drilling and assembly tasks requiring high tightening force


• 2 mechanical speeds – 0-460 min⁻¹ for tasks requiring higher torque and 0-2000 min⁻¹ for fast drilling and hammer drilling


• 19+2 adjustment positions – 19 clutch settings for torque control and drilling mode - I gear: 60 Nm, II gear: 30 Nm


• 13 mm chuck – allows for a wide range of accessories


• maximum drilling diameter in wood: 38 mm


• maximum drilling diameter in steel: 13 mm


• maximum drilling diameter in masonry: 12 mm

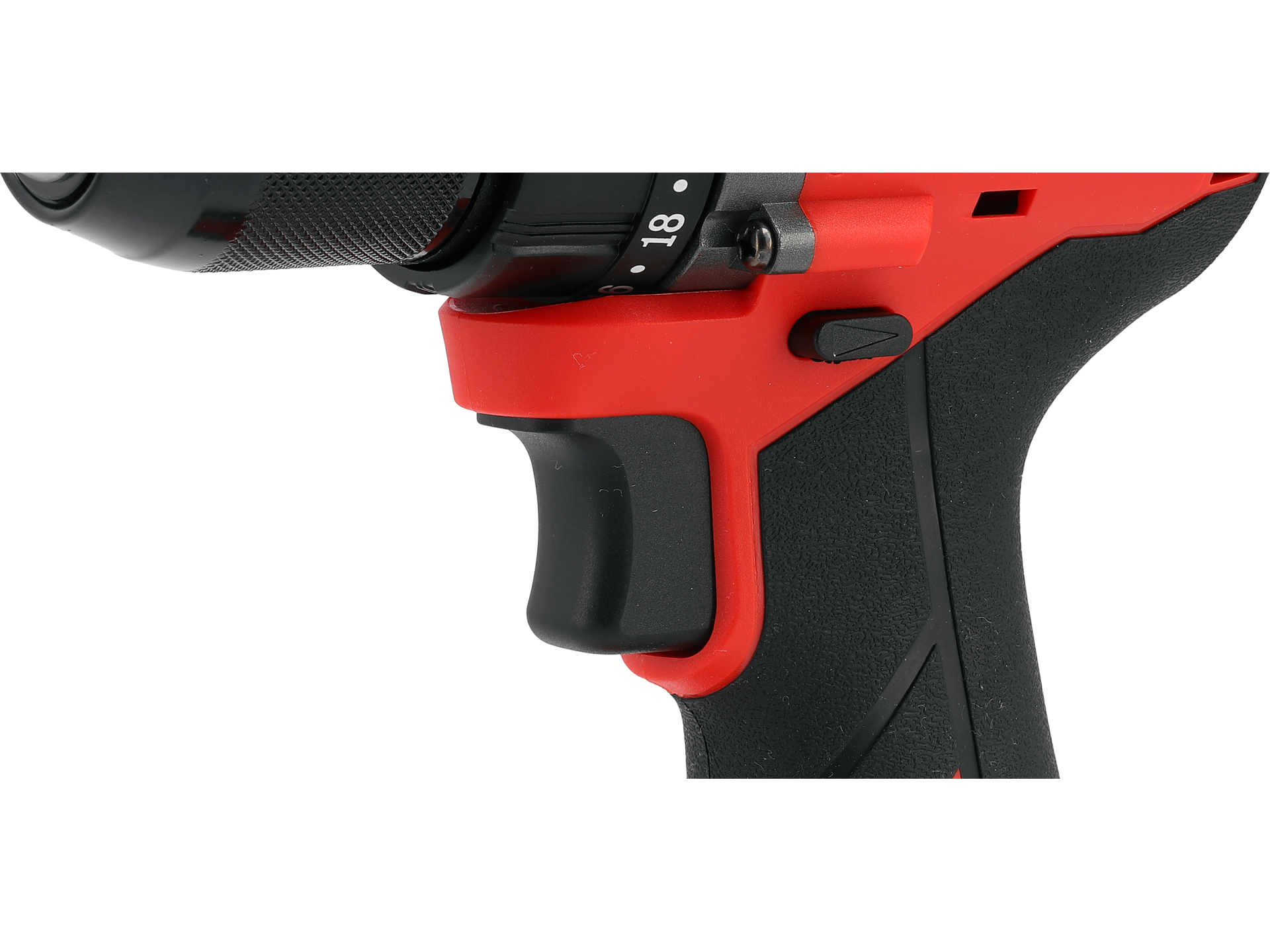

• reverse switch – quick switching between clockwise and counterclockwise rotation


• switch lock in the middle position – prevents accidental activation

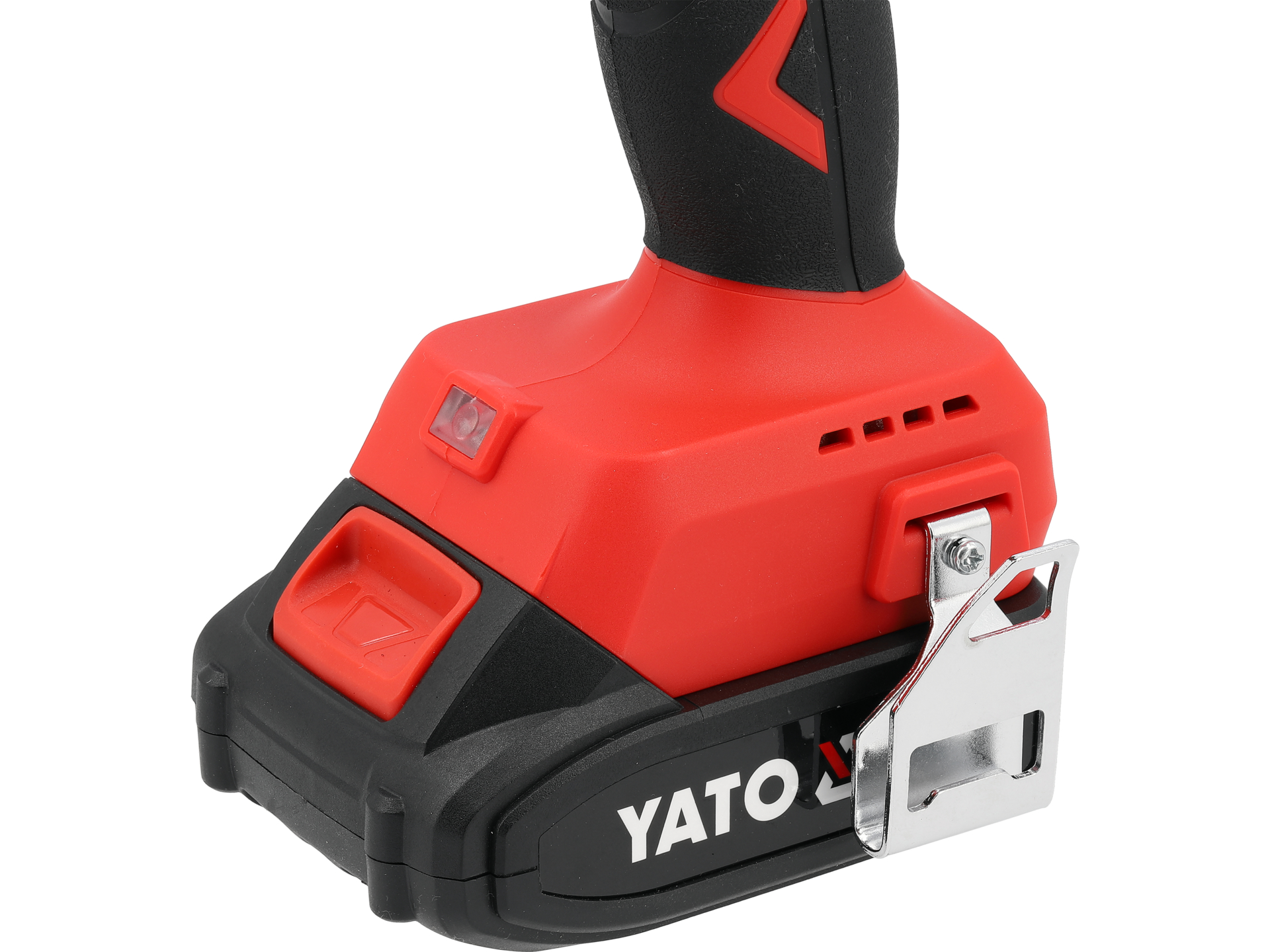

• battery charge indicator – allows monitoring of energy level during operation


• compact and lightweight design facilitates tool operation during longer tasks, such as installing suspended ceilings

Applications:

• drilling in hard brick and silicates


• drilling in wood and wood-based materials


• drilling in steel


• drilling in tiles


• screwing and unscrewing screws


• assembly and finishing work

Available Versions:

• YT-827680 – drill/driver, 2 Ah battery, charger


• YT-827681 – drill/driver, 2 batteries 2 Ah, charger


• YT-827682 – tool only, without battery and charger*

*The tool can be powered by the battery included in the set or one of the YATO 18 V Li-Ion batteries: YT-828461 (2 Ah), YT-828462 (3 Ah), YT-828463 (4 Ah), YT-828464 (6 Ah), and YT-828465 (9 Ah).

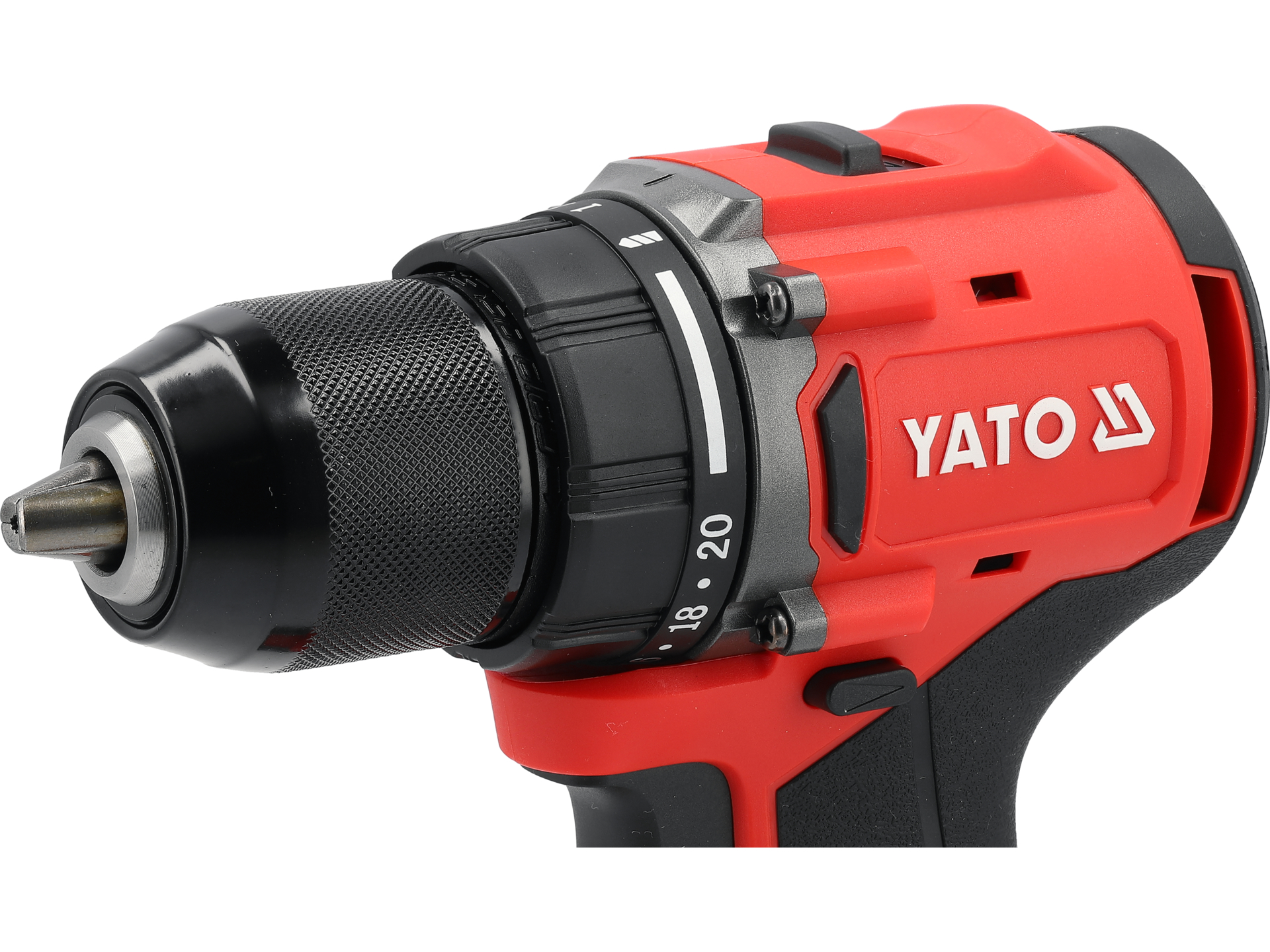

Torque Adjustment

The clutch adjustment ring allows you to select the torque according to the type of work being performed. 19 clutch positions help minimize the risk of over-tightening screws, damaging their heads or threads, and the material. For drilling, the ring should be set to the position marked with the drill symbol, which disables the torque limitation by the clutch and allows for maximum torque utilization.

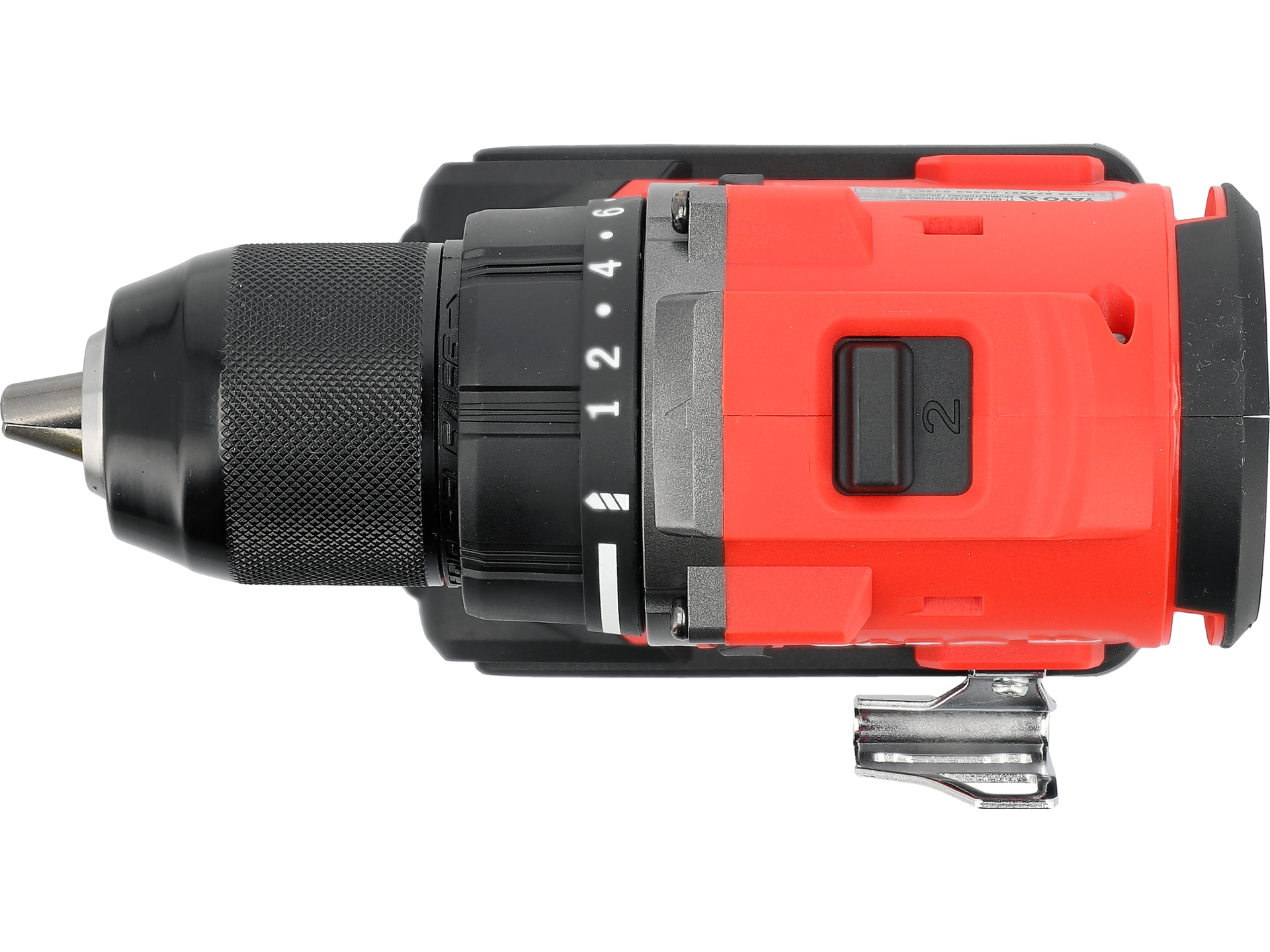

Two Gears and Direction Adjustment

The mechanical gearbox offers two speed ranges. The lower speed 0-460 min⁻¹ is primarily intended for driving screws and drilling in metal, while the higher speed 0-2000 min⁻¹ is effective for hammer drilling and drilling in wood.

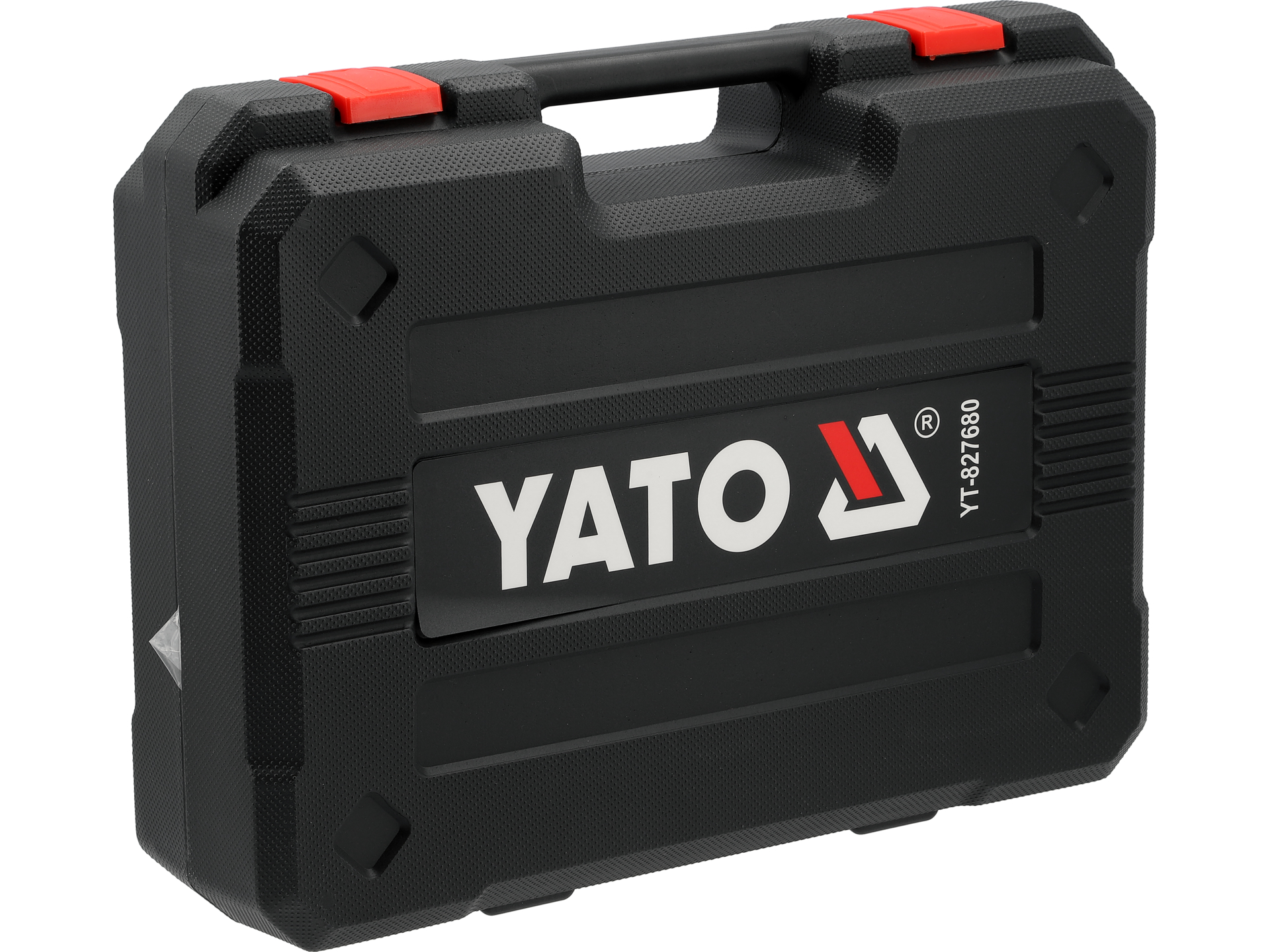

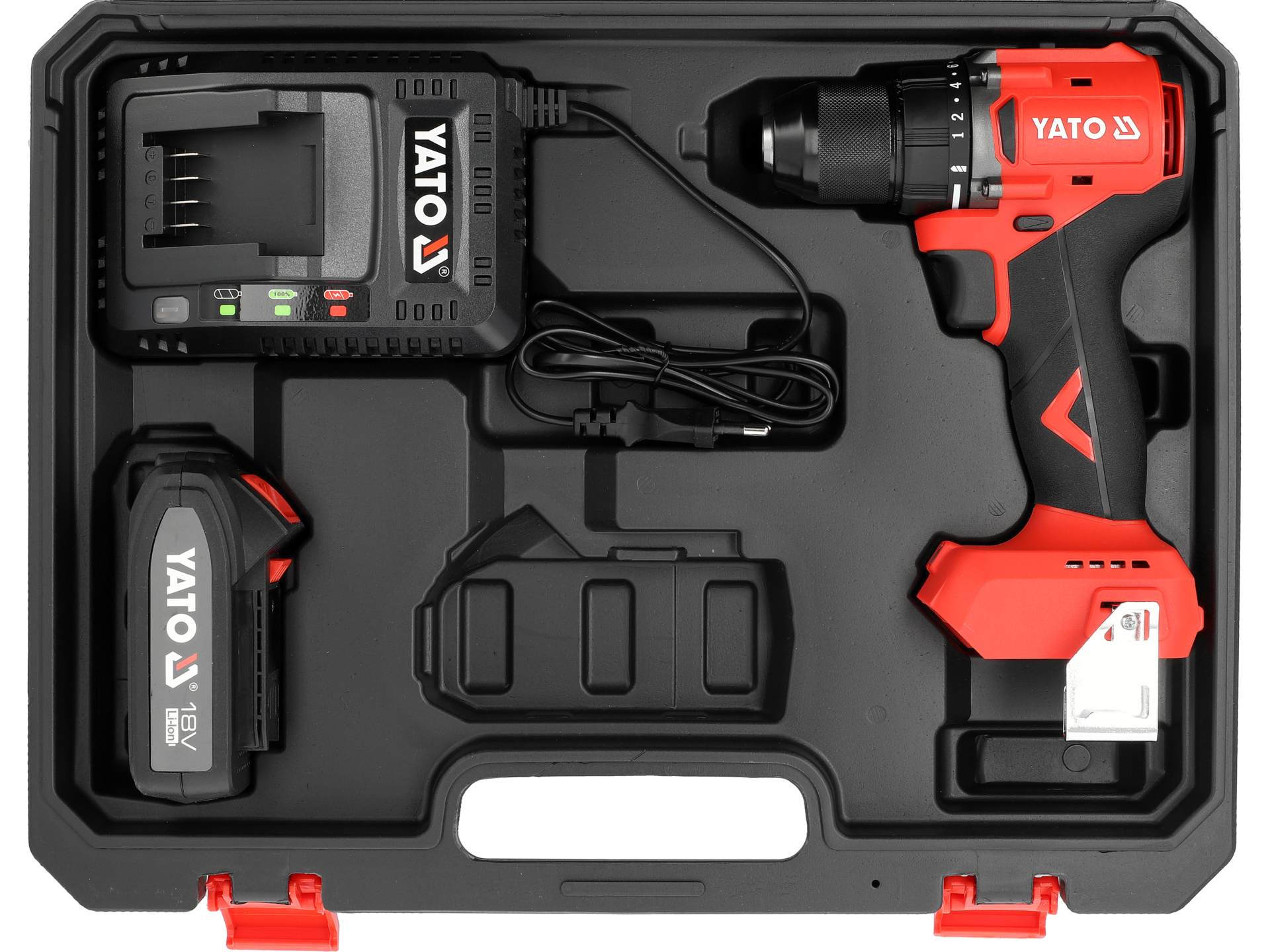

Set includes: drill/driver, battery, charger
Toolholder type: self-centering
Rotations: 0-460 (gear I) / 0-2000 (gear II) min⁻¹
Toolholder size: 13 mm
Weight: 0.98 kg
Voltage: 18 V d.c.
Protection grade: IPX0
Battery capacity: 2000 mAh
Electric insulation class: III
Acoustic pressure : 60.7 ± 3.0 dB(A)
Acoustic power : 64.2 ± 3.0 dB(A)
Functions: screwing, drilling
Rotation switch: yes
Max. torque: 60 (gear I), 30 (run II) Nm
Battery type: Li-Ion
Charging time: 1 h
Charge level indicator: yes
Work mode switch: yes
Vibrations : 1.215 ± 1.5 m/s²
Max. hole diameter in steel: 13 mm
Stroke: no
Max. hole diameter in wood: 38 mm
Max. hole diameter in concrete: 12 mm
Speed adjustment: yes
Engine (motor) type: brushless
Quick charging: yes
Battery quantity: 1
Spindle brake: yes
Charger included: yes
