Description:
Brand:
VIBRATING POKE + 18V BATTERY DRIVE
YT-82604
Mark
Yato
Symbol
YT-82604
Series
GRF
Application
thickening fresh concrete mortar
Turnover
3100 min⁻¹
Vibration frequency
12500 min⁻¹
Shaft and poker length
1.2 m
Poker diameter
25mm
Tension
18 V d.c.
Battery type
Li-Ion
Number of batteries included
lack
Electrical insulation class
II
Level of security
IPX0
Sound pressure
63.0 ± 3.0 dB(A)
Acoustic power
74.0 ± 3.0 dB(A)
Vibrations
3.2 ± 1.5 m/s²
Mass
3kg
Set contents
drive unit, flexible shaft, vibrating poker

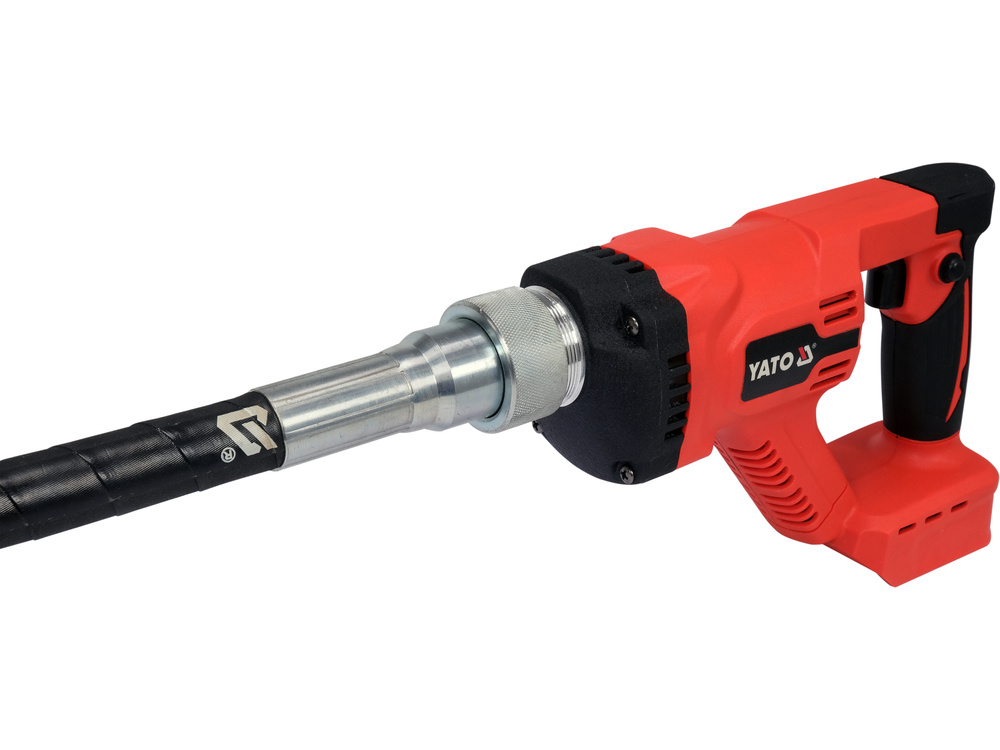

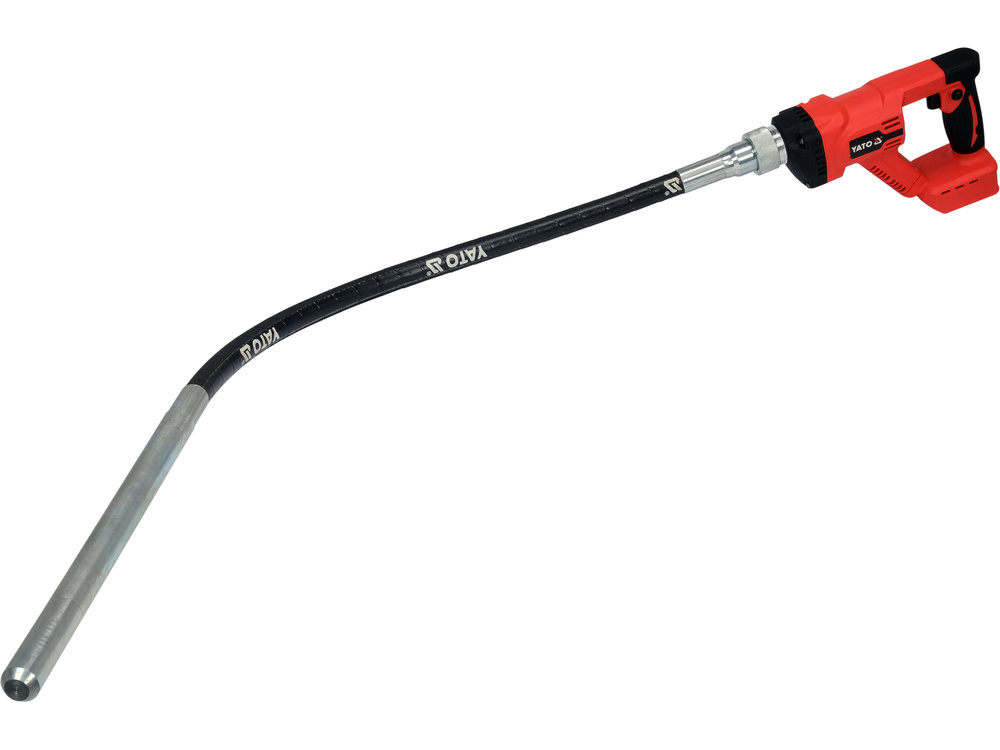

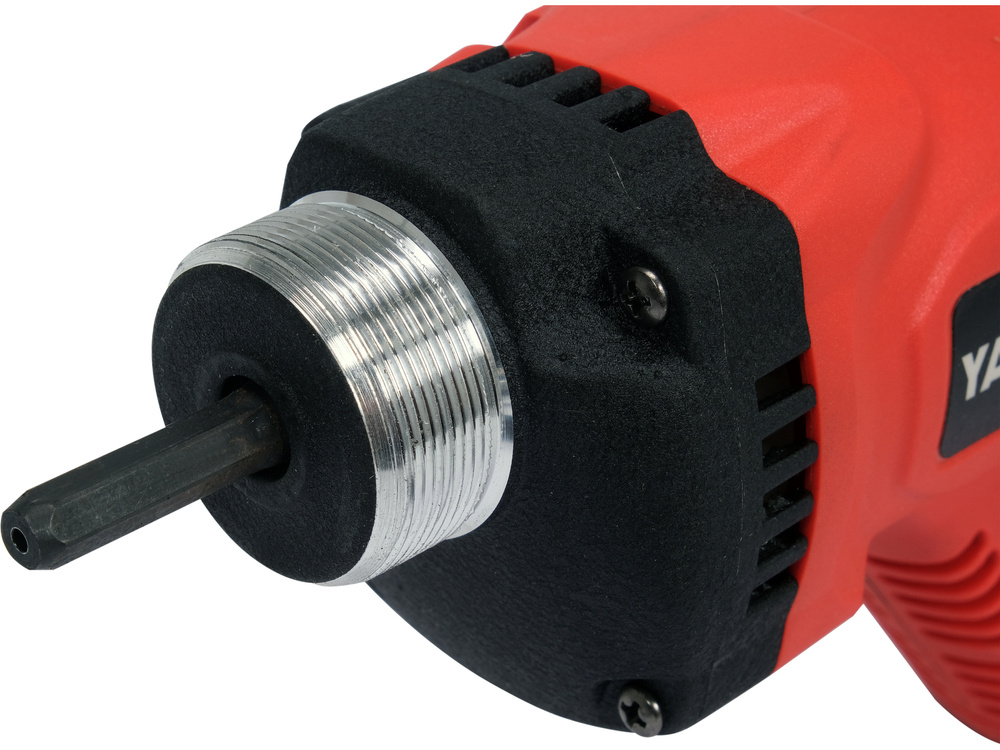

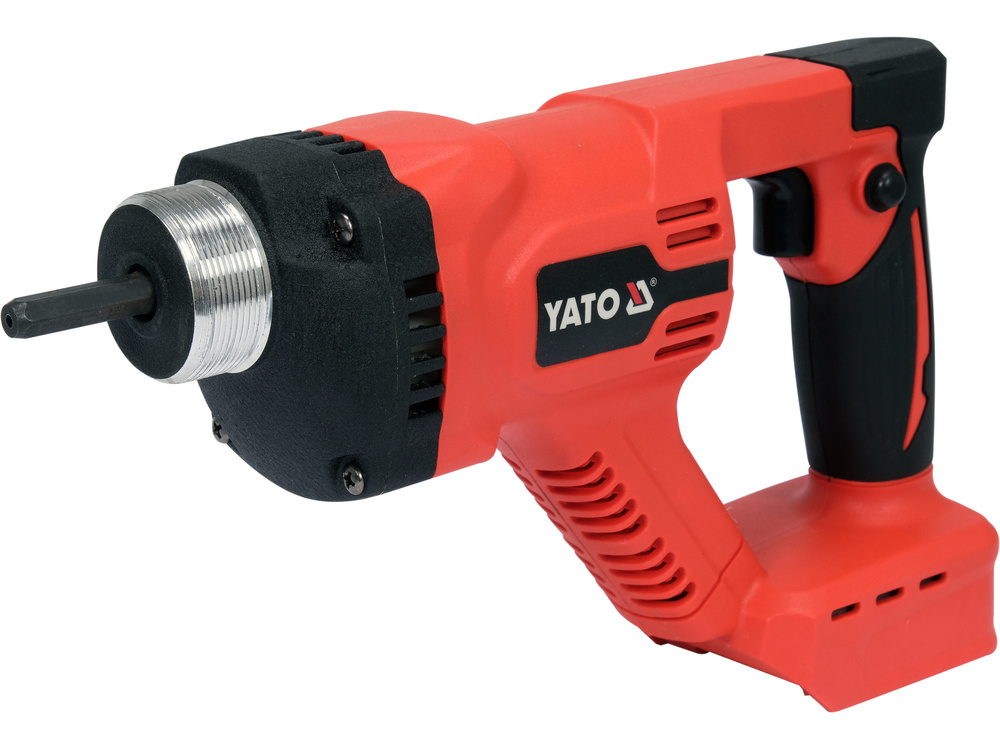

Battery vibrator with a brushless motor, designed for compacting fresh concrete mortar. During compaction, the mortar becomes plastic and spreads throughout the entire formwork. Thanks to this, cramps (empty spaces in the structure) are eliminated and curves on the surface disappear. Battery power gives the user the ability to work without the availability of mains power.
shaft and poker length: 120 cm

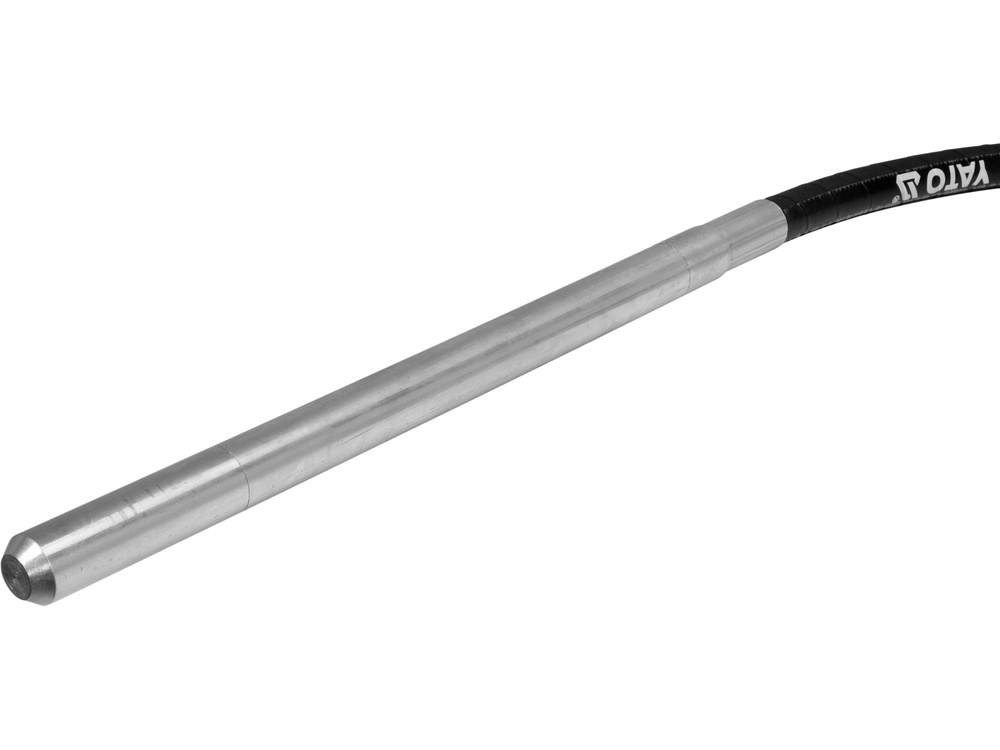

head diameter: 25 mm
vibration frequency: 12500 vibrations/min
revolutions: 3100 rpm
weight: 3 kg
