Description:
Brand:
Index
YT-20050
Barcode
5906083137655
Unit of measure
PCE
Volume
0.873
Weight
0.431

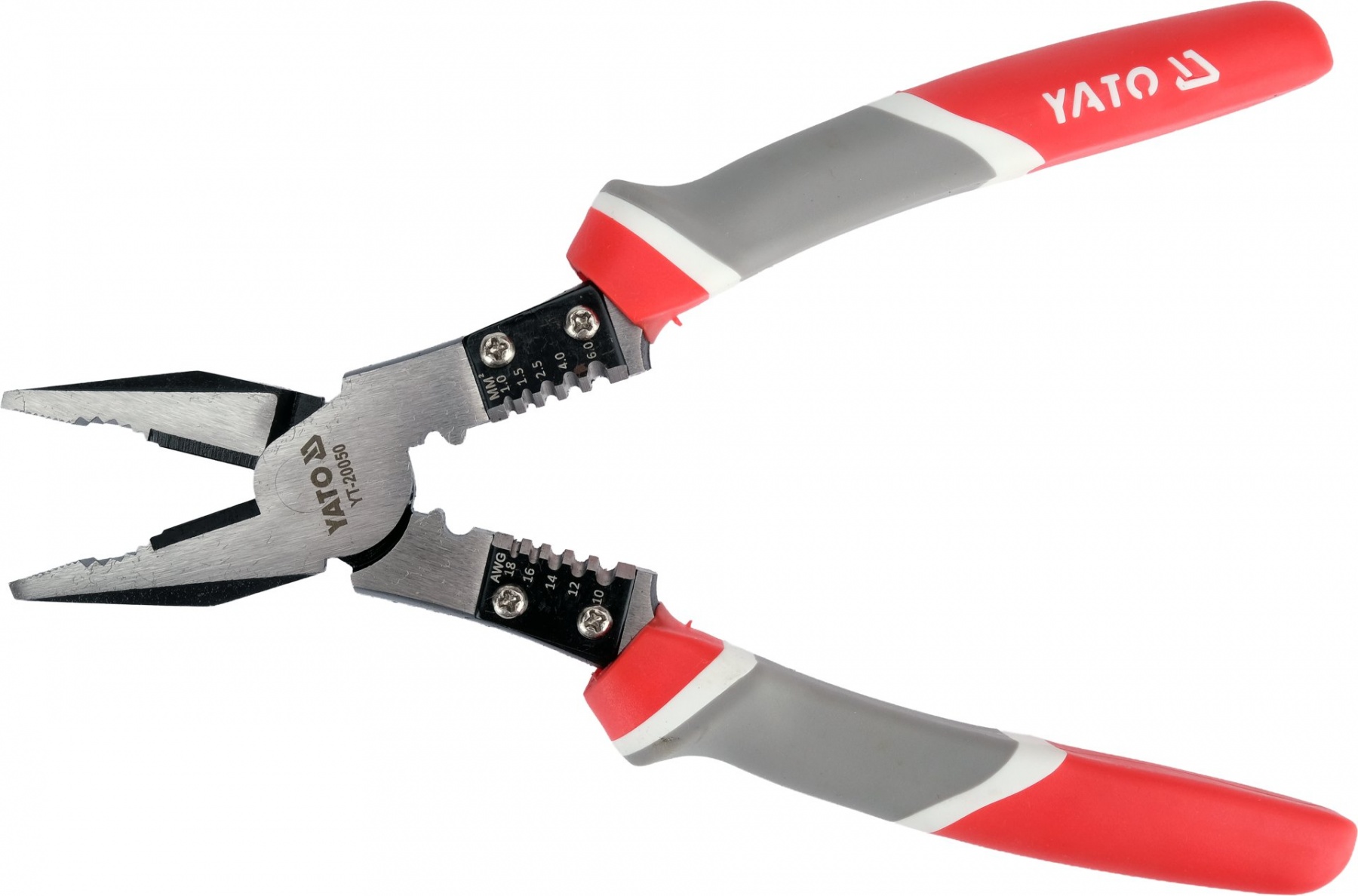

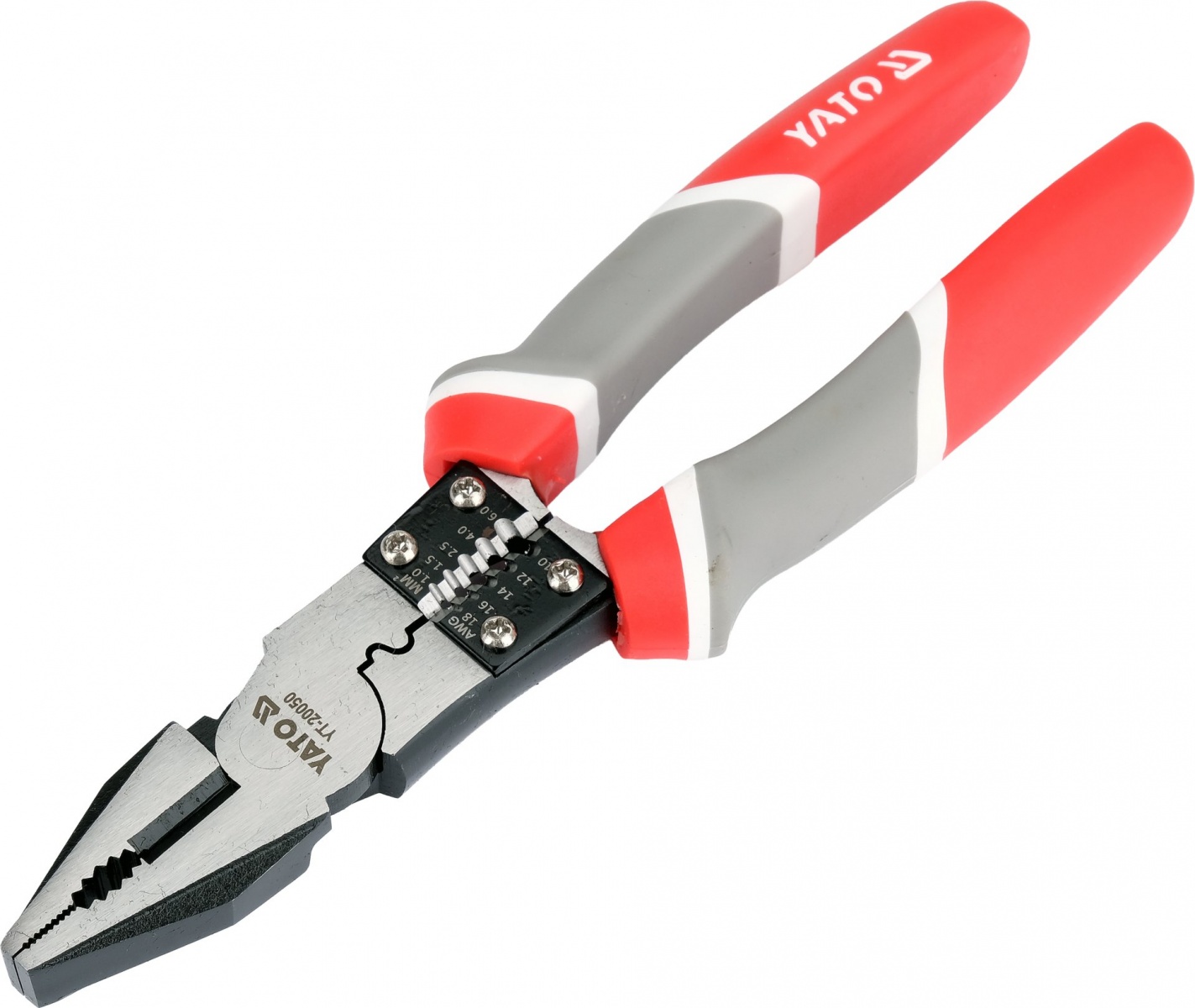

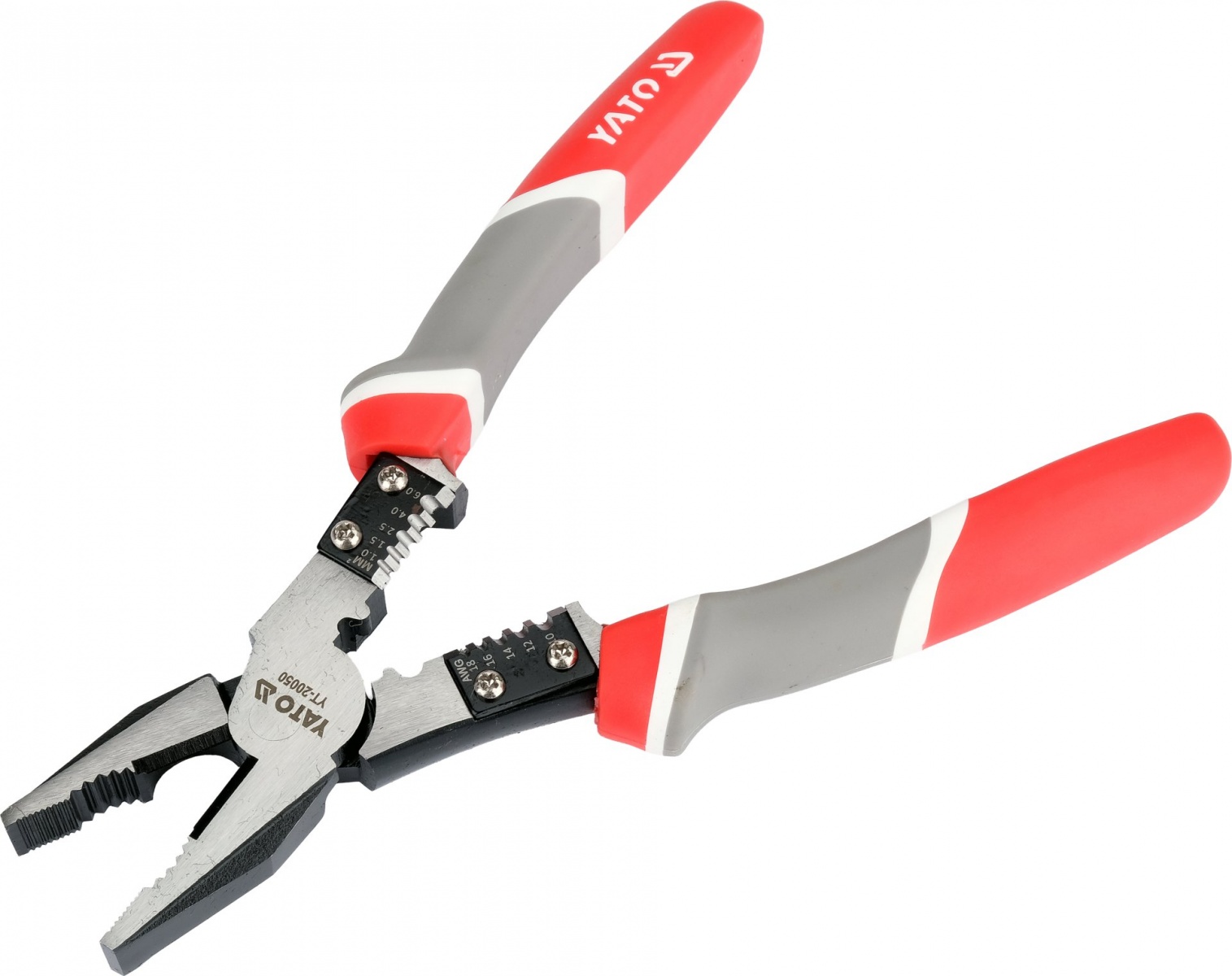

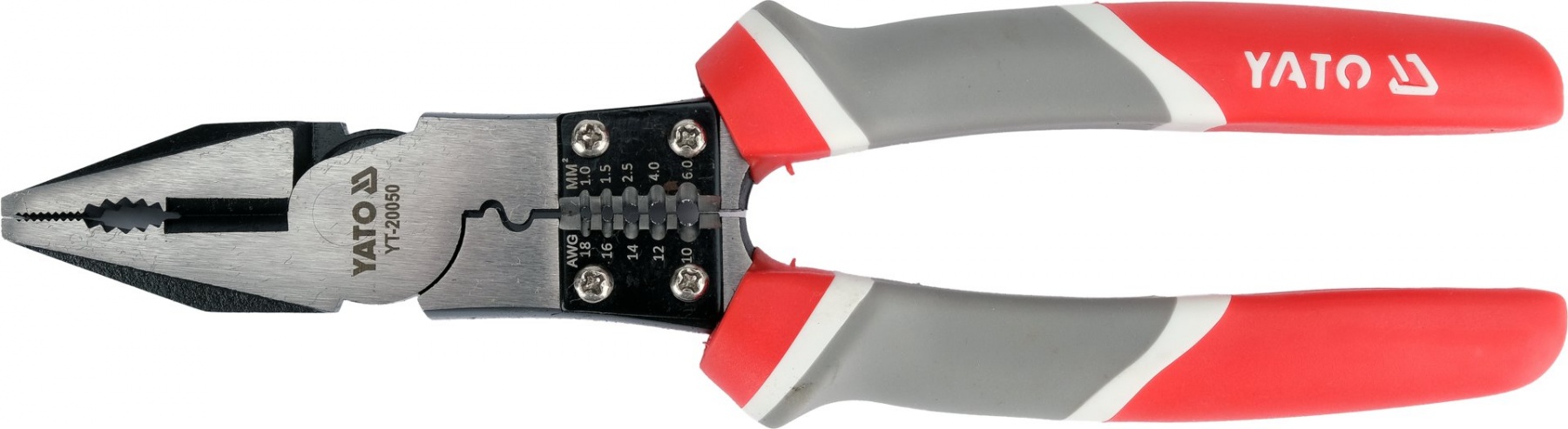

The YT-20050 multi-function pliers are designed for installation, electrical, and assembly work involving wire processing. The tool combines gripping, cutting, and stripping functions, allowing you to perform multiple operations with a single tool. The robust carbon steel construction, hardened blades, and precision-machined slots ensure comfortable and efficient work and high durability when cutting wires.
Technical specifications:
Total length: 220 mm (8.5")
Material: Carbon steel
Body hardness: 40-45 HRC
Blade hardness: 55-58 HRC
Working range: AWG 8-18 / 1.0-6.0 mm²
Ergonomic handles made of PP and TPR
Polished surface finish
Functions:
Gripping and holding components
Cutting wires
Stripping insulation from electrical cables
Assembly and service work
Stripping range:
AWG 8-10
AWG 10-12
AWG 12-14
AWG 14-16
AWG 16-18
1.0 mm²
1.5 mm²
2.5 mm²
4.0 mm²
6.0 mm²
