Description:
Brand:
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Series
GRD
Diameter
1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10 mm
Overall length
34, 43, 49, 57, 61, 70, 75, 80, 86, 93, 93, 101, 109, 109, 117, 117, 125, 125, 133 mm
Working part length
12, 20, 24, 30, 33, 39, 43, 47, 52, 57, 57, 63, 69, 69, 75, 75, 81, 81, 87 mm
Toolholder type
tube-shaped
Material
HSS-E Co HS6-5-2-5
Surface finish
refined, polished
DIN
338
Standard
PN-EN ISO 4957:2002(U)

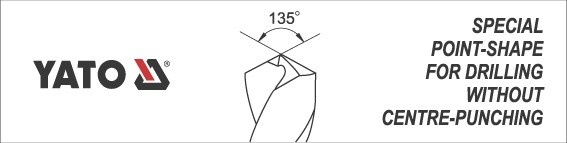

Drill bit point angle
135 Ëš
Split point
yes
High temperature resistance
yes
Tensile strength
>900 N/mm²
Pcs
19
Application
corrosion-resistant alloy, stainless steel, acid-resistant steel, cast iron, non-ferrous metals, synthetic material
Symbol
YT-41604

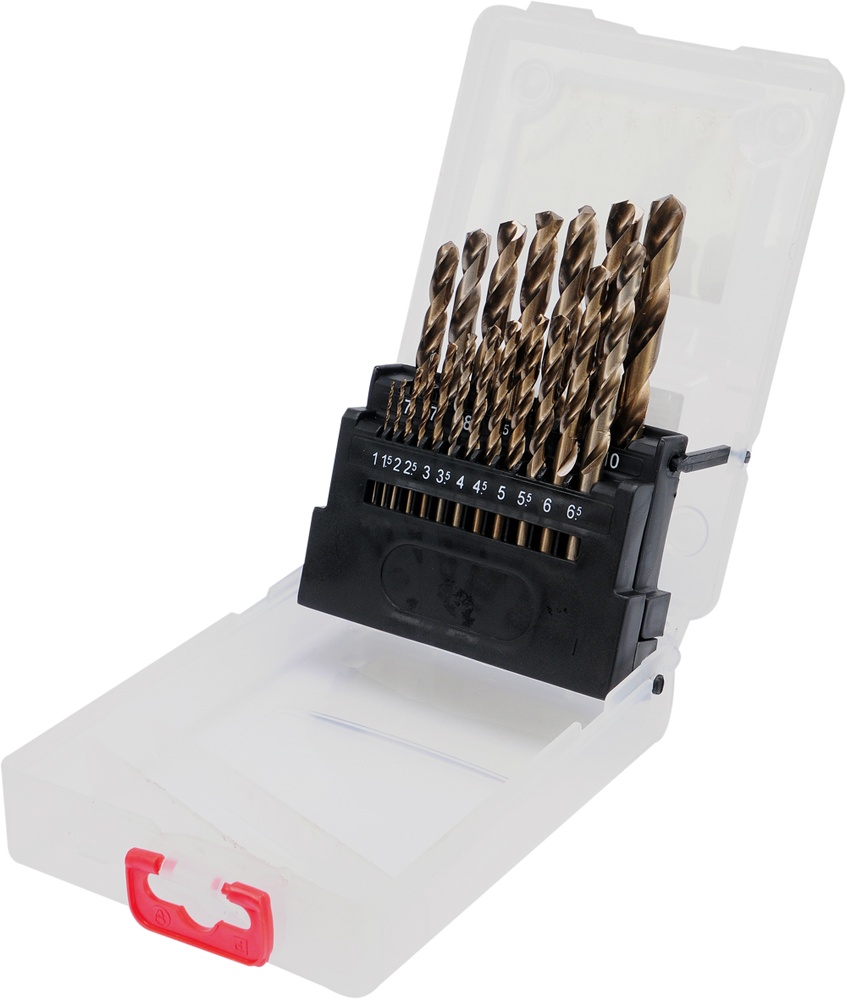

A set of cobalt drills for metal 19 pcs. Resistant to high temperature. The set consists of 19 drills with a diameter [mm]: 1; 1.5; 2; 2.5; 3; 3.5; 4; 4.5; 5; 5.5; 6; 6.5; 7; 7.5; 8; 8.5; 9; 9.5; 10
Usage warnings:
Use of hand tools may be dangerous! Always use personal protection equipment at work. Use only proper undamaged tools. Select the type and size of tool according to intended application. Do not overload tools. Keep tools away from children. Use tools with proper care.
