Ball bearing Separator | 5 - 63 mm (7741)

(1)

Description:

Description
drop forged

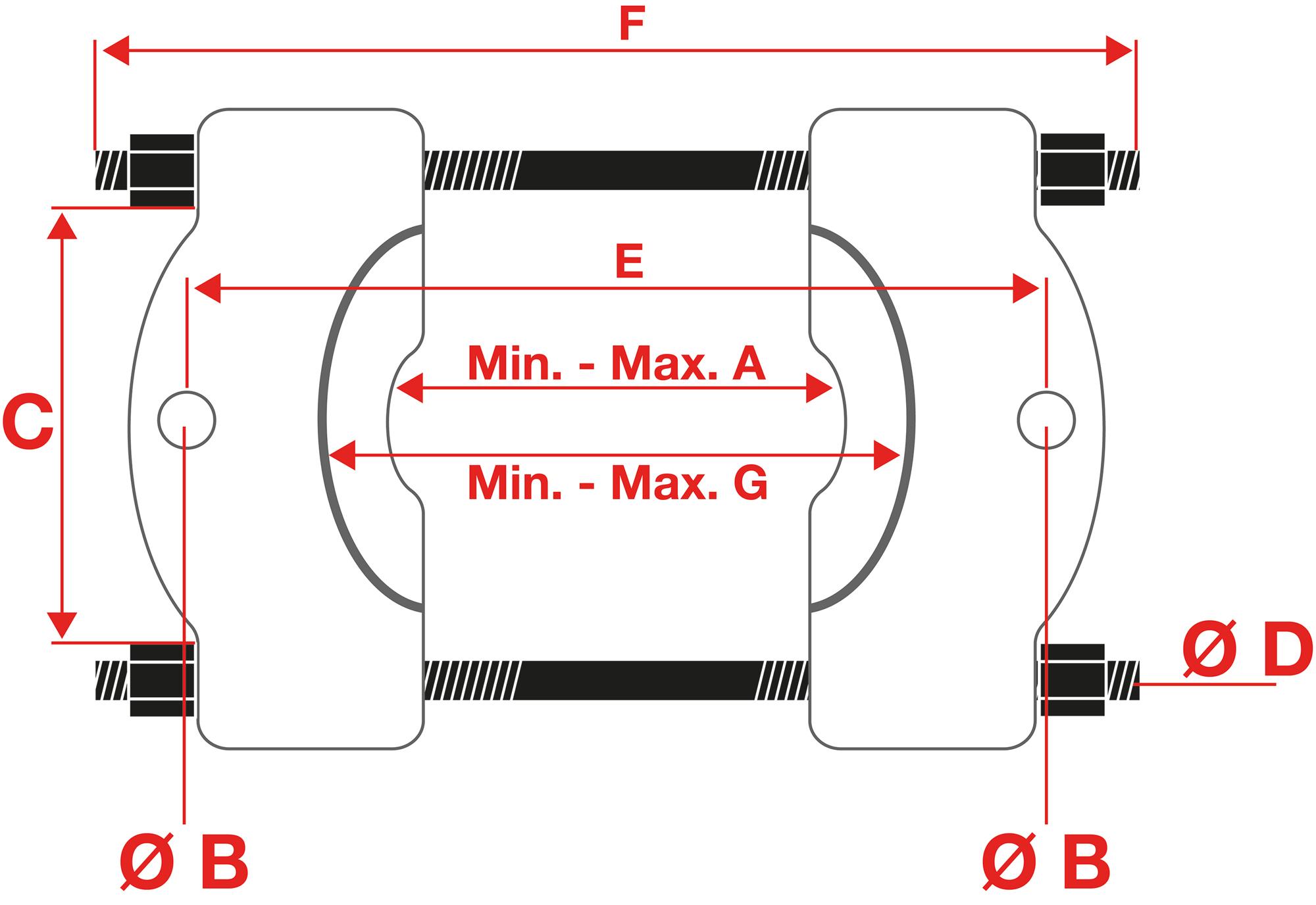

clamping width (A) min. / max. in mm: min. 5 mm / max. 63 mm
puller bolt receiving thread (B): 3/8" x 16 UNC
clamping bolt distance (C) in mm: 61 mm
camping bolt thread (D): 3/8" x 24 UNF
puller bolt distance (E) min. / max. in mm: min. 50 mm / max. 108 mm
clamping bolt length (F): 127 mm
splitting knife base (G) min. / max. in mm: min. 24 mm / max. 82 mm
Technical data
Gross weight 700 g
Surface finish Chrome plated
