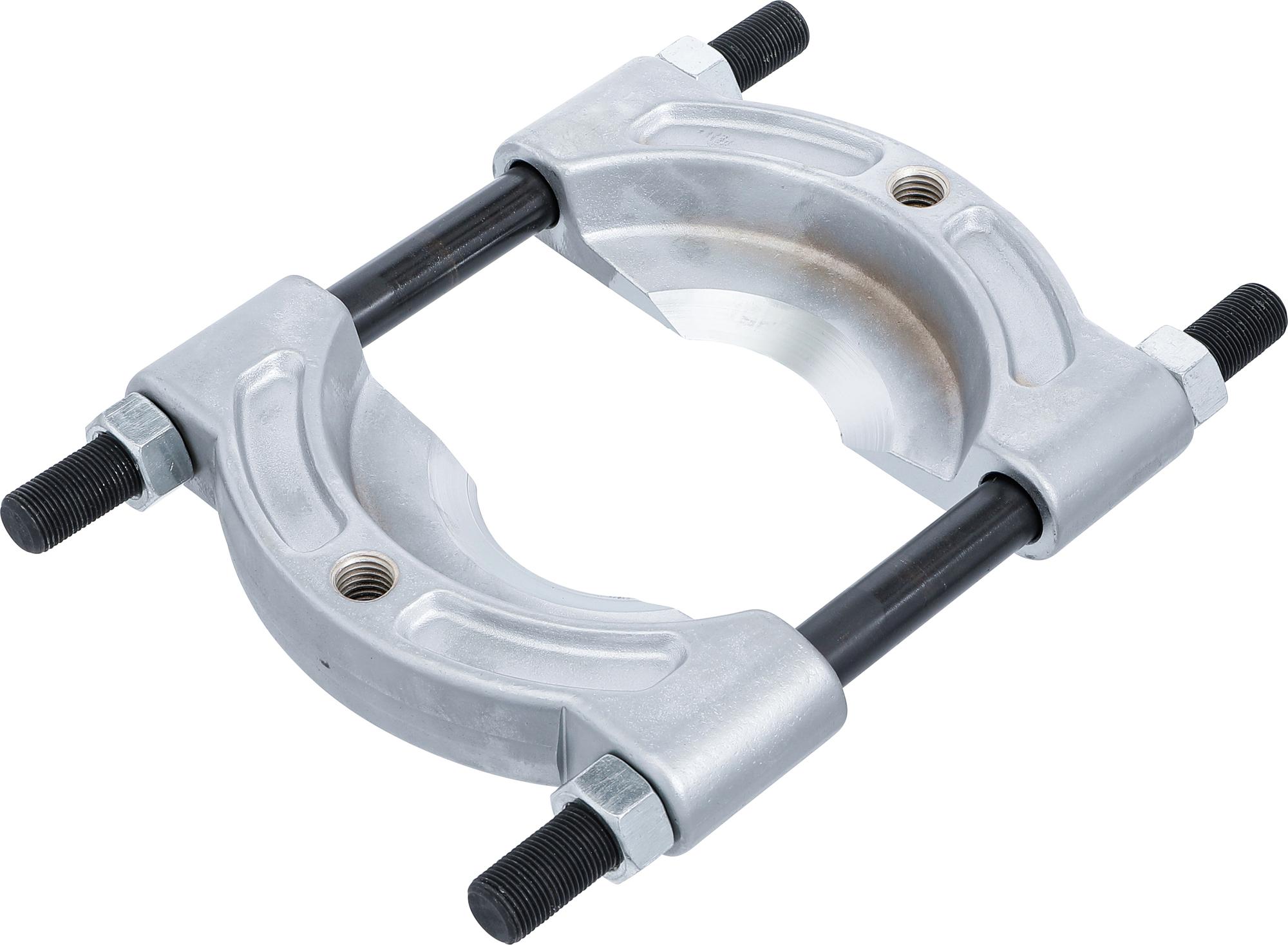

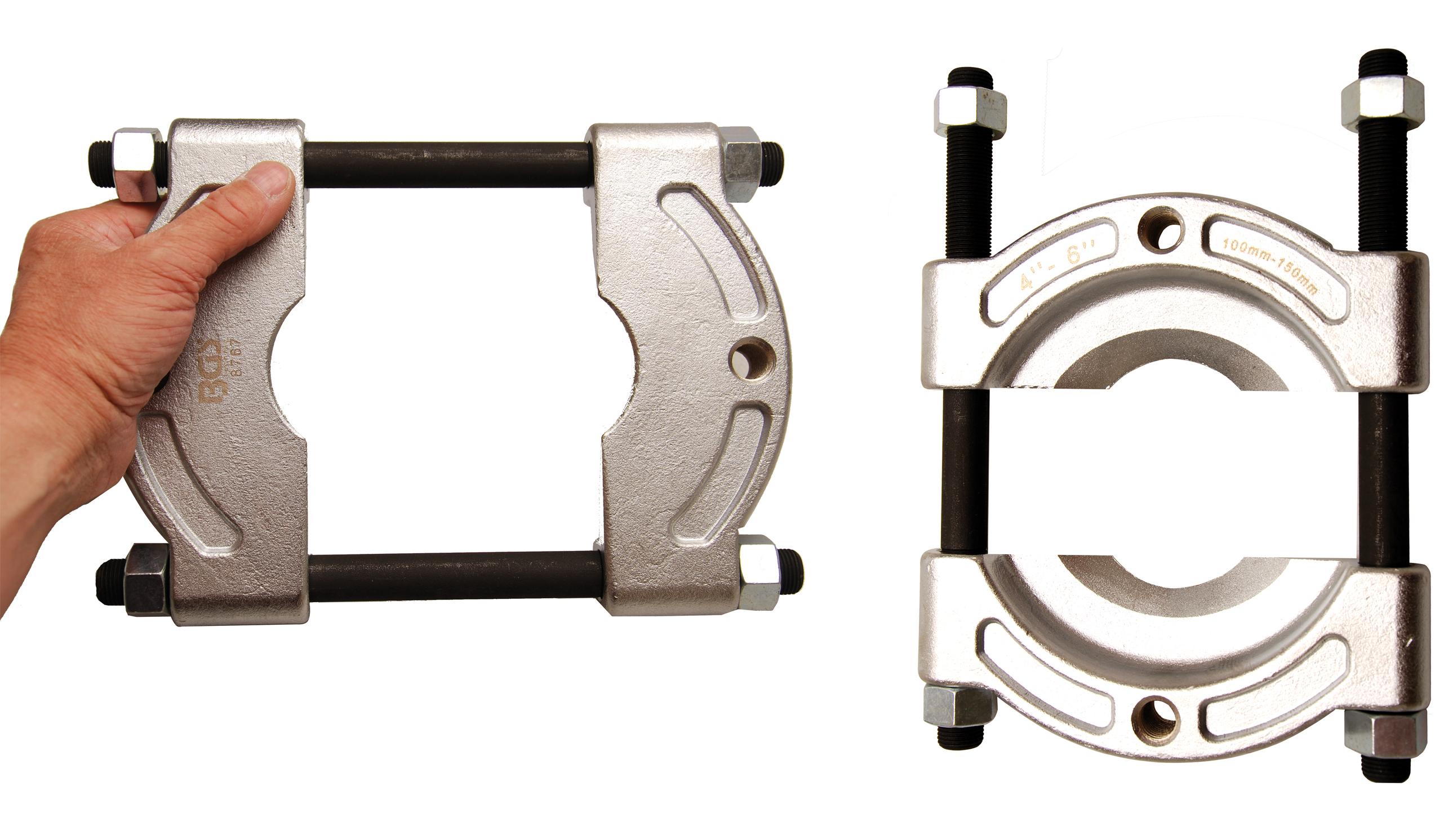

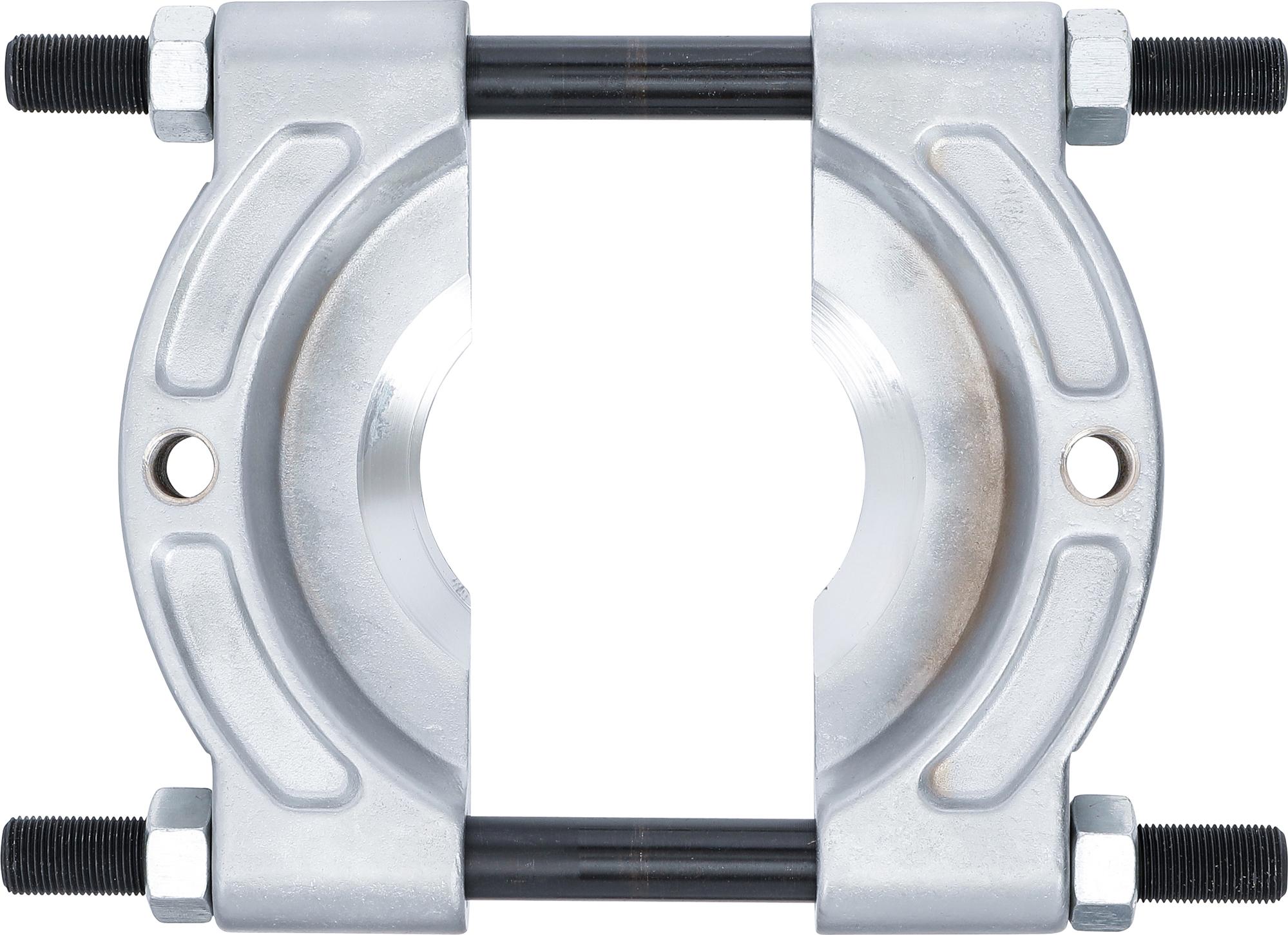

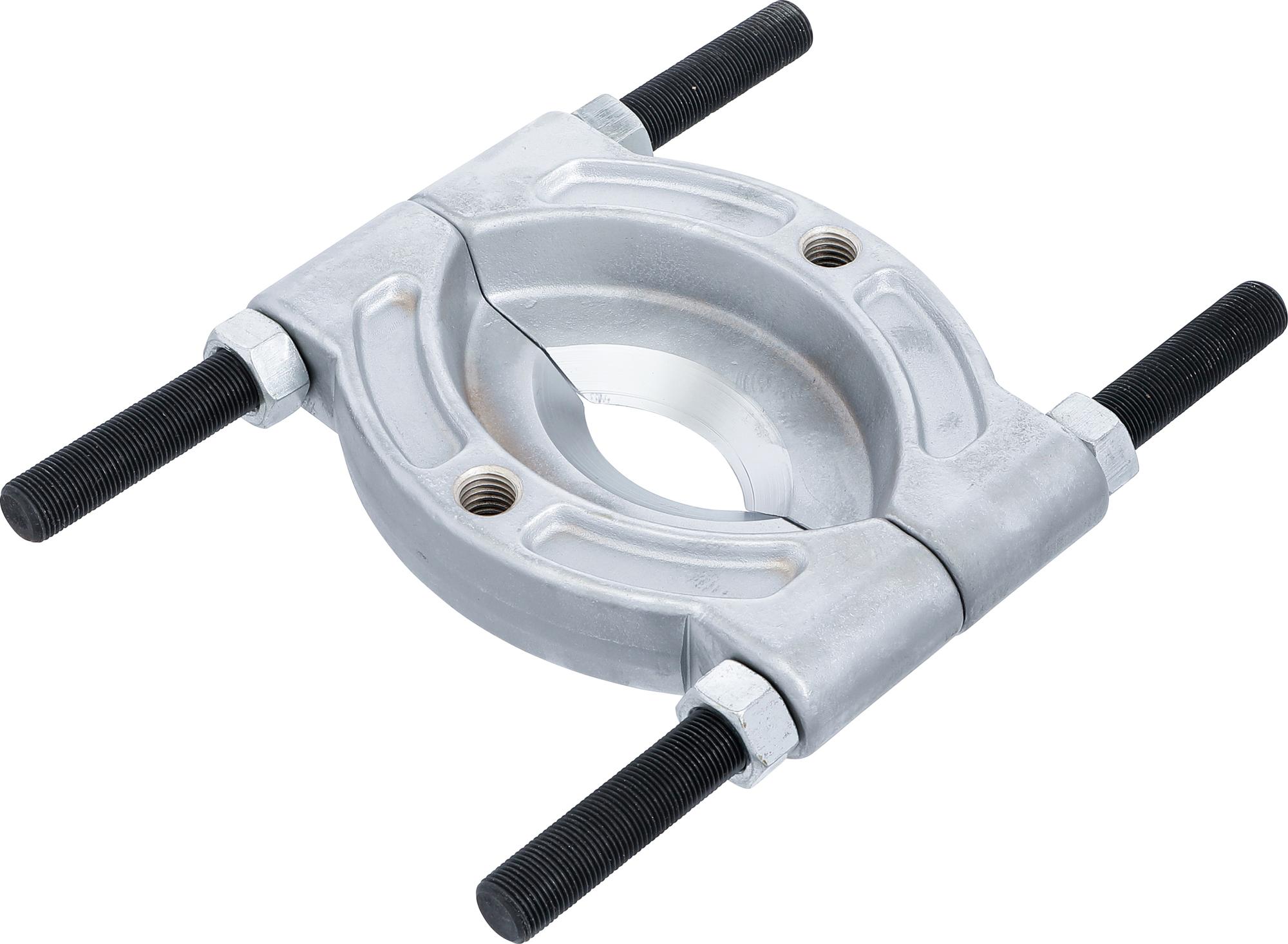

Ball Bearing Separator | 29 - 170 mm (8767)

(1)

Description:

Description
drop forged

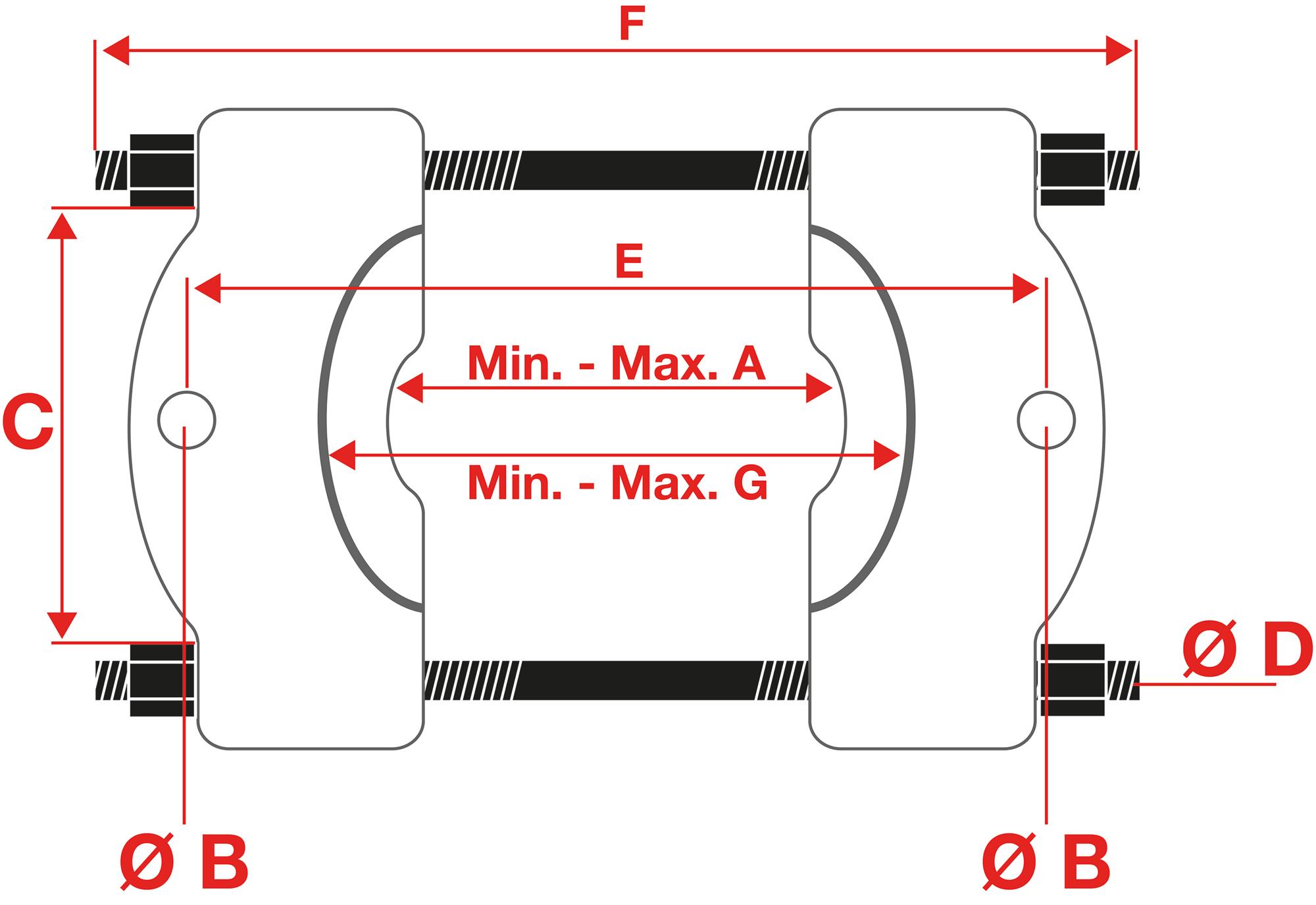

clamping width (A) min. / max. in mm: min. 29 mm / max. 168 mm
puller bolt receiving thread (B): 5/8" x 11 UNF
clamping bolt distance (C) in mm: 152 mm
camping bolt thread (D): 3/4" x 16 UNF
puller bolt distance (E) min. / max. in mm: min. 123 mm / max. 262 mm
clamping bolt length (F): 278 mm
splitting knife base (G) min. / max. in mm: min. 85 mm / max. 224 mm
Technical data
Gross weight 5360 g
Surface finish Chrome plated
