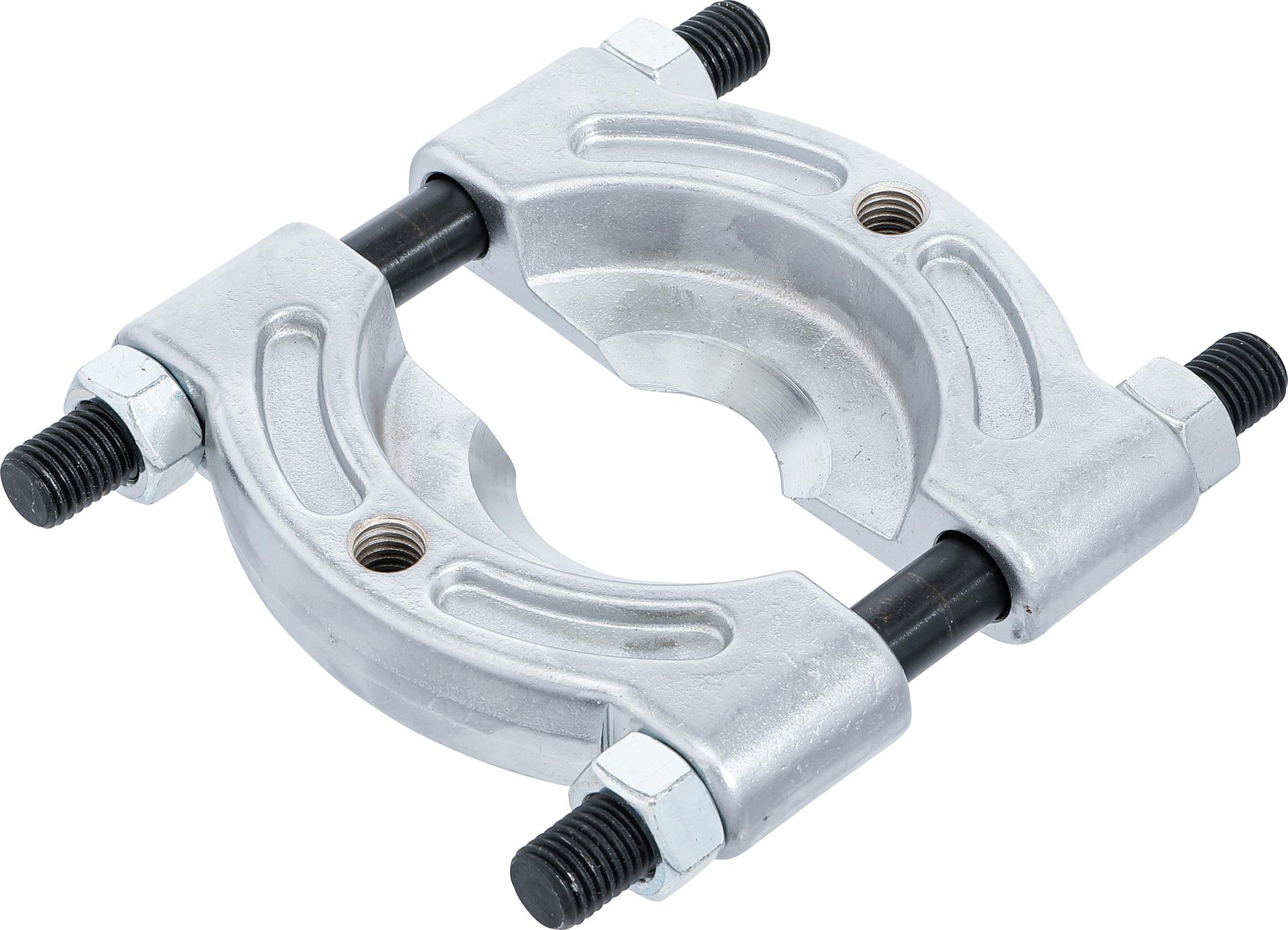

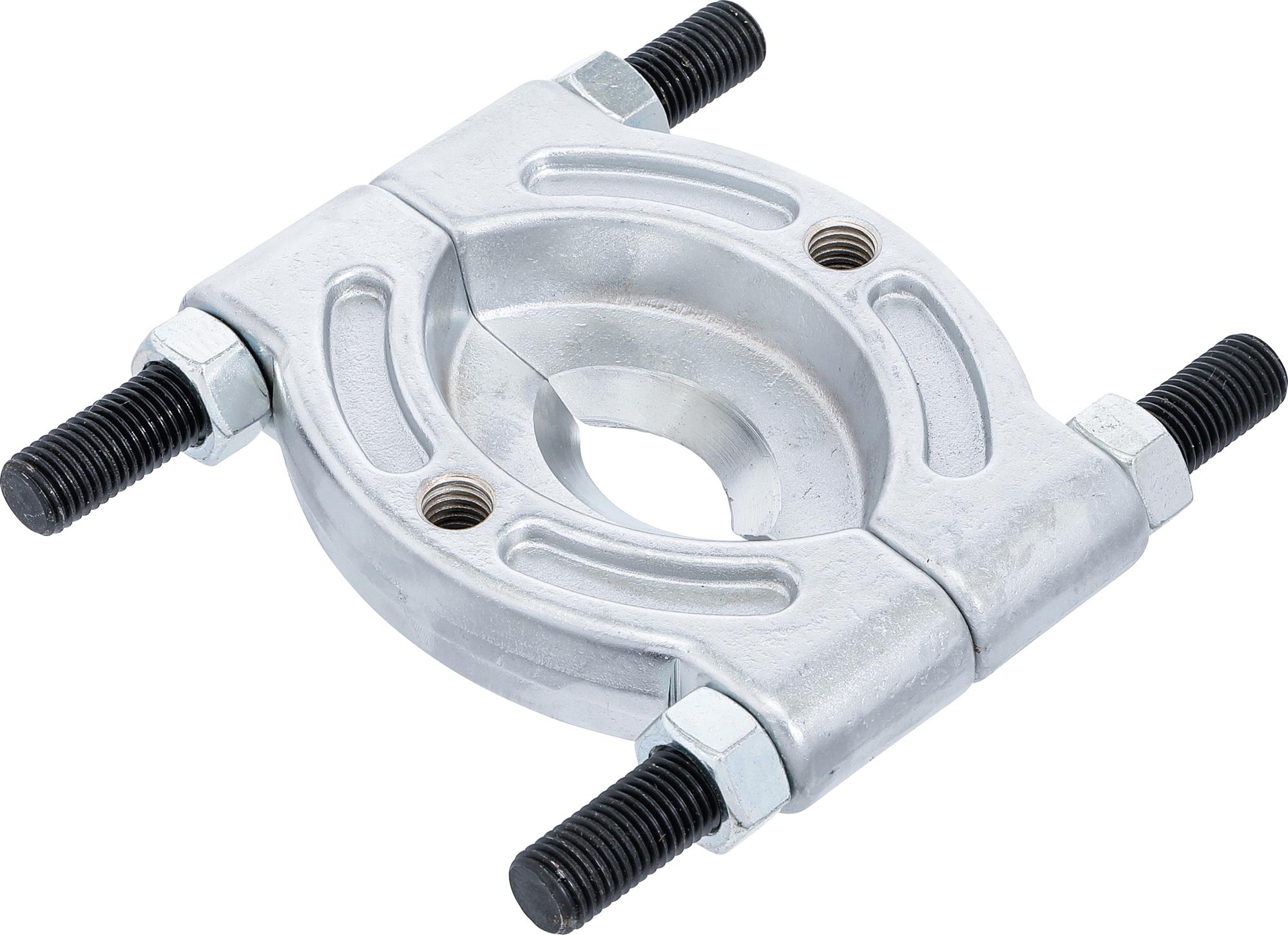

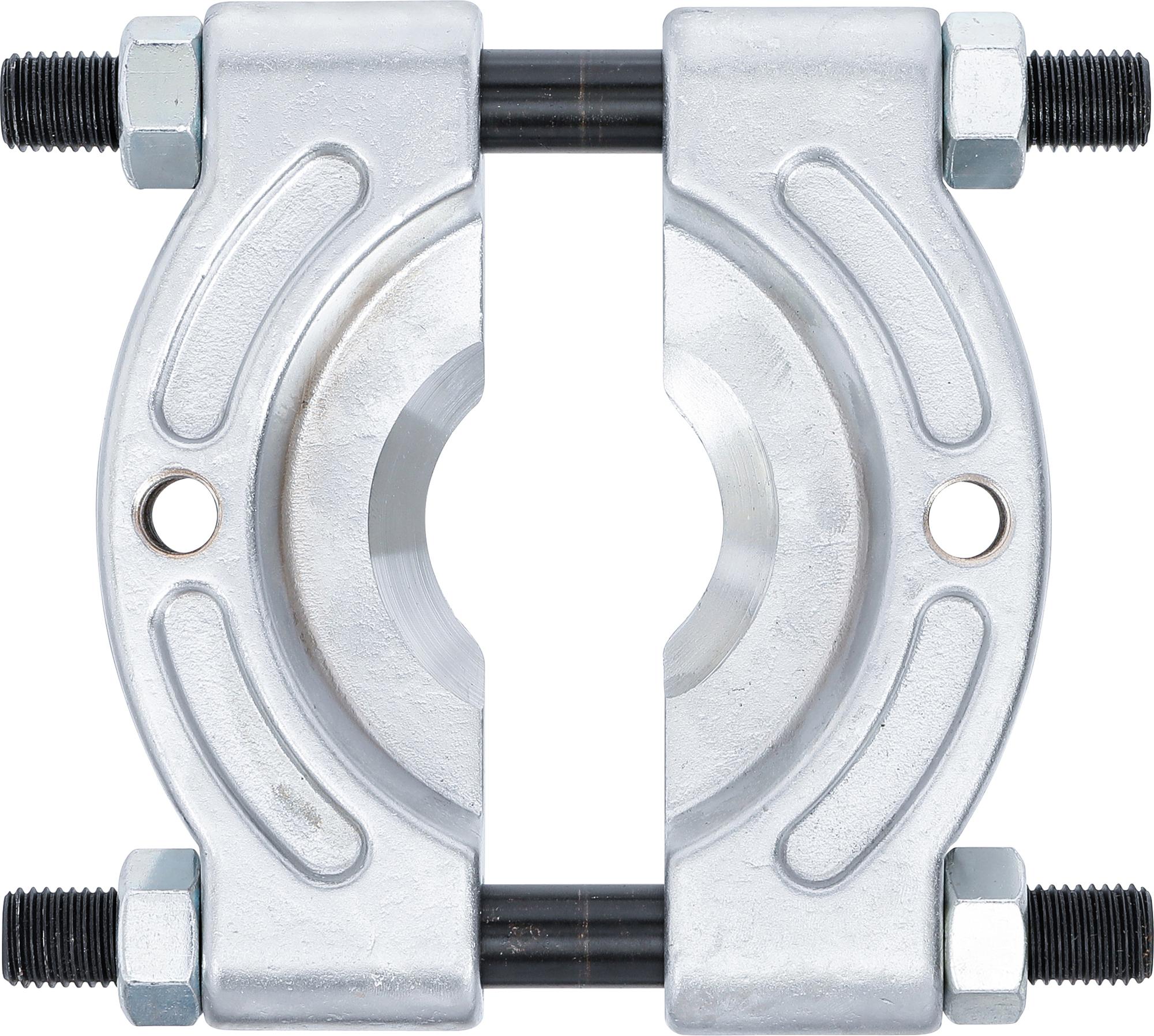

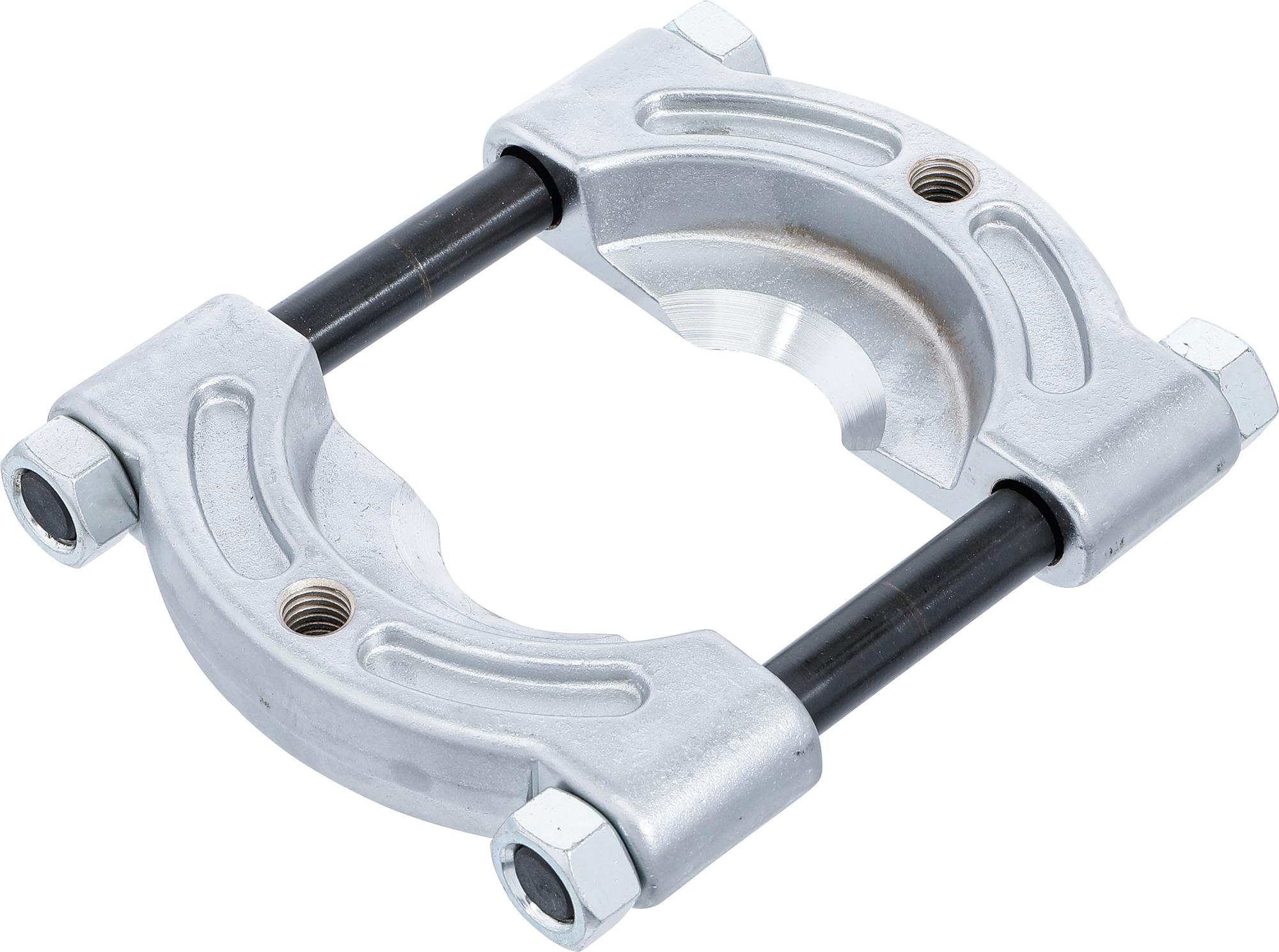

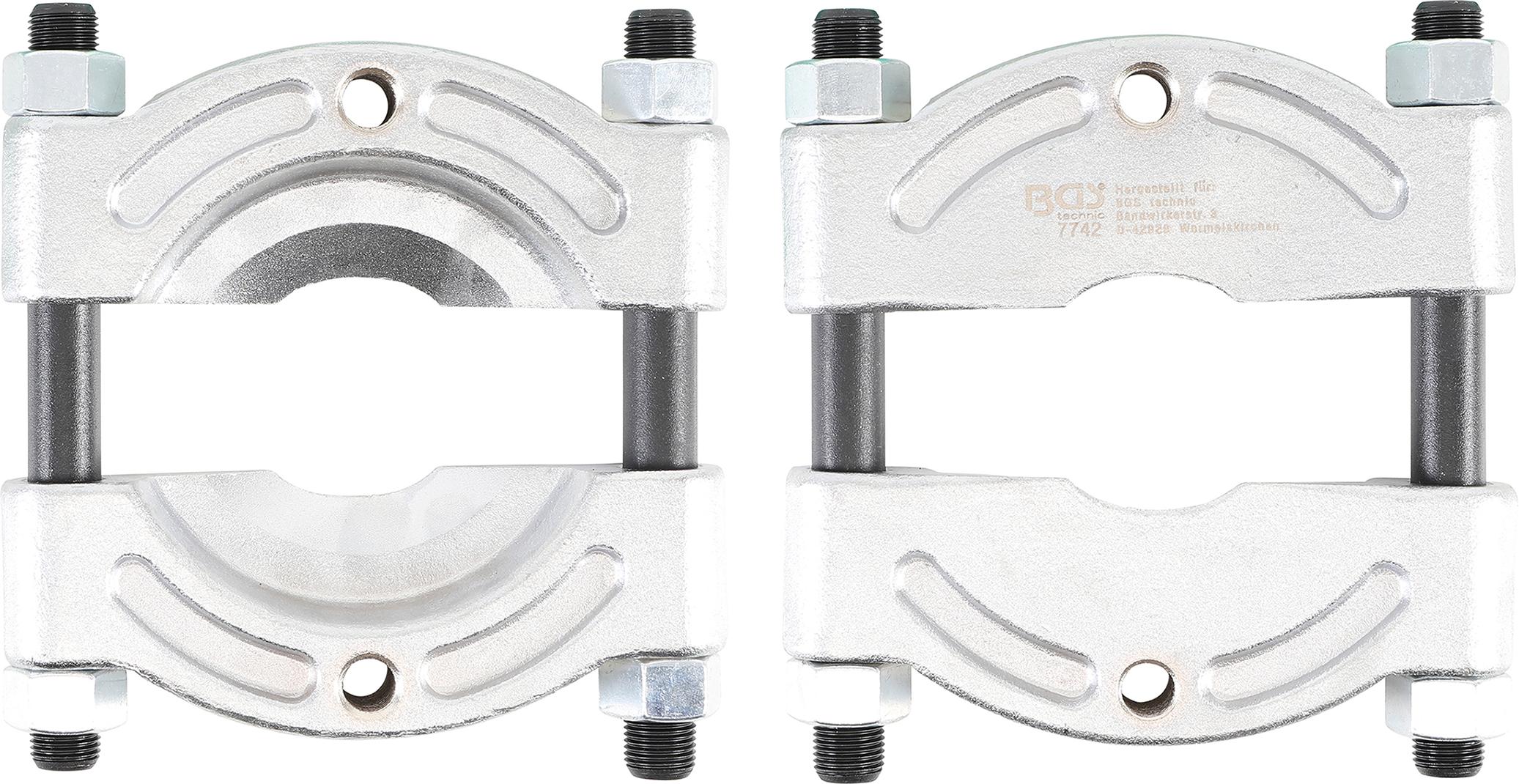

Ball Bearing Separator | 13 - 70 mm (7742)

(1)

Description:

Description
drop forged

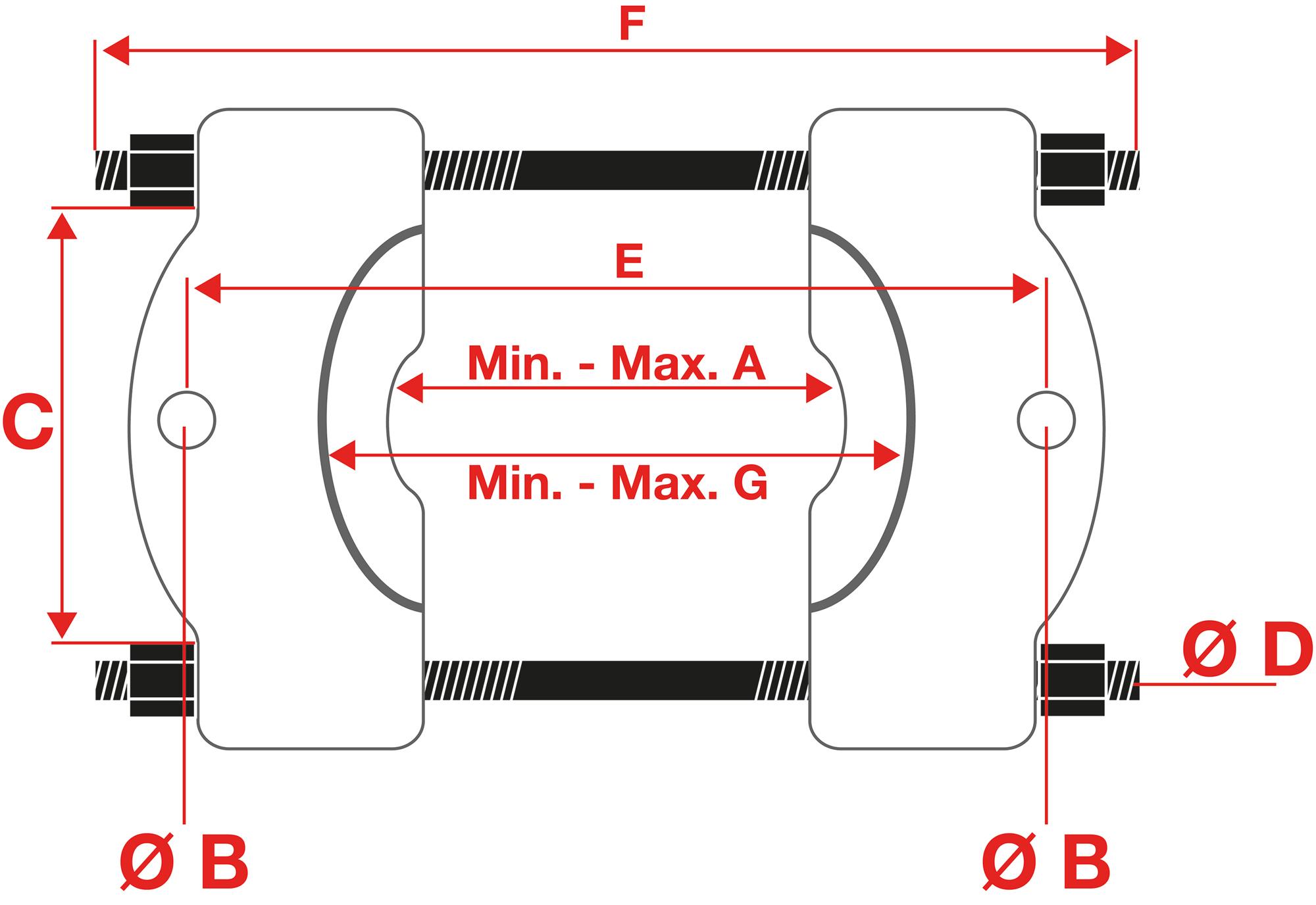

clamping width (A) min. / max. in mm: min. 18 mm / max. 83 mm
puller bolt receiving thread (B): 1/2" x 13 UNC
clamping bolt distance (C) in mm: 110 mm
camping bolt thread (D): 1/2" x 13 UNC
puller bolt distance (E) min. / max. in mm: min. 90 mm / max. 155 mm
clamping bolt length (F): 172 mm
splitting knife base (G) min. / max. in mm: min. 59 mm / max. 124 mm
Technical data
Material Chrome Vanadium Steel
Gross weight 2520 g
Surface finish Chrome plated
