Ball Bearing Separator | 12 - 62 mm (7749)

(1)

Description:

Description
drop forged

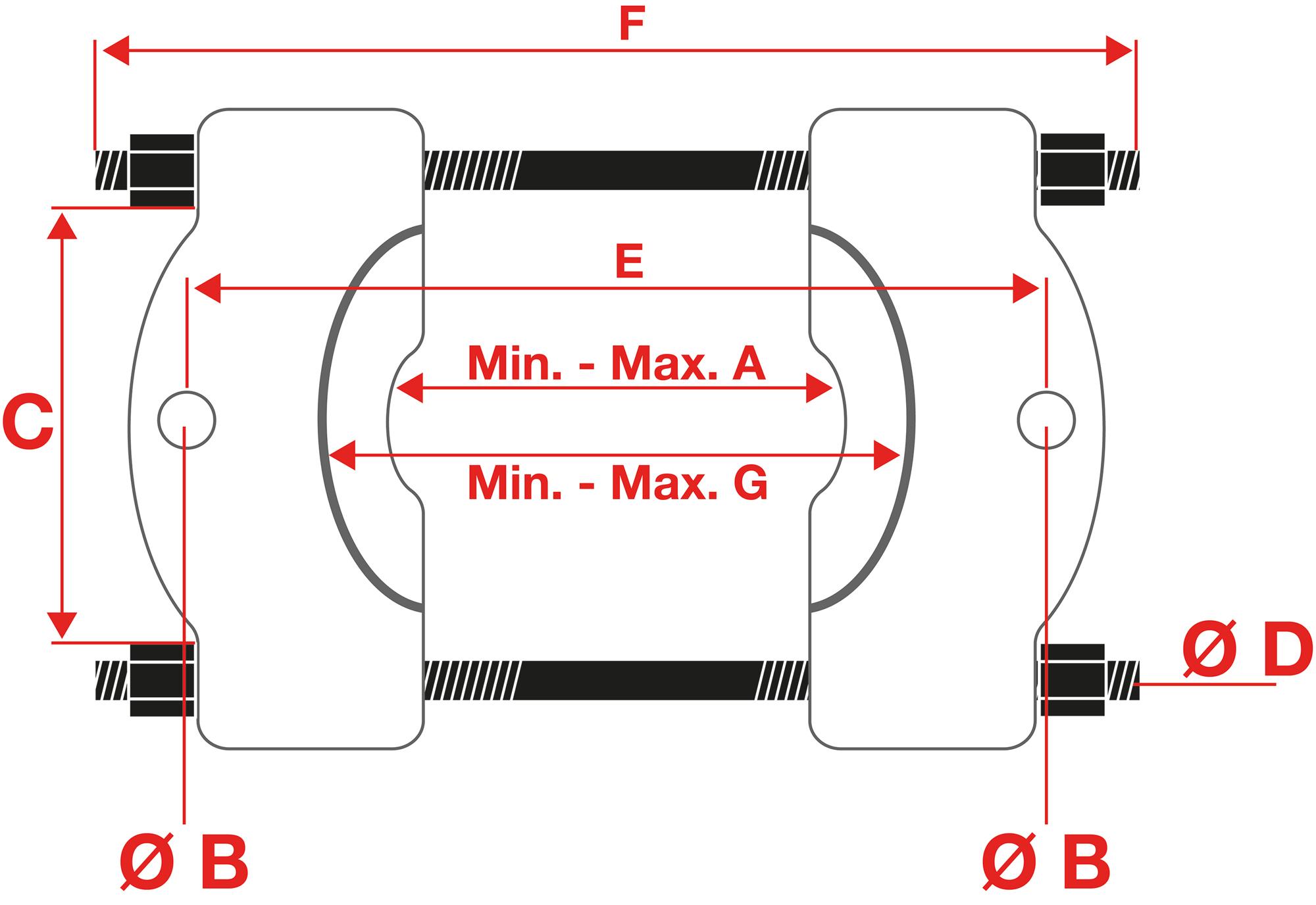

clamping width (A) min. / max. in mm: min. 12 mm / max. 62 mm
puller bolt receiving thread (B): 3/8" x 16 UNC
clamping bolt distance (C) in mm: 92 mm
camping bolt thread (D): 1/2" x 20 UNF
puller bolt distance (E) min. / max. in mm: min. 80 mm / max. 130 mm
clamping bolt length (F): 137 mm
splitting knife base (G) min. / max. in mm: min. 47 mm / max. 97 mm
Technical data
Gross weight 1450 g
Surface finish Chrome plated
