Ball bearing puller set with ball heads | 23 pcs (74717)

(1)

Description:

compact set composition
for removing ball bearings
especially designed for narrow and hard to reach working conditions
secure grip
ball heads engage between the bearing rings
for a controlled and safe removal
with interchangeable heads
chrome-plated, polished jaws
mechanical spindle
with huge clamping range and depth of clamping
very robust, even with regular use under high loads
the tool is protected in the plastic compartment and stowed in the recess in a non-slip manner

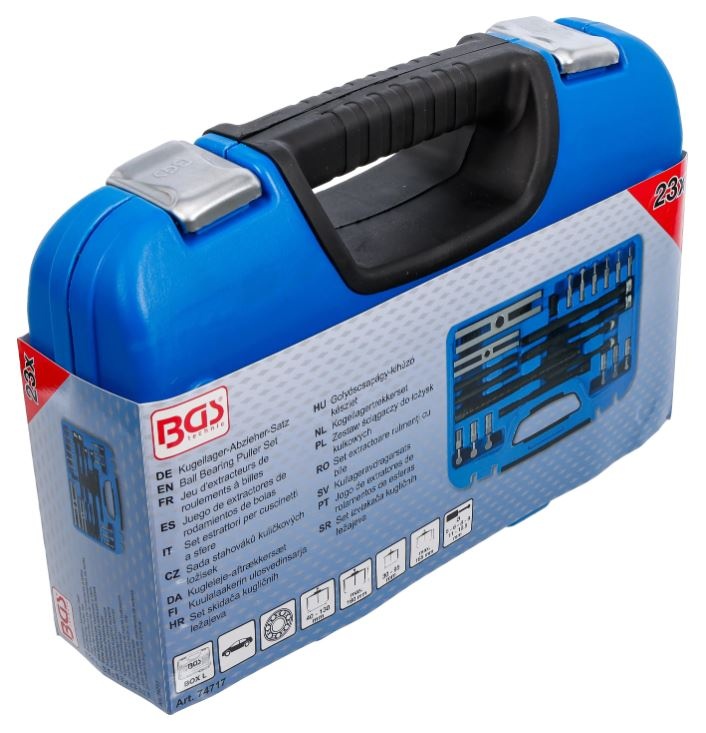

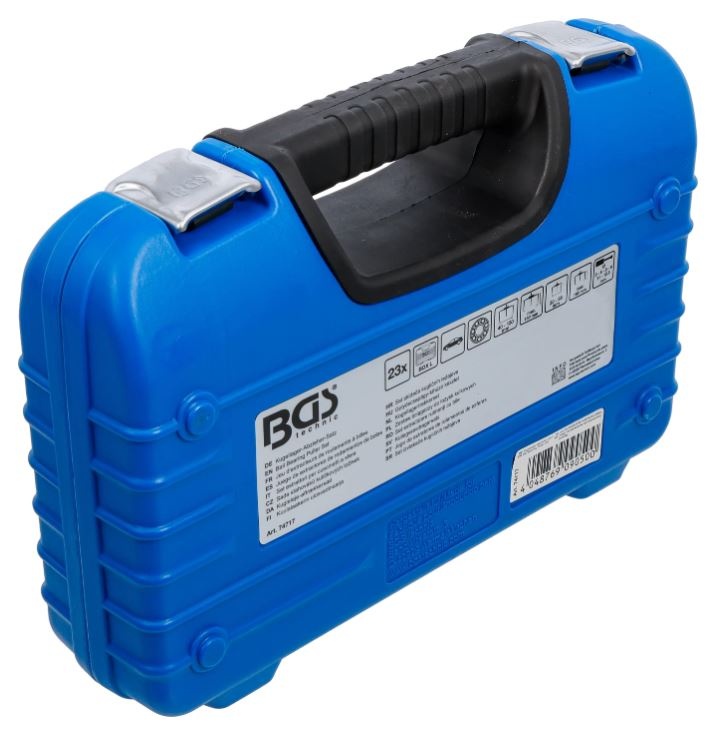

safe and tidy storage in blow mold case
suitable for:

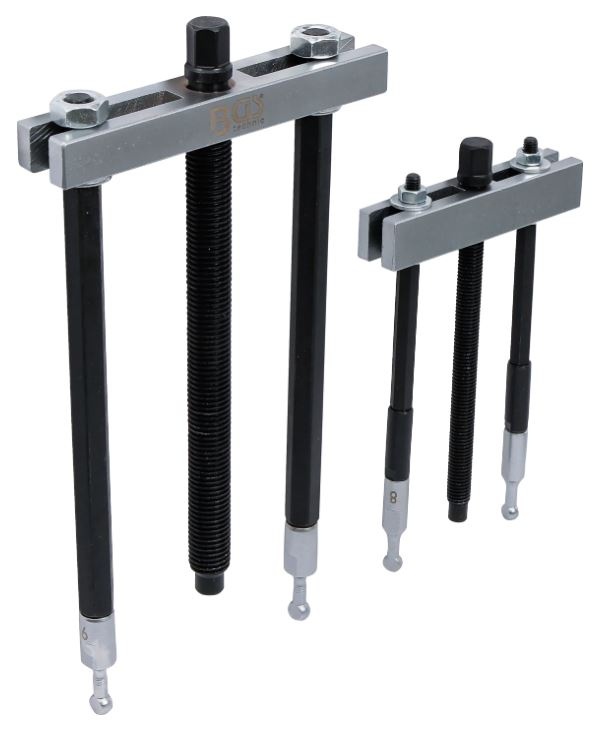

Pulling width (large puller bridge): 40–130 mm
Pulling depth (large puller bridge): max. 160 mm
Pulling width (small pulling bridge): 30–95 mm
Pulling depth (small pulling bridge): max. 185 mm

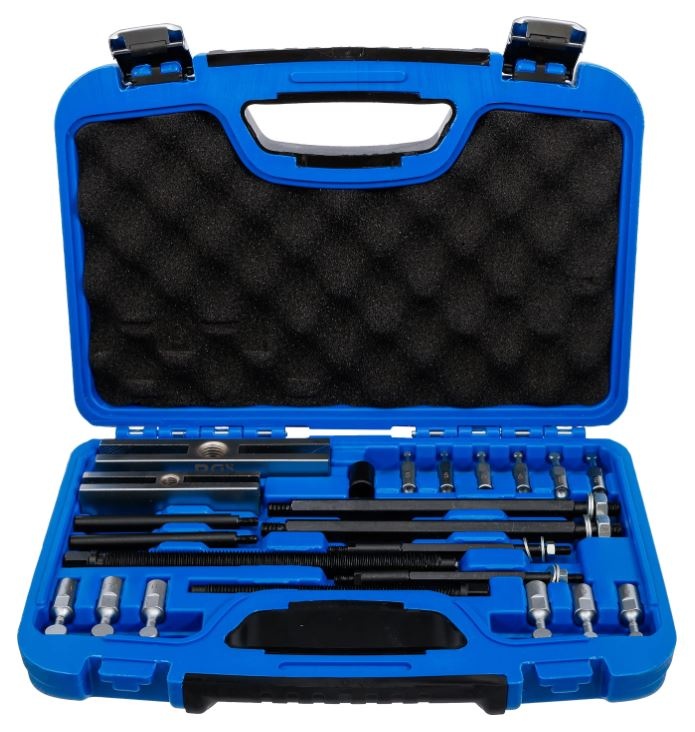

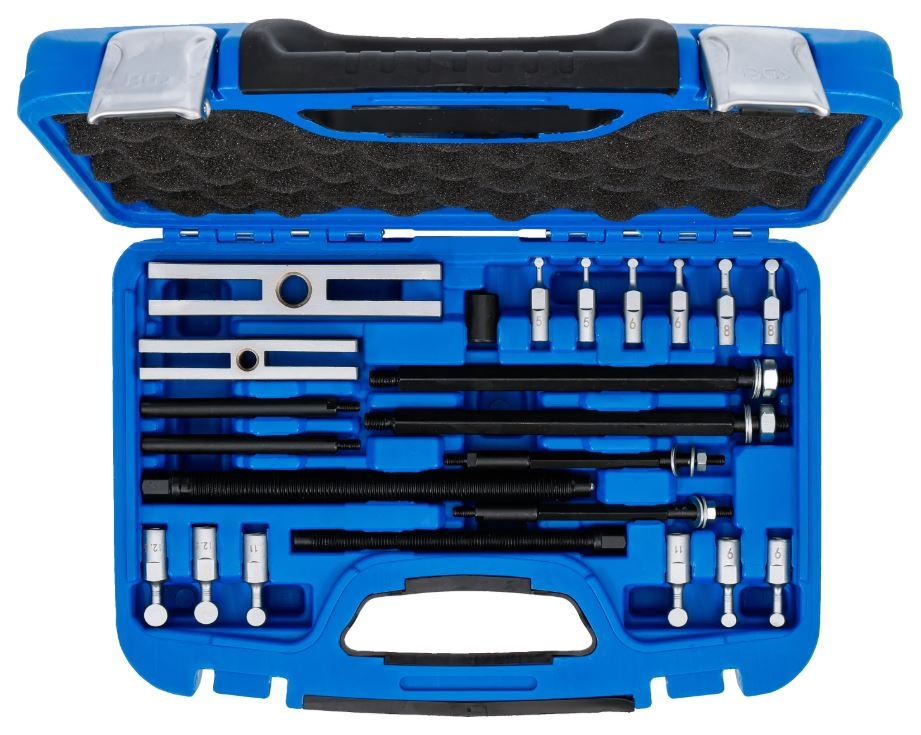

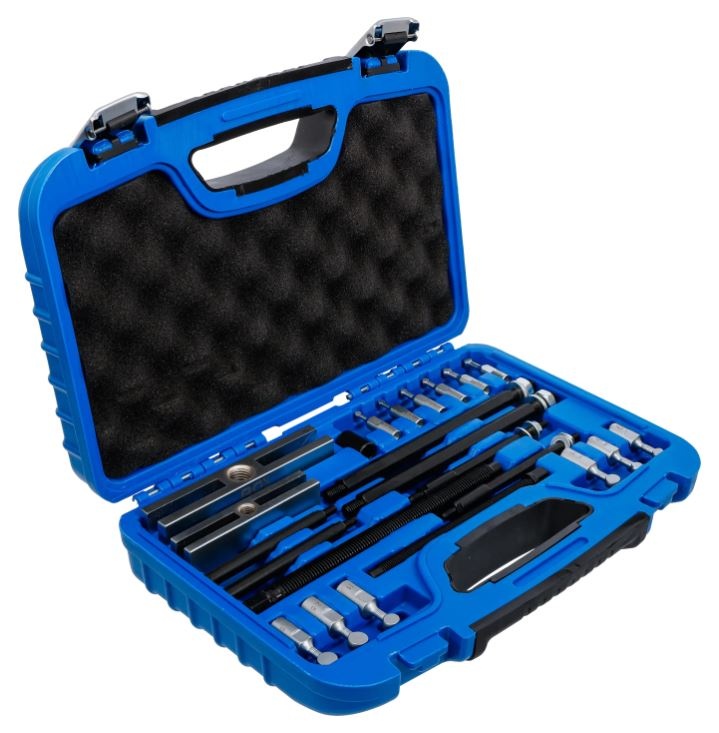

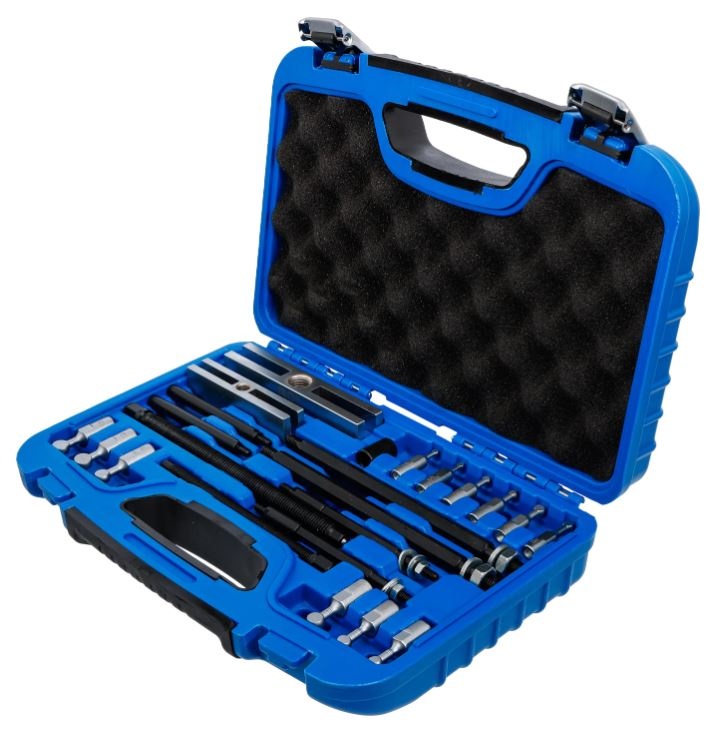

Scope of delivery:

1 puller bridge, length: 140 mm, slot width: 10 mm, internal thread: M16 x 2.0
1 puller bridge, length: 105 mm, slot width: 7.5 mm, internal thread: M10 x 1.5
2 ball heads 5 mm, for small puller bridge, internal thread: M6 x 1.0
2 ball heads 6 mm, for small puller bridge, internal thread: M6 x 1.0
2 ball heads 8 mm, for small puller bridge, internal thread: M6 x 1.0
2 ball heads 9 mm, for large puller bridge, internal thread: M10 x 1.5
2 ball heads, 11 mm, for large puller bridge, internal thread: M10 x 1.5
2 ball heads, 12.5 mm, for large puller bridge, internal thread: M10 x 1.5
2 puller arm extensions, length: 106 mm, thread: M6 x 1.0
2 pull-off arms, for large puller bridge, length: 204 mm, thread: M10 x 1.5
2 pulling arms, for small puller bridge, length: 138 mm, thread: M6 x 1.0
1 spindle for large puller bridge, length: 216 mm, external thread: M16 x 2.0
1 spindle for small puller bridge, length: 161 mm, external thread: M10 x 1.5
1 pressure piece

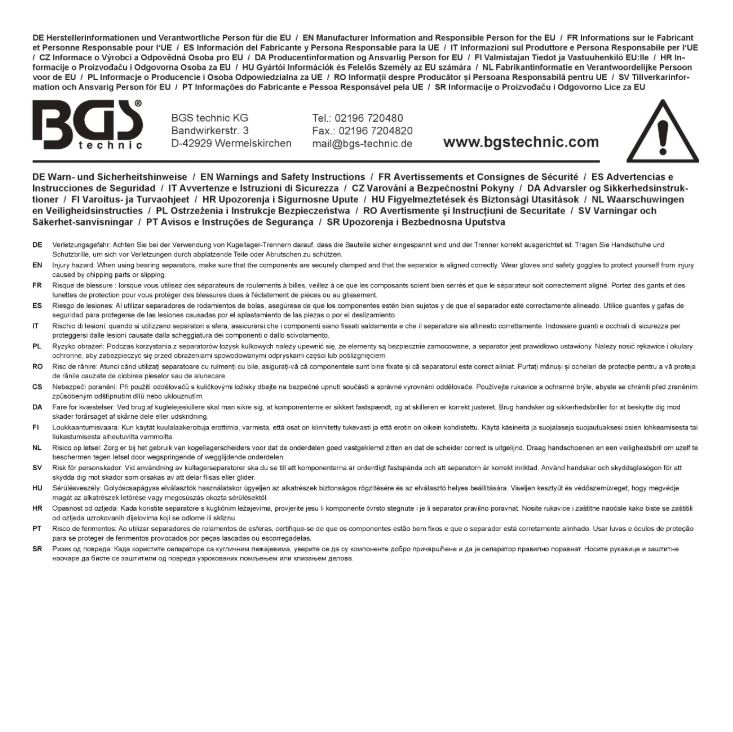

Warnings and Safety Instructions
Injury hazard: When using bearing separators, make sure that the components are securely clamped and that the separator is aligned correctly. Wear gloves and safety goggles to protect yourself from injury caused by chipping parts or slipping.

Material:
Special steel
Drive profile:
Outer hexagon
Clamping depth:
160 - 185 mm
Drive profile size, metric:
13 mm
12 mm
Packaging suitable for wall hanging:
No
Number of parts:
23
Package dimensions (LxwxH) :
344 x 239 x 91 mm
Gross weight: 2.75 kg
