Description:
Brand:
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Series
GRF
Type of fasteners
staples, nails
Connecting elements length
6-16 mm
Connecting elements dimensions
6-16x0.65x12.7 (staples), 6-16x0.95x2 (nails) mm
Max. working pressure
0.8 MPa
Recommended working pressure
0.4-0.8 MPa
Air connection diameter (PT)
standard
Air supply hose inside diameter
3/8" (9.5 mm)
Dispenser capacity
100 szt.
Dimensions
239x470x170 mm
Body material
aluminium
Handle material
rubber
Functions
sequential operating mode
Fuse
yes
Acoustic pressure
87.8 ± 2.5 dB(A)
Acoustic power
100.8 ± 2.5 dB(A)
Vibrations
3.0 ± 1.5 m/s²
Weight
0.83 kg
Application
upholstery, joinery, finishing works
Symbol
YT-09204

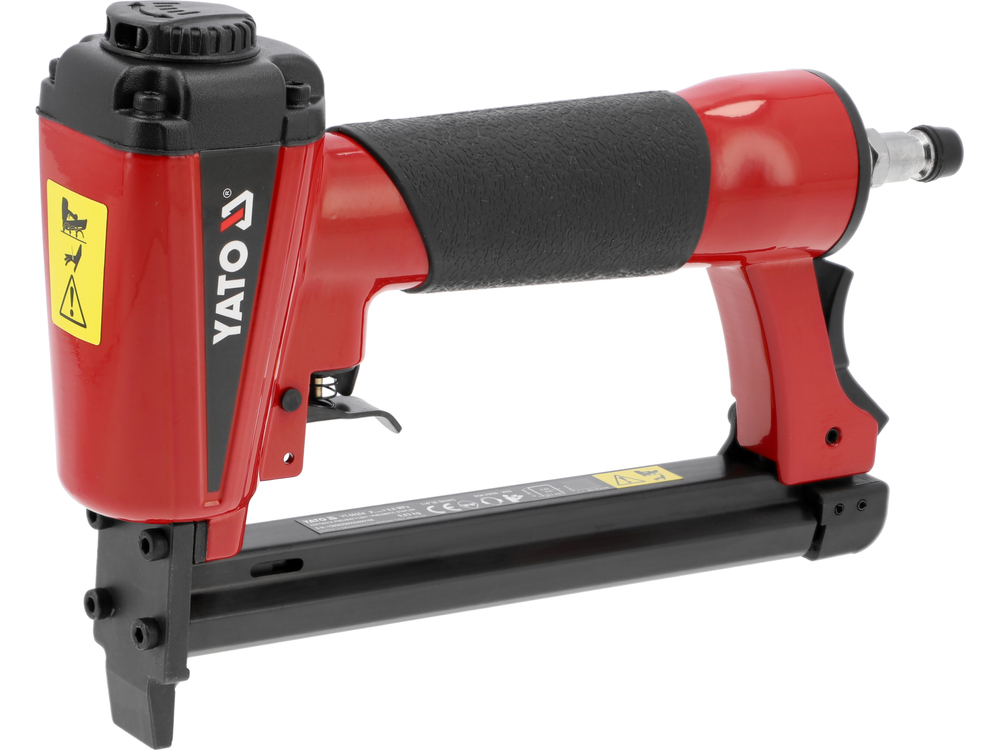

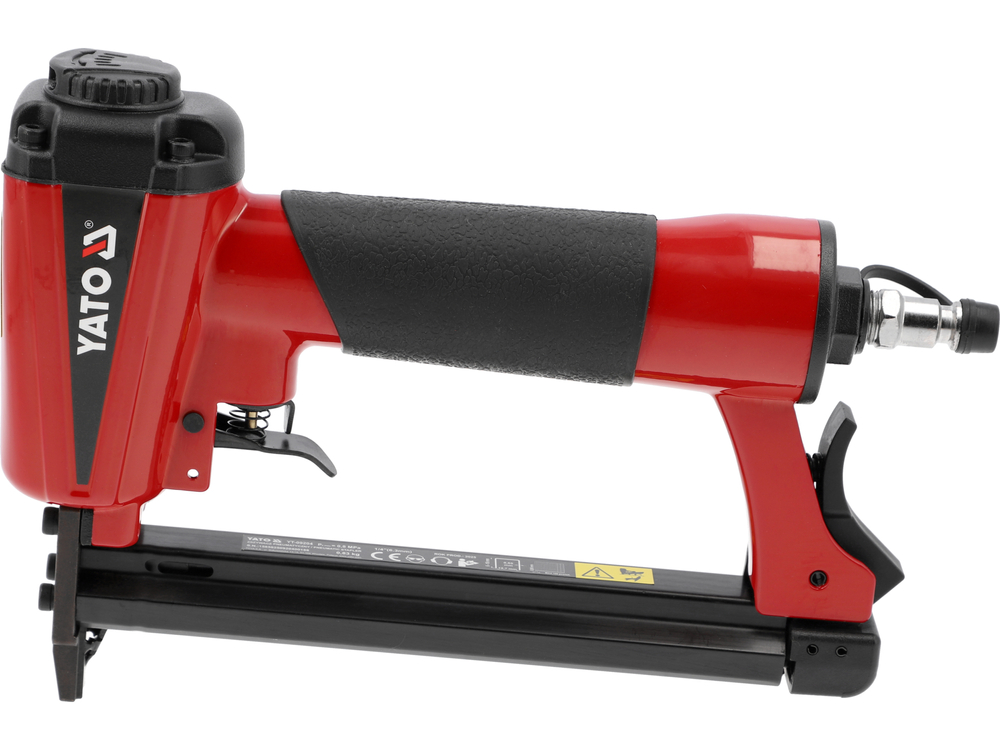

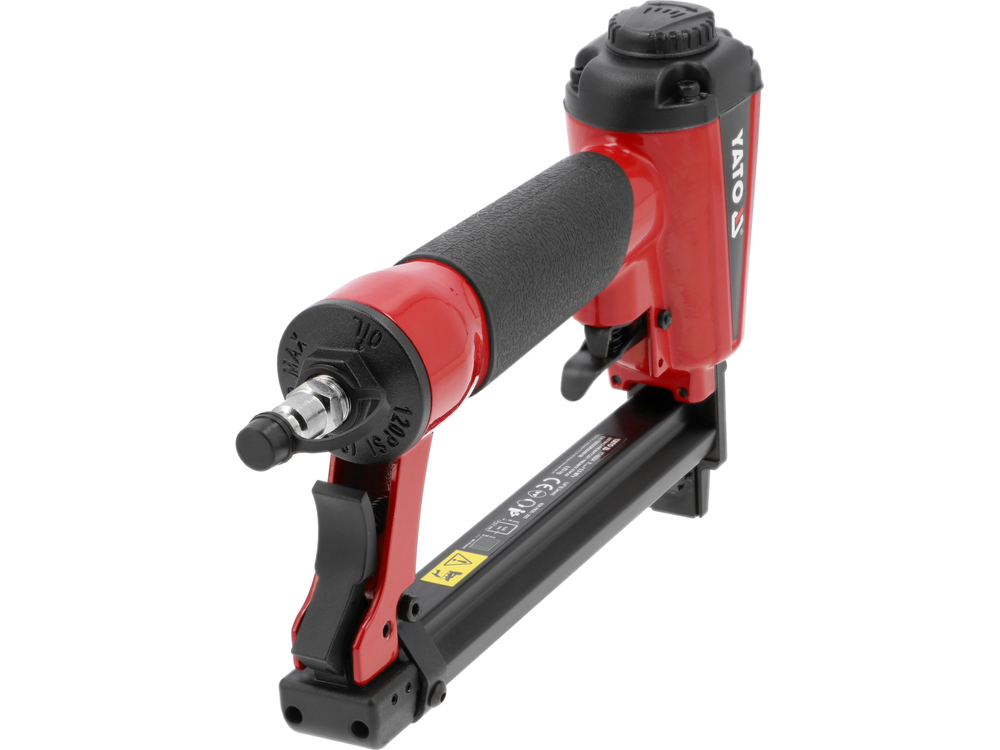

A professional and reliable pneumatic stapler designed for intensive upholstery, assembly, and carpentry work. Solid construction and practical features ensure quick, safe, and precise material joining – both in mass production and for precise tasks.
The stapler handles staples and nails ranging from 6 to 16 mm in length. Thanks to two types of connectors, it works well with thin upholstery fabrics as well as harder wooden materials.
The pneumatic power supply with a maximum operating pressure of 0.8 MPa ensures constant driving force and high efficiency. The standard air connection and compatibility with a 3/8" (9.5 mm) hose make the tool easily compatible with most compressors available on the market.
length of connecting elements: 6-16 mm
dimensions of connecting elements: 6-16 x 0.65 x 12.7 mm (staples), 6-16 x 0.95 x 2 mm (nails)
max. operating pressure: 0.8 MPa

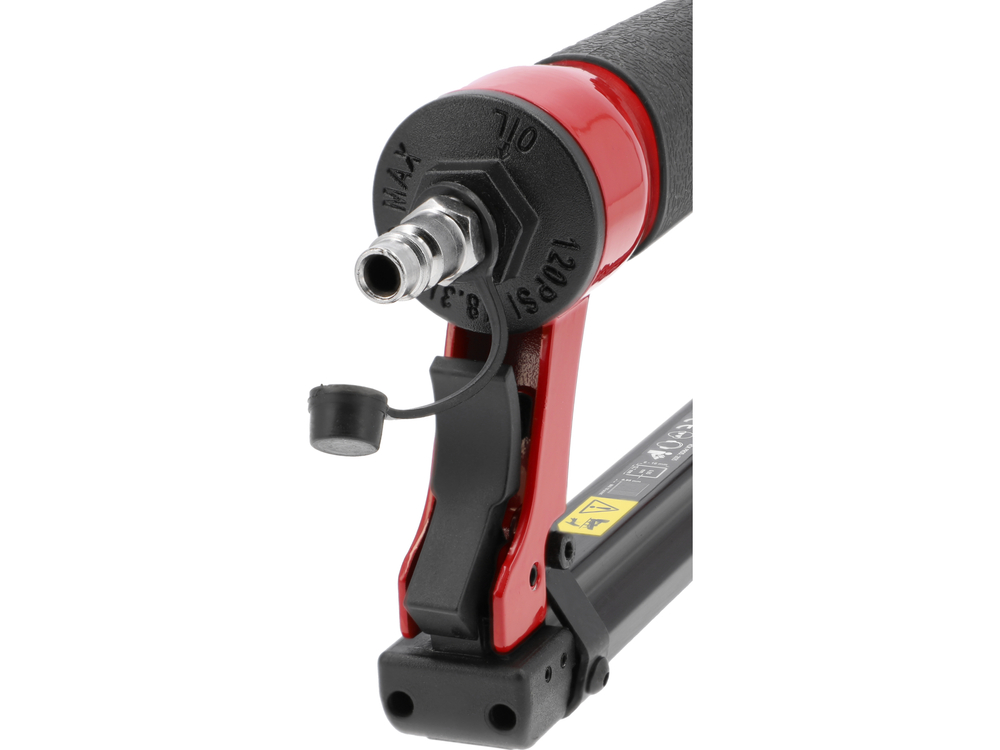

air inlet diameter: standard
internal diameter of air supply hose: 3/8" (9.5 mm)
capacity of the magazine for 100 staples or nails allows for longer work without frequent refilling
sequential mode function allows for controlled, rhythmic driving of connecting elements
safety fuse minimizes the risk of accidental tool activation
aluminum body ensures high resistance to mechanical damage, while maintaining a low device weight, especially appreciated during long hours of work
anti-slip rubber handle provides a firm grip and reduces vibration transfer to the hand
compact dimensions: 239 x 470 x 170 mm allow for easy maneuvering, even in hard-to-reach places
weight: 0.83 kg
