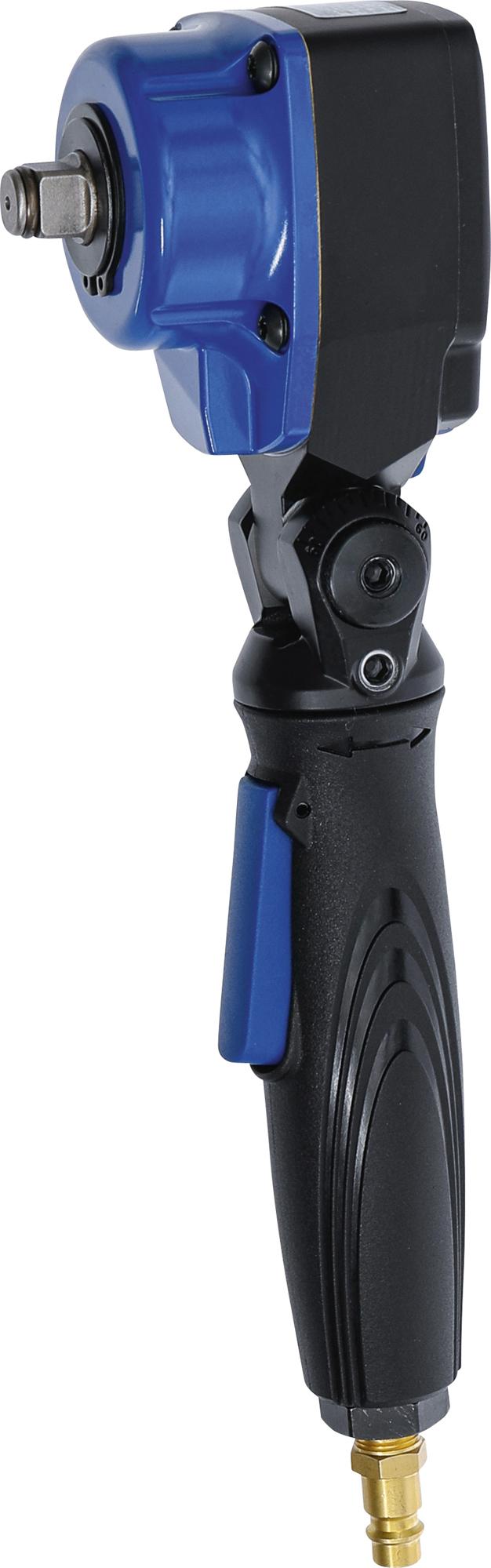

Description
can be used in many places where other types of impact wrenches cannot be used
for tightening and loosening screw connections on the brake calliper or other hard-to-reach work areas
guides the exhaust air down through the handle
handle can be adjusted around its own for optimal handling
low vibration
easy to handle
compact design with a head length of only 70 mm
one-handed operation for left and right-handers
hammer type: double hammer
vibration level (ahd): 4894 m/s²
vibration level (K): 1.5 m/s²
recommended hose diameter: 10 mm (3/8")
Technical data
Drive profile size, metric 12,5 mm
Drive profile size, inch 1/2 "
Packaging suitable for wall hanging No
Gross weight 1606 g
Working torque 450 Nm
Max. working torque 500 Nm
Min. working torque 379 Nm
Max. loosening torque 542 Nm
Operating pressure 6,2 bar
Direction of rotation Right / Left
Stufenanzahl 1
Max. drive speed 8000 rpm
Compressed air connection 1/4 "
Air consumption 113 l/min
Sound pressure level max. 91,1 dB(A)
Sound power level max. 101,1 dB(A)
