Description:
Brand:
Index
YT-09547
Barcode
5906083131837
Unit of measure
PCE
Volume
4.048
Weight
2.5

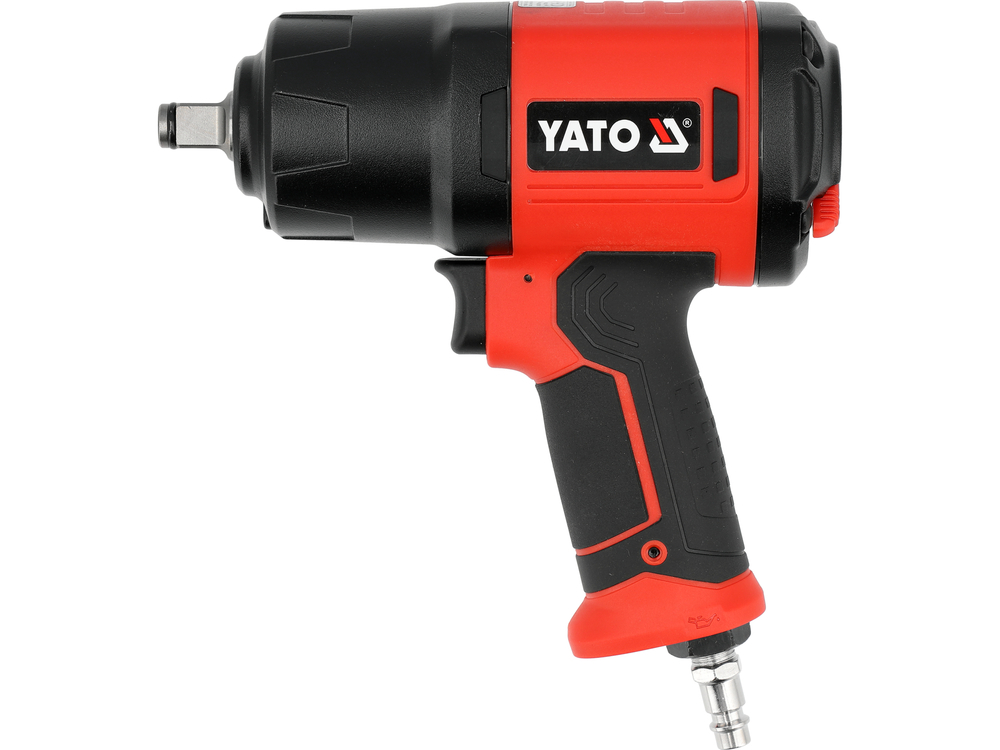

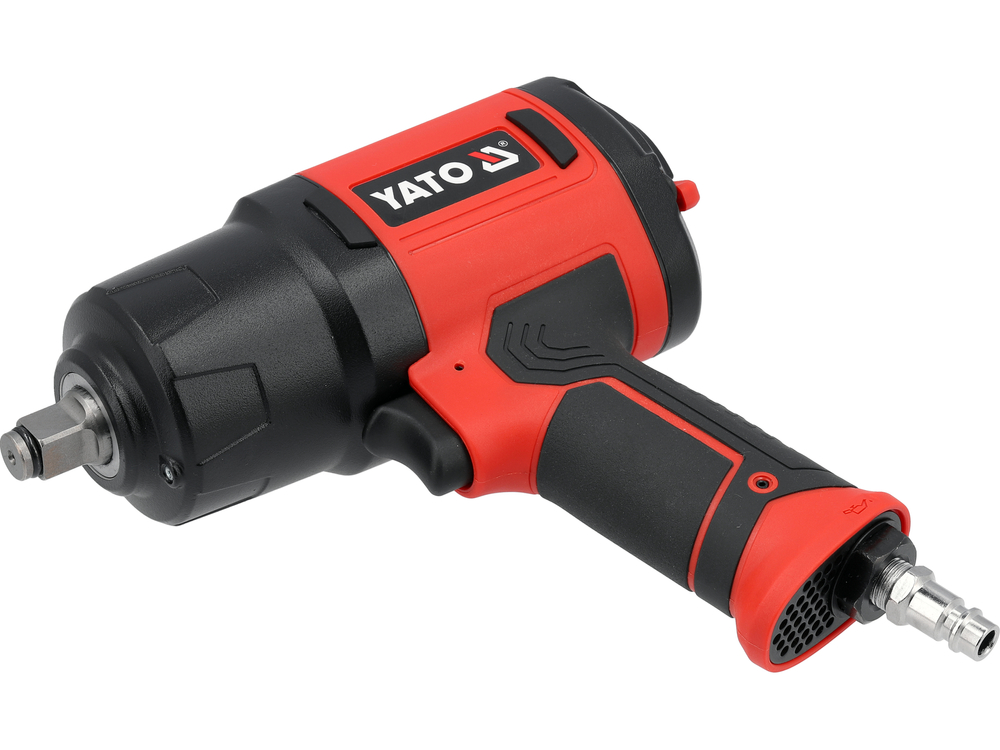

The YT-09547 pneumatic impact wrench is a professional impact tool designed for intensive service, assembly, and tire repair work. Its high torque of 1900 Nm effectively loosens seized threaded connections, reducing repair and maintenance time. This tool is ideal for servicing wheels, suspensions, drivetrains, and other components requiring high loosening or tightening forces.
The compact housing, measuring just under 190 mm in length and weighing 2.1 kg, ensures comfortable operation even in confined spaces. The combination of high torque and a compact size translates into improved maneuverability and comfort of use during long hours of workshop use. The 1/2" drive allows for use with a wide range of impact sockets, and the tool's operating parameters – up to 950 Nm of torque, a maximum torque of 1500 Nm, and a breakaway torque of 1900 Nm – enable effective operation of bolted connections up to M18.
Key Features:
The combination of high torque and a weight of only 2.1 kg reduces operator fatigue during extended service work and facilitates maneuvering in tight spaces.
The operating parameters allow for efficient wheel service on passenger cars, SUVs, and light commercial vehicles, as well as suspension and drivetrain repairs.
A breakaway torque of 1900 Nm facilitates loosening seized connections.
A body length of less than 190 mm facilitates work in confined spaces.

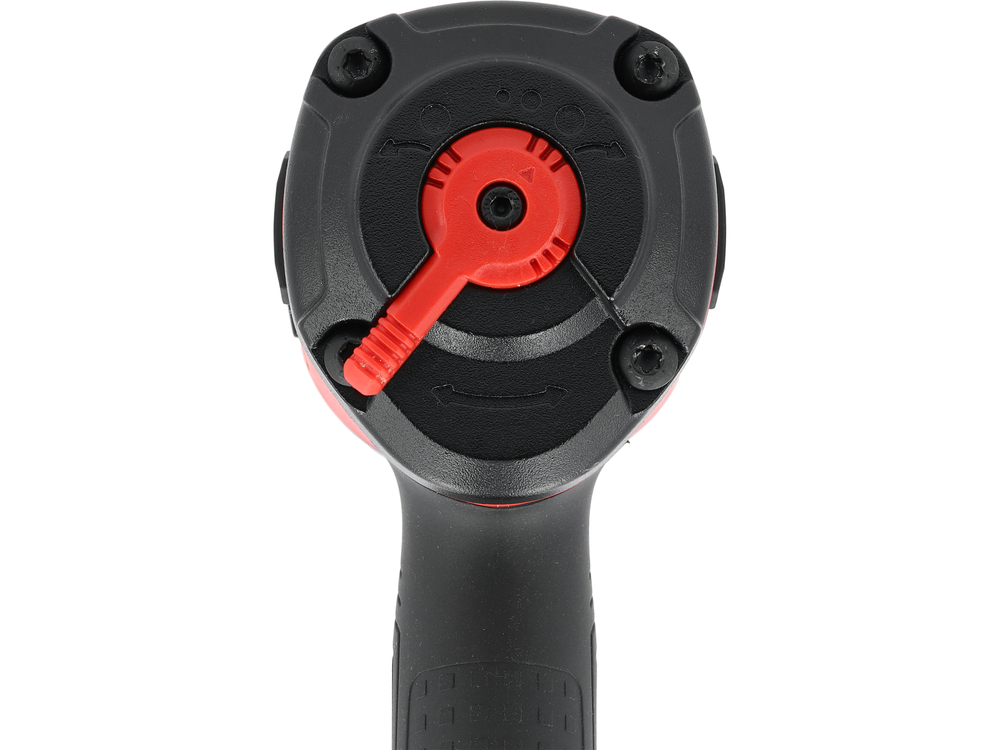

Forward/reverse rotation switch.
Ergonomic handle improves user comfort.
Technical Specifications:
High operating torque: 950 Nm
Maximum tightening torque: 1500 Nm
Loosening torque (breakaway): 1900 Nm
Drive: 1/2" (12.7 mm)
Supports bolted connections up to M18
Compact body with a length of 189.3 mm
Optimized air consumption of 205 l/min
No-load speed: 7500 rpm
Working pressure: 0.63 MPa
Air connection: 1/4" (6.3 mm)
Recommended air hose diameter: 10 mm (3/8")
Weight: 2.1 kg
Applications
Designed for automotive workshops, mechanical services, tire shops, and assembly work requiring high torque. Perfect for servicing wheels, suspensions, driveline components, and bolted connections in industrial machinery and equipment.
