Description:
Brand:
YT-30440
GREEN 5-LINE LASER 360°, 1.5M TRIPOD, GLASSES, TARGET
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Working range
30 m
Laser
yes
Laser class
2
Laser power
≤1 mW
Laser wavelength
510-530 nm
Laser range
30 m
Laser accuracy
±3 mm / 10 m
Laser indication type
five-line
Laser pointer color
green
Self-regulation range
±4 ˚
Power supply
battery
Battery type
4x1.5V; AA
Max. working time
8 h
Tripod height
470-1500 mm
Magnet
yes
Tripod included
yes
Tripod thread size
1/4" (6.35 mm) 20UNC
Operating temperature range
-10 ~ +50 ËšC
Protection class
IP54
Weight
0.43 kg
Kit contents
laser, wall mount, tripod adapter, tripod, metal plate, safety glasseslaser, wall mount, tripod adapter, tripod, metal plate, safety glasses
Symbol
YT-30440

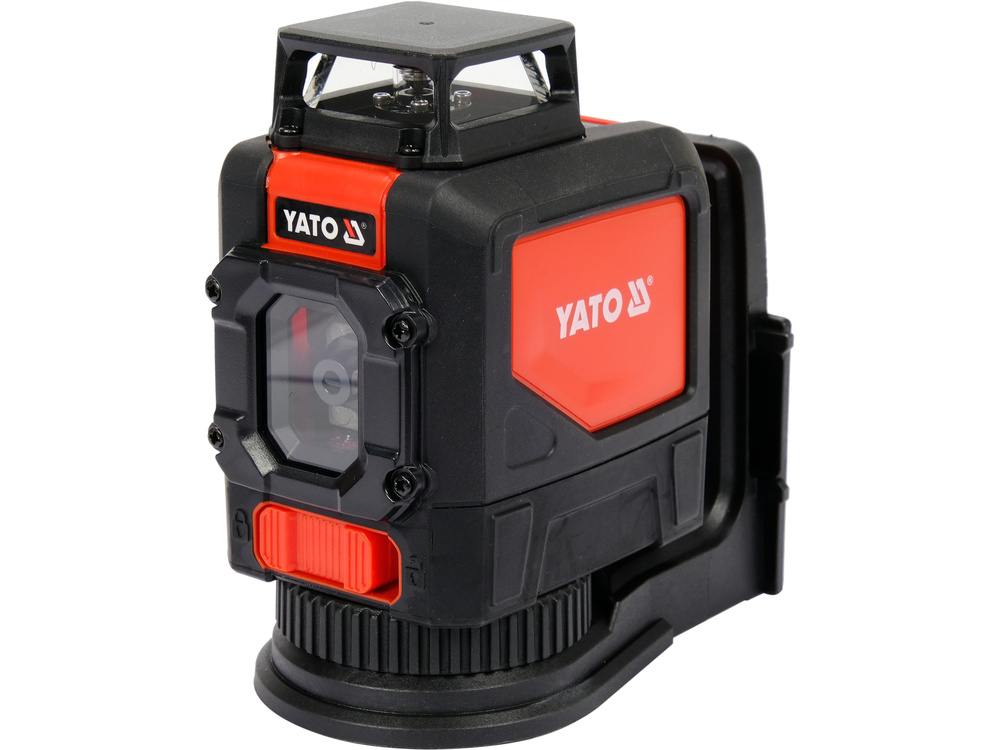

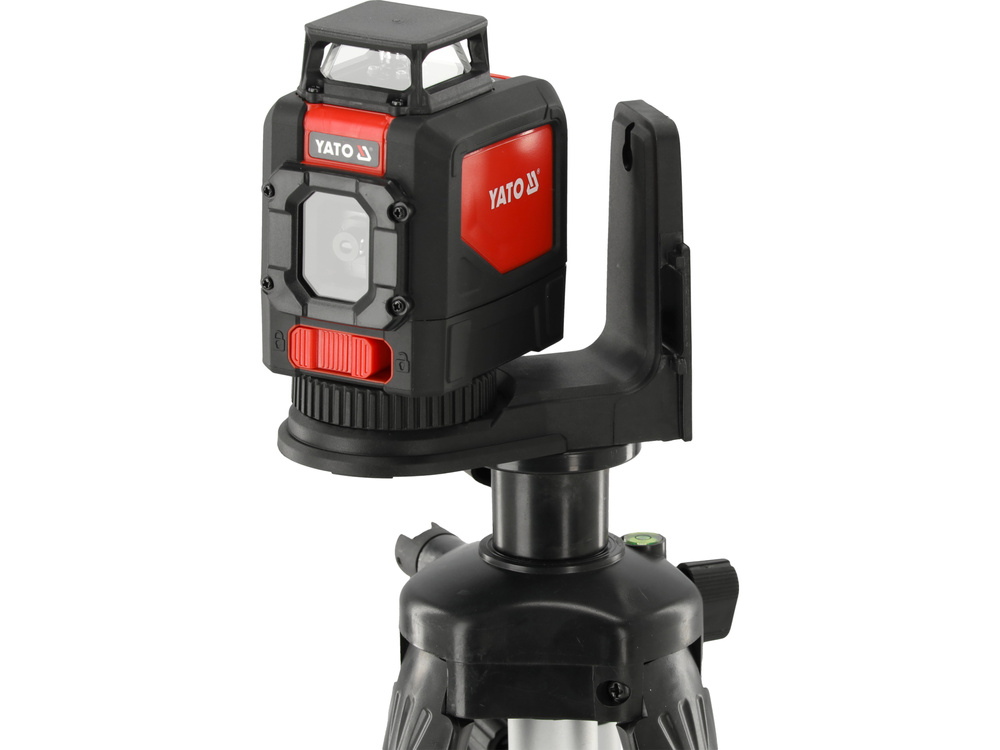

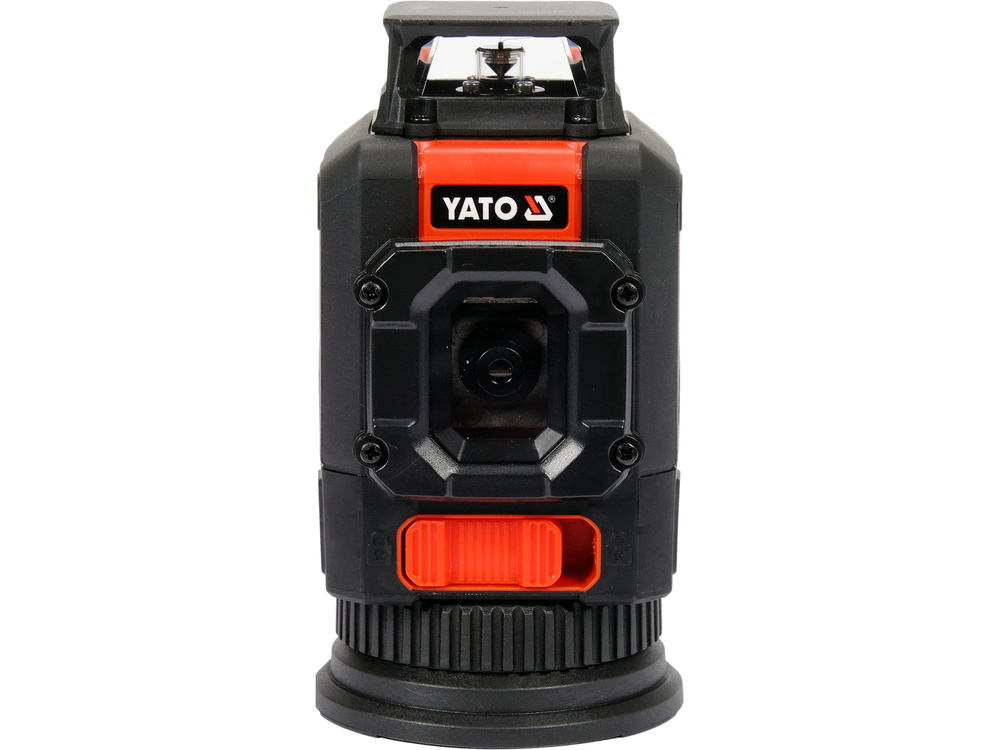

Self-leveling green single-plane laser marks five lines simultaneously, including four horizontal ones on each wall, creating a 360Ëš effect. The vertical line, passing through one of the horizontal lines, gives the laser the functionality of a cross laser.
The diode guarantees a working range of 30 meters with an accuracy of ± 3 mm/10 m. The housing made of durable plastic with IP54 tightness class, with rubber anti-slip pads, ensures dust-proofness and resistance to drops falling from any direction.

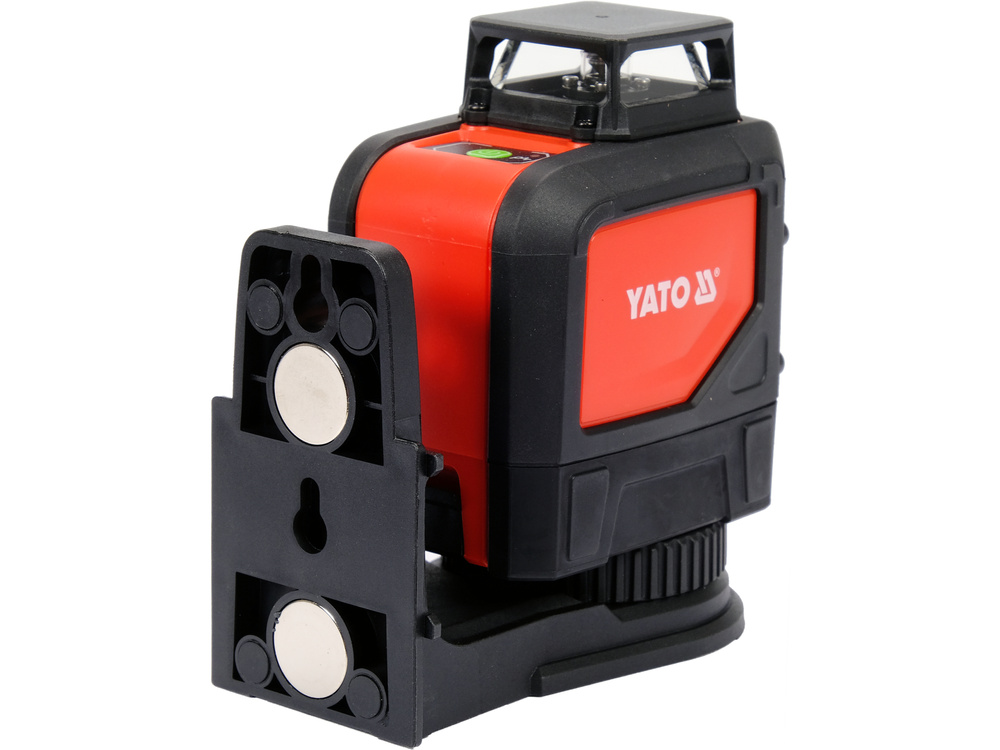

The set of accessories included with the laser, including an aluminum 1.5-meter tripod and green glasses, facilitate work and use of the device in various conditions. 2 magnets in the rear of the housing allow for convenient attachment of the laser during work. The laser is powered by four easily replaceable AA batteries.
working range: 30 m
accuracy: ± 3 mm/10 m
wavelength: 510-530 nm
power: ≤1 mW
self-leveling range: ±4˚
class: 2
waterproof: IP54
operating temperature: -10 - +50ËšC
power supply: 4 AA batteries 1.5 V (total 6 V)
maximum operating time: 8 h
2 magnets
tripod thread: 5/8"

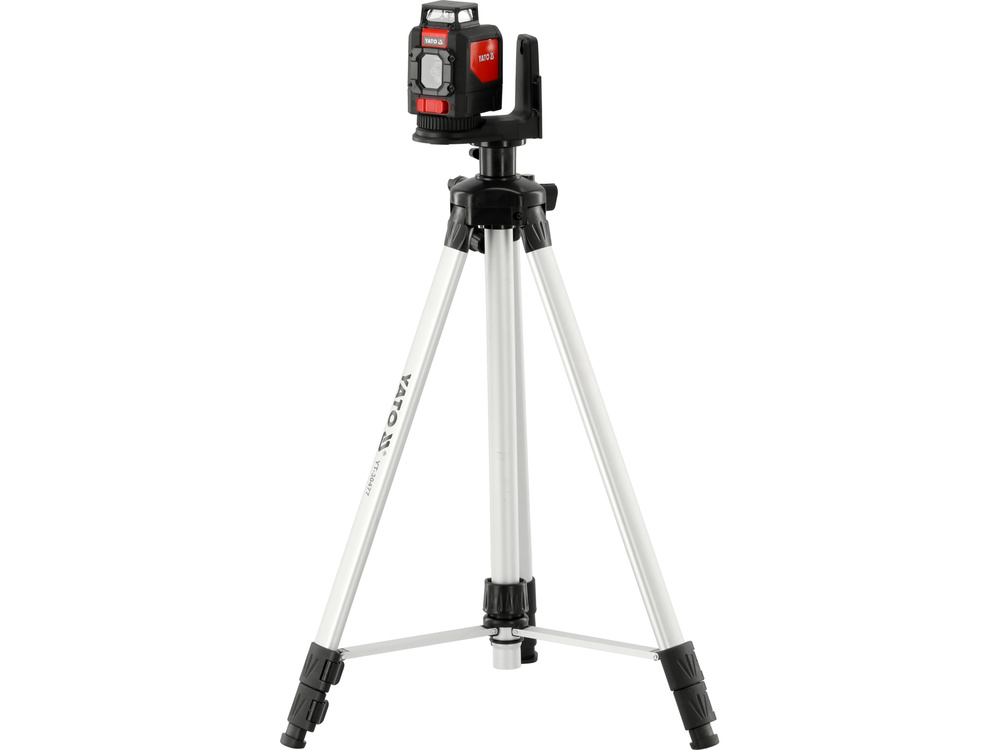

bracket with 1/4" and 5/8" thread for mounting the laser on a tripod
weight: 0.43 kg

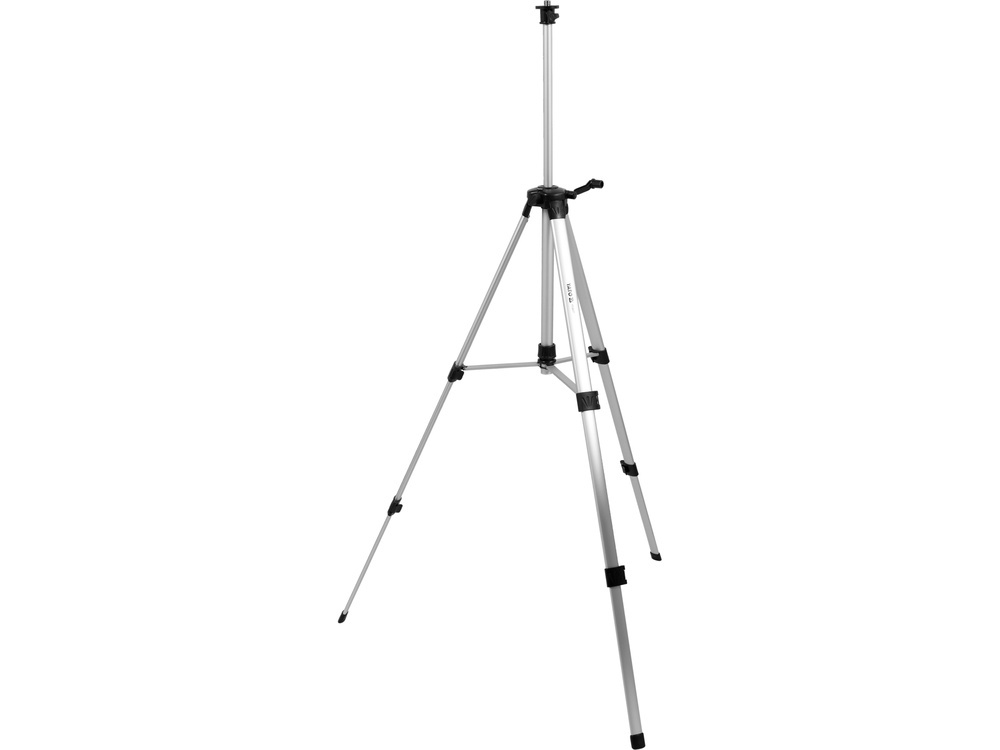

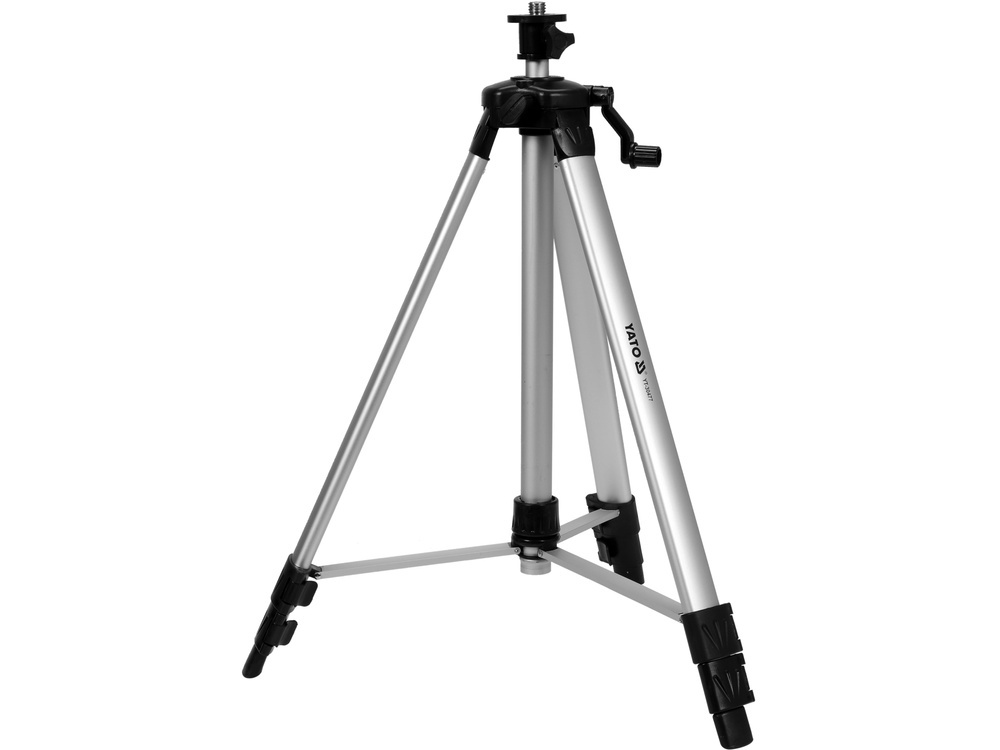

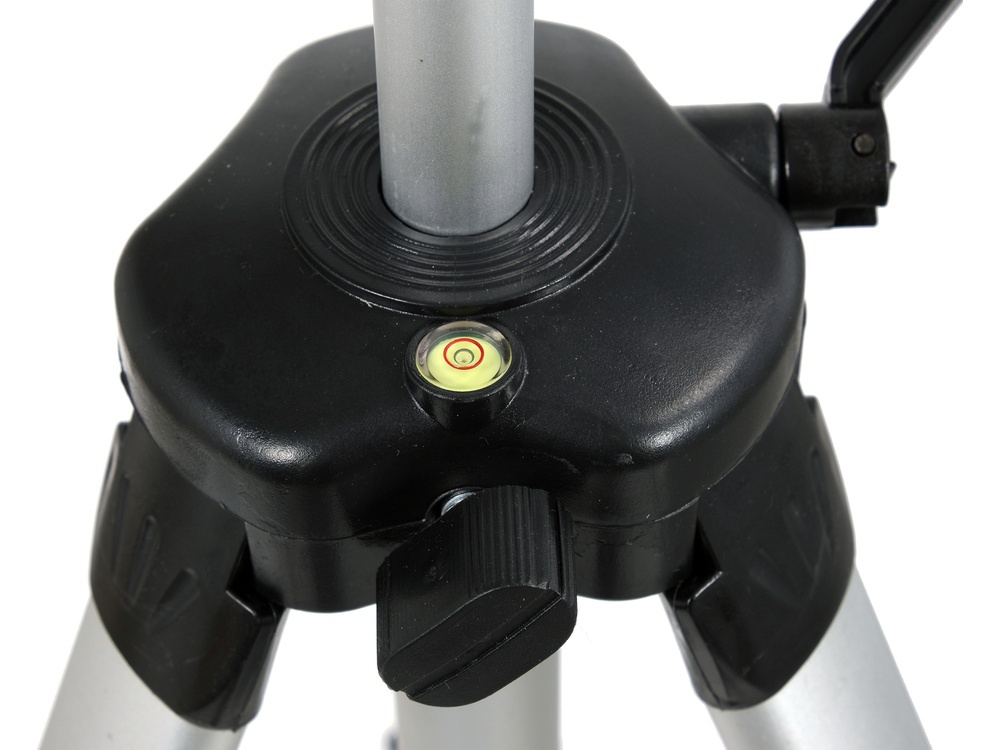

aluminum telescopic tripod allows you to adjust the height to the conditions and requirements of the work in the range of 470-1500 mm

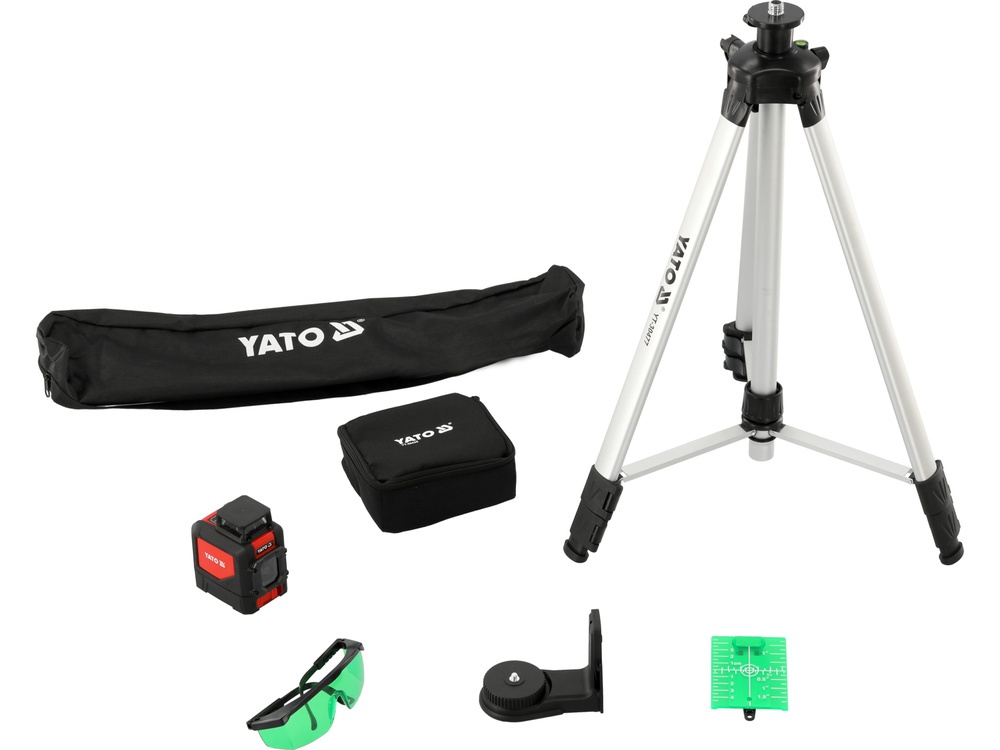

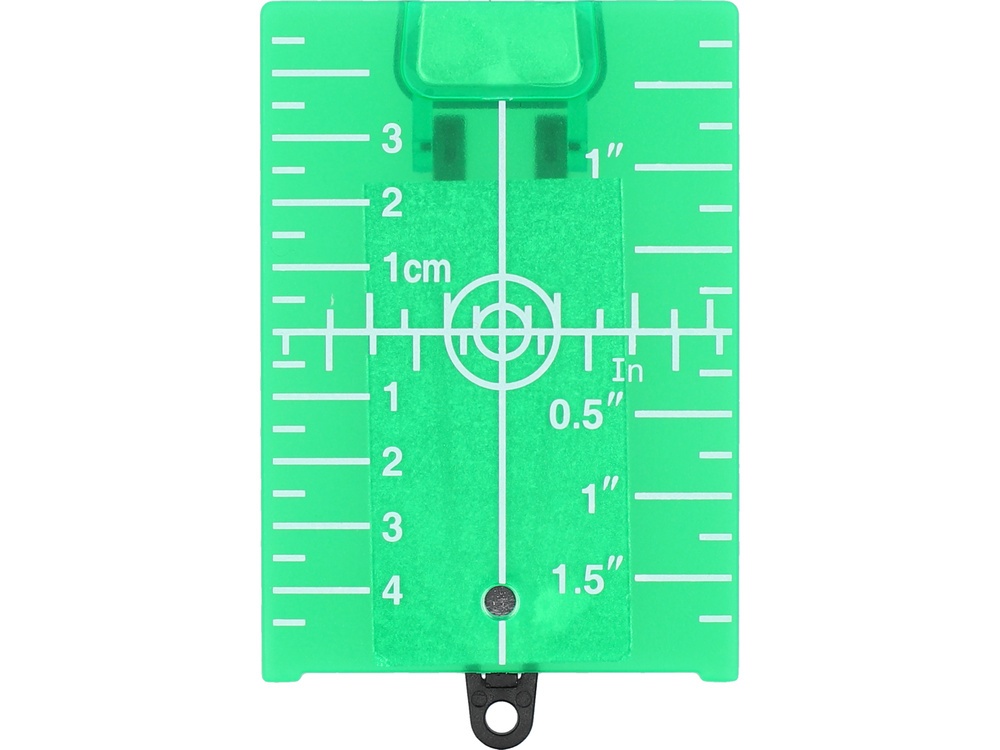

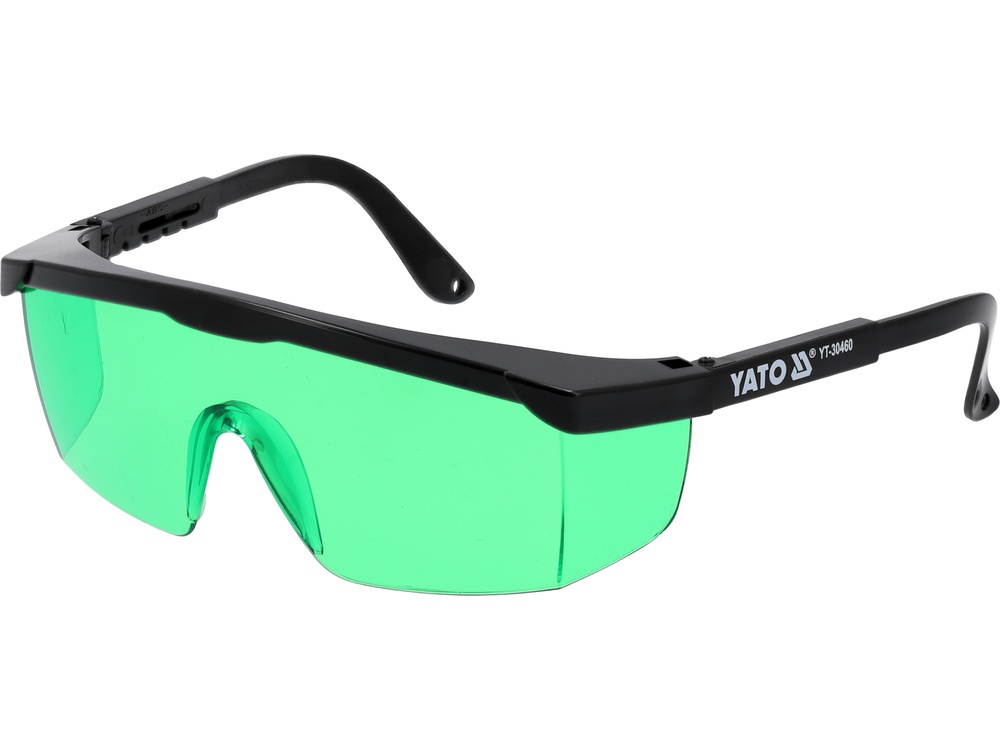

in the set: green glasses, green target plate, tripod, bag with vibration-absorbing filling, additional handle
Warnings regarding use:
Caution! Use personal protective equipment during work.
