4D A+ GREEN LASER WITH ACCESSORIES (YT-30417)

(1)

Description:

YT-30417
GREEN LASER A+ 16 LINE 4D WITH ACCESSORIES
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Working range
30 m
Laser
yes
Laser class
2
Laser power
≤1 mW
Laser wavelength
520-530 nm
Laser range
30 m
Laser accuracy
±2 mm / 10 m
Laser pointer color
green
Self-regulation range
±3 ˚
Power supply
rechargeable
Battery type
Li-Ion
Battery voltage
3.7 V d.c.
Battery capacity
4000 mAh
Battery energy
14.8 Wh
Max. operating time
8 h
Dimensions
100x90x123 mm
Tripod included
yes
Tripod thread size
1/4" (6.35 mm) 20UNC
Operating temperature range
-10 ~ +40 ËšC
Protection class
IP54
Weight
0.51 kg
Kit contents

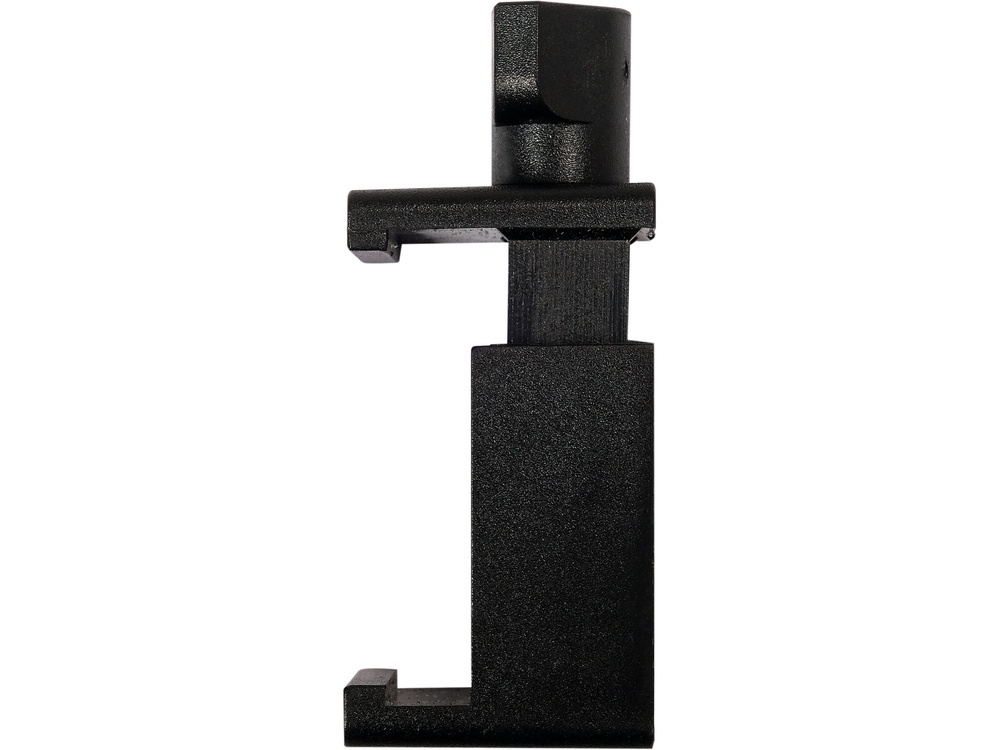

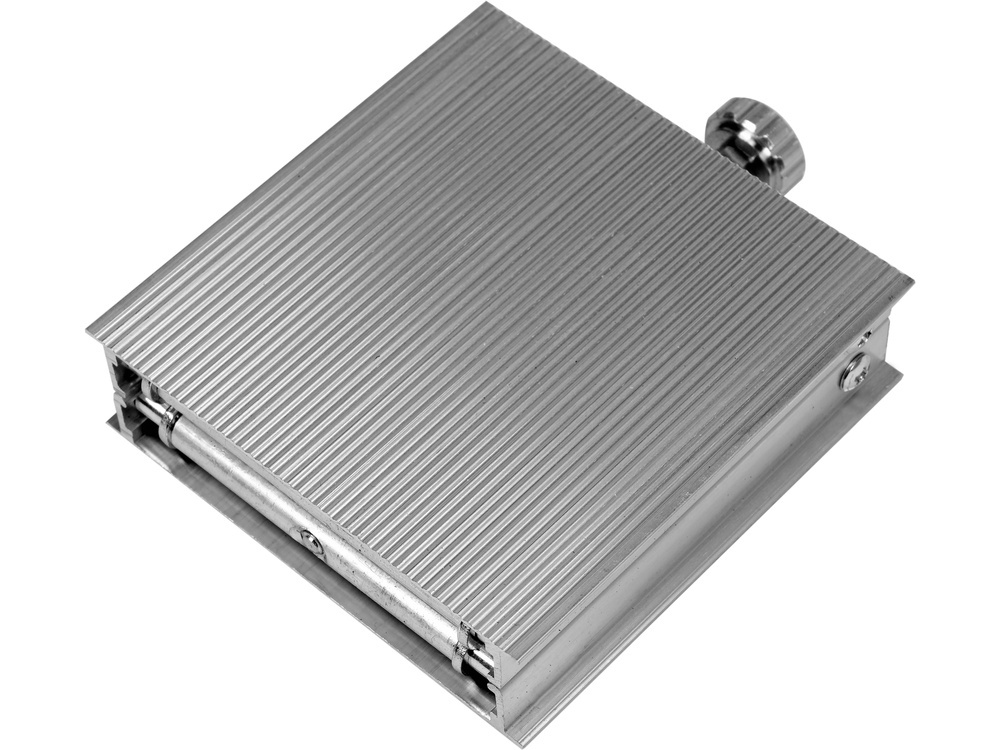

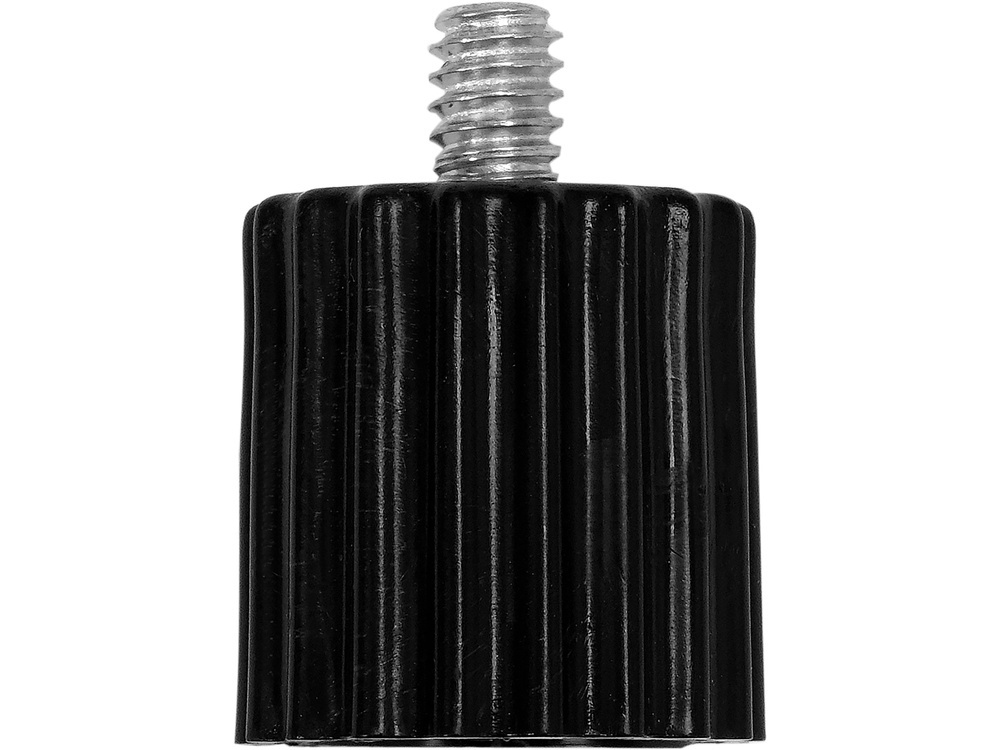

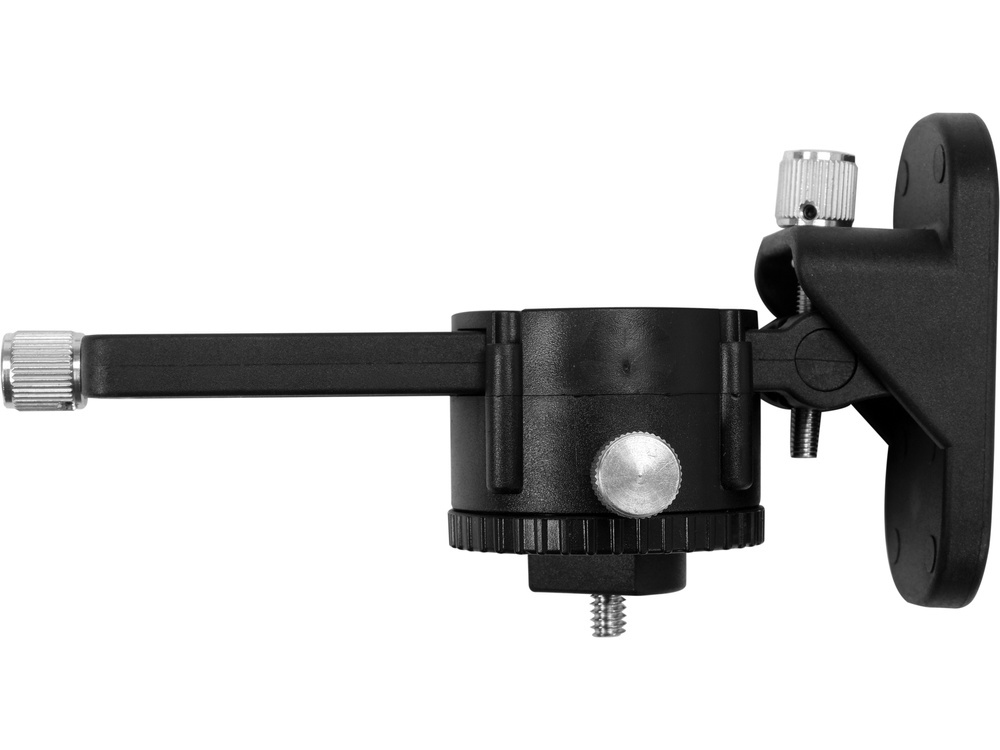

laser, battery x2, charger, remote control, wall mount, tripod adapter, metal plate, mini tripod with XYZ axis adjustment
Compatible with(e)
YT-30418, YT-30421
Symbol
YT-30417

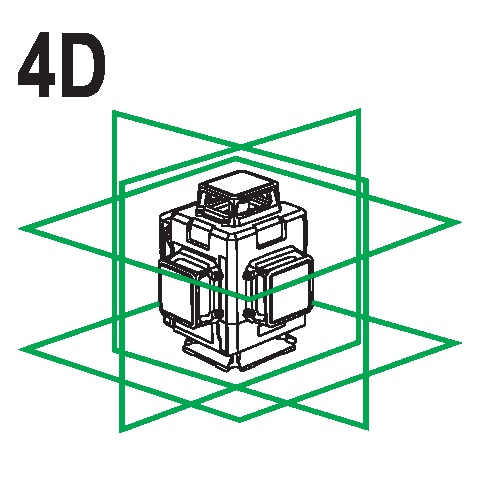

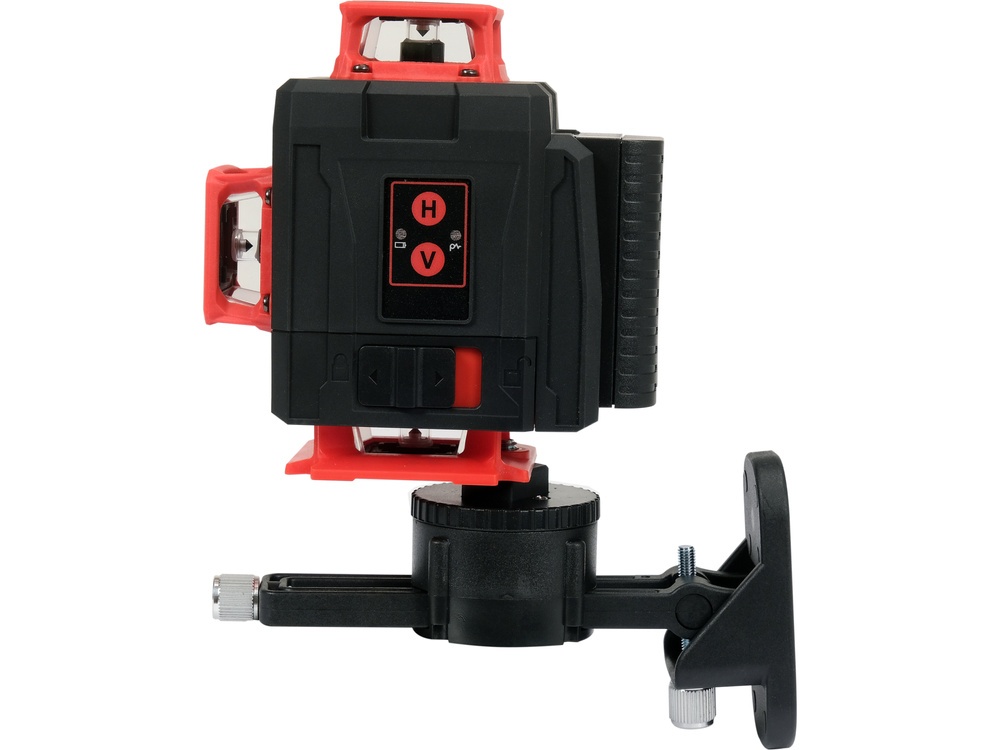

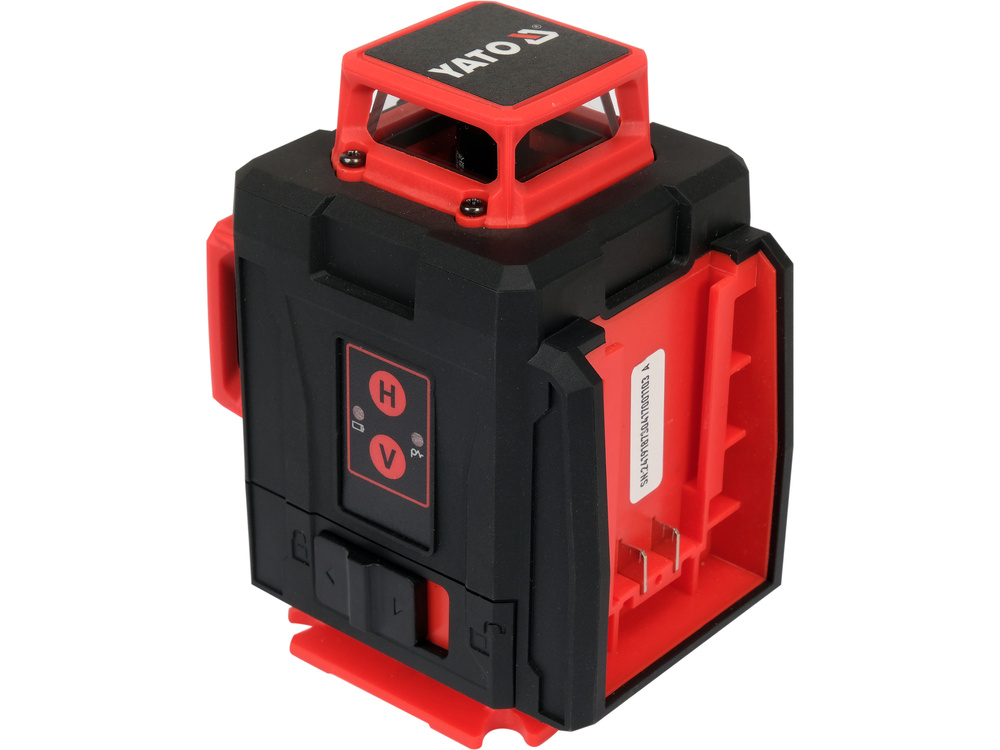

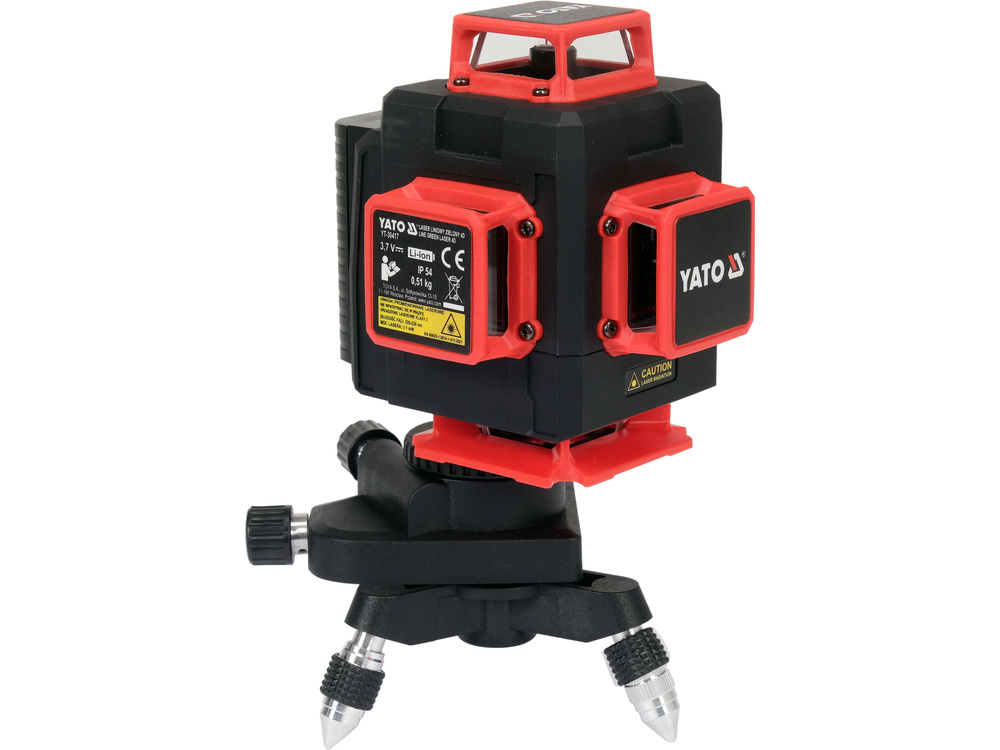

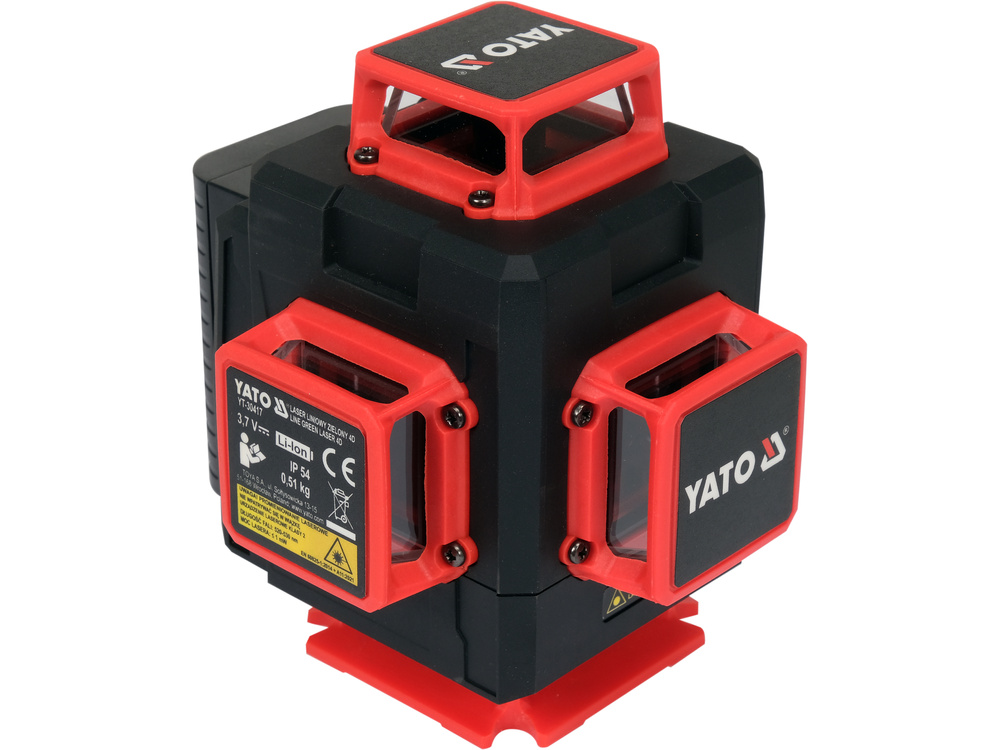

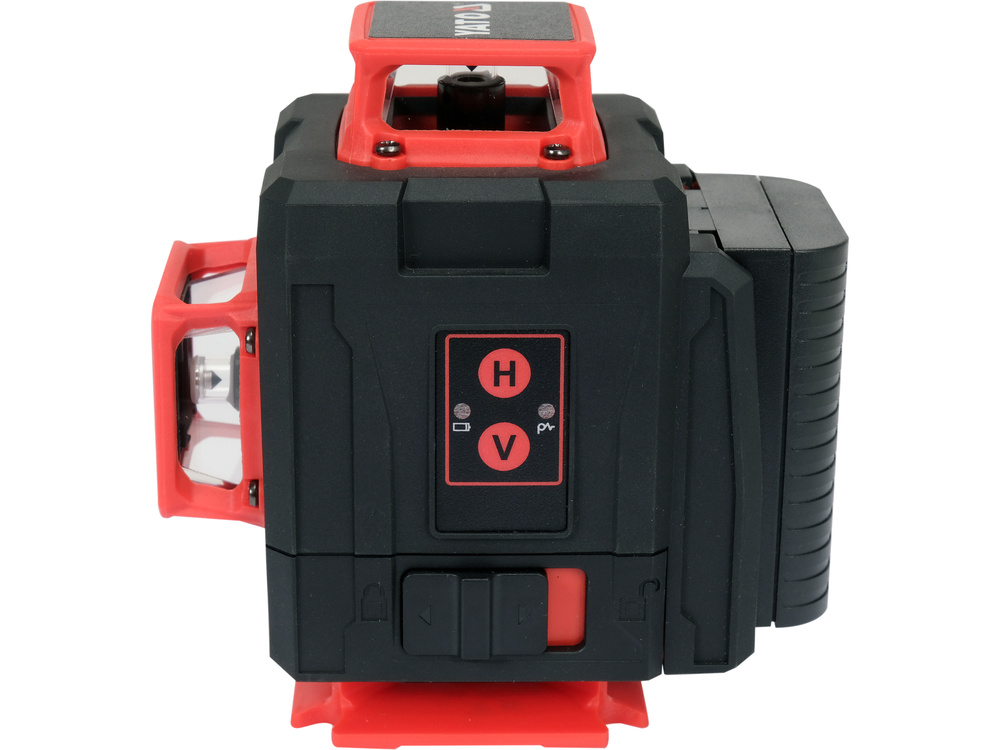

Self-leveling 4D four-plane laser with green beam. Casts 16 lines, four on each plane. Allows to obtain level and plumb on each wall simultaneously in real time.

Laser diodes use Japanese technology, which guarantees excellent visibility inside rooms and a working range of up to 30 meters. Double calibration process, preceded by the process of stabilizing the structure of materials in a thermal chamber, guarantees accuracy at the level of ± 2 mm/10 m.

The laser works with a battery with an increased capacity of up to 4000 mAh. The presence of two batteries in the set allows for uninterrupted work for a longer period of time. The housing made of durable plastic with a tightness class of IP54, with rubber anti-slip pads, guarantees dust-proofness and resistance to drops falling from any direction.

working range: 30 m
accuracy: ± 2 mm/10 m
wavelength: 520-530 nm
working with a detector ensures precise line marking
power: ≤1 mW
self-leveling range: ± 3.0˚
class: 2
water resistance: IP54
operating temperature: -10 ~ +40ËšC

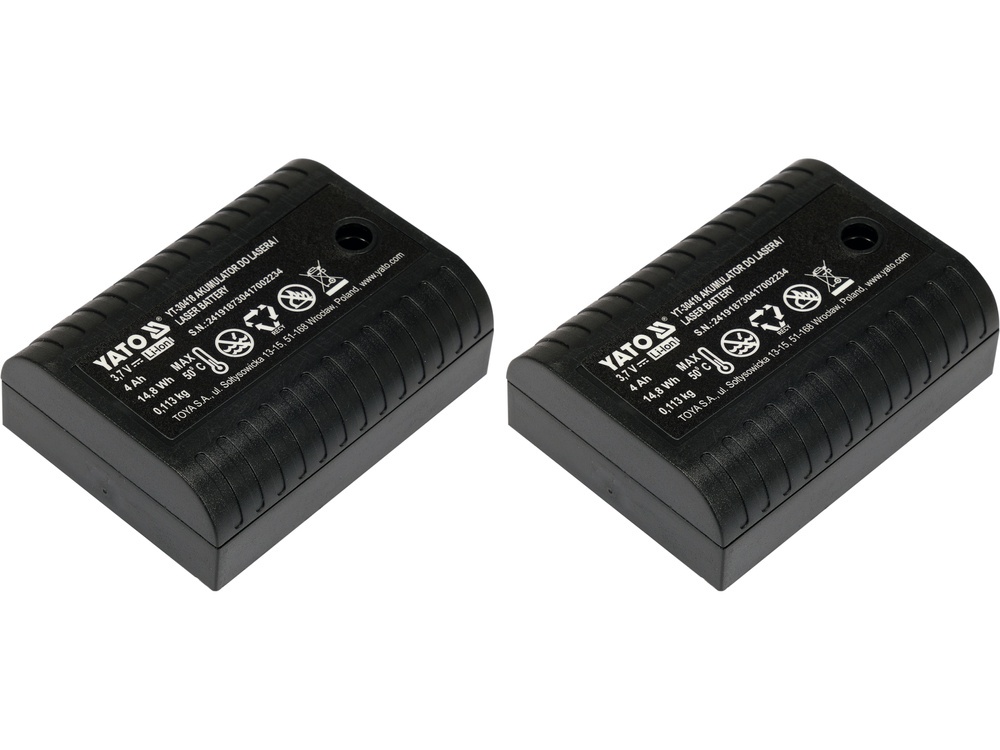

2 Li-Ion batteries: 3.7 V, 4000 mAh
max. operating time on one battery: 8 h
mount: 1/4'' thread
dimensions: 100 x 90 x 123 mm
weight: 0.51 kg

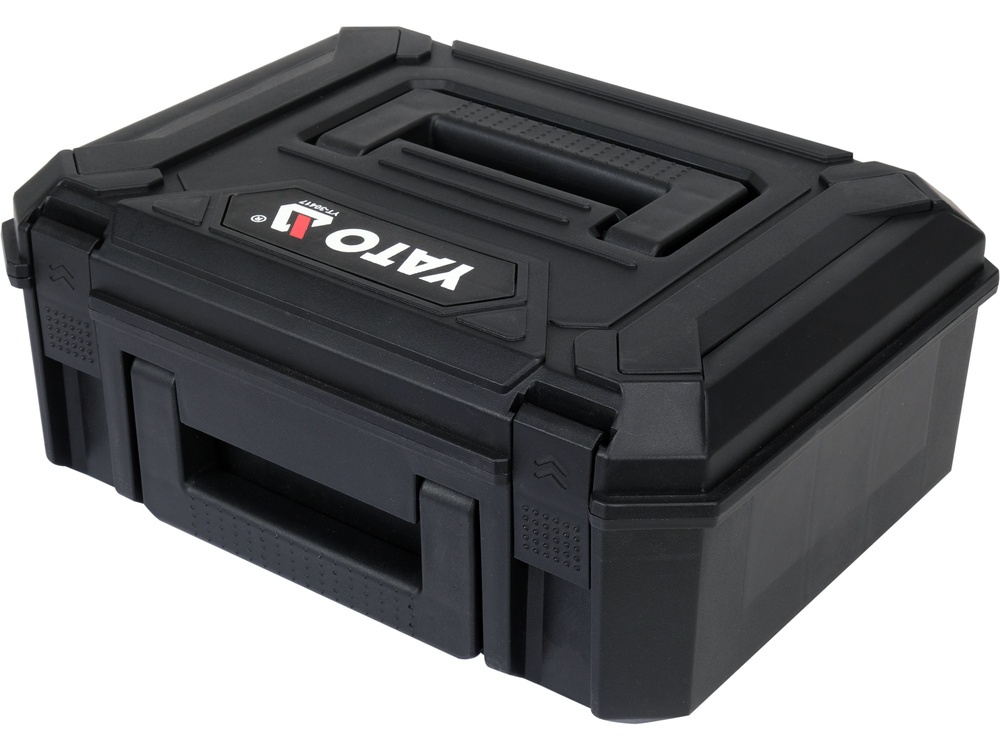

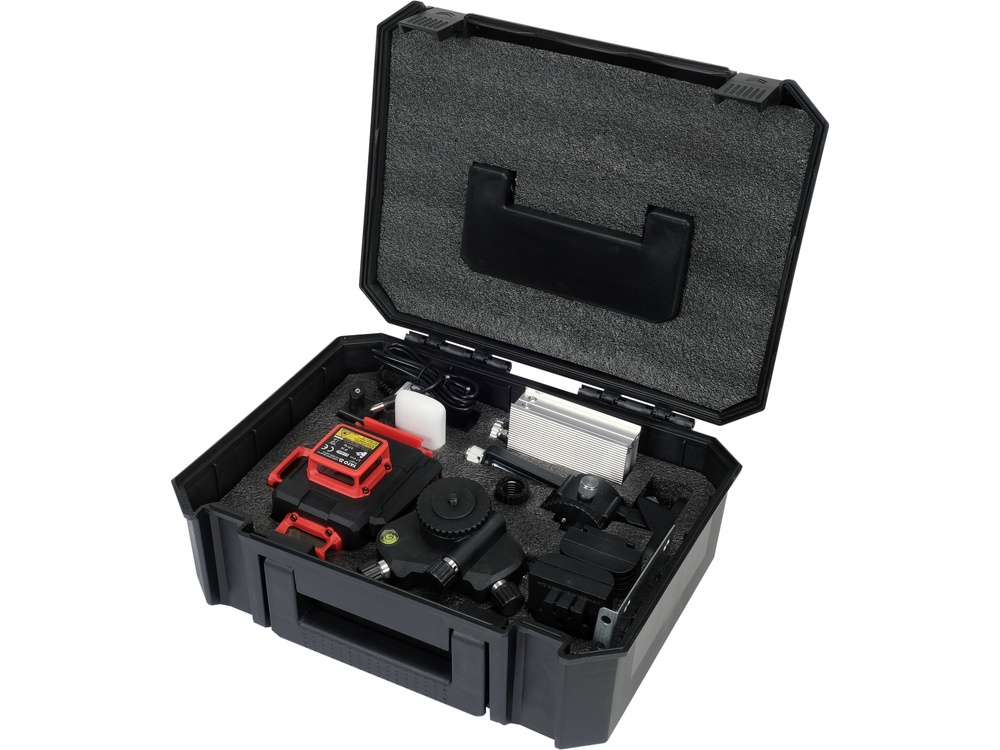

packed in a solid suitcase with vibration-absorbing filling

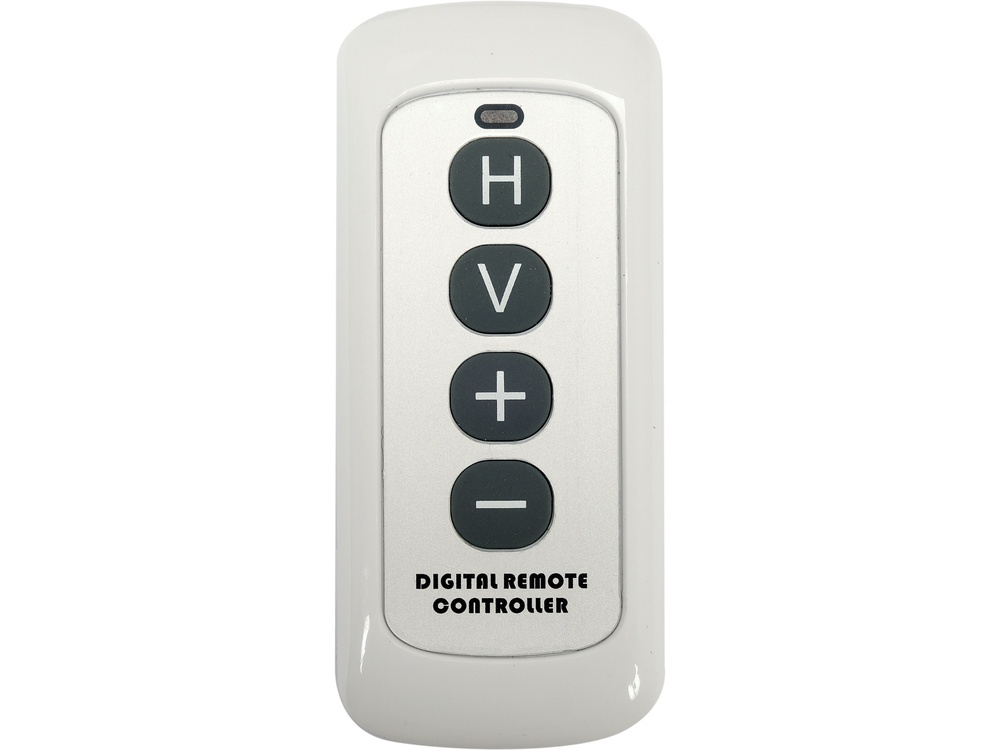

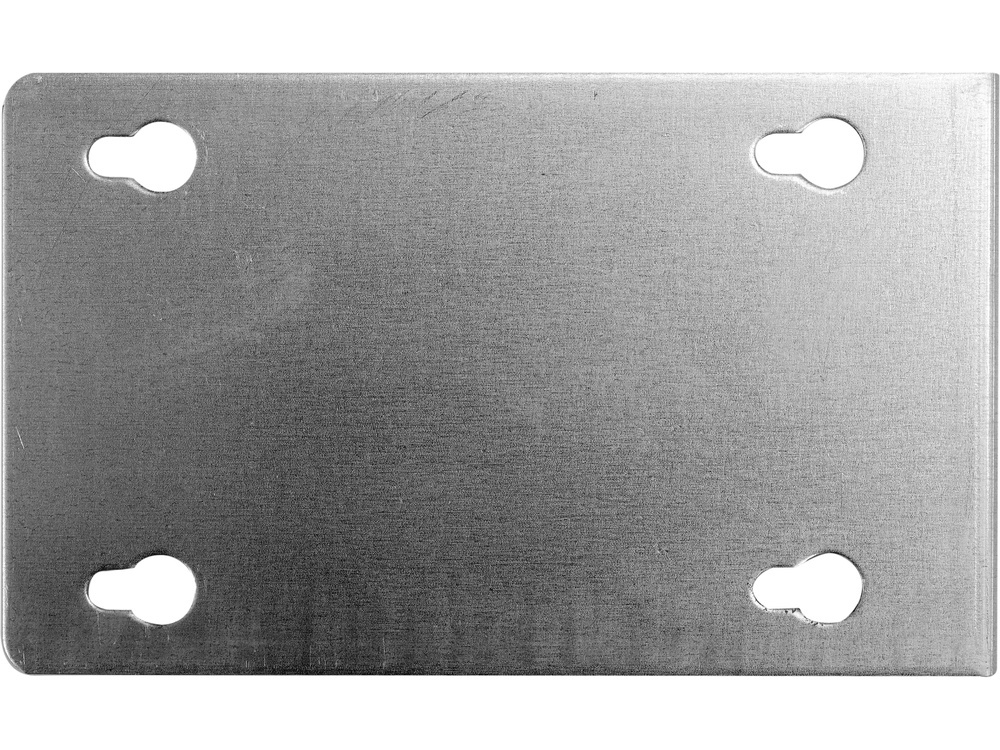

included: 2 batteries, charger, remote control, wall mount, tripod adapter, metal plate, mini tripod with axis adjustment XYZ
Possibility to purchase YT-30418 battery and YT-30421 laser receiver.

Warnings for use:

Class 2 laser device.
Caution! Laser radiation. Do not stare into beam.
