Description:
Brand:
Mark
Yato
Symbol
YT-828131
Series
GRF
Kit Contents
saw, chain bar, saw chain, bar guard
Turnover
8000 min⁻¹
Mass
2.95 kg
Tension
36 (18x2) V d.c.
Battery capacity
4000mAh
Soft grip
Yes
Chain pitch
0.375" (9.525mm)
Electrical insulation class
III
sound pressure
95.5 ± 3.0dB(A)
Acoustic power
102.4 ± 2.54dB(A)
Bar length
16" (400mm)
Number of links
56
Mounting type
P
Automatic chain lubrication
Yes
Battery type
Li-Ion
Charging time
2 hours
Battery charge indicator
Yes
Vibrations
3.25 ± 1.5 / 5.19 ± 1.5 m/s²
Battery energy
72 Wh
chain feed speed
15 m/s
Chain type
AP16-56-507P
Chain guide type
3/8 0.05x56
Number of teeth of the chain drive sprocket and pitch
6 teeth x 9.525mm
Guide link thickness
0.05" (1.3mm)
Oil tank capacity
0.25 l
Engine type
brushless
Fast charging
Yes
The number of batteries in the set
2
Quick chain tensioning system
Yes
For guides
YT-84935
To the chains
YT-84953

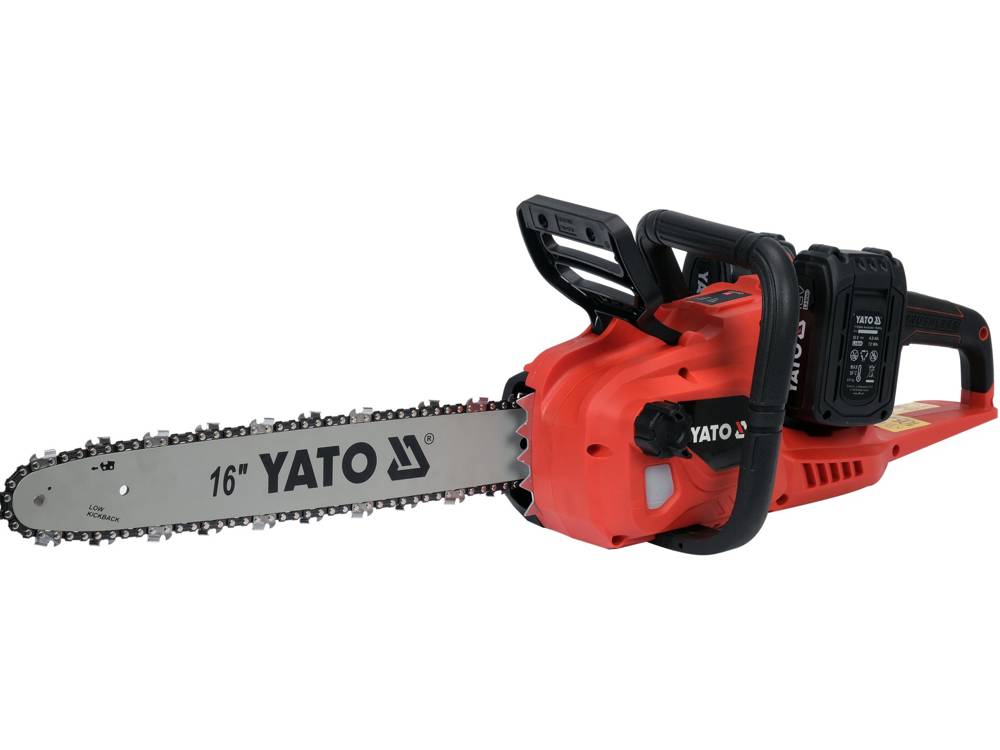

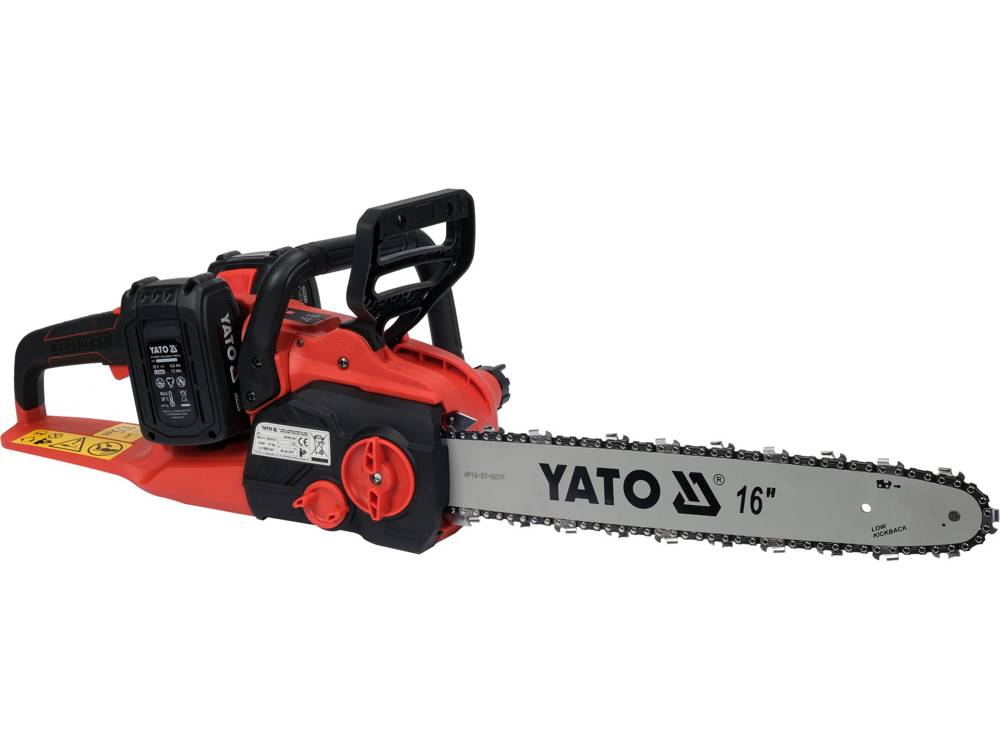

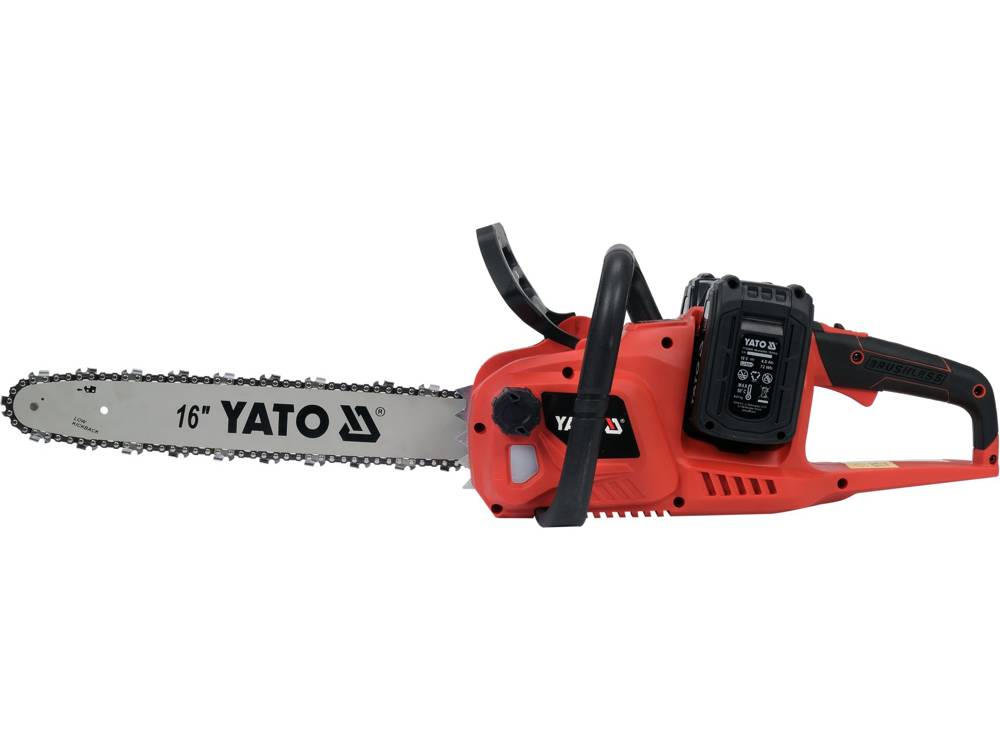

A chainsaw that is as powerful as petrol powered machines.
The 16'' guide bar and high chain speed make it possible to cut firewood, cut down trees with a trunk thickness of up to 40 cm or clear the construction site or jam the roof truss on the construction site.

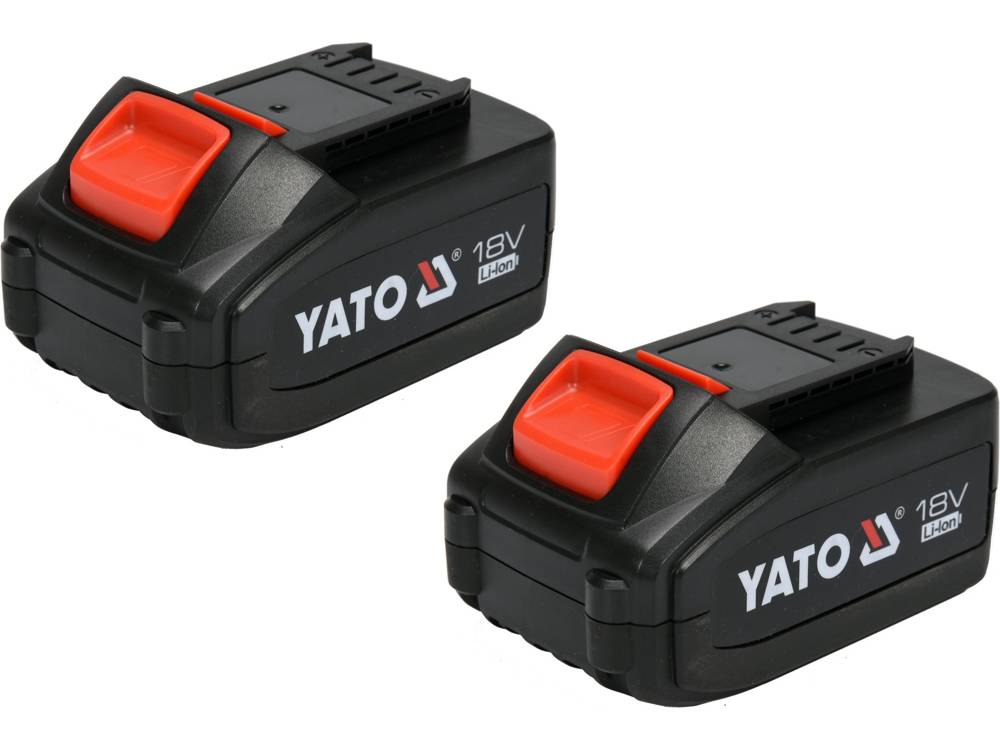

Powered by two 18V batteries simultaneously, it generates a high voltage of up to 36V and a long working time of the tool on a single charge of a pair of batteries.
Comparing the amount of energy available to the Yato saw, we multiply 36V x 4Ah = 144Wh (Watt-hours)
This is a much higher accumulated current capacity than, for example, in an ordinary 18V device equipped with a 2Ah battery, because 18V x 2Ah = 36Wh
