Description:
Brand:
CORDLESS MULTIFUNCTIONAL GARDEN TOOL 18V
Mark
Yato
Symbol
YT-828391
Series
GRF
Set contents

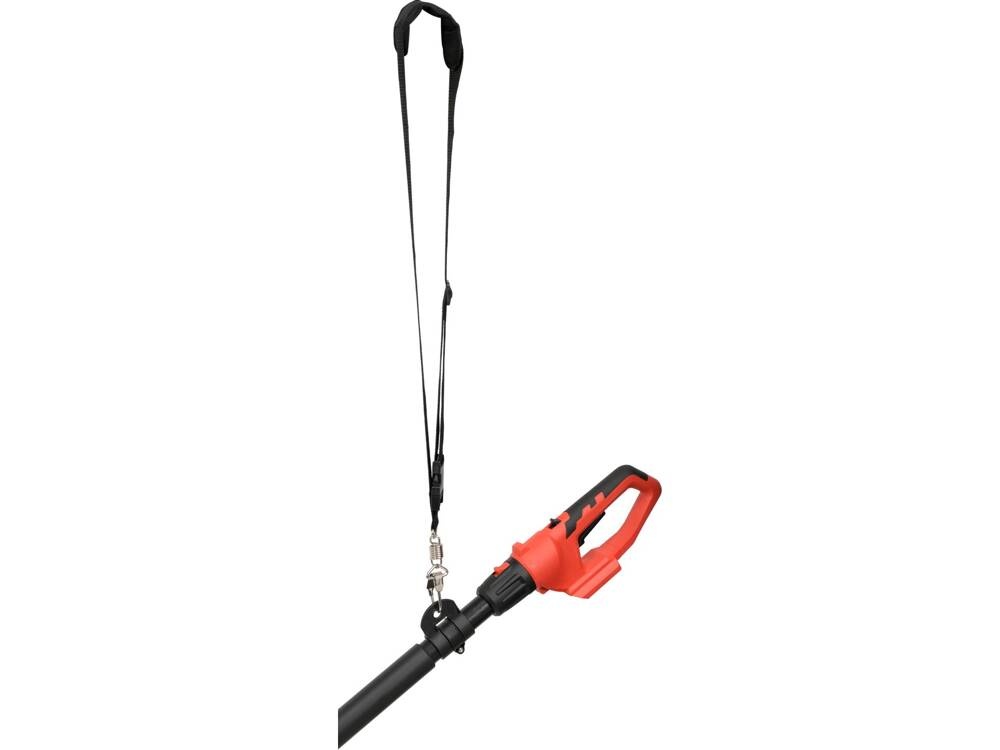

pruner, chain guide, saw chain, guide cover, blade cover, carrying belt
Turnover
2500 min⁻¹
Telescopic
Yes
Mass
3.5 (hedge trimmer), 3.4 (pruner) kg
Tension
18 V d.c.
Chain pitch
0.375" (9.525 mm)
Electrical insulation class
III
Sound pressure
74.5 ± 3.0 (pruner), 74.5 ± 3.0 (hedge trimmer) dB(A)
Acoustic power
88.0 ± 3.0 (pruner), 89.6 ± 3.0 (hedge trimmer) dB(A)
Guide length
8" (200 mm)
Number of cells
33
Type of mounting
P
Automatic chain lubrication
Yes
Working angle
pruner cutting head: 0, +15, +30, +45, +60, +75, +90, hedge trimmer: -45, -30, -15, 0, +15, +30, +45, +60 , +75, +90, rear handle: -15, 0, +15, +30 ˚
Functions
hedge trimmer, pruner
Cutting length
415mm
Battery type
Li-Ion
Vibrations
1,190 ± 1.5 (pruner), 1,446 ± 1.5 (hedge trimmer) m/s²
Cutting speed
1500 min⁻¹
Chain type
AP08-33-507P
Chain guide type
0/3.043x33
Number of teeth of the chain drive wheel and pitch
3 teeth x 7.62 mm
Oil tank capacity
80 ml
Number of batteries included
lack
Chain speed
4.5 m/s

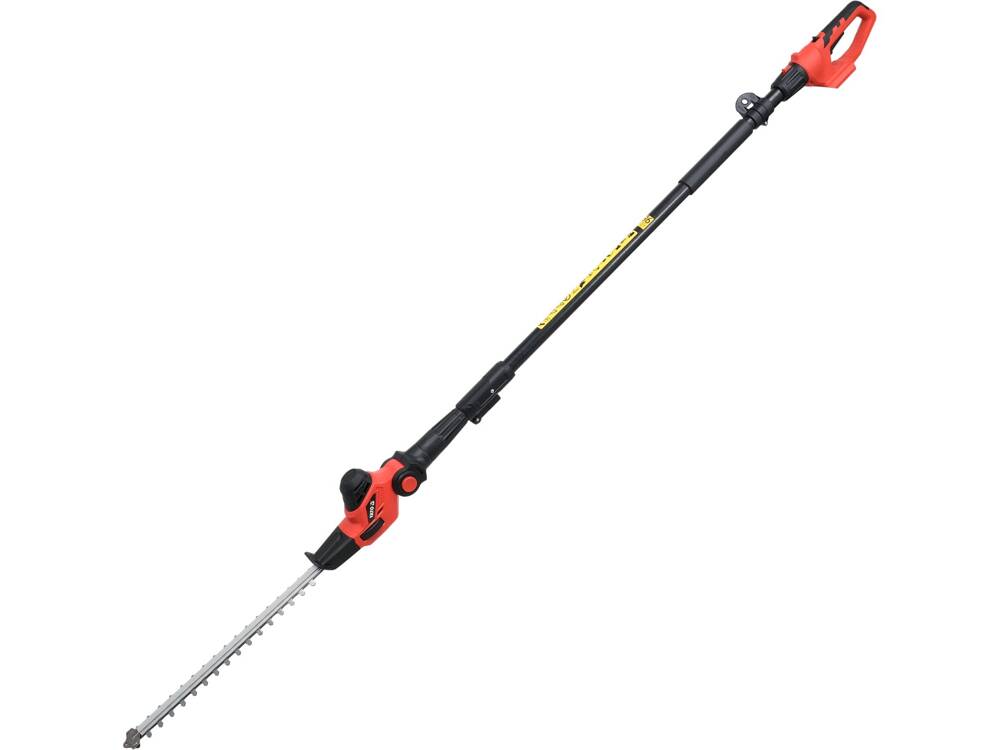

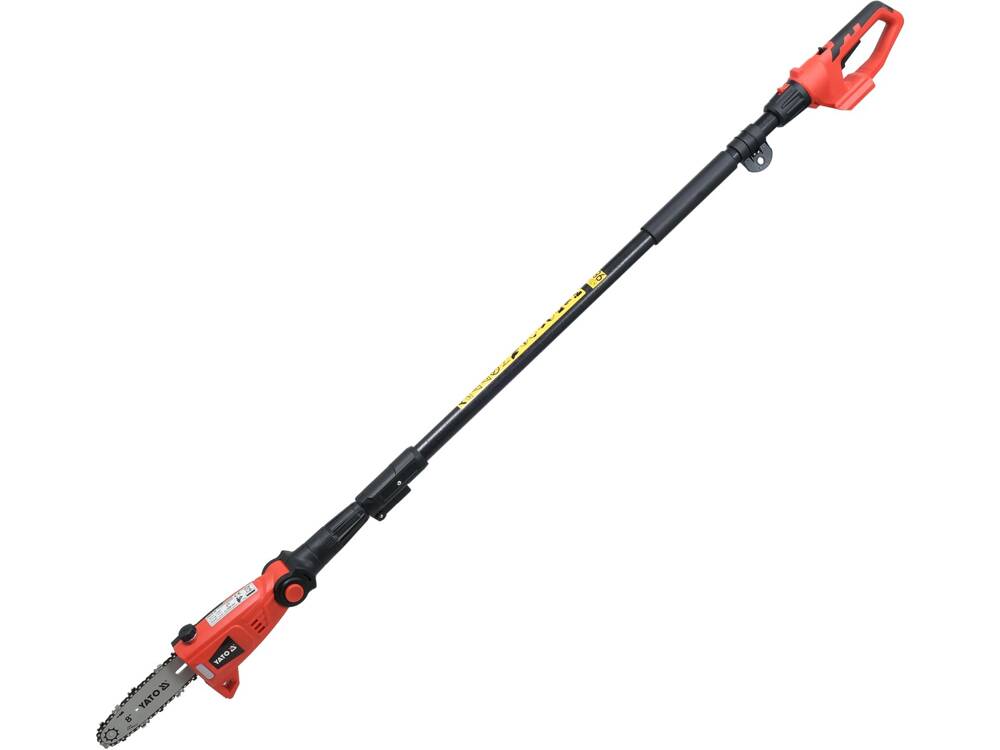

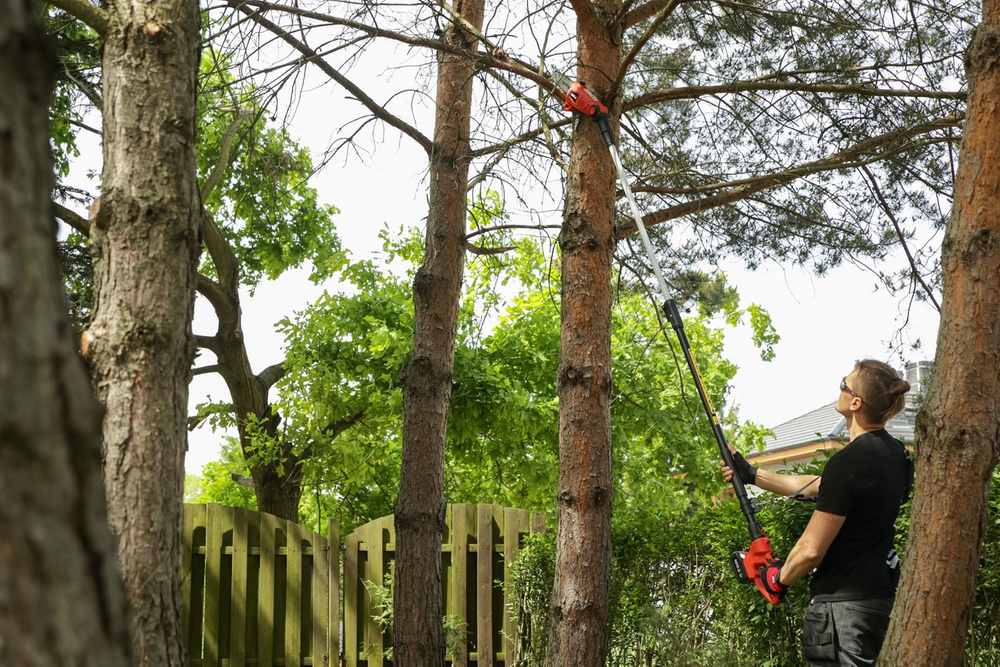

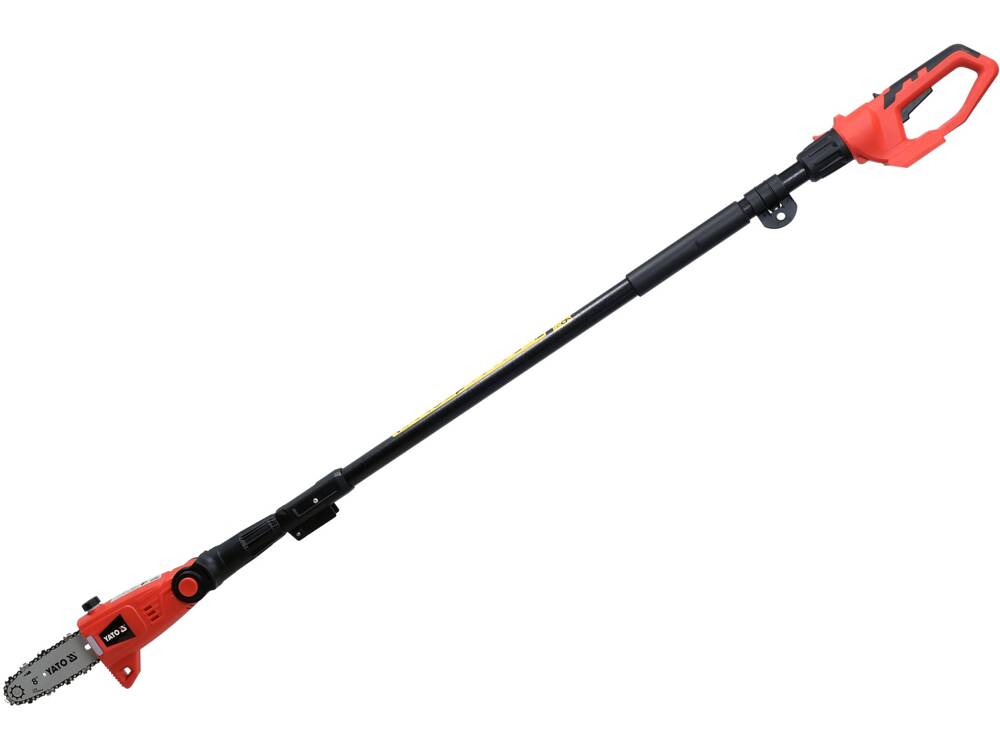

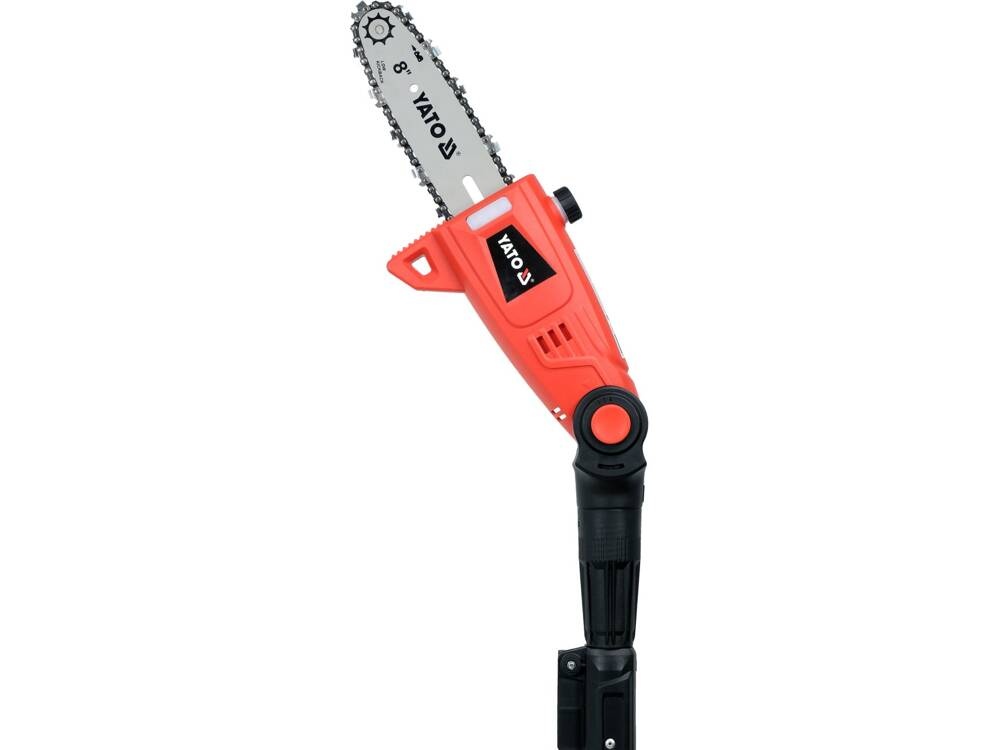

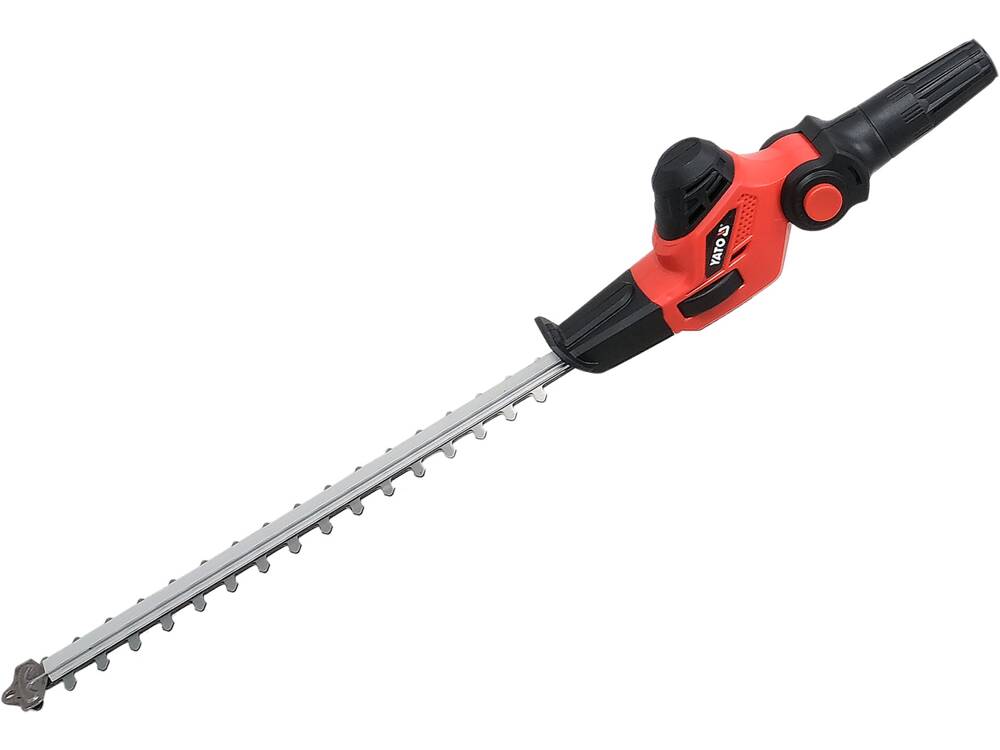

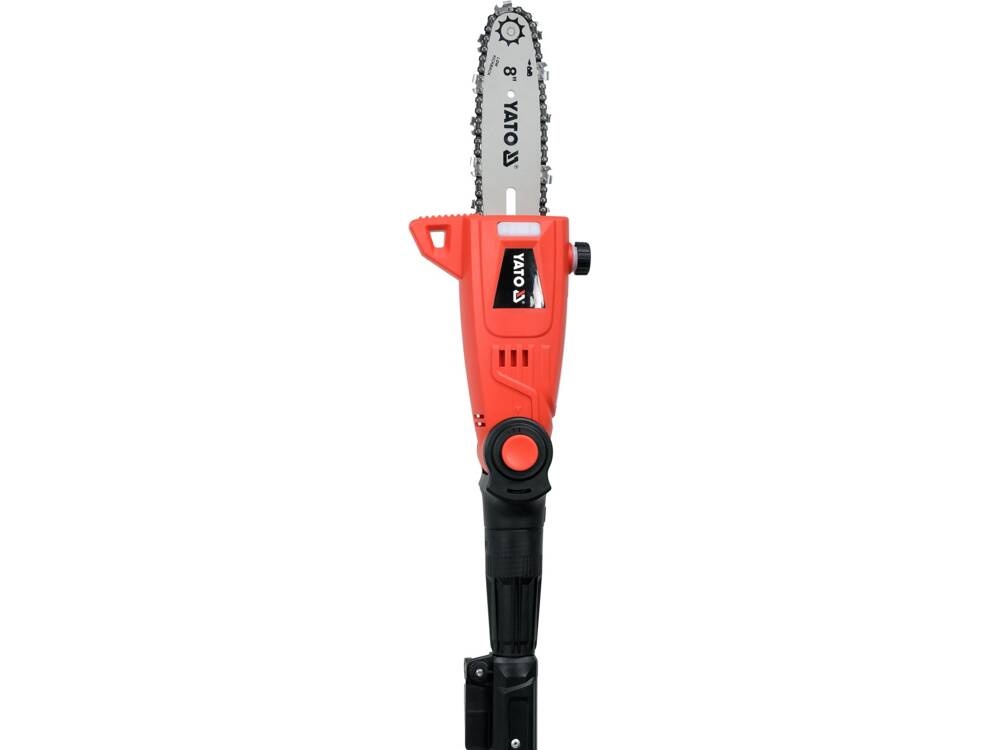

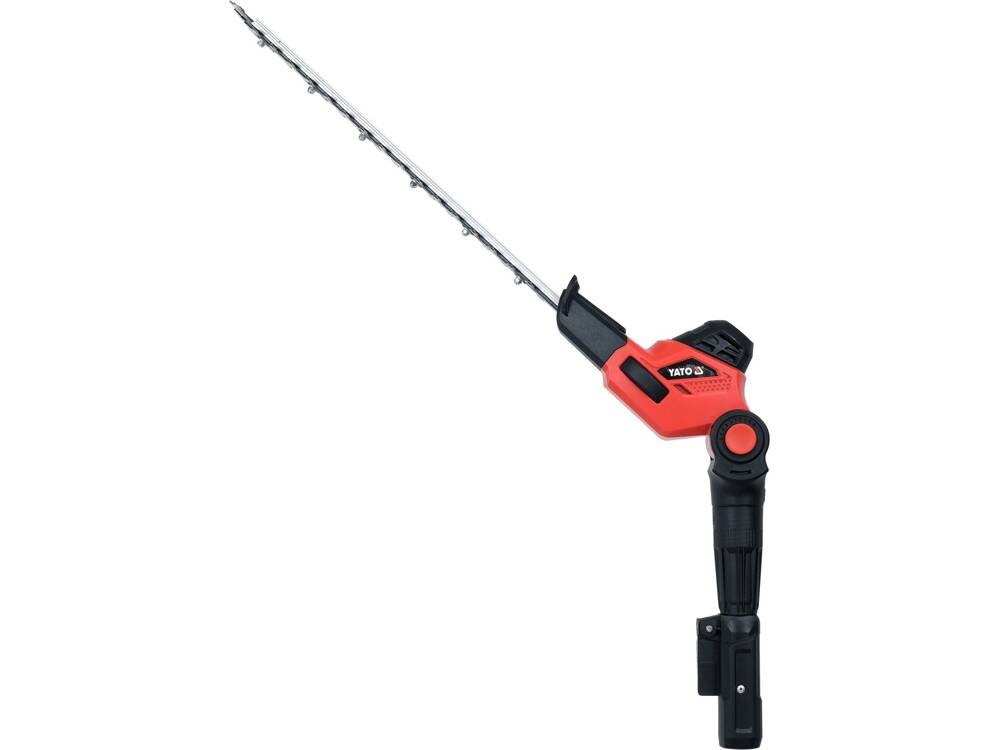

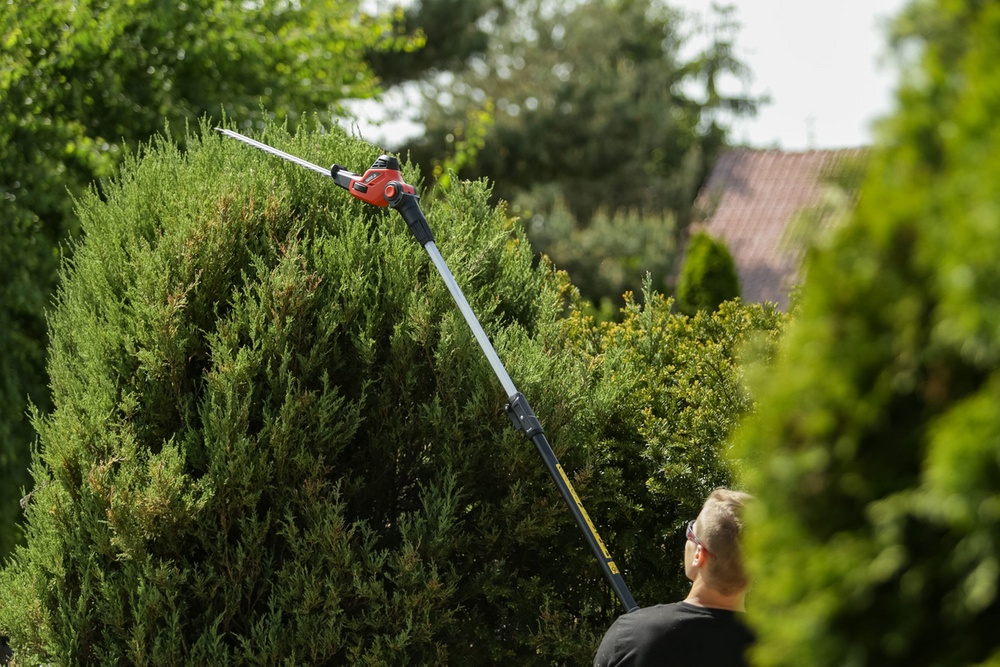

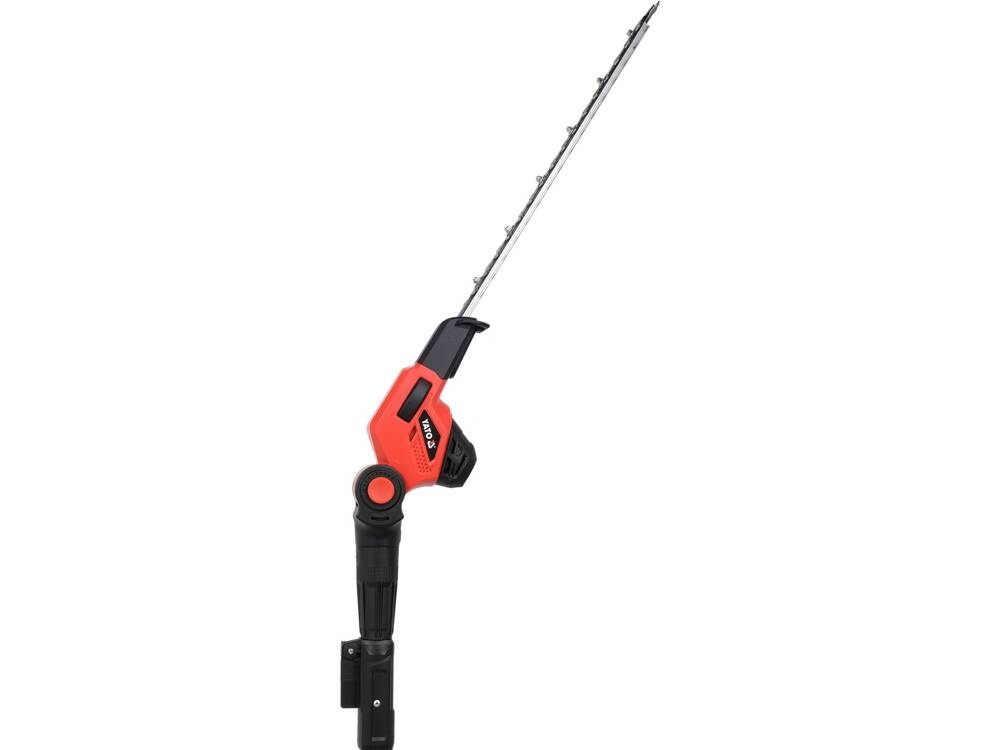

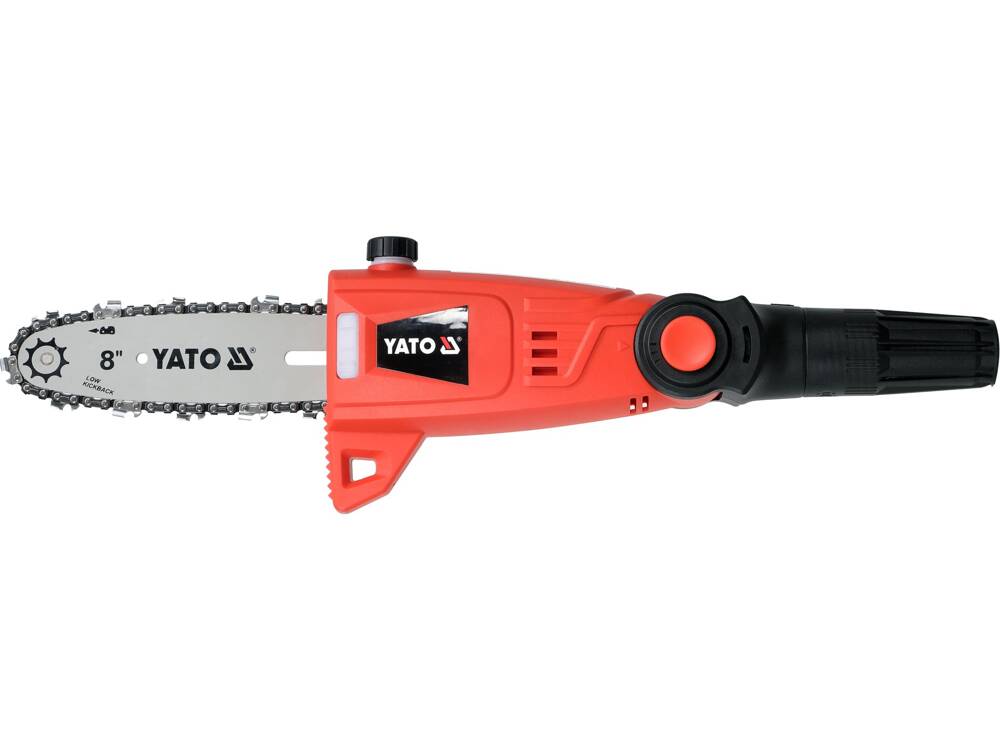

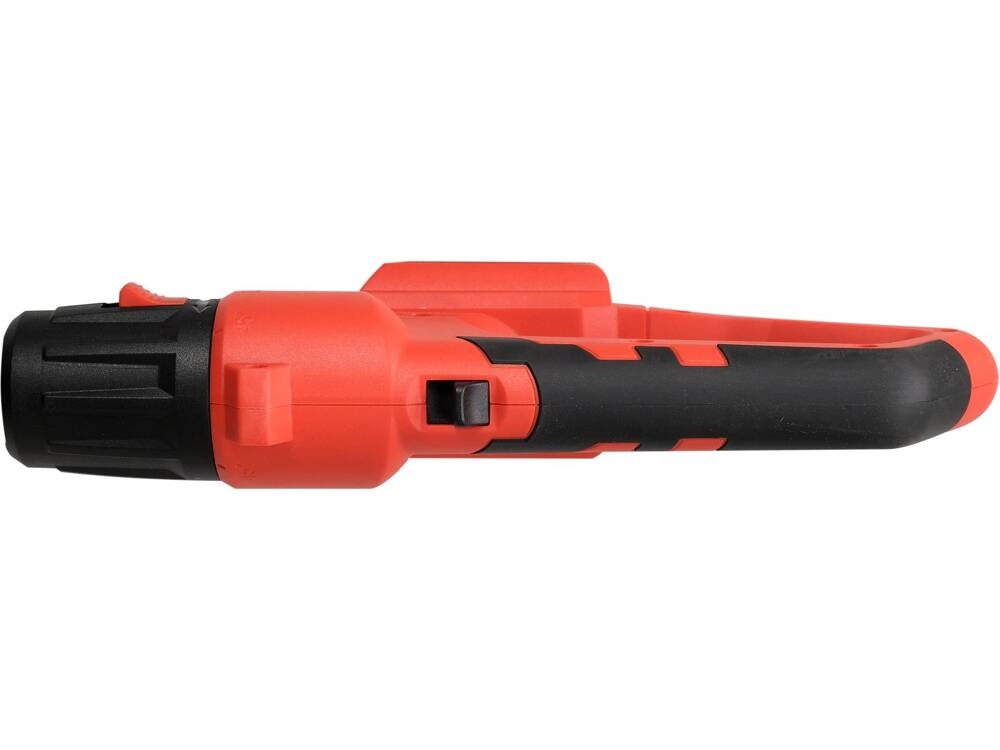

The device combines two functions - depending on the head installed, it is a pruner for cutting branches or a hedge trimmer. The telescopic handle allows you to work without a ladder up to a height of 5.5 m. For the user's convenience when cutting branches, the inclination of the saw head can be adjusted and the handle can be rotated on the axis. Replacing the head from a pruner to a hedge trimmer does not require tools or the use of significant force. The handle is made of composite and aluminum, which makes it light, durable and stiff. The device works for over 1.5 hours with the YT-82845 battery (6 Ah). It fits all YATO 18 V system batteries.
guide length: 8" (200 mm)
chain speed: 4.5 m/s
automatic chain lubrication
cutting length: 415 mm
cutting speed: 1500 rpm
weight: 3.5 kg (hedge trimmer), 3.4 kg (pruner)
