Description
for pulling out hard to remove diesel injectors
to be used with optional sliding hammers BGS 7772-2, 7772, 7776

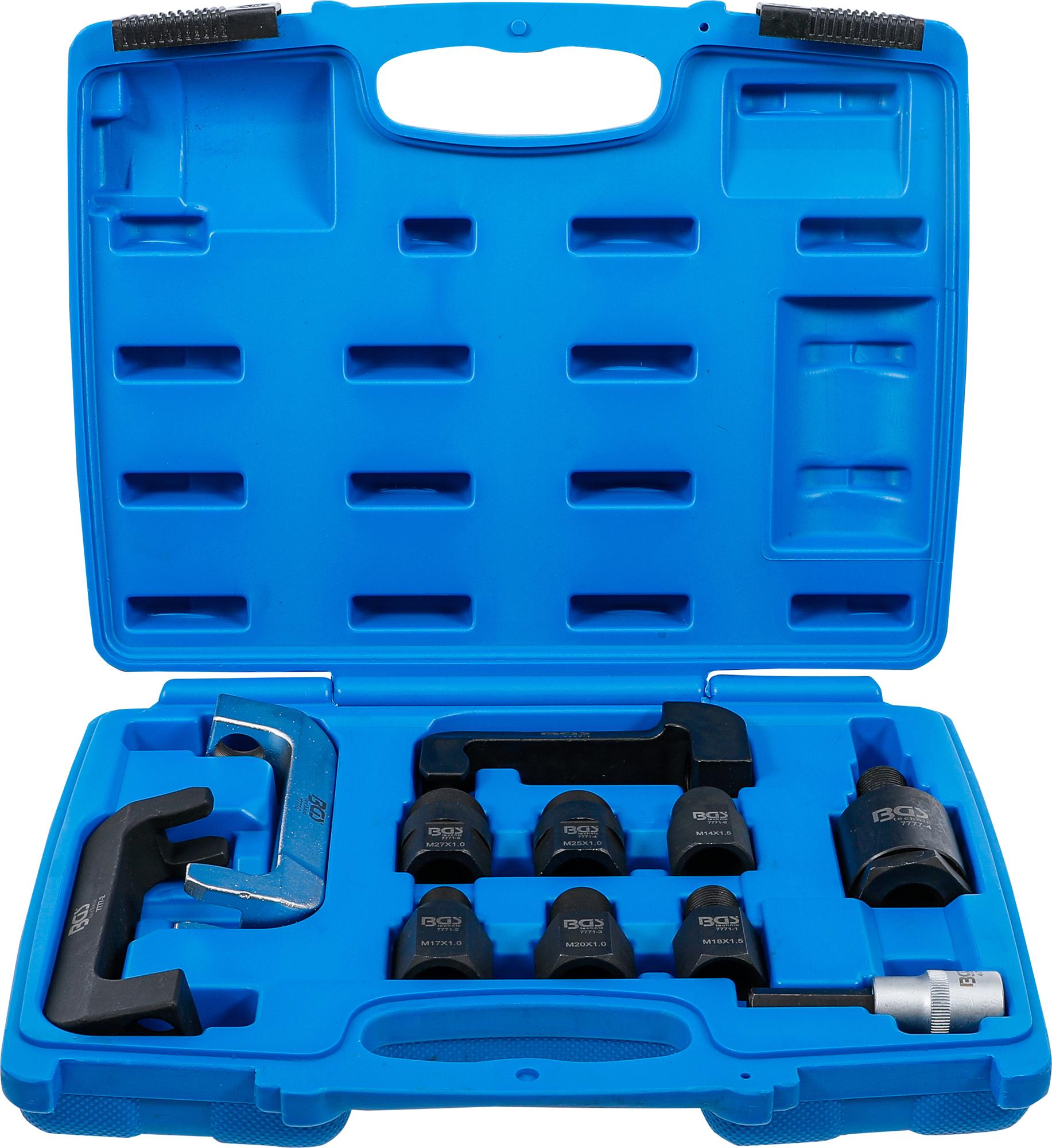

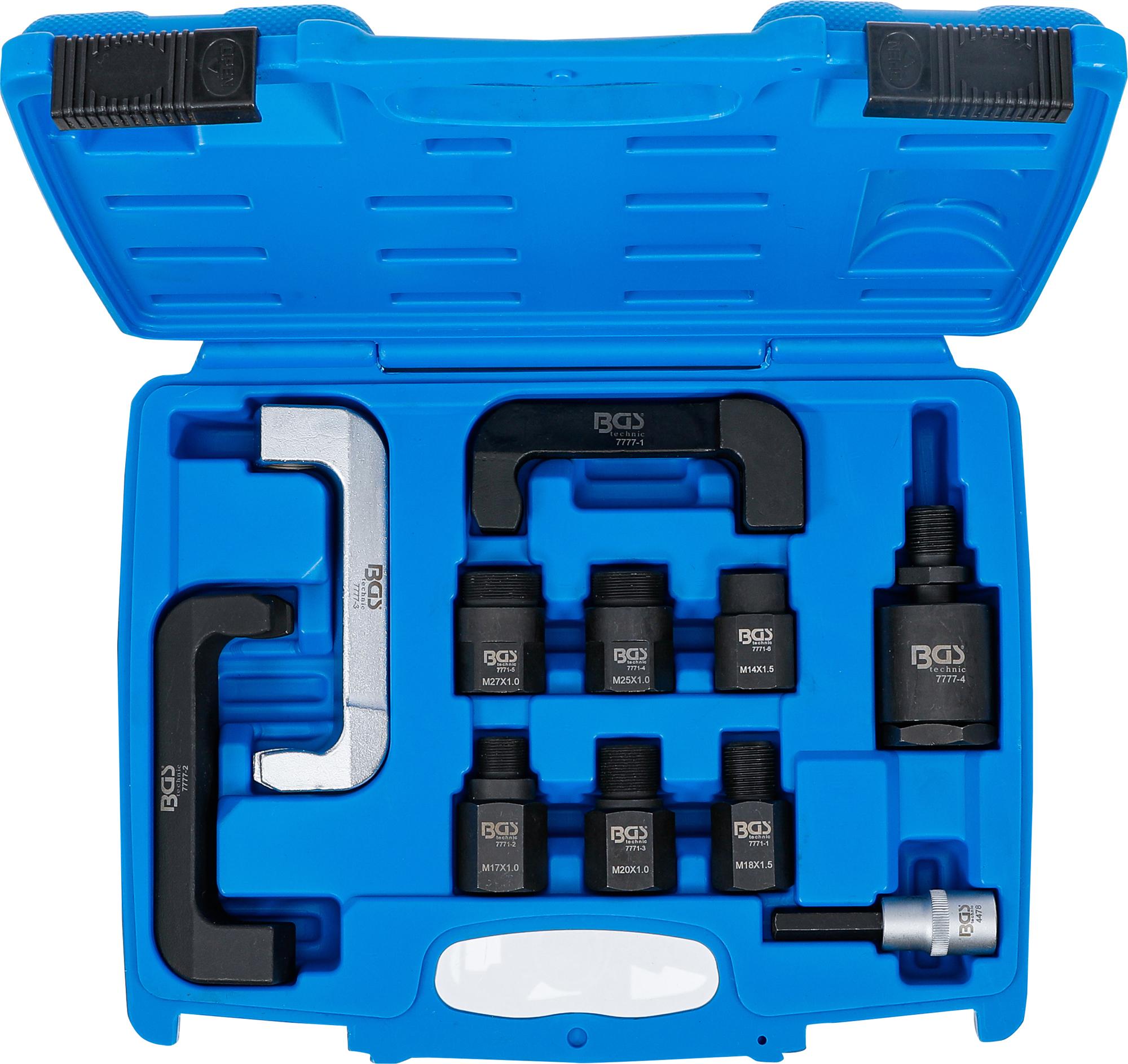

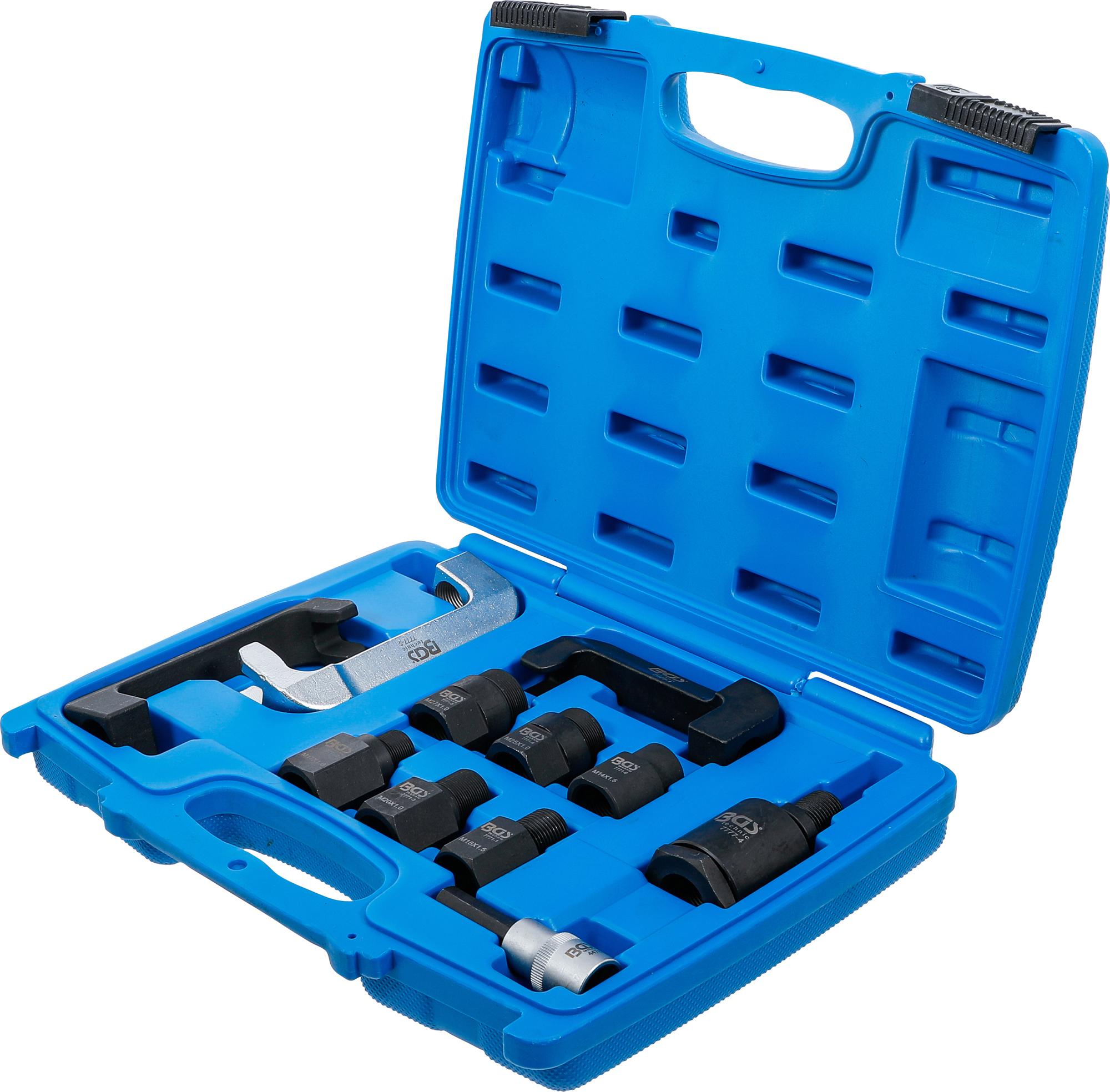

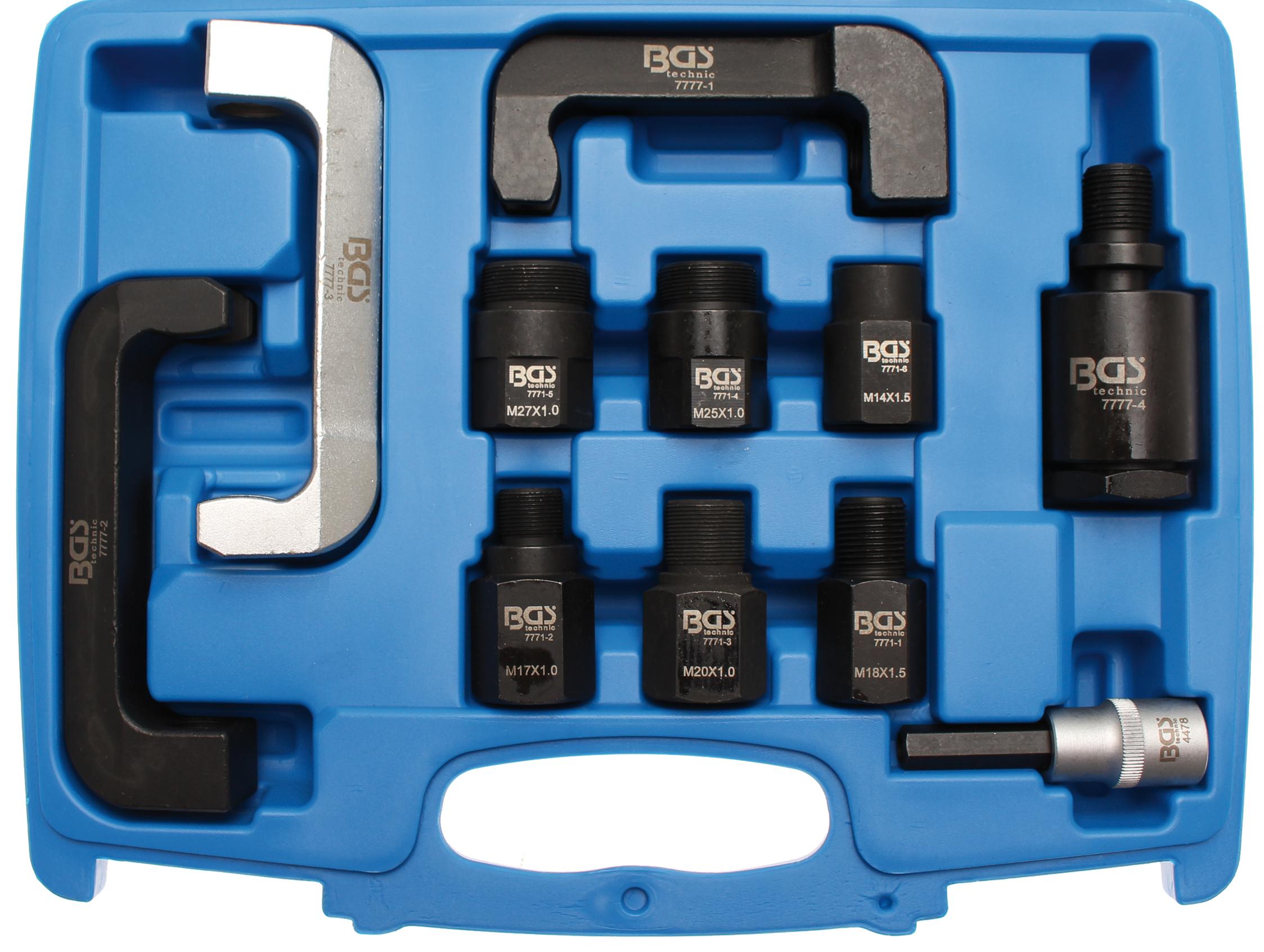

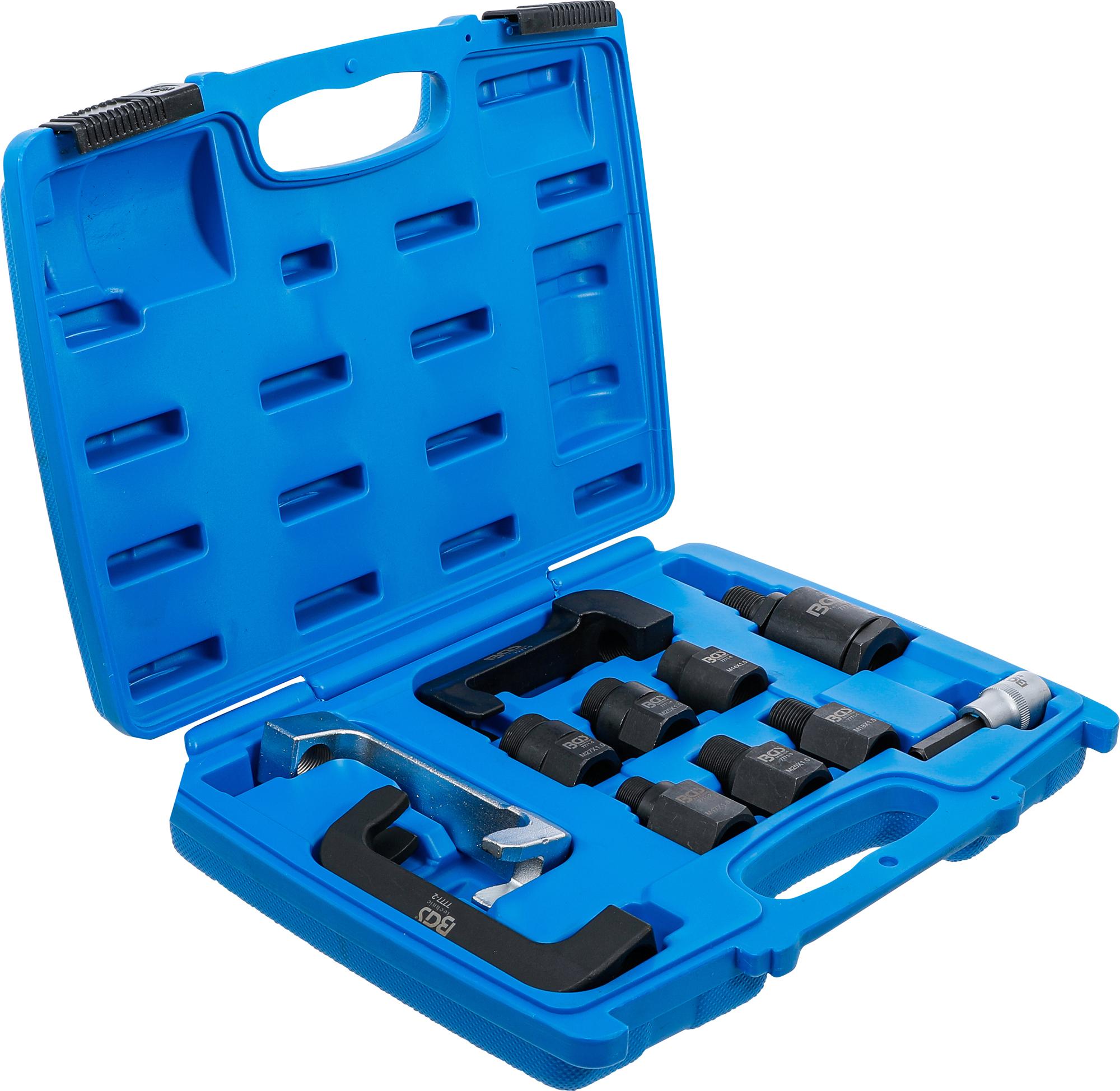

includes the following tools:
6 adaptors for installation in the injector thread:
inside thread M20x1.5 to inside thread M14x1.0
inside thread M20x1.5 to external screw thread M17x1.0
inside thread M20x1.5 to external screw thread M18x1.5
inside thread M20x1.5 to external screw thread M20x1.0
inside thread M20x1.5 to external screw thread M25x1.0
inside thread M20x1.5 to external screw thread M27x1.0
3 pulling claws with inside thread M18x1.5 and claw width 12, 13 and 16 mm
ball head adaptor M18x1.5 to M18x1.5
10 mm internal hexagon bit socket with hole for the disassembly of the ring nut of the nozzle needle
Technical data
Gross weight 3120 g
