Product description

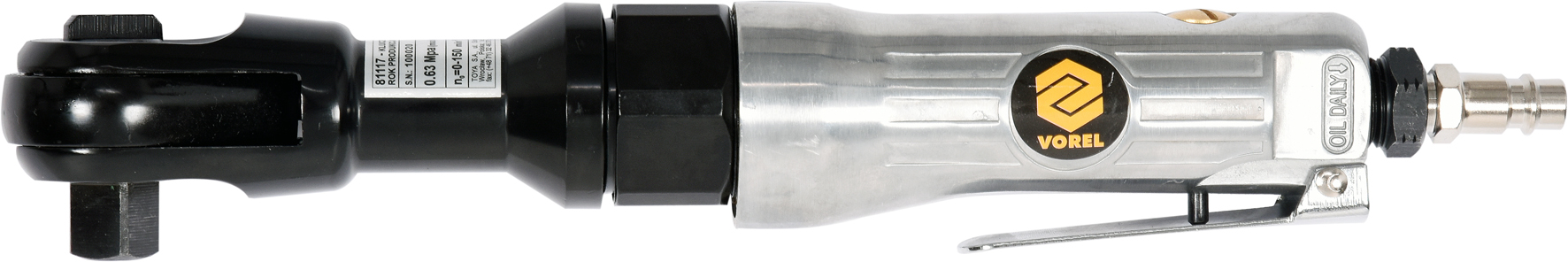

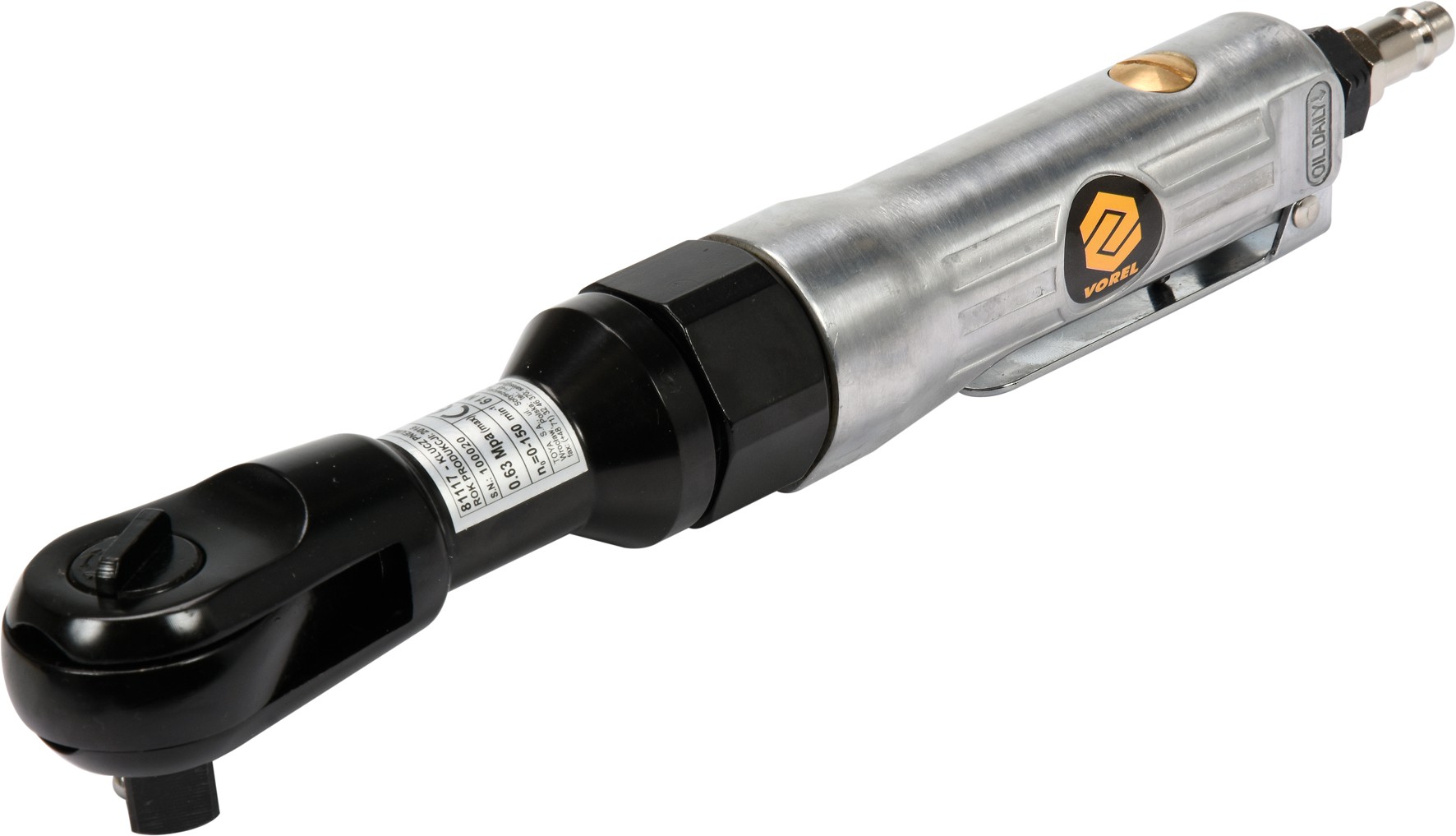

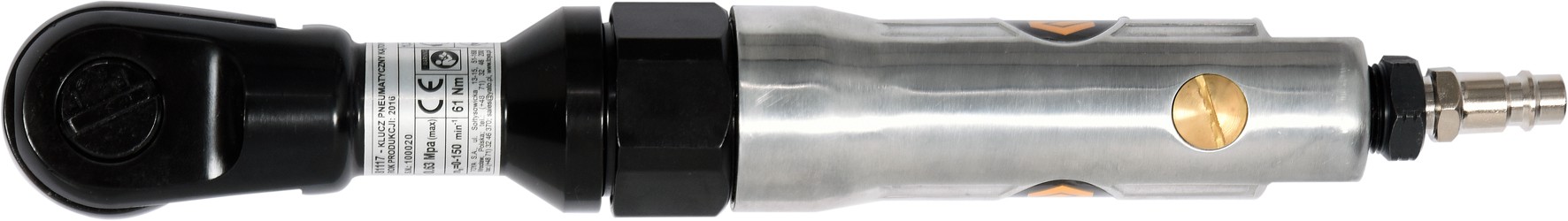

VOREL pneumatic ratchet, 1/2 "angled
Length [mm] 254
Weight [kg] 1,2
Diameter of the air connection (PT) [''] / [mm] 1/4 / 6.3
Diameter of the air supply hose (internal) [''] / [mm] 3/8 / 10
Rotations [min-1] 150
Maximum torque [Nm] 61 Rigging size [''] / [mm] 5 1/2 / 12.5
Maximum working pressure [MPa] 0.63
Required air flow (at 6.2 bar) [l / min] 141
Sound pressure (EN ISO 15744) [dB (A)] 91.0 ± 3.0
Sound power (EN ISO 15744) [dB (A)] 102.0 ± 3.0
Vibration (ISO 28927-2) [m / s2] 3.27 ± 1.5
Technical data
Index number 81117
EAN 5906083811173
Brand Vorel
PCS unit
Gross weight (kg) 1.3500
Master Carton MC 20
Pressure [bar] 6.3
Torque [Nm] 68
Min / max rotation 122
Color box packaging
The size of the quick connector [inch] 1/4
Efficiency [l / min] 141
Size [in] 1/2
