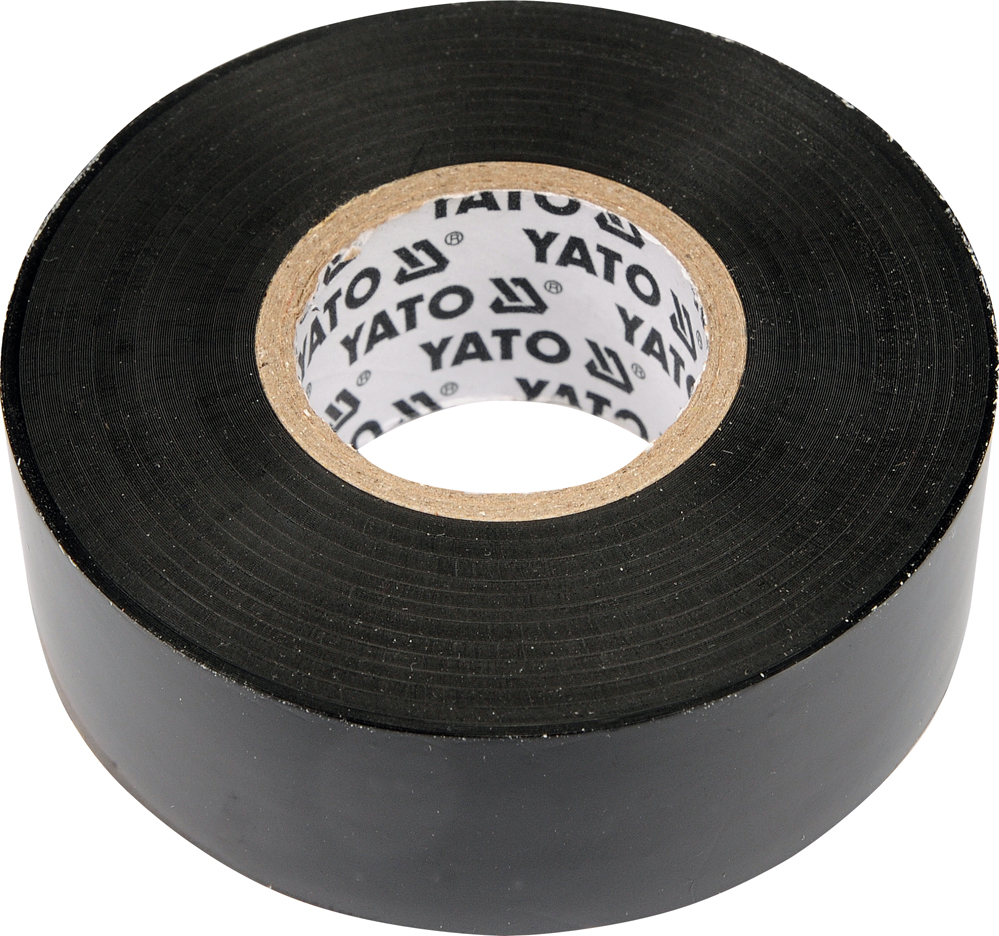

Elektros izoliacinė juosta juoda 25mmx20mx0,19mm (YT-8174)

(1)

Aprašymas:

Numeris YT-8174
EAN 5906083981746
PVC medžiaga + guma
ilgis (m) 20
plotis (mm) 25
kiekis pakuotėje b / AP 48/192
Storis (mm) 0,19
8000 V izoliacija
standartas EN60454-3-1-1/F-PVC/60/R-Tp
Svoris (g) 141

Product description

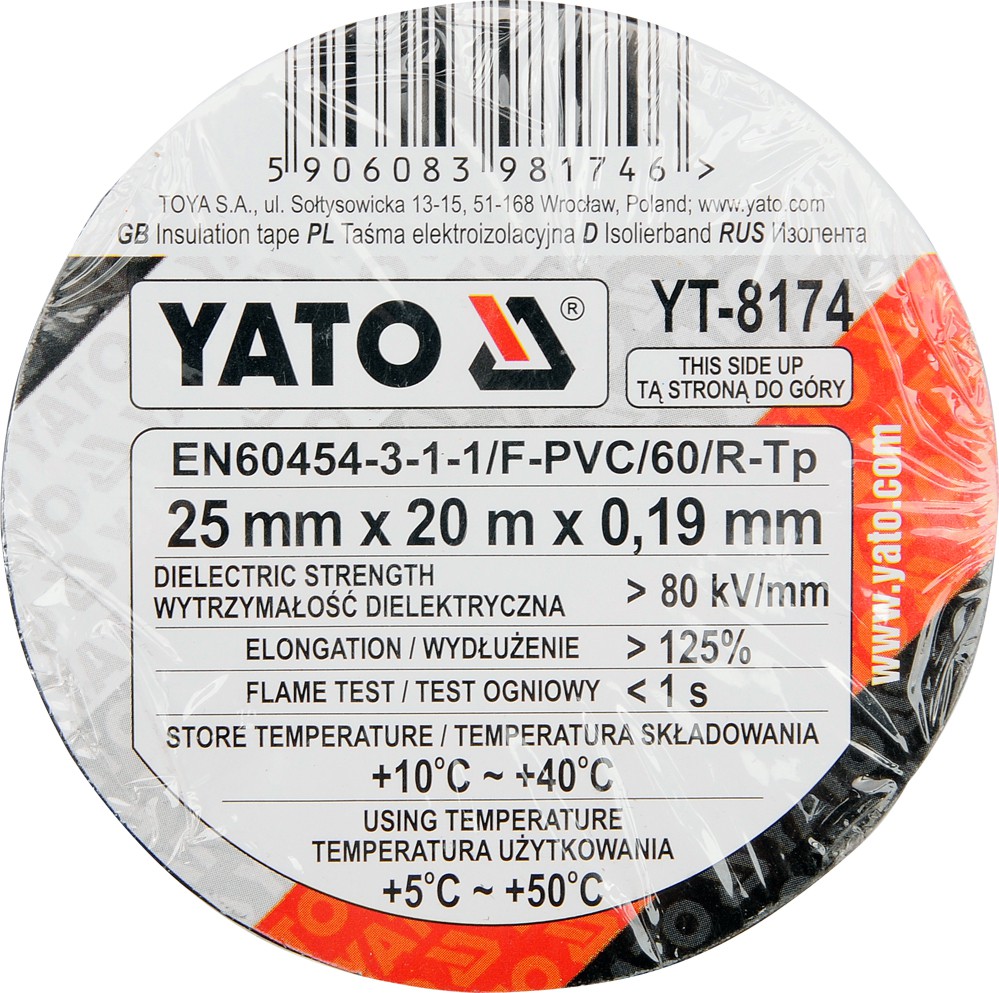

PVC insulating tape with a dimension of 25mm x 20m x 0.19mm. Black colour. Dielectric strength> 80kV / mm. Elongation> 125%. Storage temperature +10 ~ +40 degrees C. Operating temperature +5 ~ +50 degrees C. Top-quality rubber adhesive Conforms to EN60454-3-1-1 / F-PVC / 60 / R-Tp.
Purpose / use
- Used mainly in electrical installation works in construction and automotive industry, among others: making and maintenance of electrical installations - Creating cable bundles - Marking conductors Protective functions: - Against mechanical damage (abrasion, bending, etc.) - Physical (UV radiation, processes aging) - Chemical (water and various chemicals) - Corrosion - Fire-resistant
Technical data
Index number YT-8174
EAN 5906083981746
Brand Yato
Gross weight (kg) 0.1460
Master Carton MC 192
Inner Box IB 48
Color Box AC 8
Pal 4224
Quantity [pcs] 1
Isolation 40 Kv / mm
Black colour
PVC material
Length [m] 20
Thickness [mm] 0.13
Width [mm] 25
