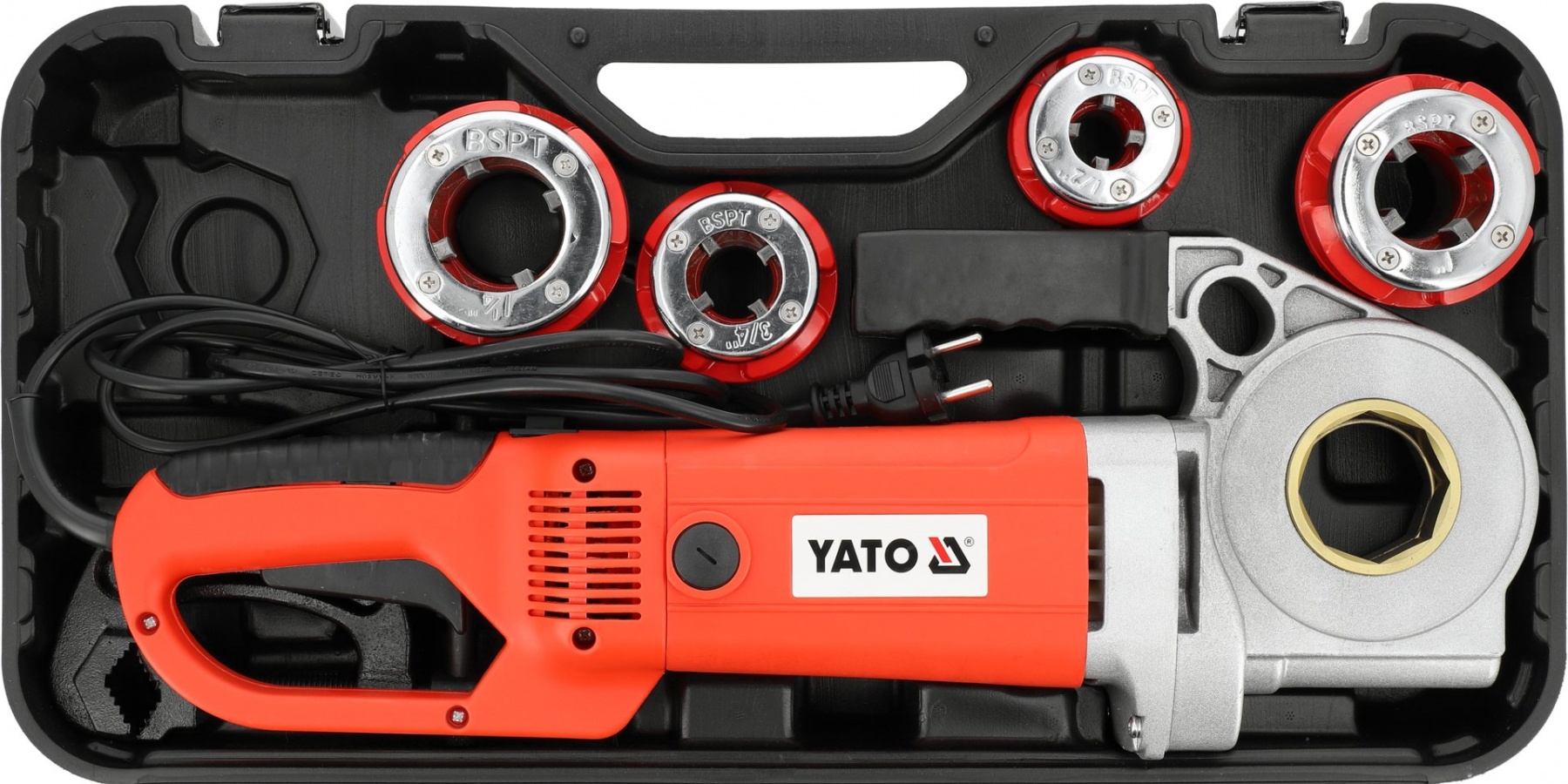

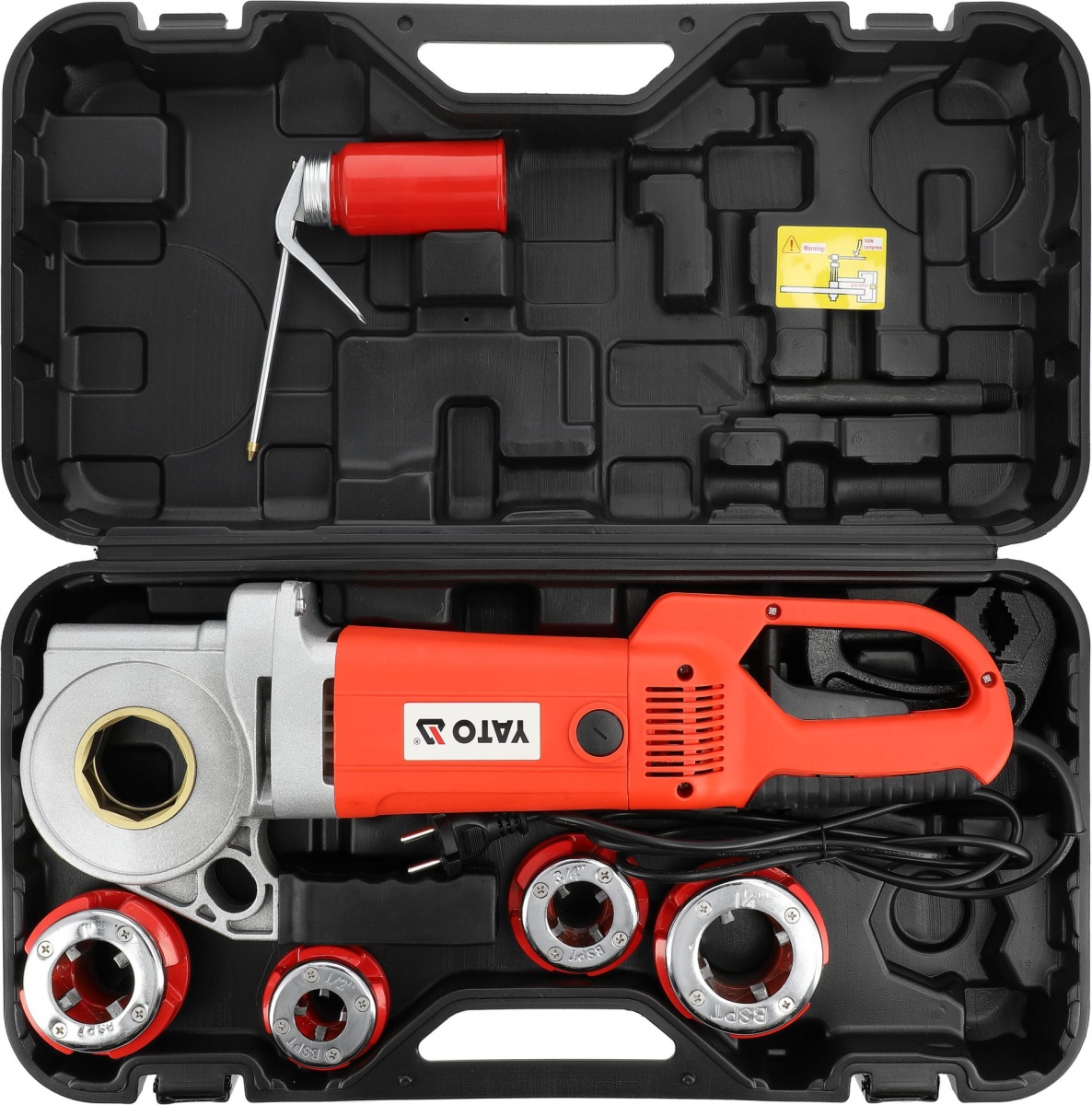

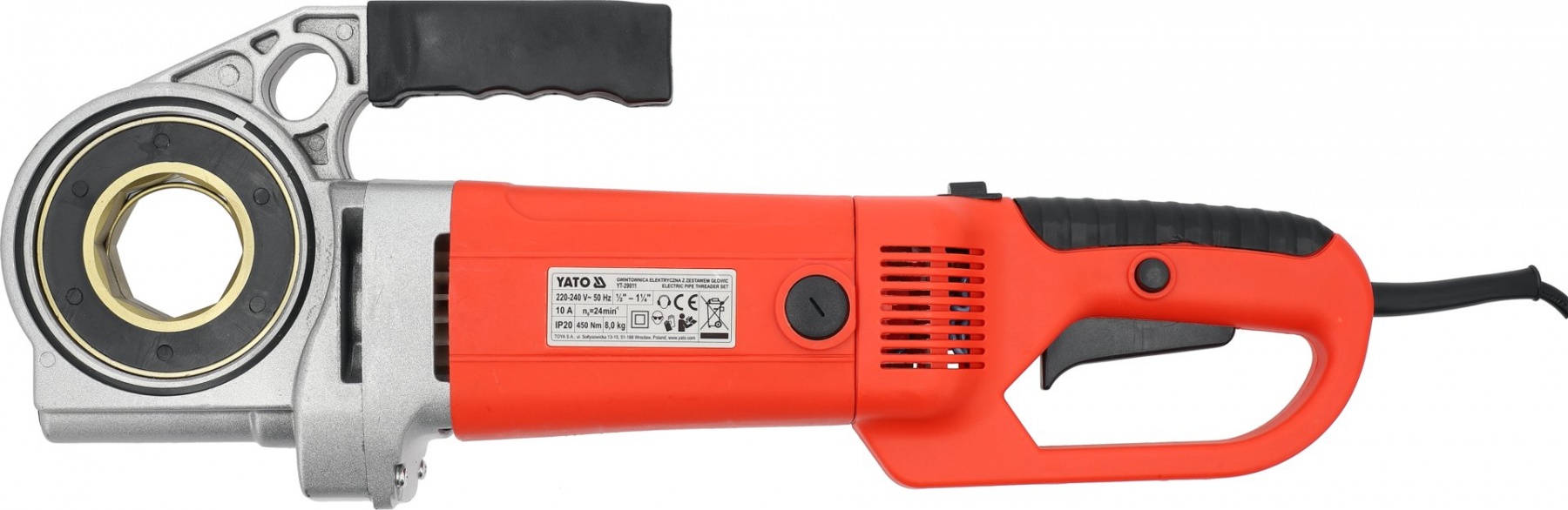

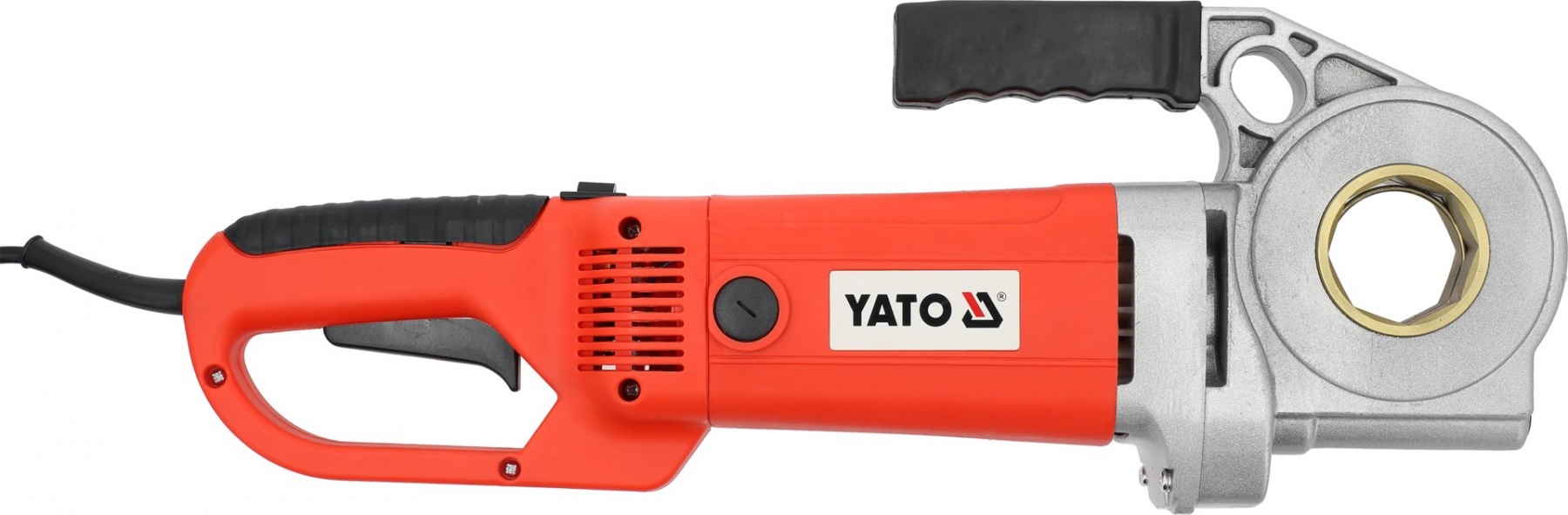

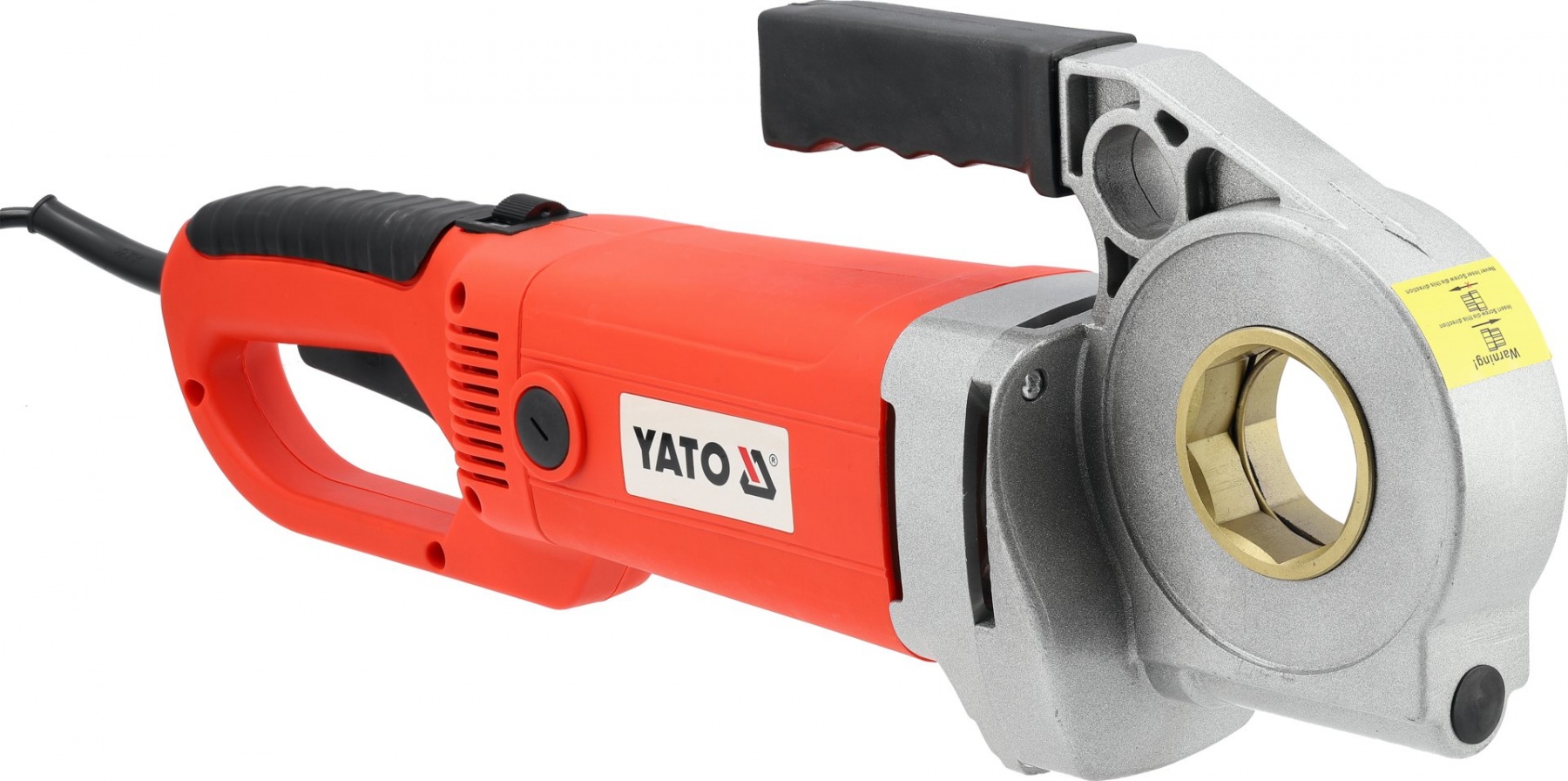

The YATO YT-29011 electric pipe threader is a professional power tool designed for cutting external threads on installation pipes, primarily those made of steel. Its 2230 W motor, delivering a rated torque of 450 Nm and a speed of 24 rpm, provides the power needed to efficiently create threaded connections during installation and assembly work. The set includes four die heads for pipe diameters of 1/2", 3/4", 1", and 1 1/4", enabling it to handle the standard pipe sizes used in installations. Key features:
2230 W power – efficient motor ensures high load-bearing capacity during thread cutting
450 Nm torque – enables effective threading of steel pipes without the need for manual incremental turns
24 rpm speed – low, controlled operating speed tailored to the threading process, allowing for precise head guidance
1/2–1 1/4" threading range – the device supports four common pipe diameters: 1/2" (12.7 mm), 3/4" (19 mm), 1" (25 mm), and 1 1/4" (32 mm)

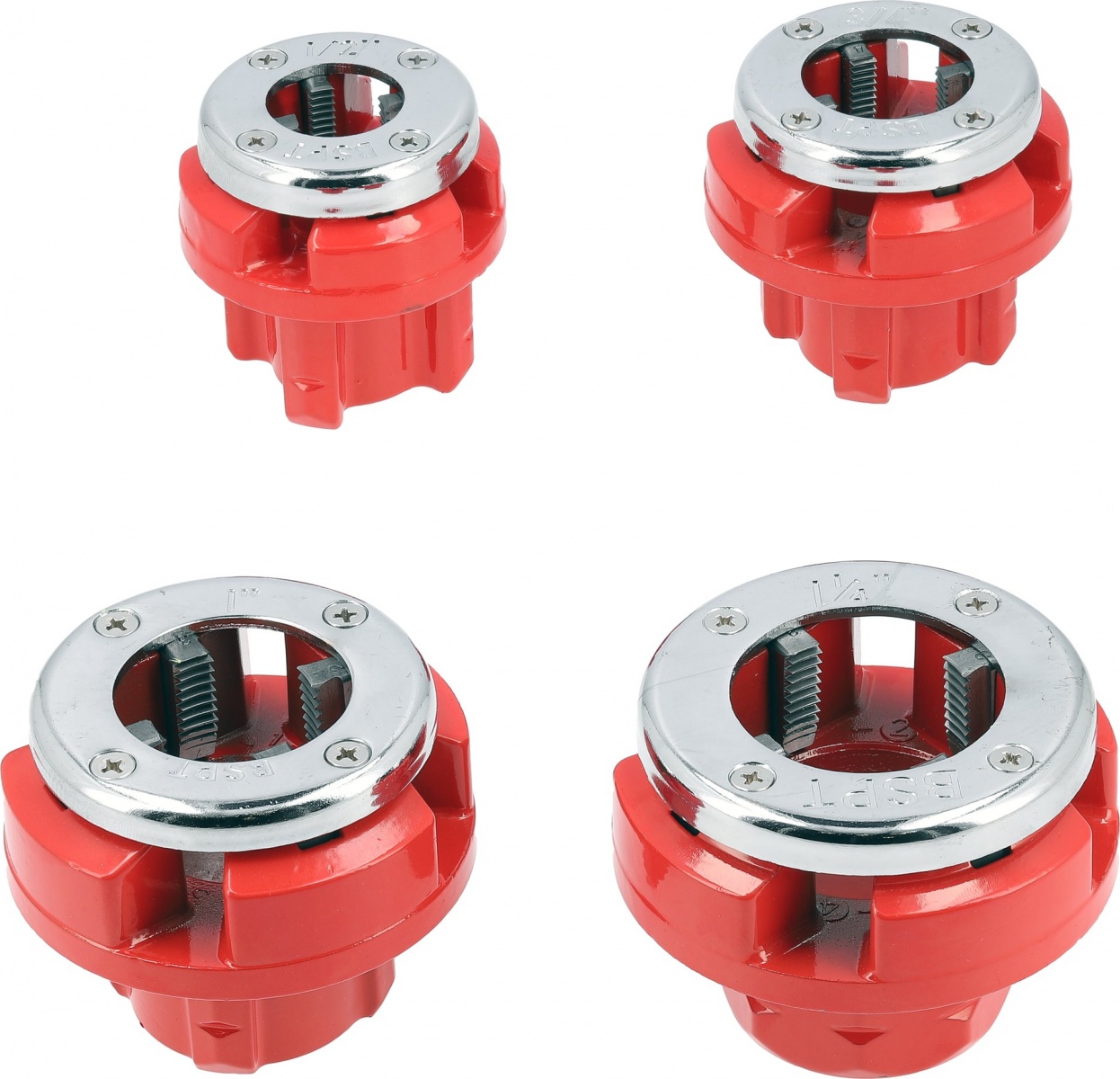

9SiCr steel heads – chromium-silicon alloy steel characterized by hardness, wear resistance, and cutting edge stability

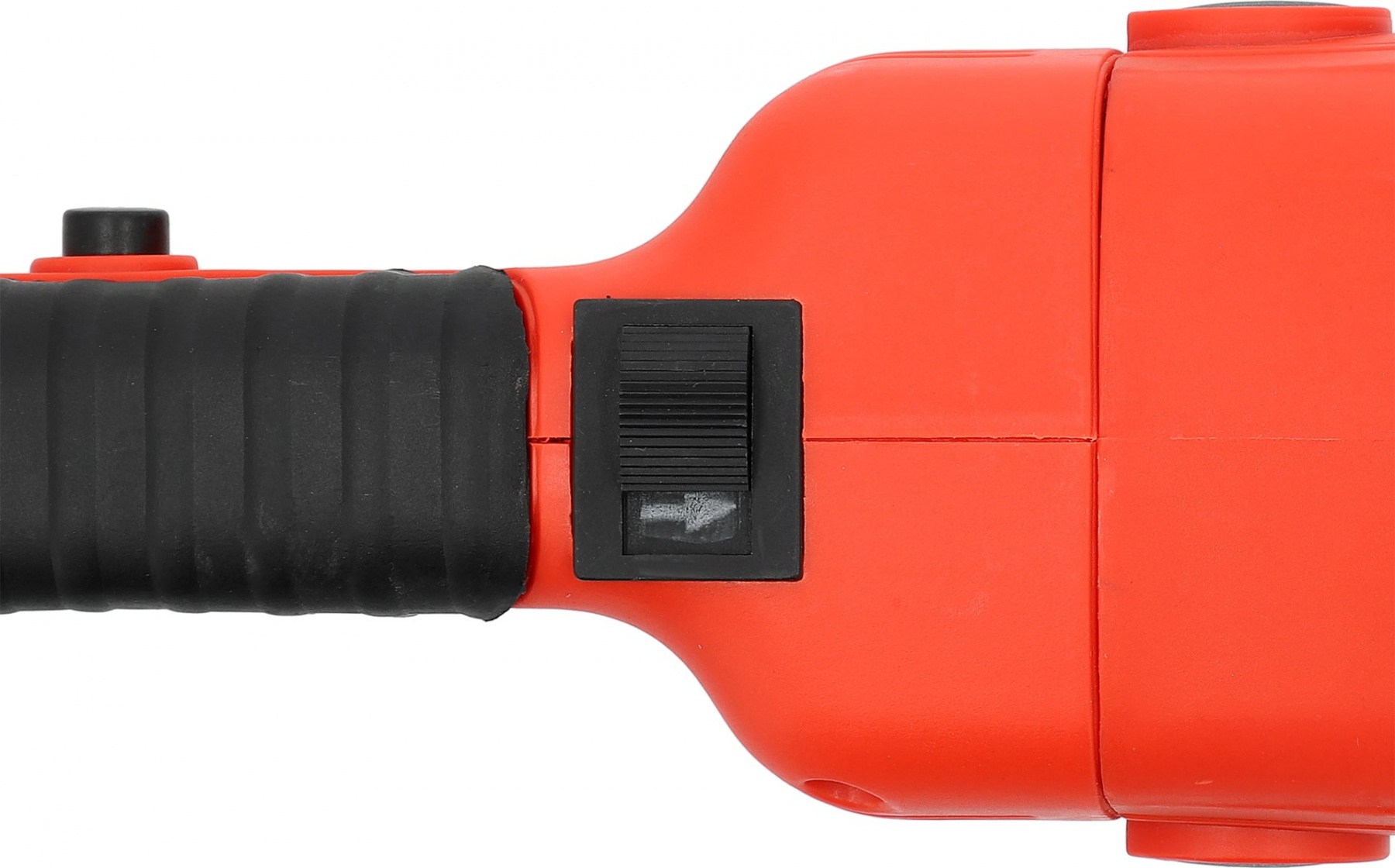

Direction switch – allows for changing the drive's rotation direction, facilitating both thread cutting and head retraction upon completion
Auxiliary handle – improves tool stability and ensures a secure grip on the threader during operation
Support clamp with pipe grip – stabilizes the workpiece and prevents it from rotating due to the torque generated by the drive

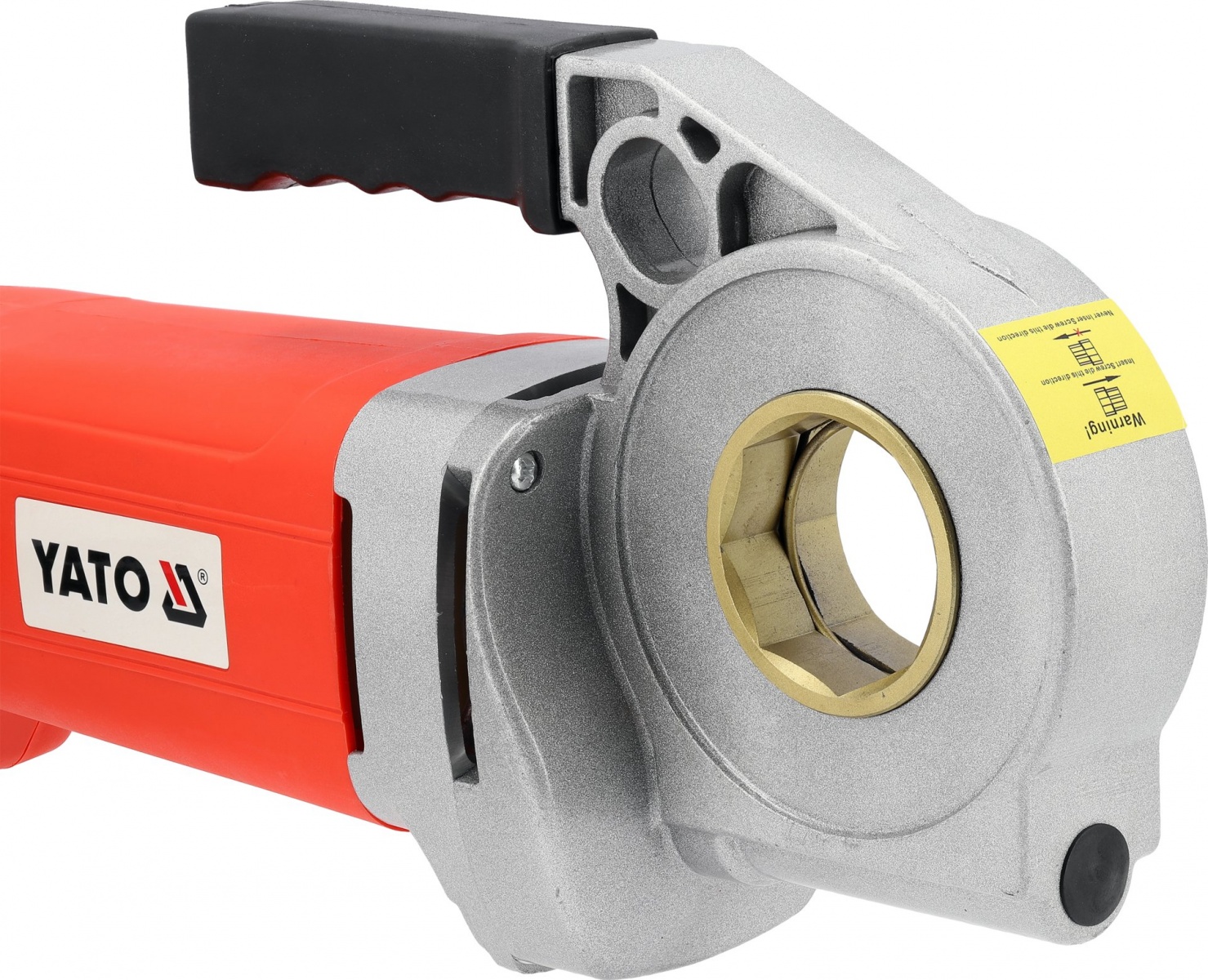

Quick-change head system – head socket and release button allow for efficient changing of attachments
Head reduction bushings – enable proper seating of heads designed for specific pipe diameters

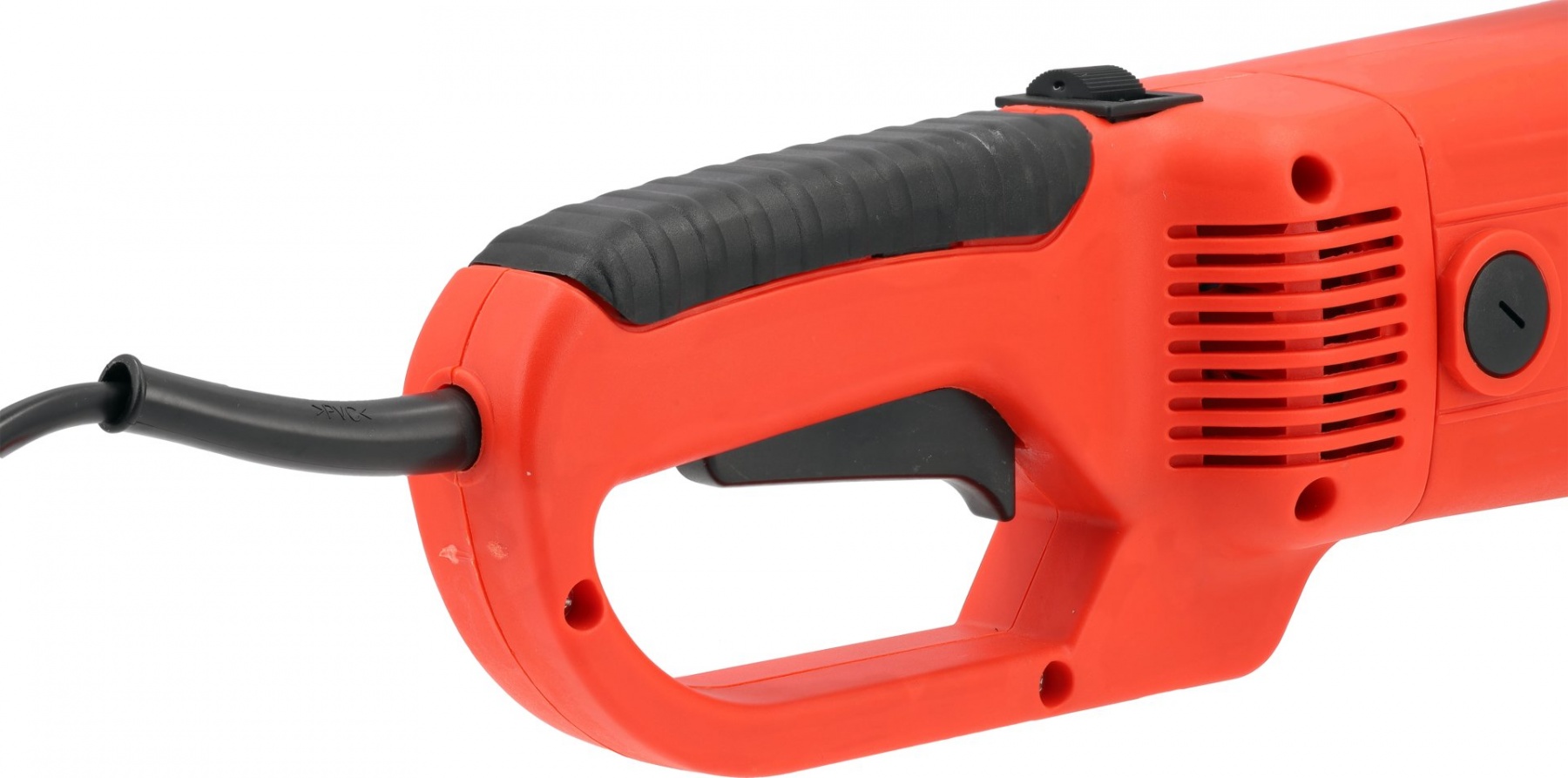

Locking mechanism Switch – the side lock button acts as a safety feature to prevent accidental activation of the device.
IP20 protection rating – the device is designed for use in dry conditions.
Application:
The pipe threader is used during the installation and modernization of piping systems, particularly for preparing threaded connections on steel pipes. The pipe clamp stabilizes the material during processing, while the electric drive rotates the head at the appropriate speed and torque.

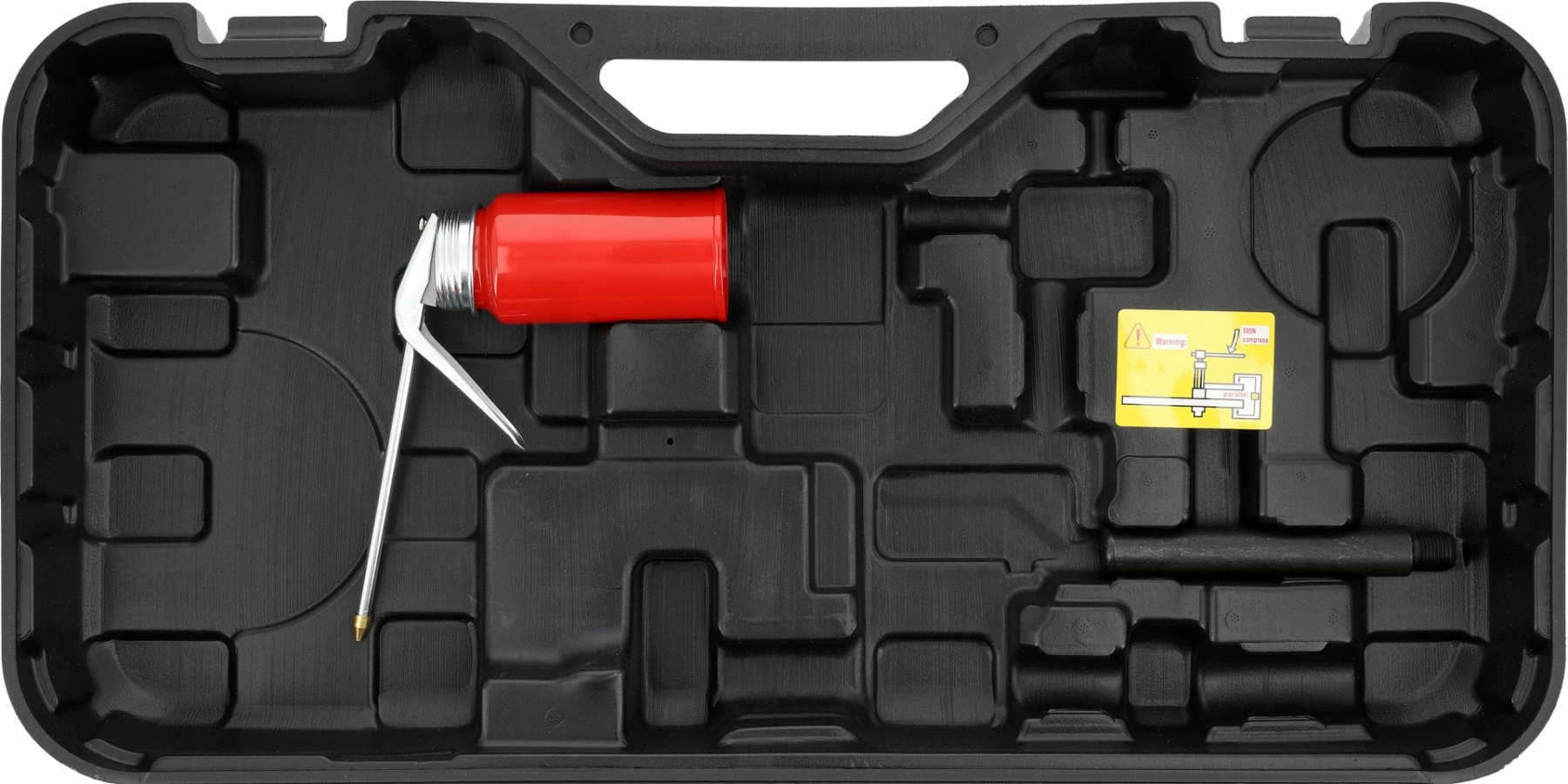

Threading oil should be used during the threading process; it reduces friction and tool heating, improves cutting conditions, and facilitates the formation of a correct thread profile. Upon completion of the threading operation, release the switch and maintain the device in a controlled position until the head comes to a complete stop.
