Aprašymas:
Gamintojas:

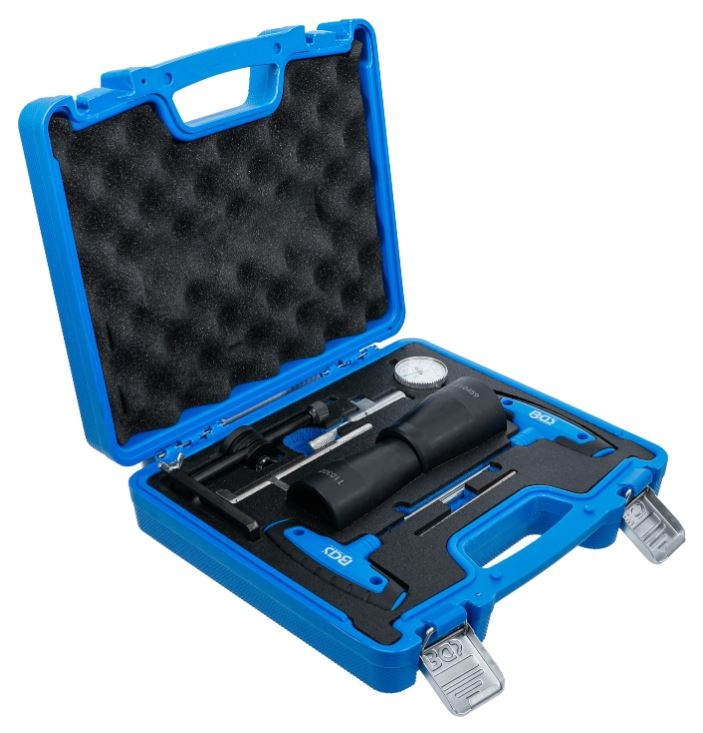

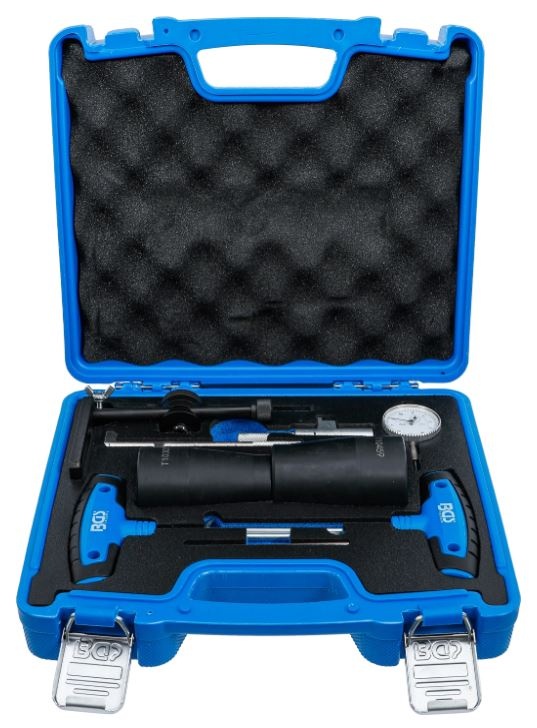

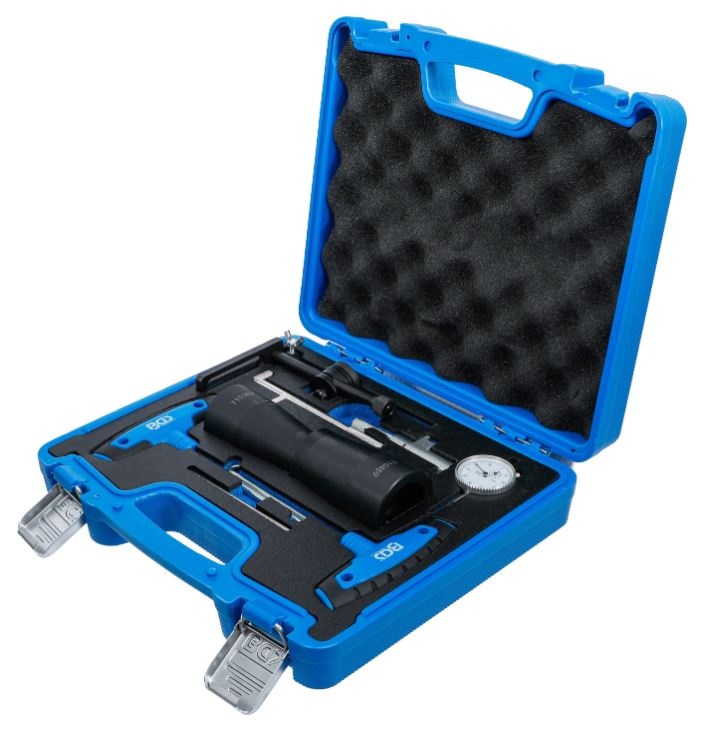

compact set composition
suitable for daily workshop use
for removing and installing the wet plate double clutch on the transmission
the tools are protected in the hard foam tray and are stowed in the recesses in a non-slip manner

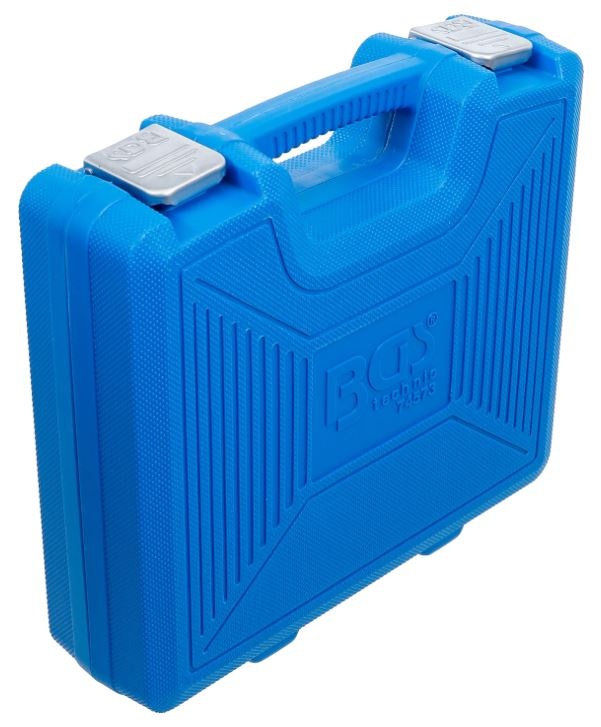

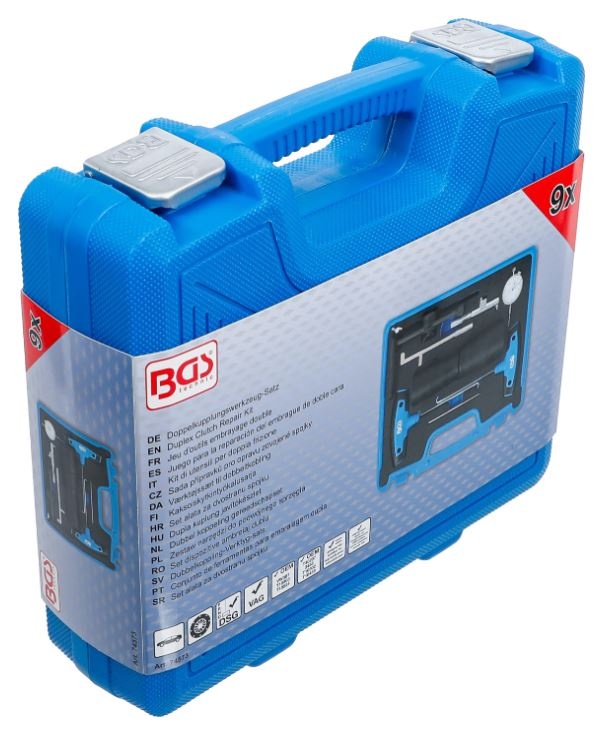

safe and tidy storage in blow mold case
VAG DSG DQ 250 6-speed (02E), DQ 380 & 381, 7-speed (0DW, 0DE) and DQ 500 7-speed (0BH)

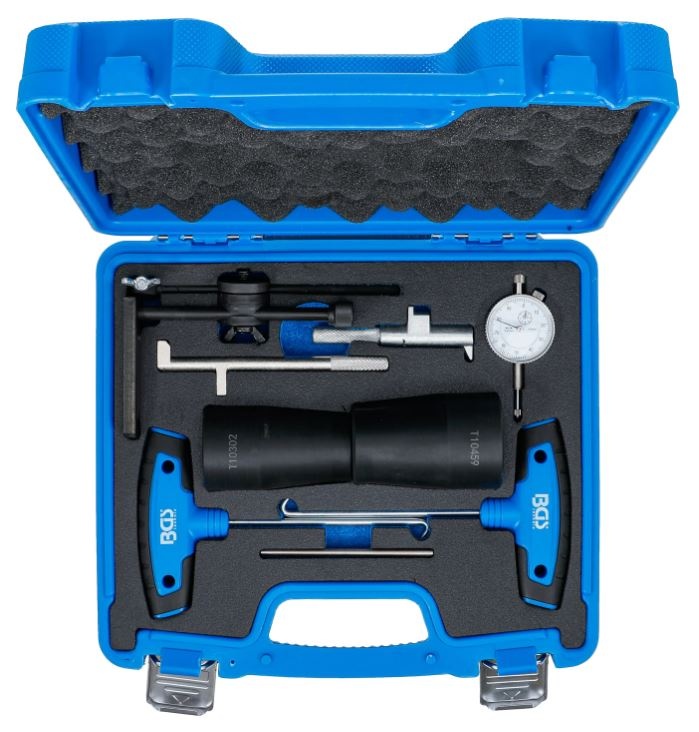

1 universal dial gauge holder, to be used like OEM VW387
1 retaining bolt DSG clutch assembly 6-speed, to be used like OEM T10303
1 retaining bolt DSG clutch assembly 7-speed, to be used like OEM T10524
1 small dial gauge, Ø41 mm, measuring range 0 - 8 mm
2 extractor hooks, to be used like OEM T40207, 3438
1 mounting sleeve for 6-speed end cap, to be used like OEM T10302
1 mounting sleeve for 7-speed end cap, to be used like OEM T10459
1 stylus extension for dial gauge, 83 mm
Warnings and Safety Instructions
Risk of injury: Use the tool only on engines that have cooled down completely. Make sure that the tool is correctly seated to avoid damage and injury. Wear gloves and safety goggles to protect yourself from flying parts.
To be used as OEM1:
Audi
VW387
T10303
T10524
T40207
3438
T10302
T10459
To be used as OEM2:
Seat
VW387
T10303
T10524
T40207
3438
T10302
T10459
To be used as OEM3:
Škoda
VW387
T10303
T10524
T40207
3438
T10302
T10459
To be used as OEM4:
Volkswagen
VW387
T10303
T10524
T40207
3438
T10302
T10459
Package dimensions (LxwxH) :
294 x 260 x 86 mm
Gross weight: 1.732 kg
