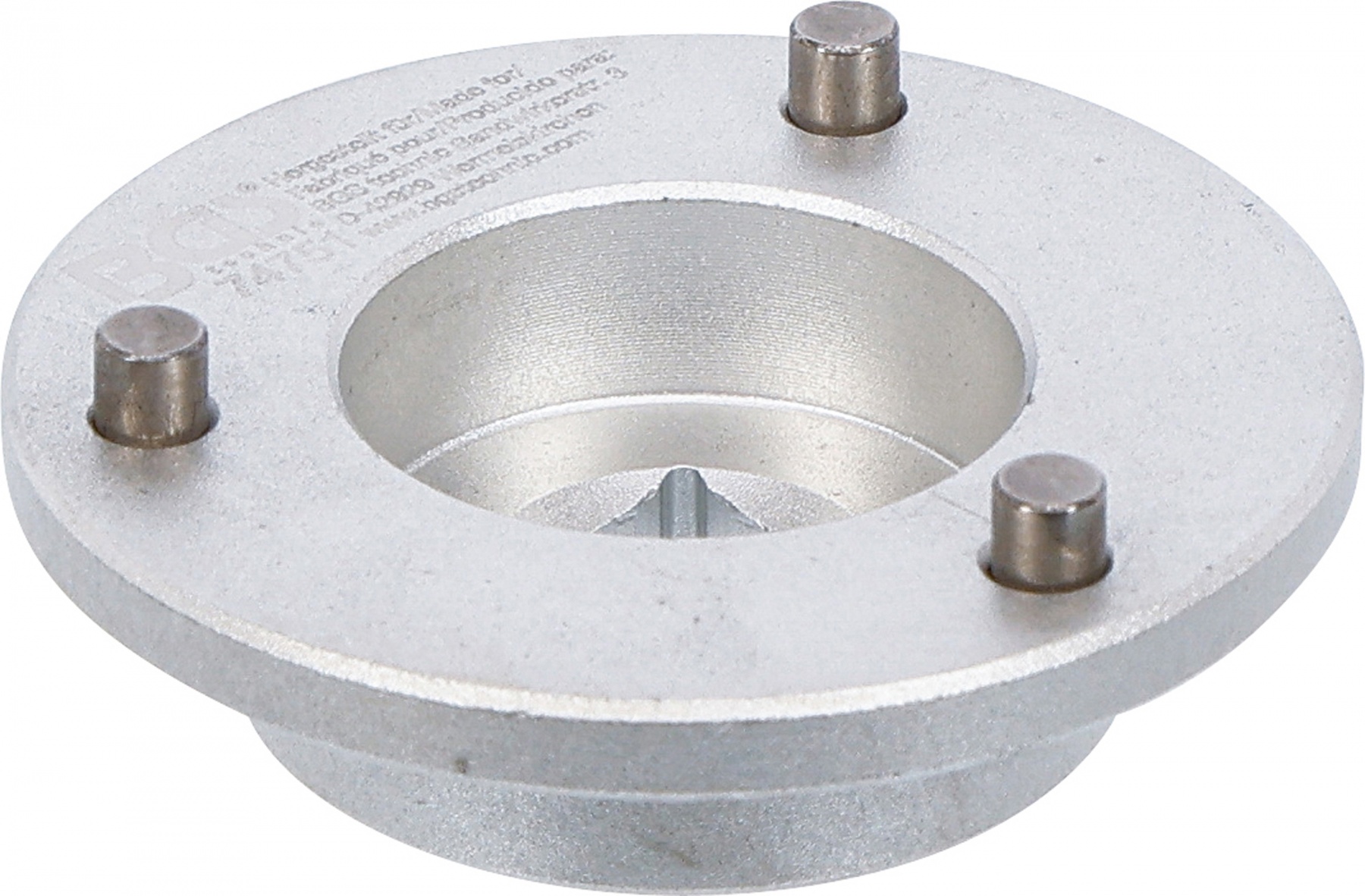

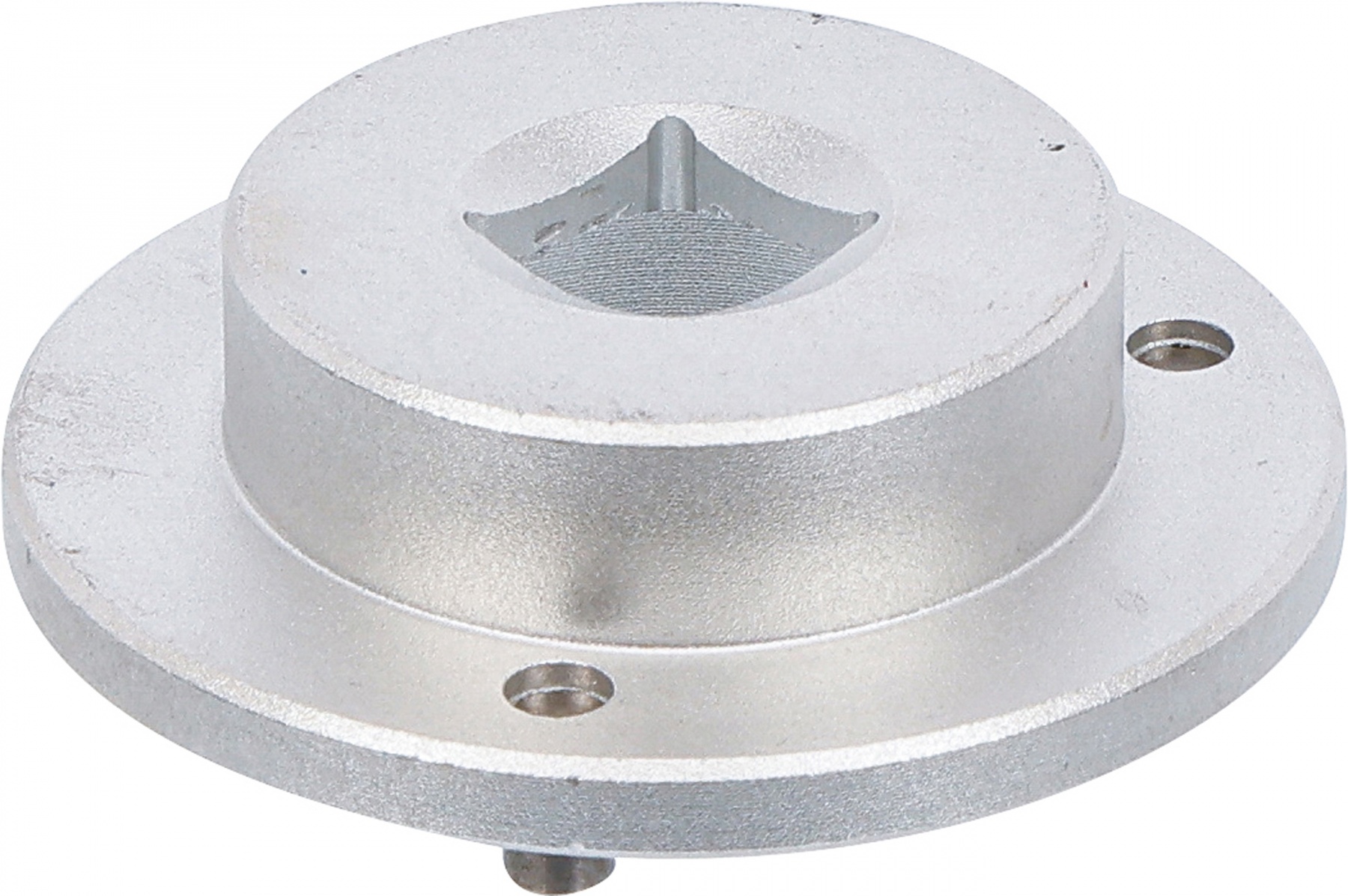

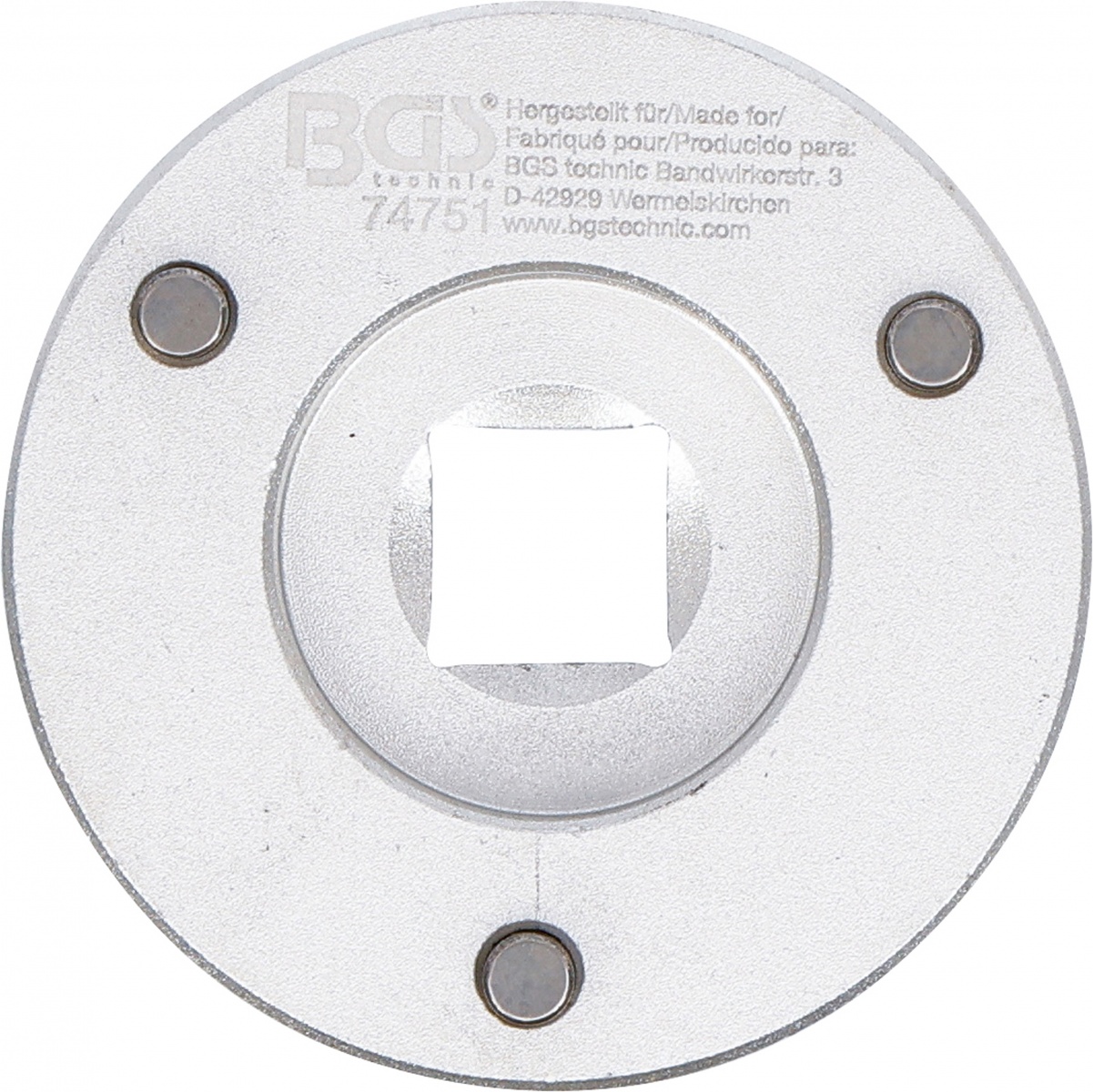

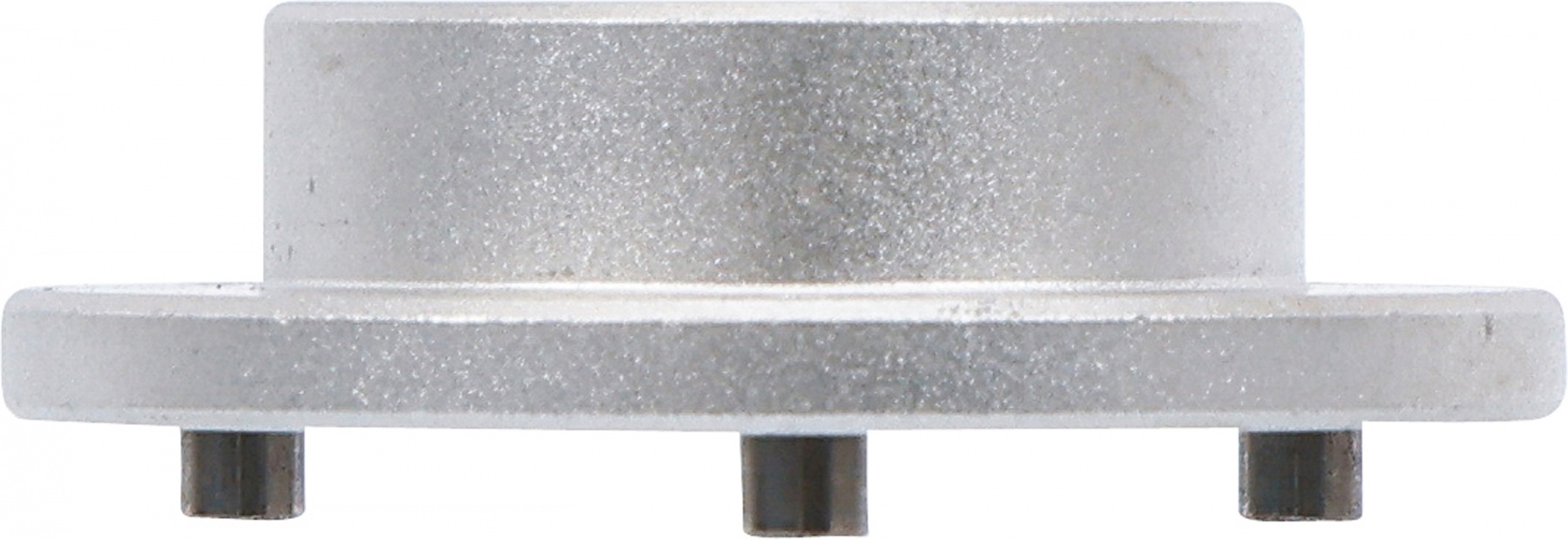

for removing the inspection cover of the fuel pump sprocket
allows access to the fixing bolt on the fuel pump sprocket
no need to remove the entire front cover
for maintenance cover (timing belt cover) OEM JB3Q-6095-AA

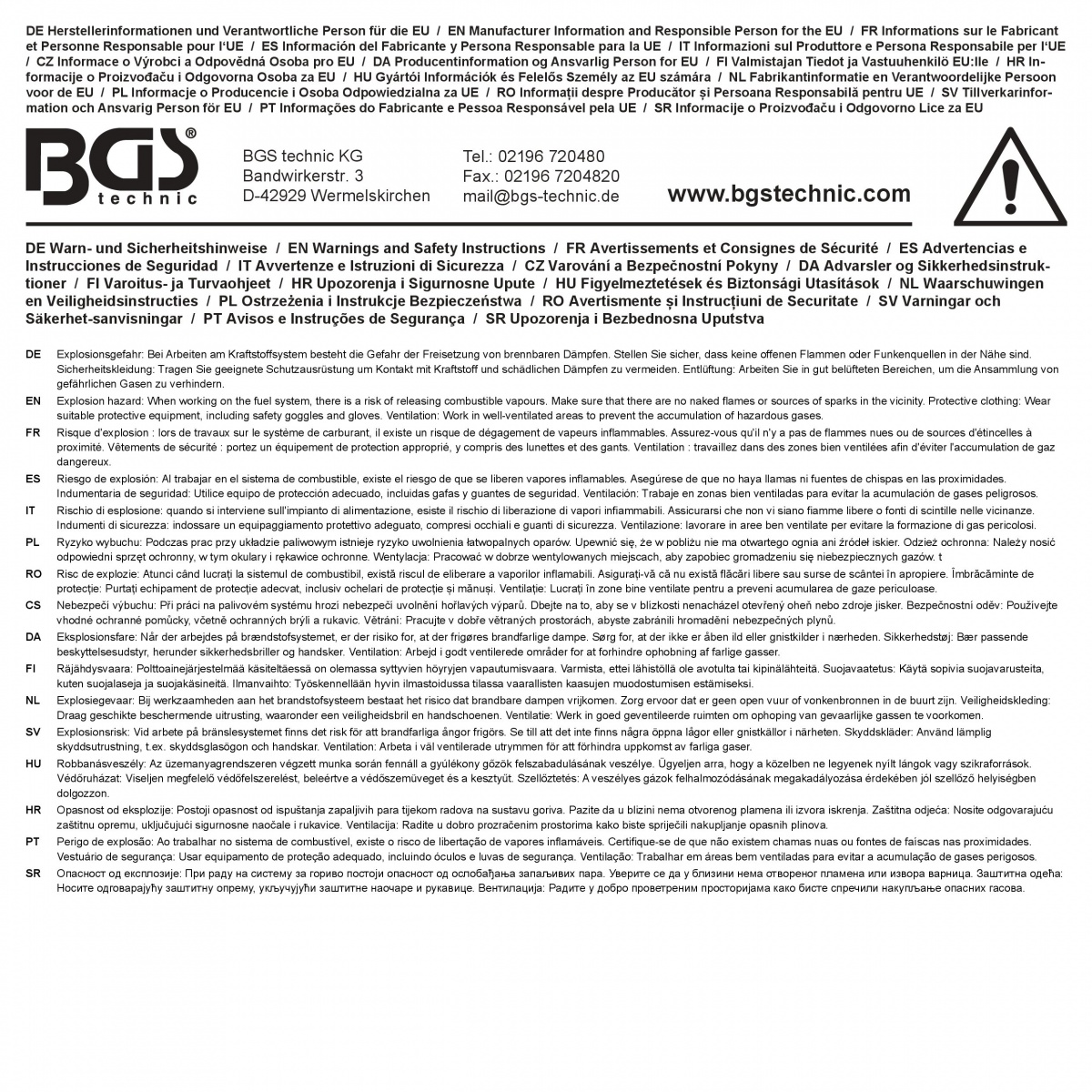

Warnings and Safety Instructions
Explosion hazard: When working on the fuel system, there is a risk of releasing combustible vapours. Make sure that there are no naked flames or sources of sparks in the vicinity. Protective clothing: Wear suitable protective equipment, including safety goggles and gloves. Ventilation: Work in well-ventilated areas to prevent the accumulation of hazardous gases.
Material:
Aluminium alloy
Drive profile:
Inside square
Output profile:
Special profile
Number of stud:
3 Pcs.
Drive profile size, metric:
12,5 mm
Drive profile size (imperial):
1/2 "
Package dimensions (LxwxH) :
65 x 63 x 34 mm
Gross weight: 70 g
