designed for the removal, refitting and adjustment of balance shafts
removal effected out on the timing chain / transmission side
it is not necessary to remove the transmission
the tool is protected in the plastic compartment and stowed in the recess in a non-slip manner

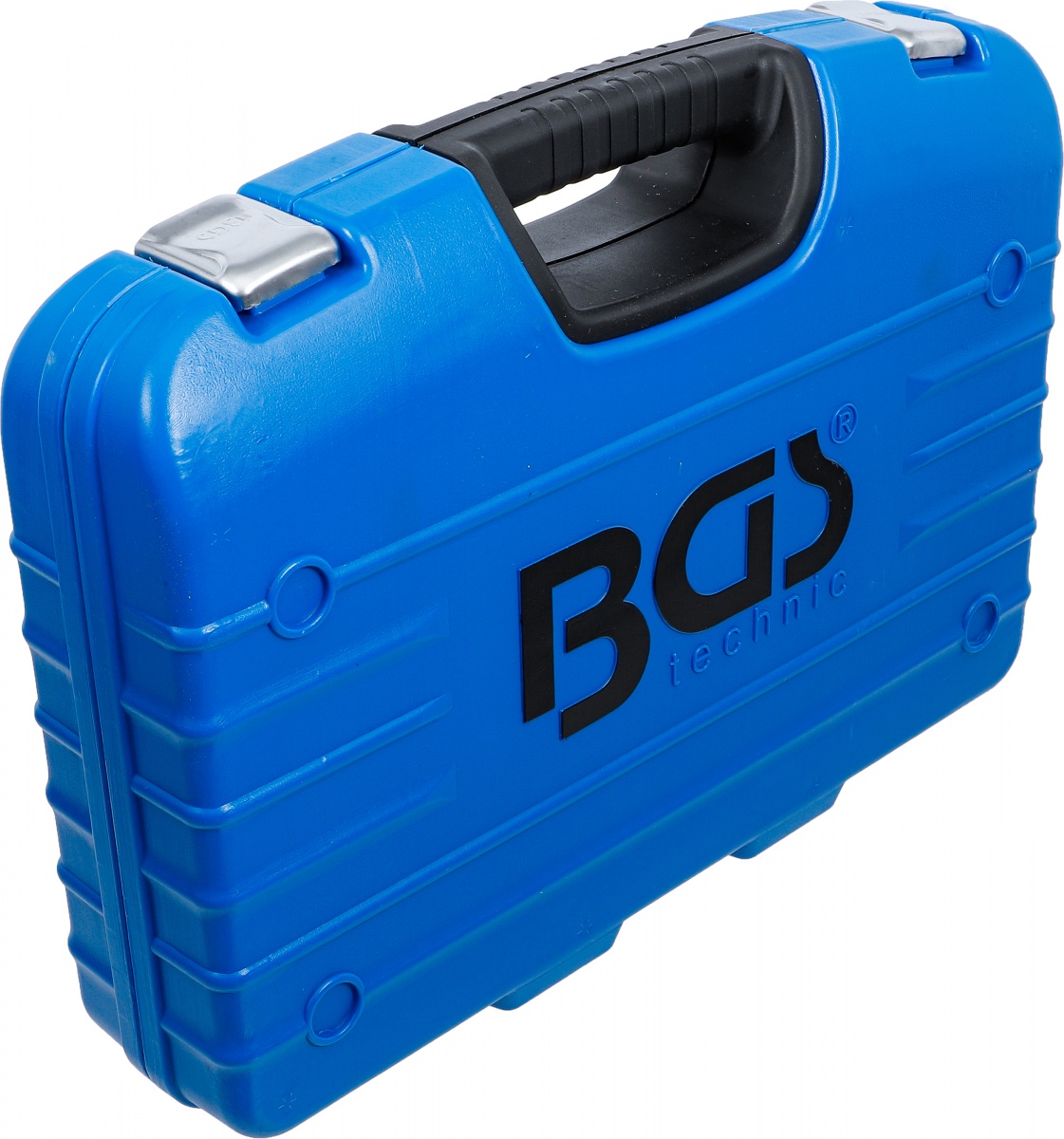

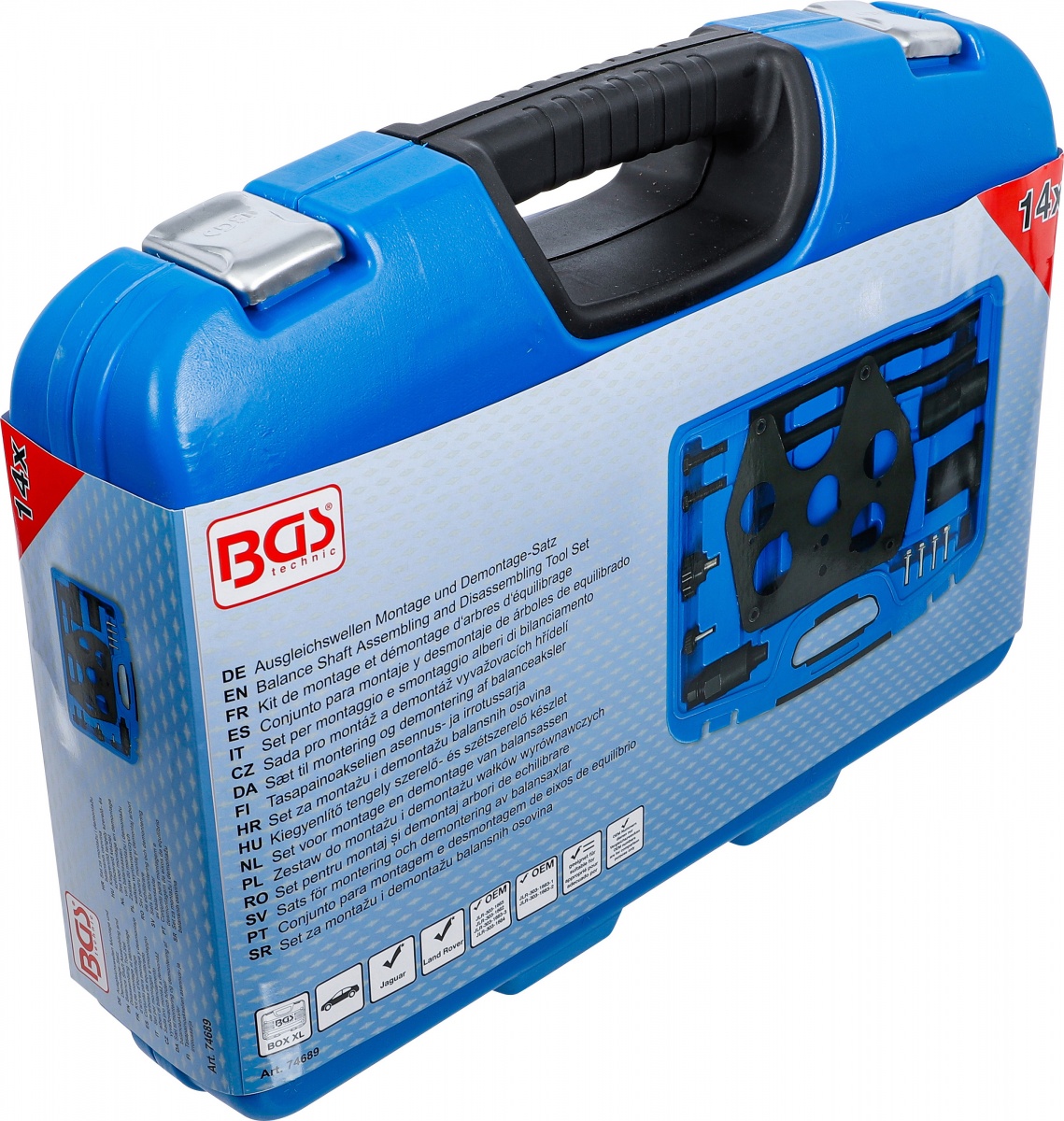

safe and tidy storage in blow mold case
suitable for 2.0 L diesel engines in Jaguar and Land Rover
engine codes: AJ200, AJ200D, 204DTA, 204DTD
suitable for the following vehicle models:
Jaguar E-Pace (2017-)
Jaguar F-Pace (2016–2020)
Jaguar XE (2015–2020)
Jaguar XF (2015–2020)
Land Rover Discovery (2017-)
Land Rover Discovery Sport (2015–2019)
Range Rover Evoque (2015–2019)
Range Rover Sport (2016–2018)
Range Rover Velar (2017–)

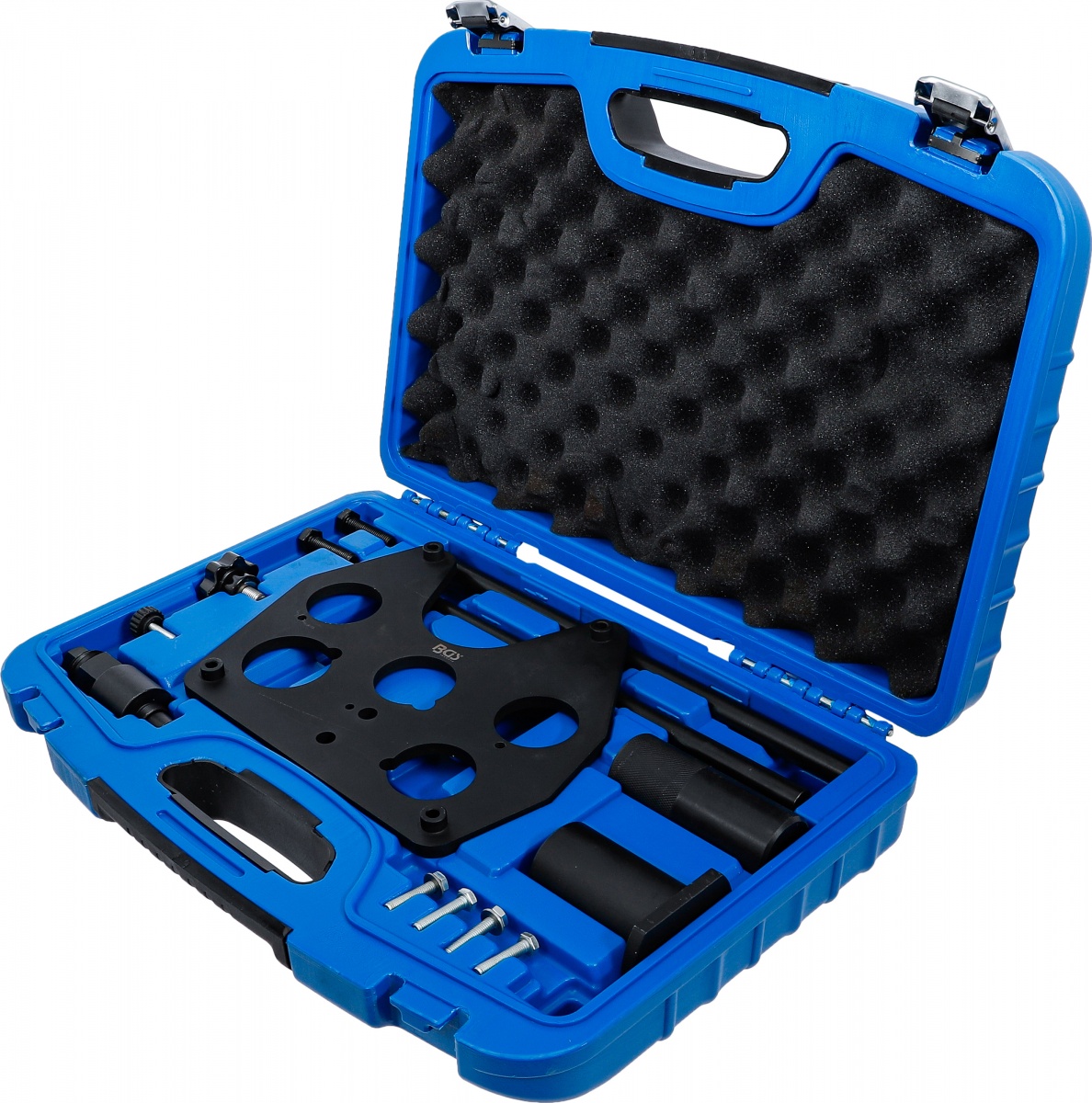

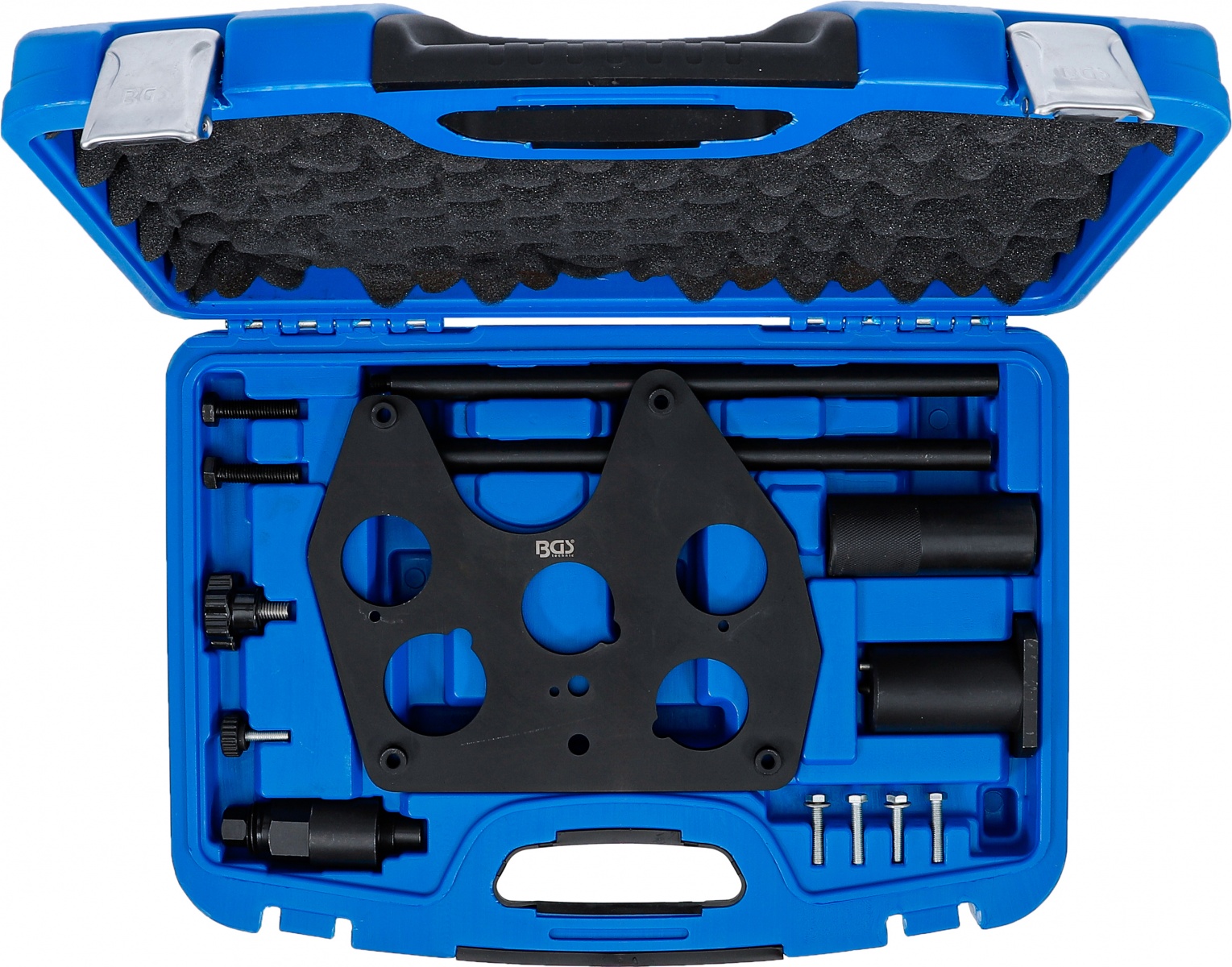

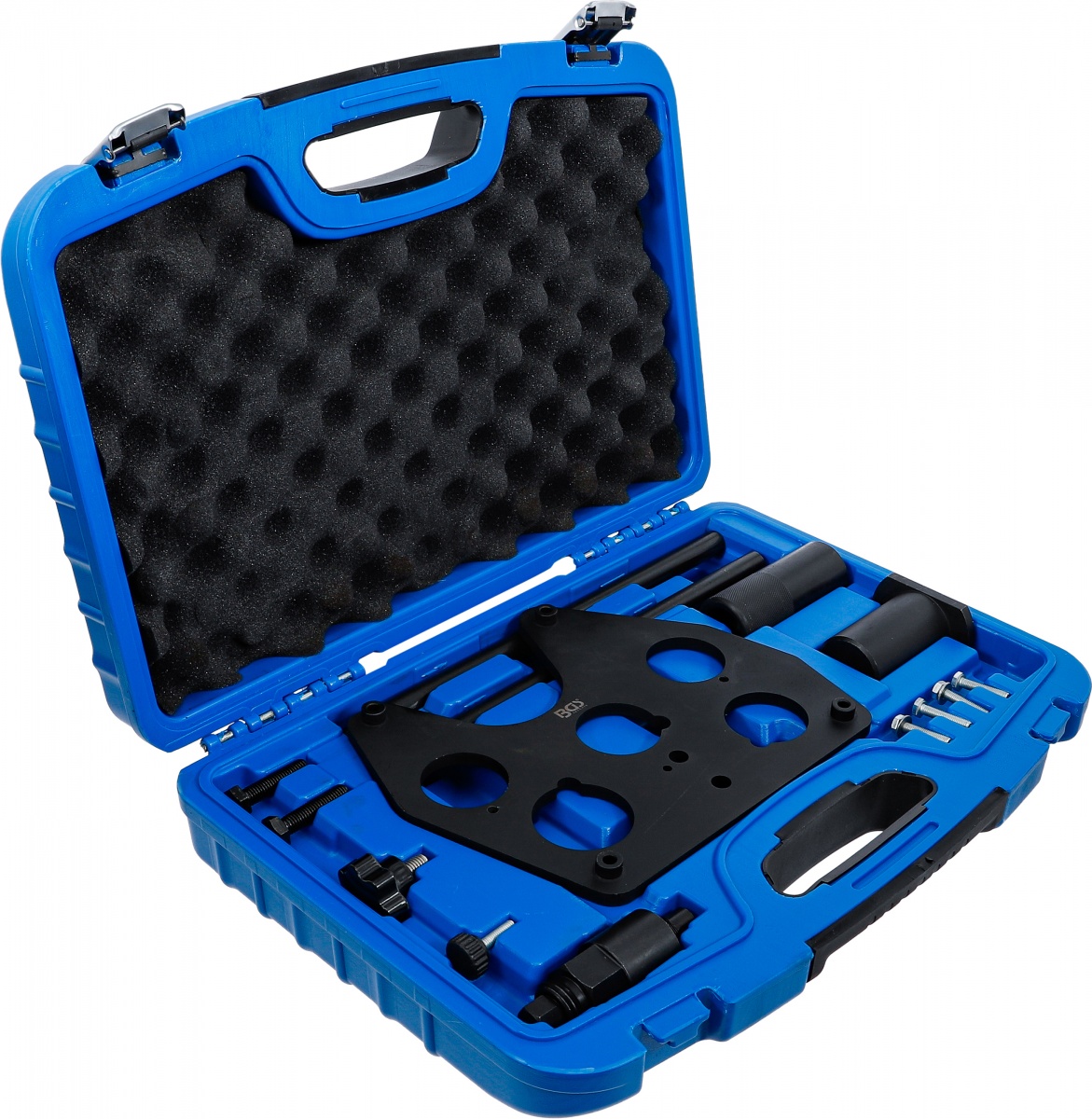

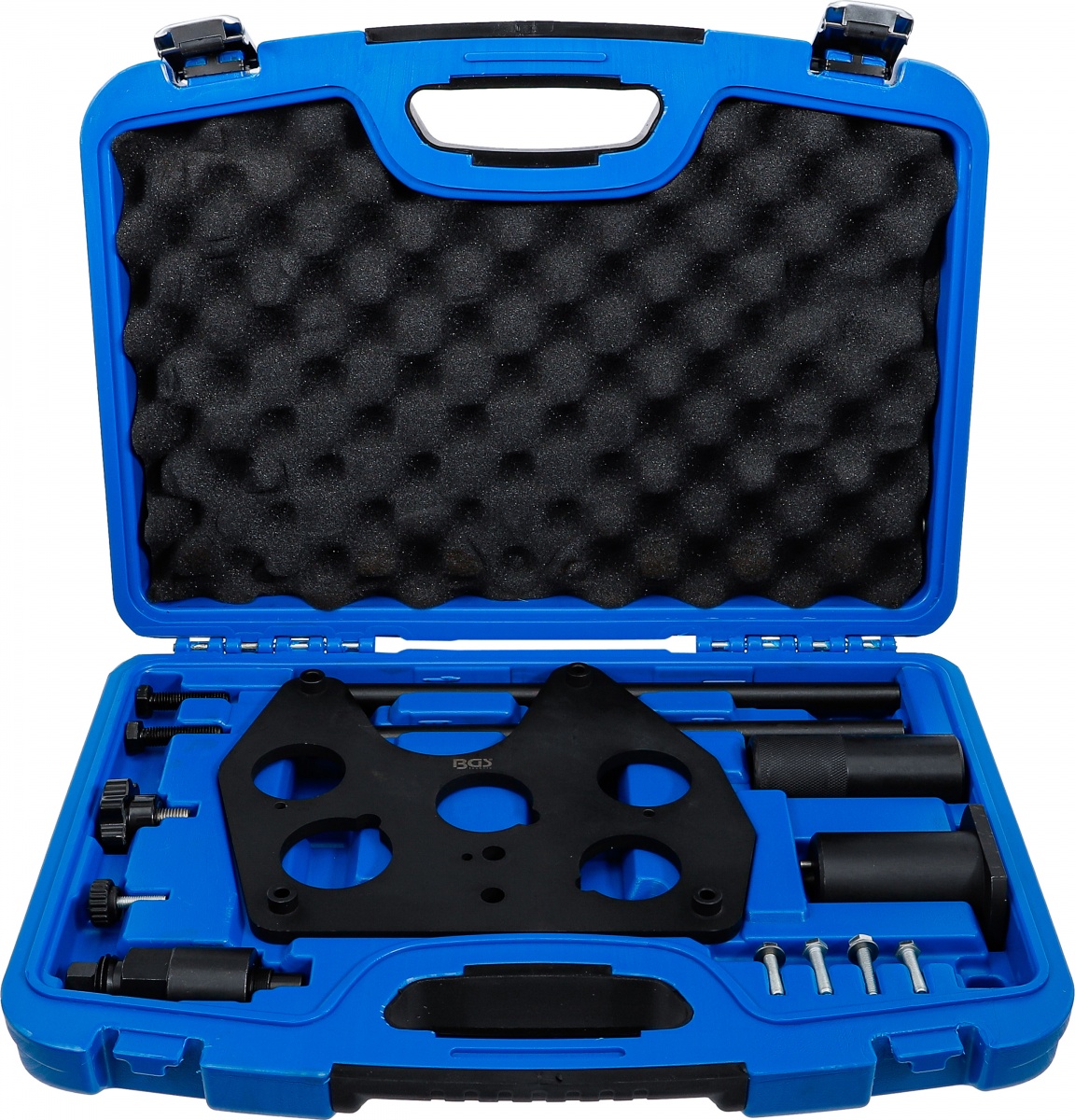

Scope of delivery:
2 removal/installation guide rods with screw, to be used as OEM JLR-303-1665
1 TDC alignment plate with screws, to be used as OEM JLR-303-1662
1 balancer shaft gear separation tool guide, to be used as OEM JLR 303-1663-3
1 balancer shaft alignment tool, to be used as OEM JLR-303-1664
1 balance shaft gear separator screw, to be used as OEM JLR-303-1663-1
1 balance shaft gear separator body, to be used as OEM JLR-303-1663-2

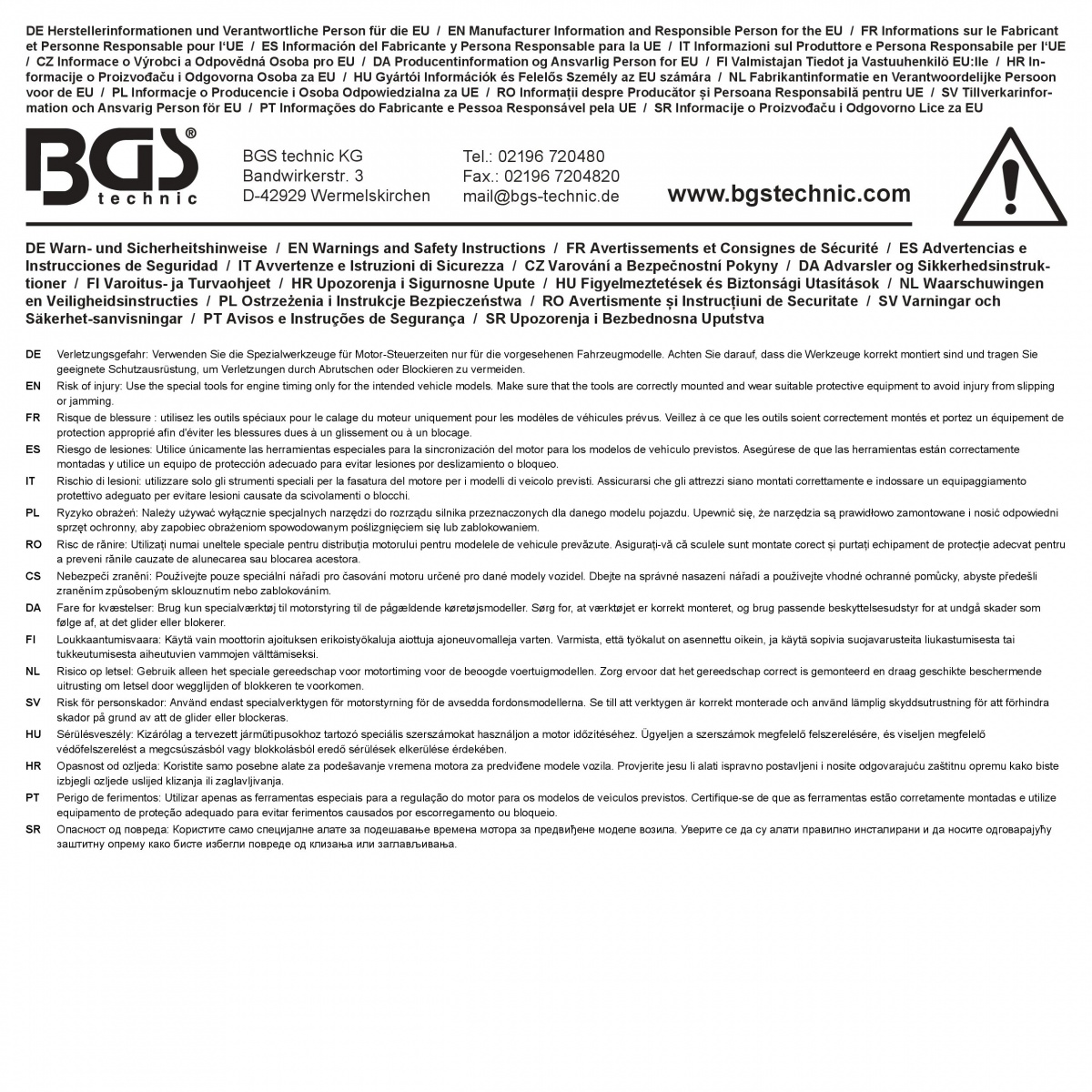

Warnings and Safety Instructions
Risk of injury: Use the special tools for engine timing only for the intended vehicle models. Make sure that the tools are correctly mounted and wear suitable protective equipment to avoid injury from slipping or jamming.
To be used as OEM1:
Jaguar
303-1665
303-1662
303-1663-3
303-1664
303-1663-1
303-1663-2
To be used as OEM2:
Land Rover
303-1665
303-1662
303-1663-3
303-1664
303-1663-1
303-1663-2
Number of parts:
14
Package dimensions (LxwxH) :
442 x 320 x 105 mm
Gross weight: 5.966 kg
