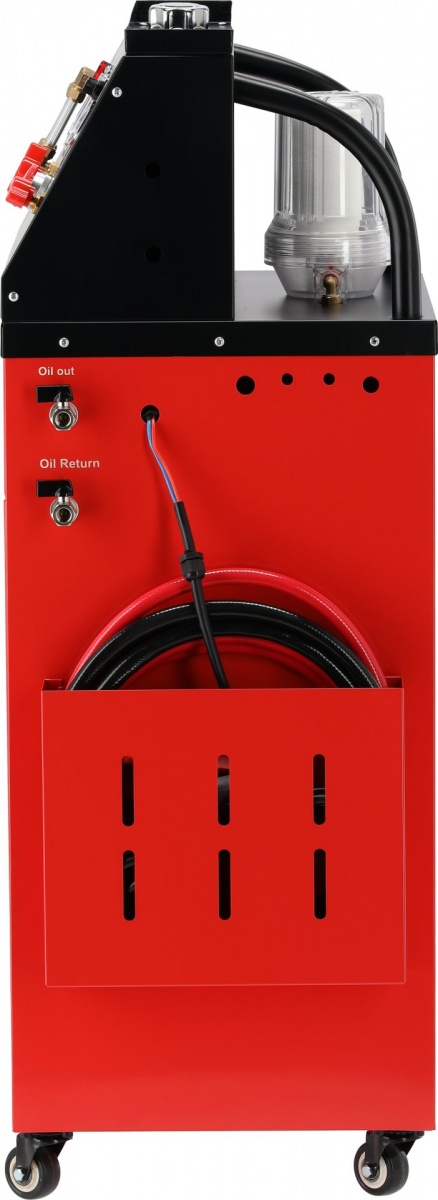

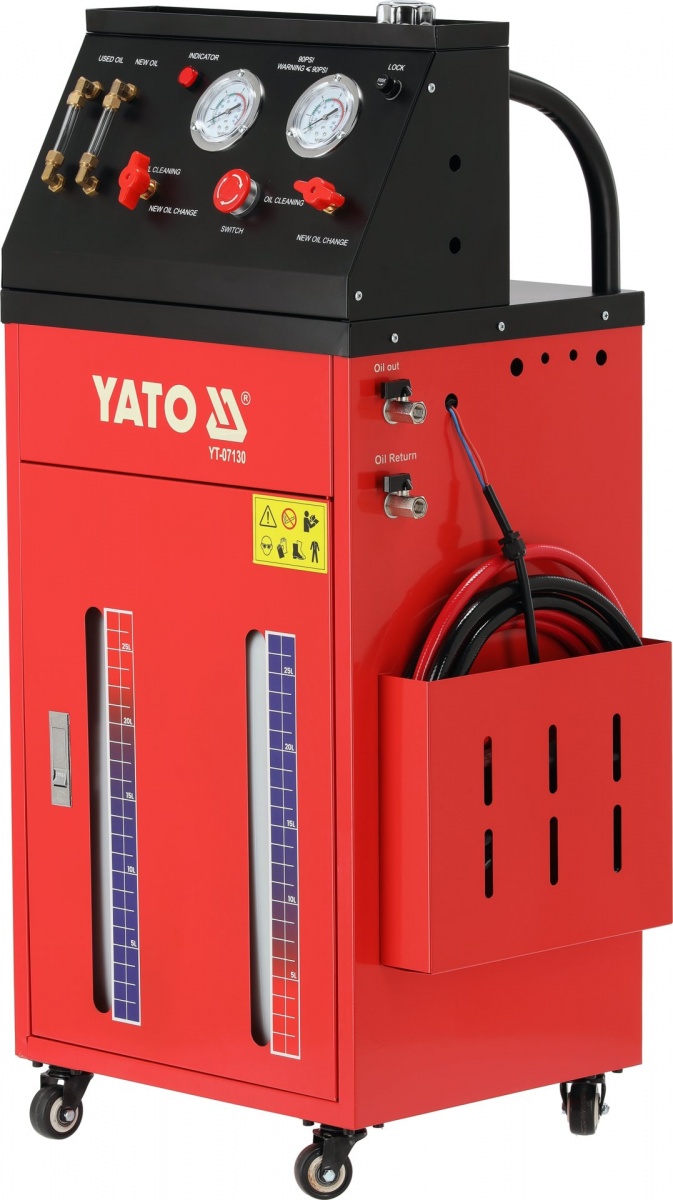

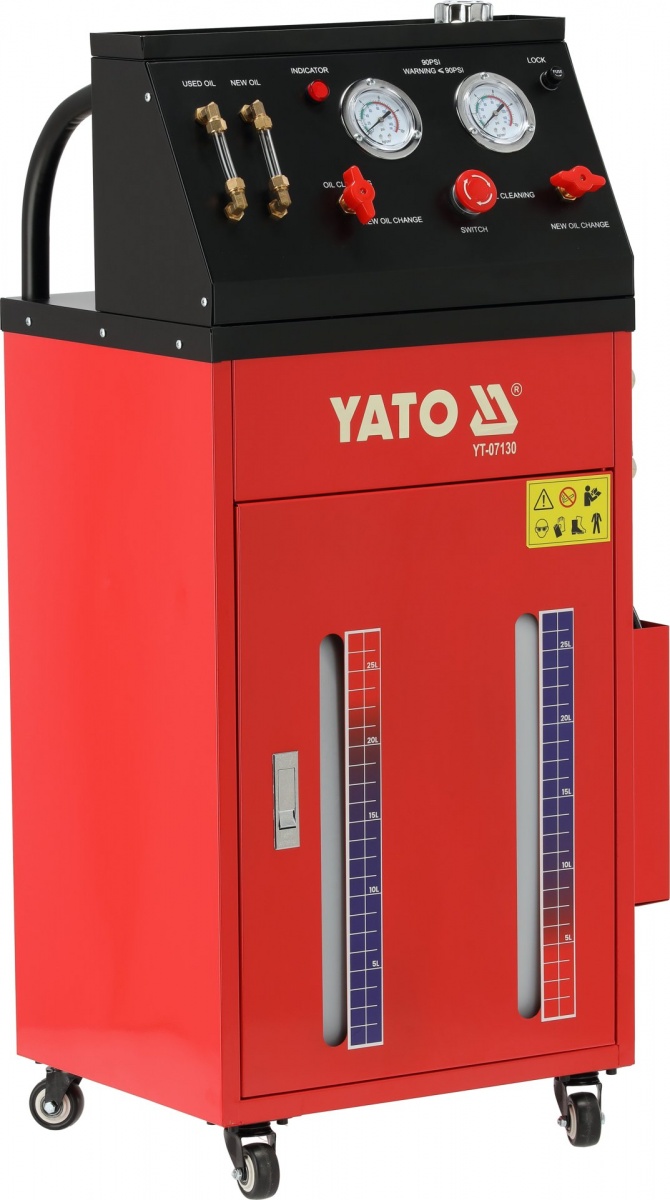

The YT-07130 Automatic Transmission Oil Change and Cleaning Device is an advanced service tool designed for comprehensive automatic transmission maintenance. It simultaneously performs a dynamic oil change and effectively cleans the system, removing contaminants and deposits that develop during operation. This solution significantly improves the transmission's performance, extends its service life, and minimizes the risk of failure.
The device operates using controlled flow and precise pressure monitoring, ensuring a consistent oil change process—without mixing old and new fluid. Two independent circuits (supply and return), easy-to-read sight glasses, and pressure gauges allow for ongoing monitoring of operating parameters. A wide range of adapters ensures compatibility with most PRND automatic transmissions used in passenger cars and light commercial vehicles.
Key Features and Parameters:
Device Type: For dynamic oil change and cleaning of automatic transmissions
Power Supply: 12 V (directly from the vehicle battery)
Power: 70 W
Operating Pressure Range: 0-1 MPa (0-150 PSI)
Two Independent Flow Systems: Oil Supply and Return

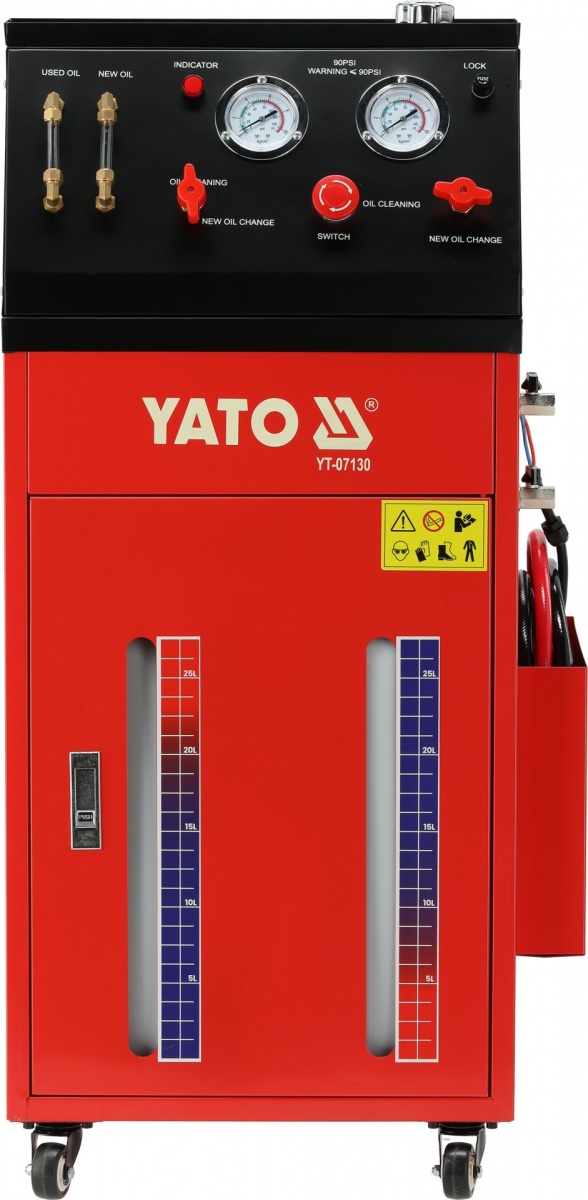

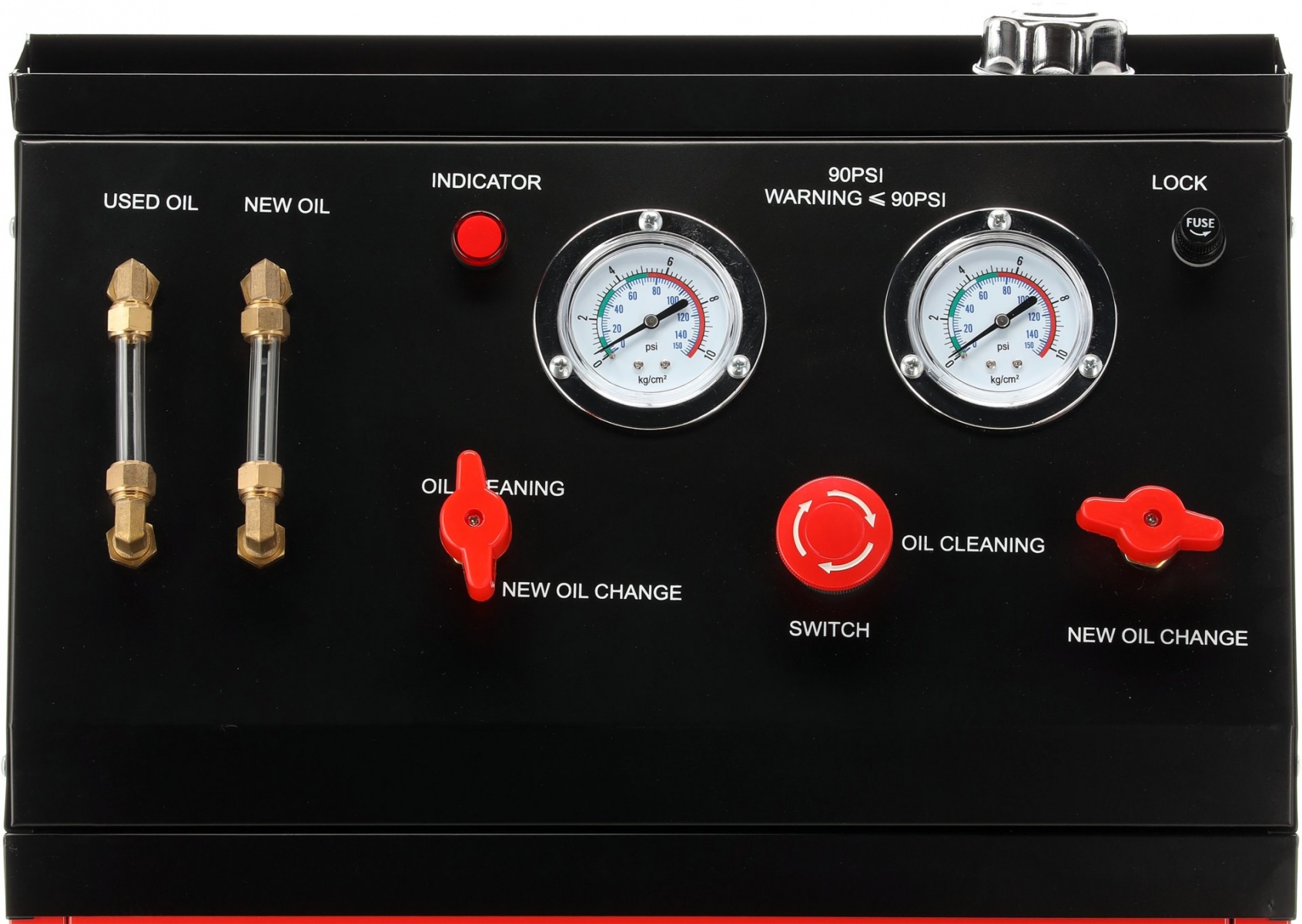

Manometers for new and used oil – real-time pressure monitoring
Level and Flow Sight Glasses – real-time monitoring of oil color and quality
System Cleaning Function – possibility of using dedicated service products

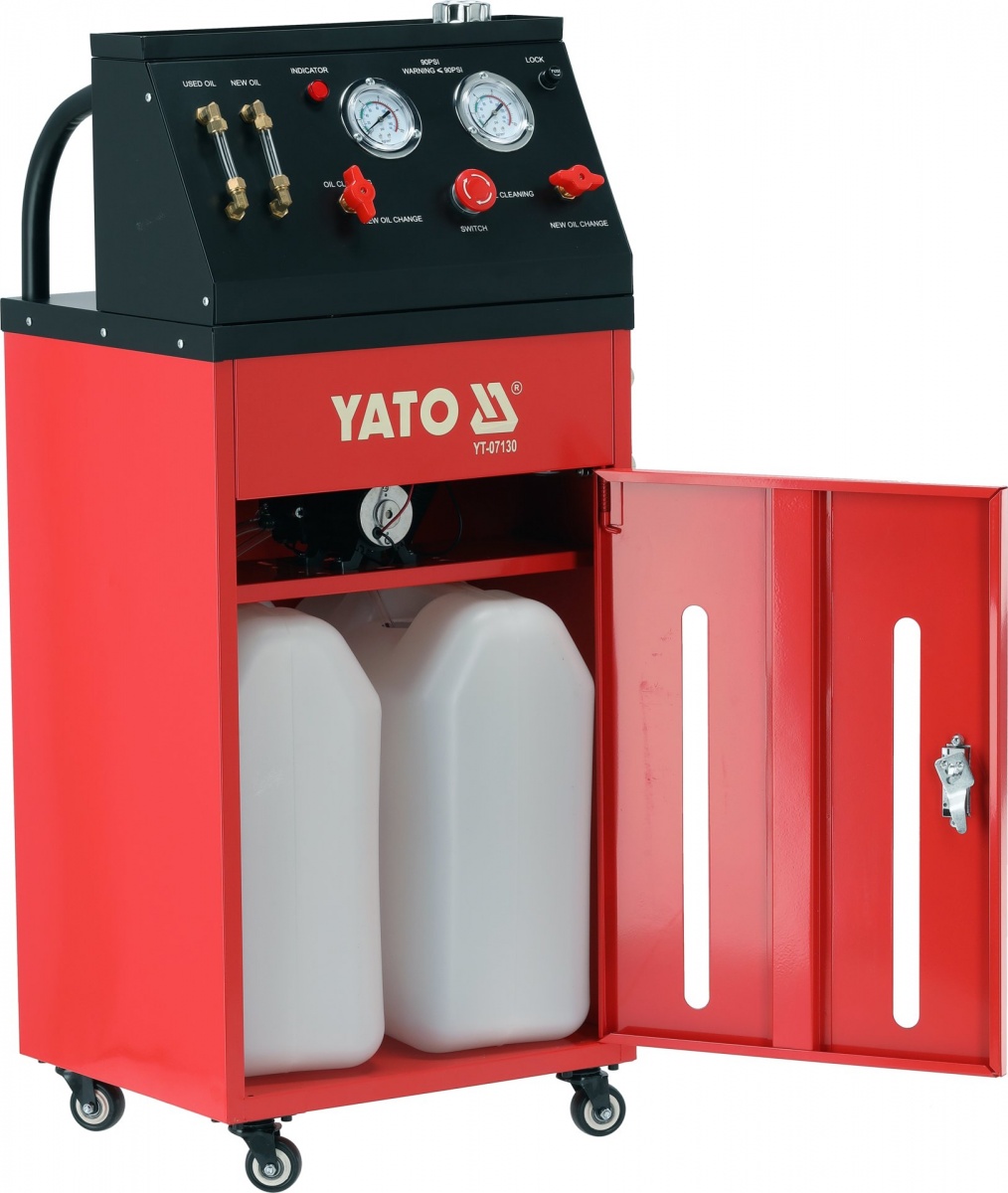

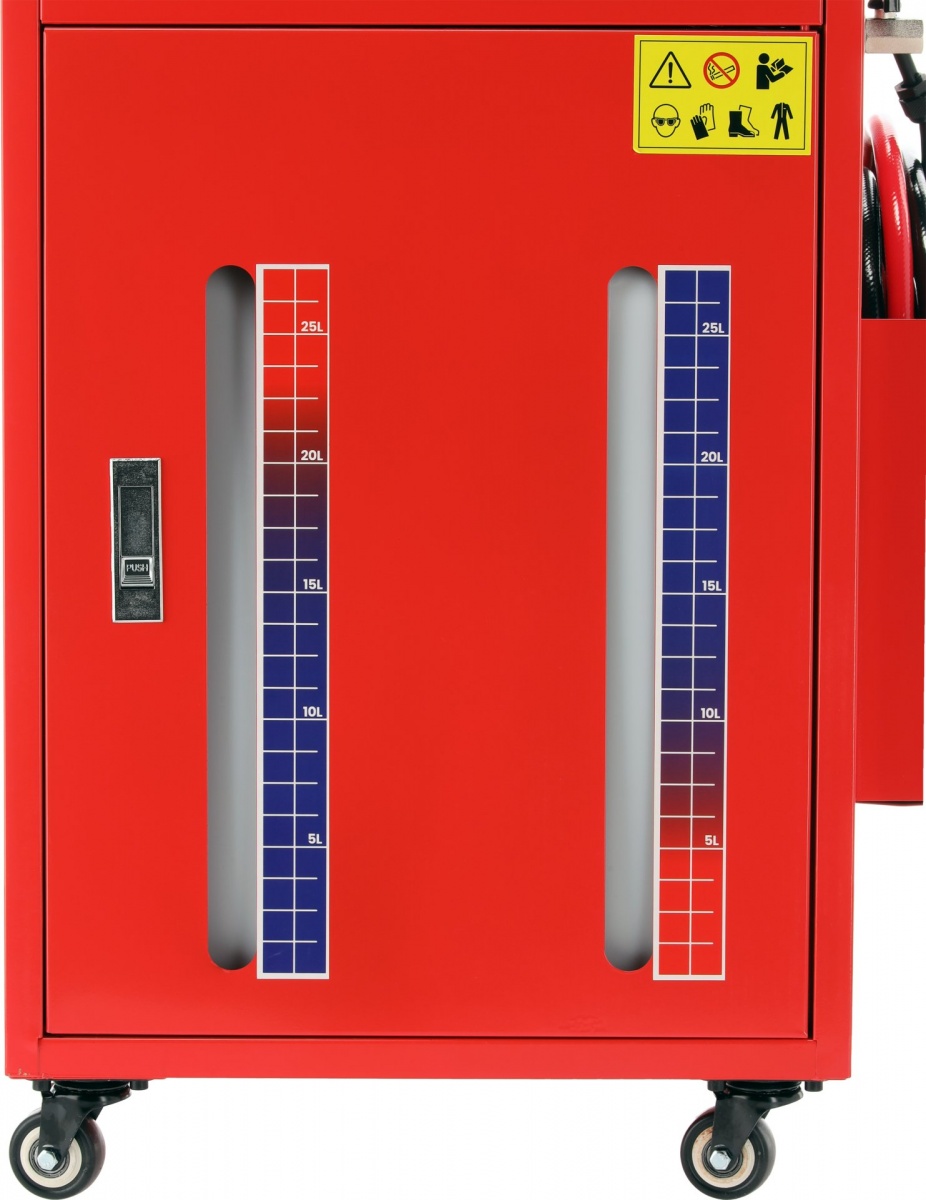

Tanks for new and used oil (approx. 30 l each)
Control Valves for Precise Flow Control

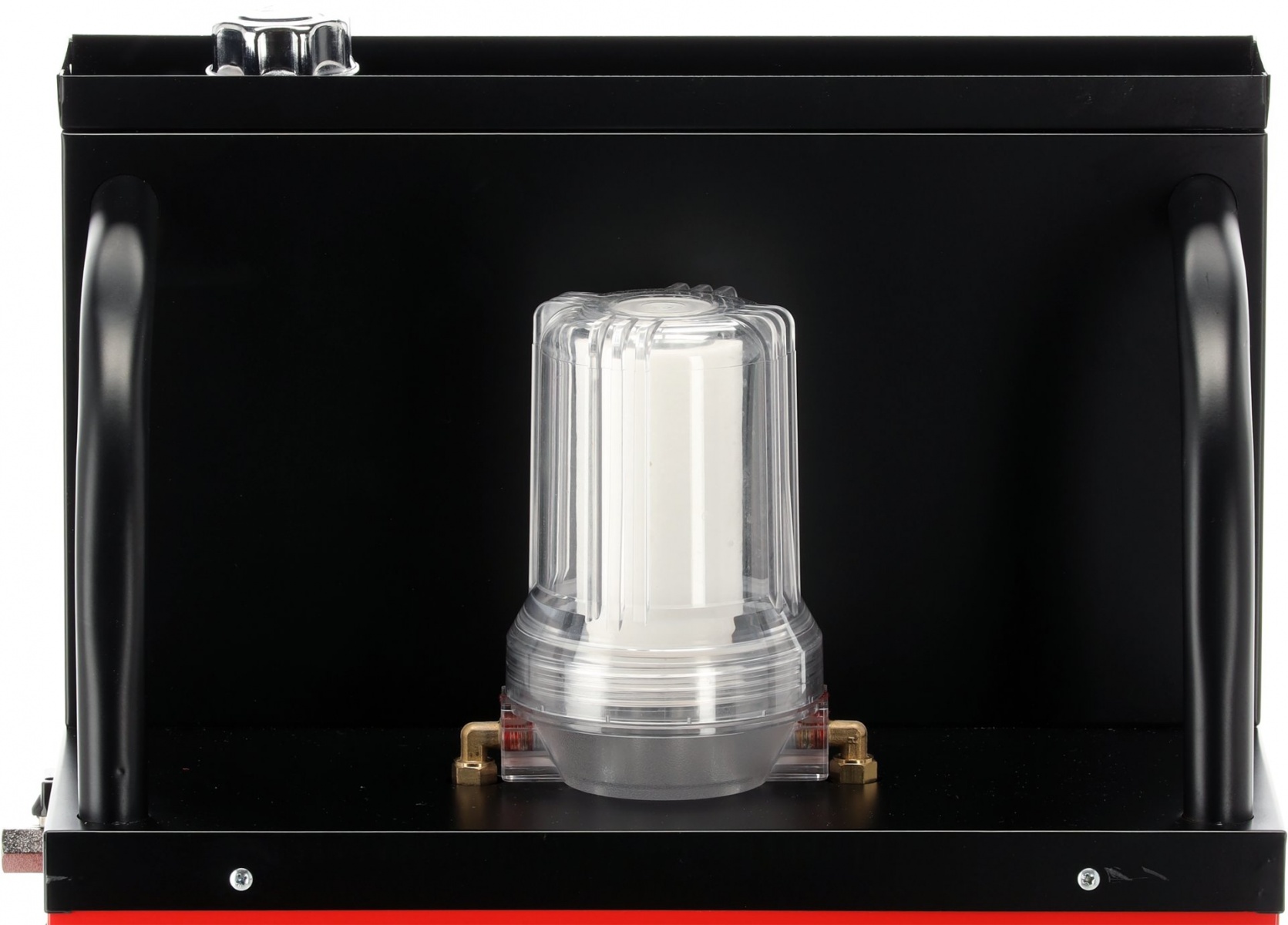

Oil Filter – Protects the System from Contamination

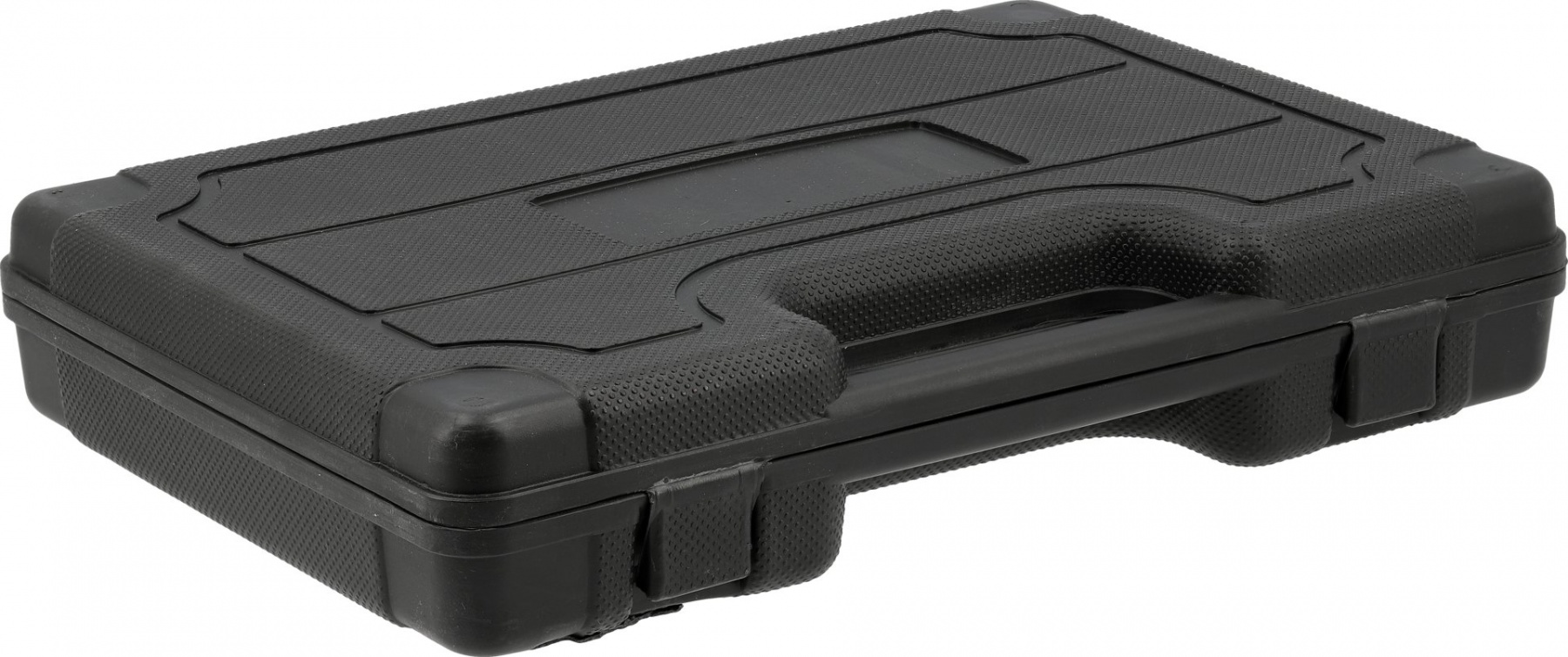

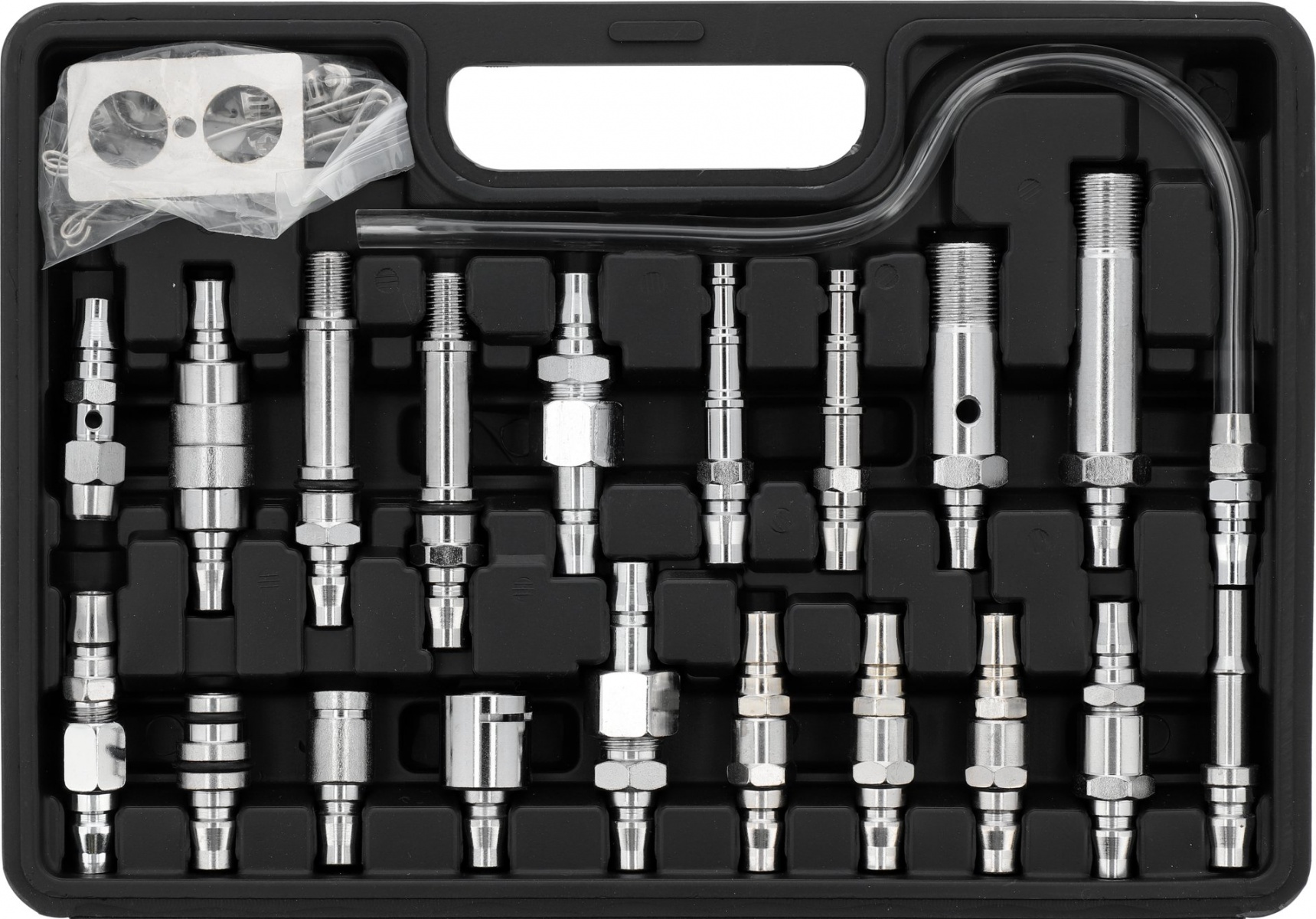

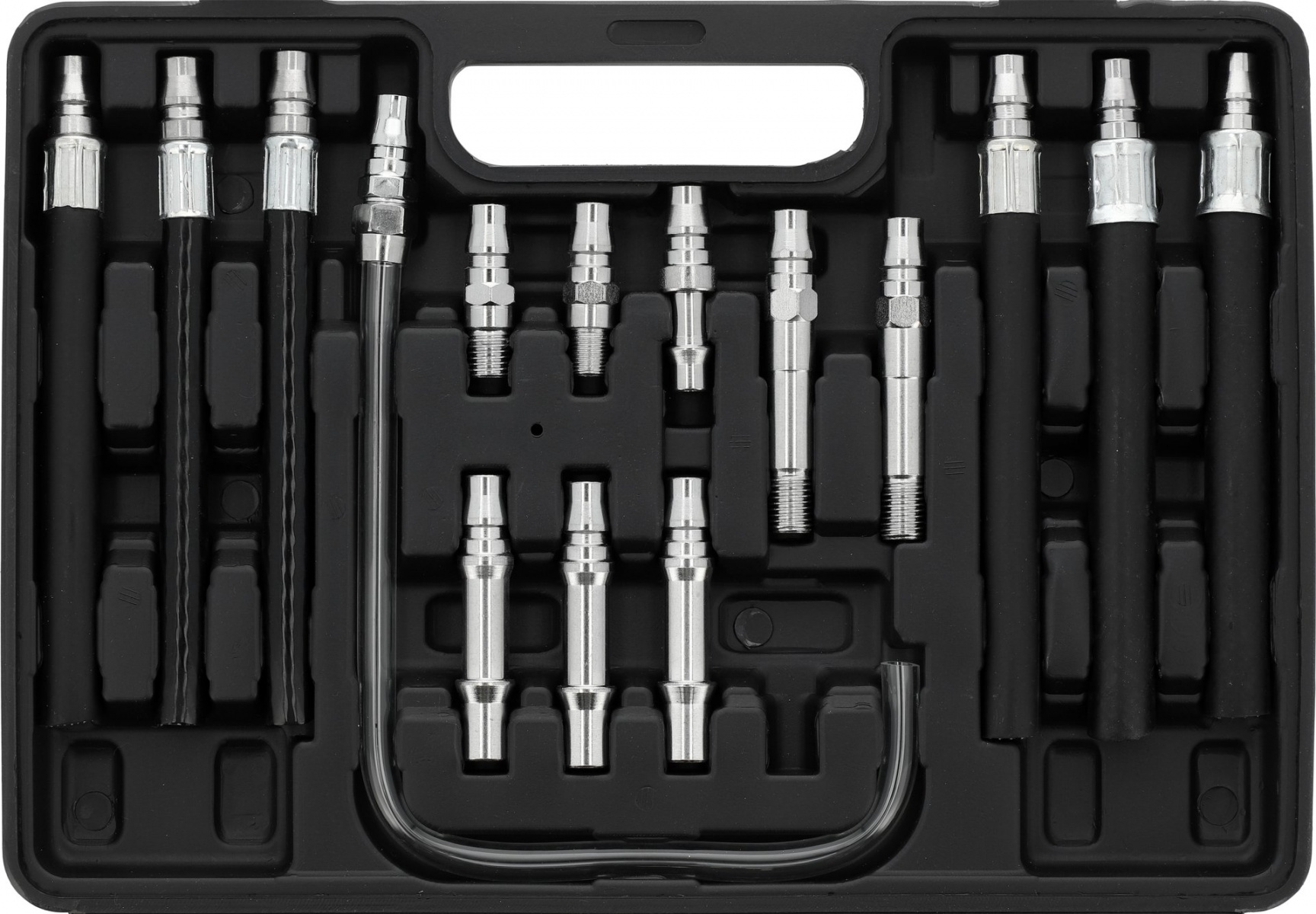

Set of 37 Adapters – Broad Compatibility with Systems from Various Manufacturers

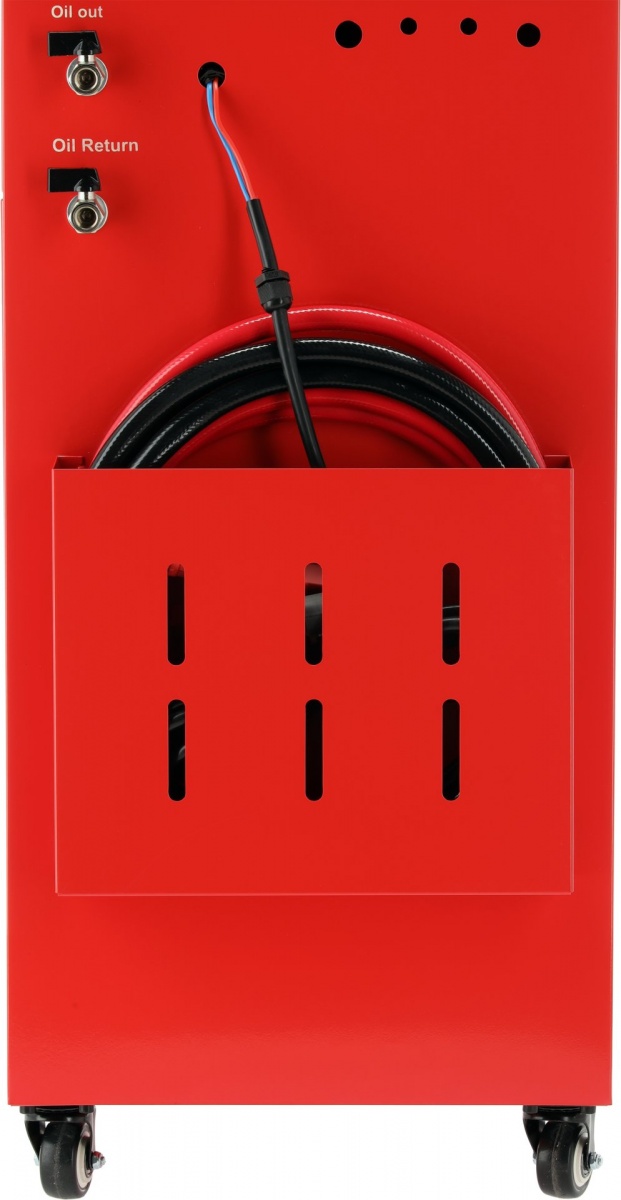

Pressure Hoses with Quick Connectors – Leak-proof and Quick Connection
Power Cables with Clamps – Mobile Operation in a Workshop
Device Weight: Approx. 24.5 kg
The YT-07130 device is A solution for workshops that prioritize precision, process repeatability, and complete control over automatic transmission servicing. Thanks to its extensive functionality, it significantly reduces service time and improves the quality of services provided.
Index
YT-07130
Barcode
5906083124006
Unit of measure
PCE
Volume
240.8
Weight
27
