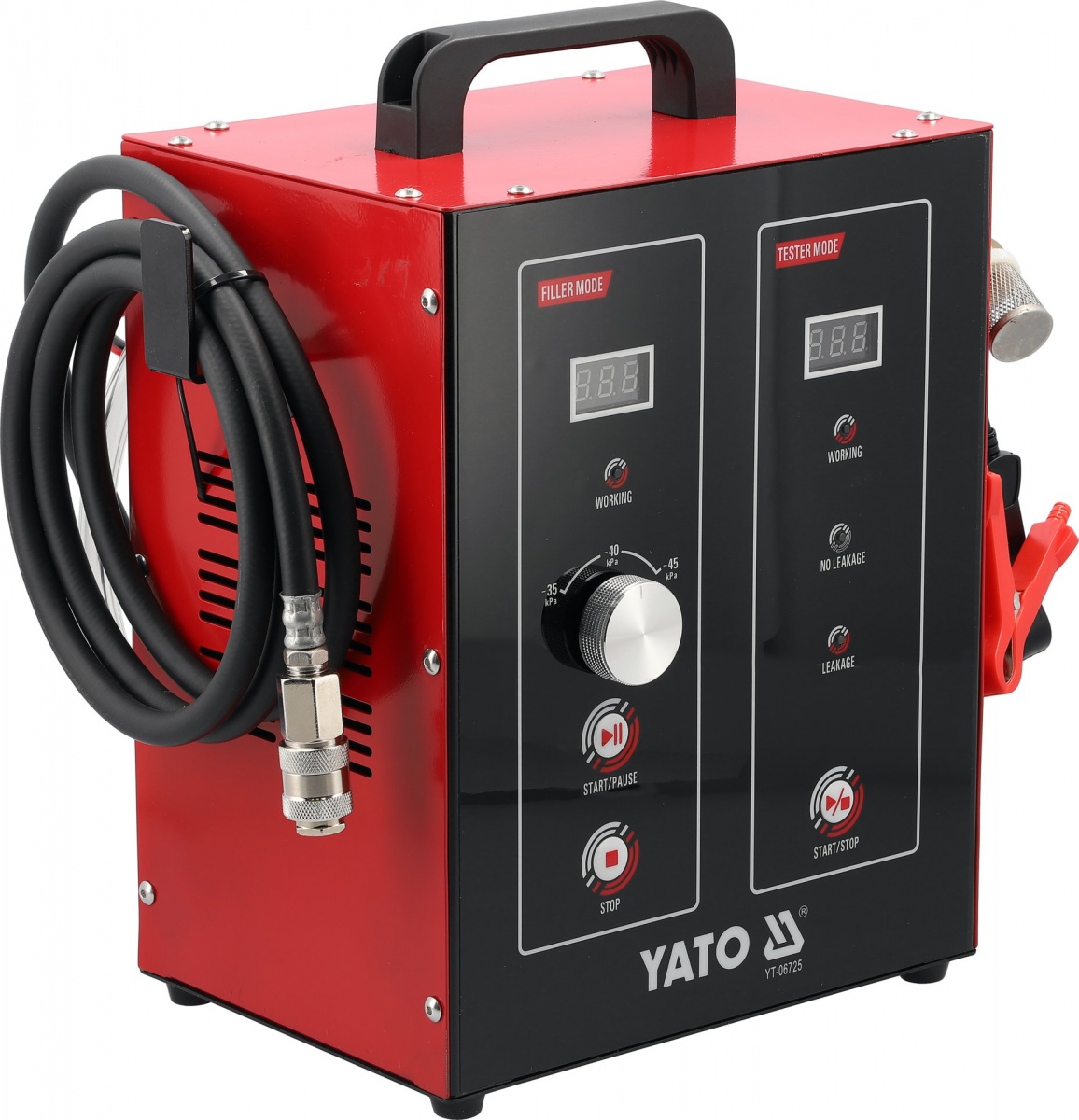

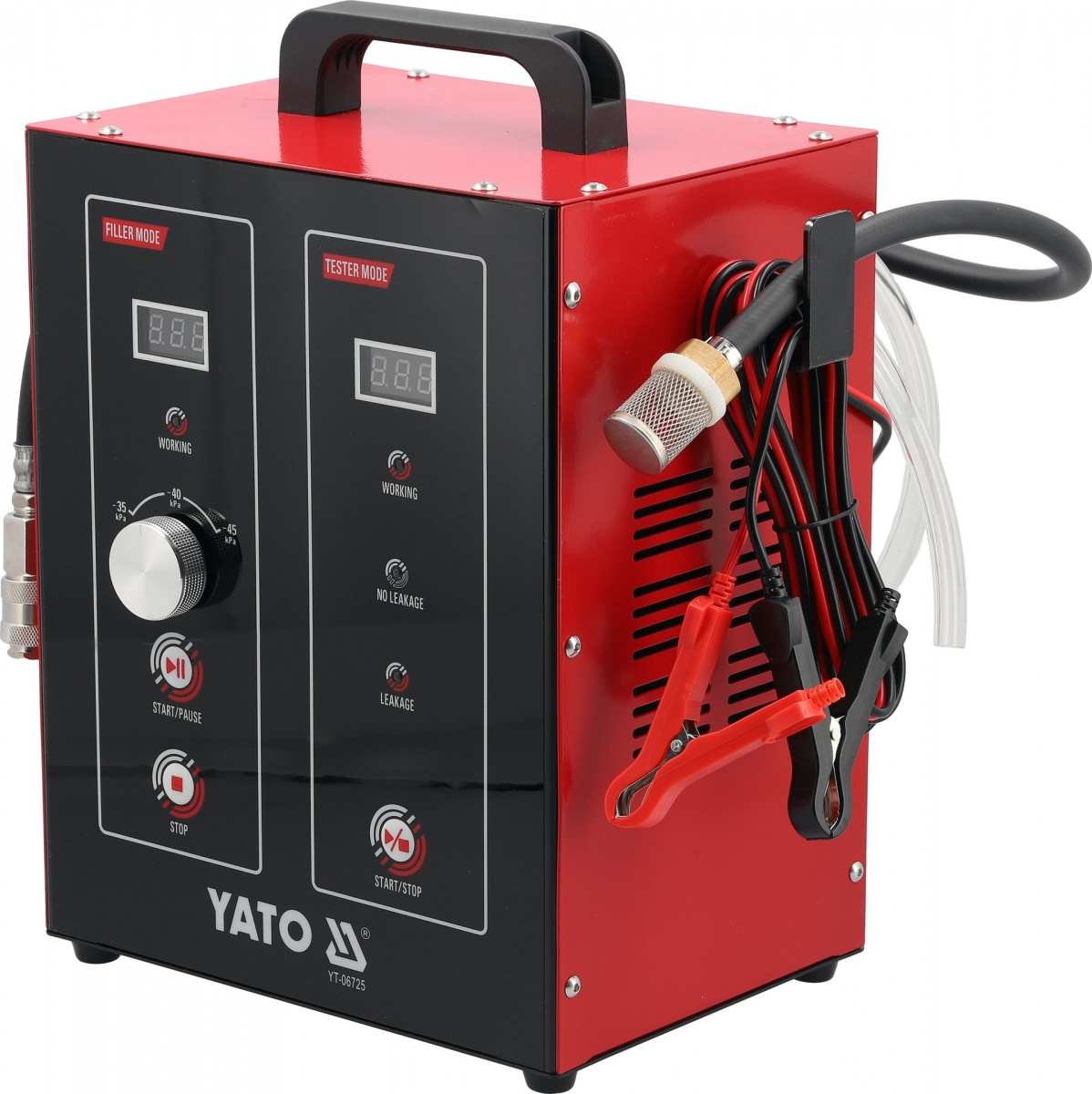

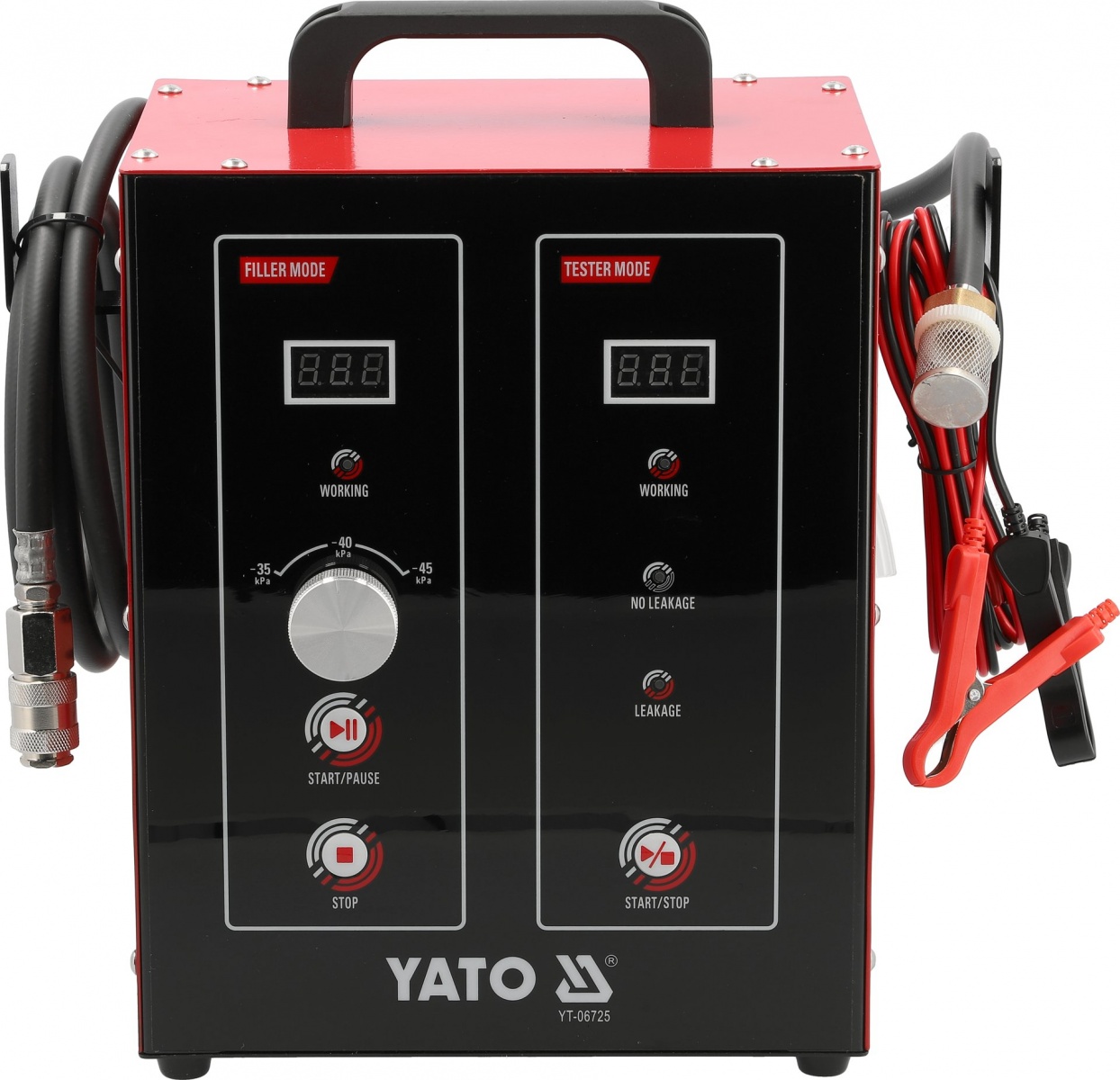

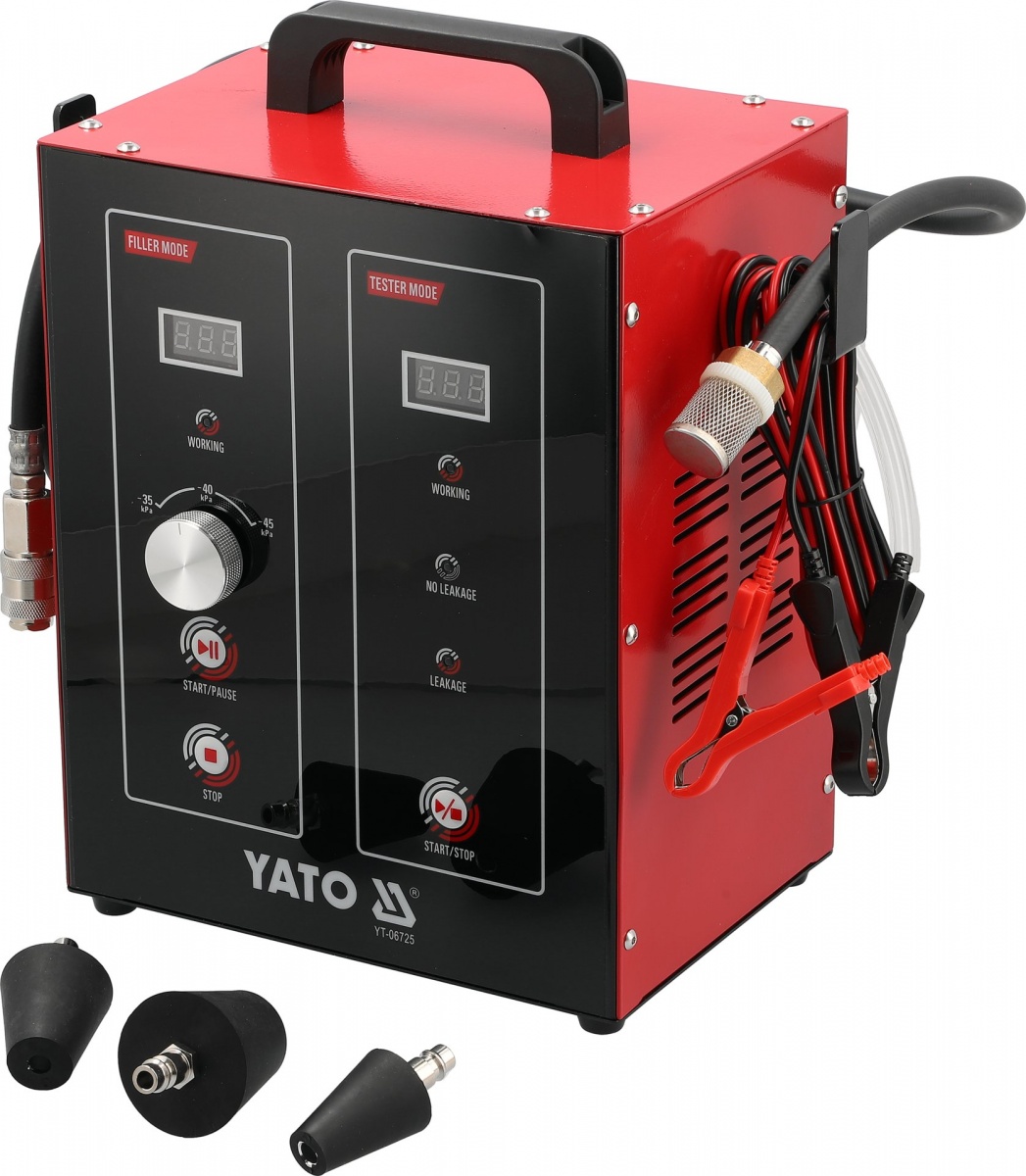

The YT-06725 coolant change device is a professional service tool designed for comprehensive cooling system maintenance in passenger cars and light commercial vehicles. It allows for both leak testing and efficient refilling of the system with fresh coolant using vacuum technology. Powered by a 12V vehicle battery, it allows for easy operation in both workshop and field conditions.
The vacuum extraction system creates a stable vacuum in the cooling system, eliminating the risk of air bubbles and ensuring even filling. The device offers three vacuum levels (-35 kPa, -40 kPa, -45 kPa), allowing you to adjust operating parameters to the vehicle type and technical condition of the system. The integrated leak test mode uses LED indicators – a green LED indicates no leaks, while a red LED indicates a leak, significantly speeding up diagnostics.
The extensive control system includes an operating parameter display, a vacuum adjustment knob, and buttons for START/PAUSE and STOP modes. The system automatically transitions from the vacuum generation phase to the system filling phase, increasing the efficiency and repeatability of the service process. The design is equipped with airflow control valves and dedicated fluid and air connections, ensuring safe and precise operation. Key Features and Technical Parameters:
Type: Coolant Change and Fill Device
Application: Leak Testing and Filling the Cooling System
Power Supply: 12 V DC (Vehicle Battery)
Power: 30 W
Maximum Operating Pressure: 0.2 MPa
Air Pressure (Input): 4.5-8 bar (Requires External Compressor)
Vacuum Pressure Range: -35 kPa / -40 kPa / -45 kPa
Vacuum Extraction Function – Eliminates Air from the System
Leak Test Mode with LED Indicator:
Green LED – No Leak
Red LED – Leak Detected
Automatic Switching from Vacuum to Filling Mode

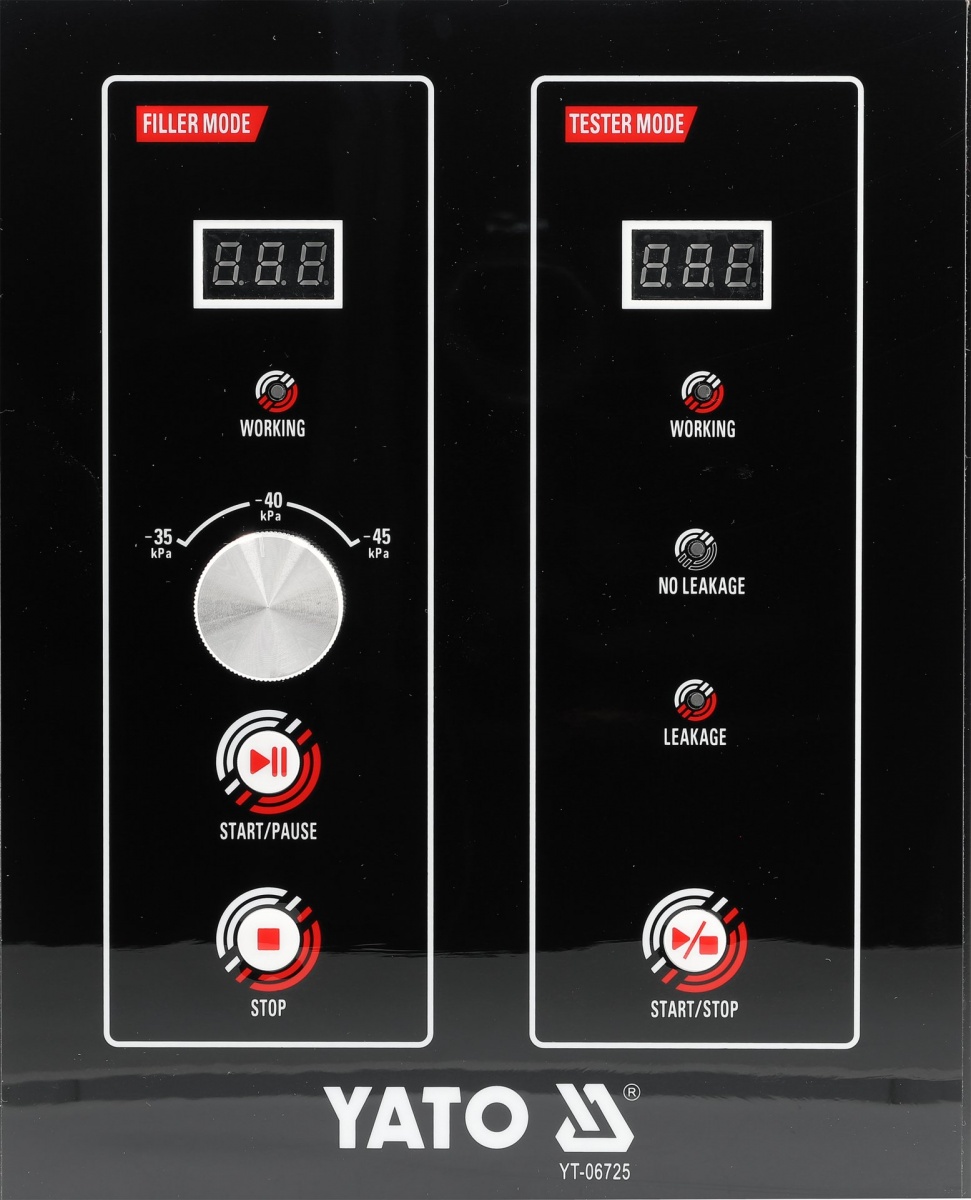

Control Panel: Display, Adjustment Knob, START/PAUSE, STOP Buttons
Air Flow Control Valve and Dedicated Connectors

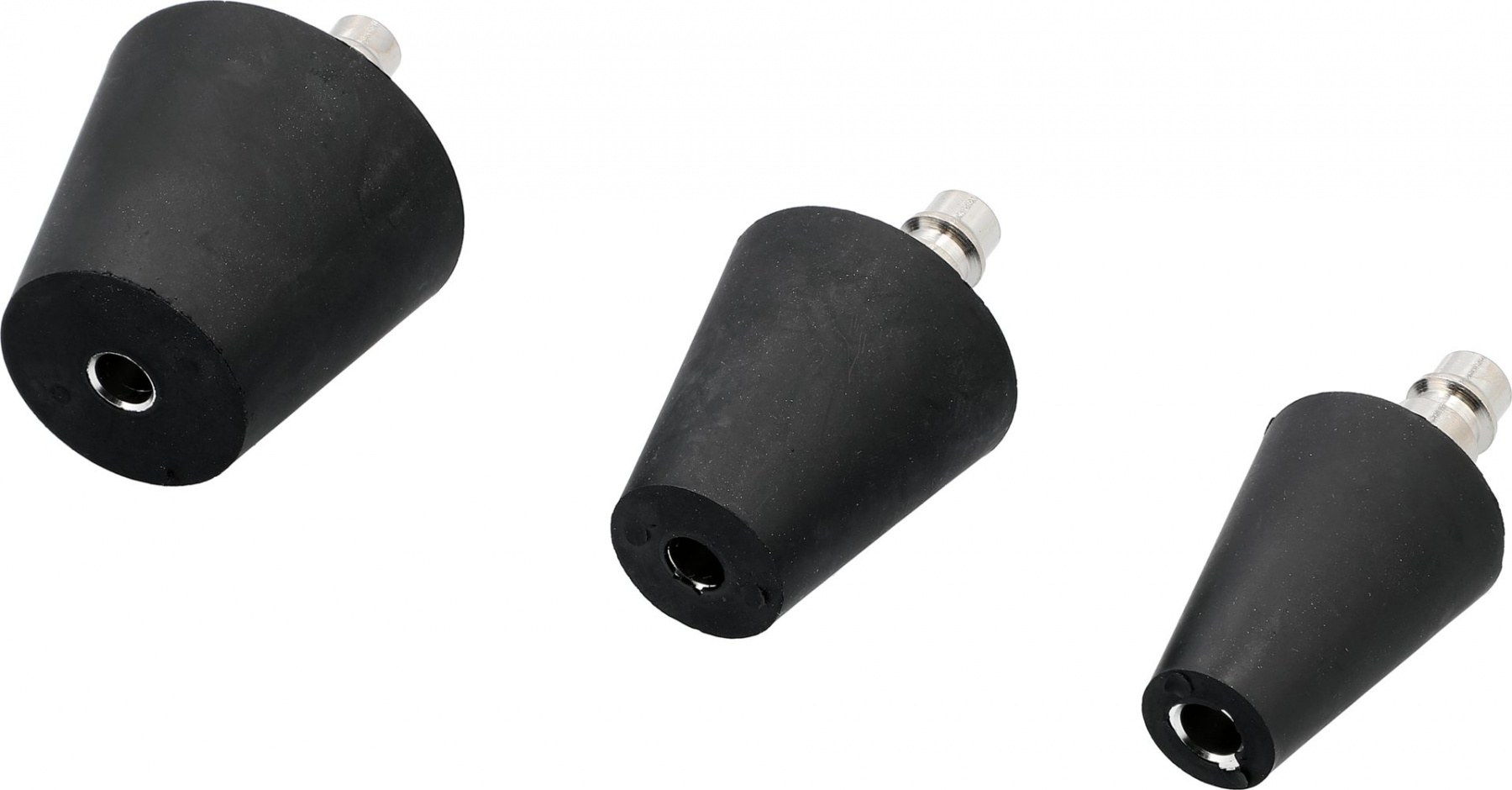

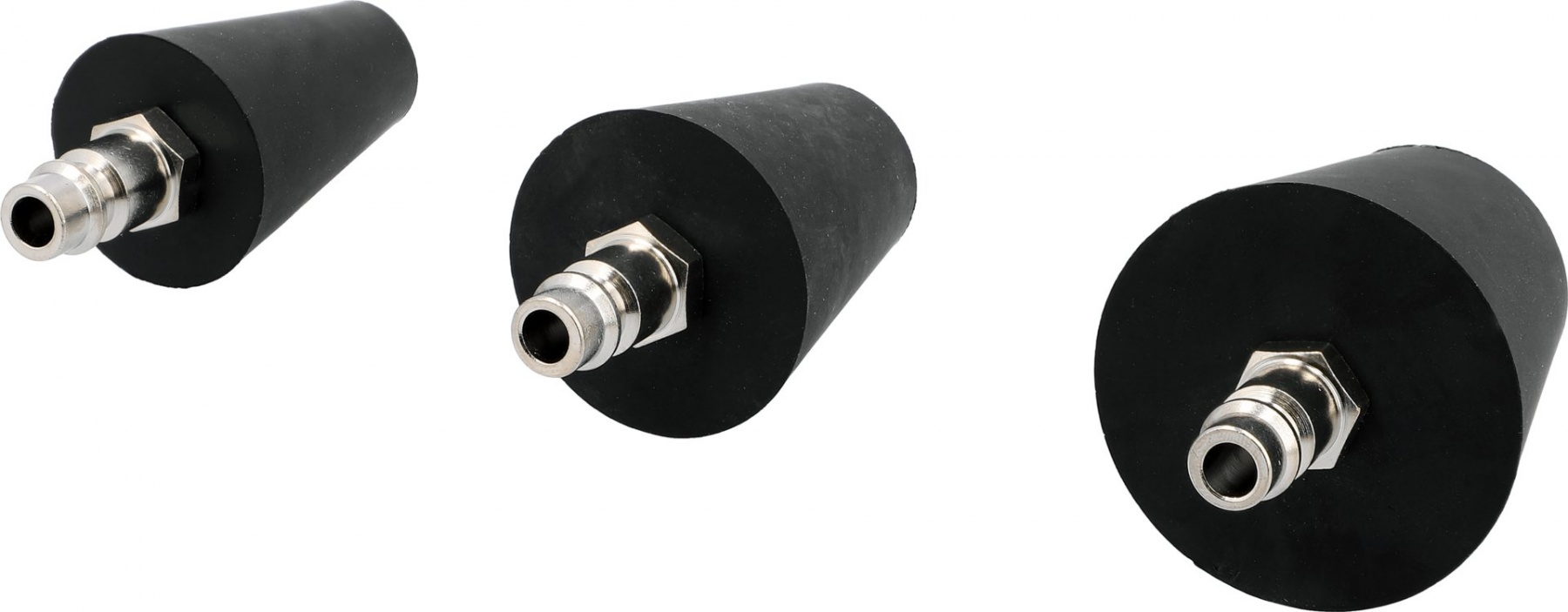

Adapter Set: 16-33 mm, 23-41 mm, 34-52 mm (Wide) Compatibility)
Includes: coolant hoses, air hose, power hoses with clamps, adapters
Weight: 6 kg
This device significantly streamlines the cooling system maintenance process, eliminating errors associated with traditional filling and bleeding. Thanks to precise vacuum control, rapid leak detection, and broad compatibility with cooling systems, it is a reliable tool for automotive workshops and specialized services.
Index YT-06725
Barcode 5906083124020
Unit of measure PCE
Volume 24.05
Weight 6 kg
