Aprašymas:
Gamintojas:
MOLLY STUD CLAMPER
Mark
Vorel
Symbol
04320
Series
GRD
Application
clamping dowels mounted in plasterboard or materials with a hollow space
Handle material
A3|PP+TPR steel
Housing material
aluminum
Stud size
Ø7mm|Ø9mm
Crimping tool designed for fast, repeatable and effective fixing of "Molly" type pins in drywall or materials with a hollow space.
aluminum body
A3 steel handle
trigger 65Mn
ergonomic PP handle covered with non-slip TPR material
Method of attaching the "Molly" pin:

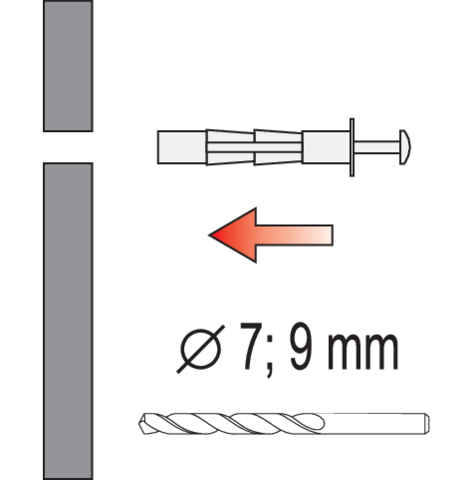

place the plug in the drilled hole

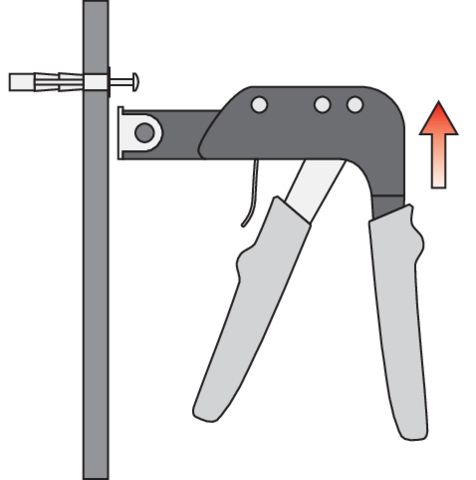

put the screw head protruding from the pin into the front socket of the crimper

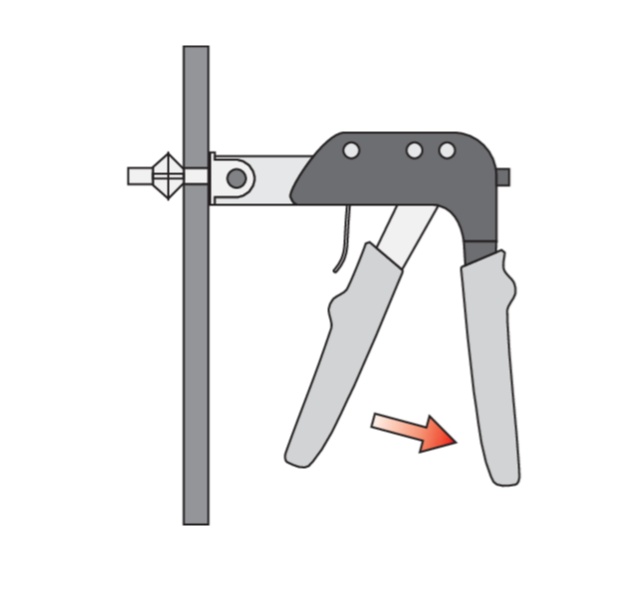

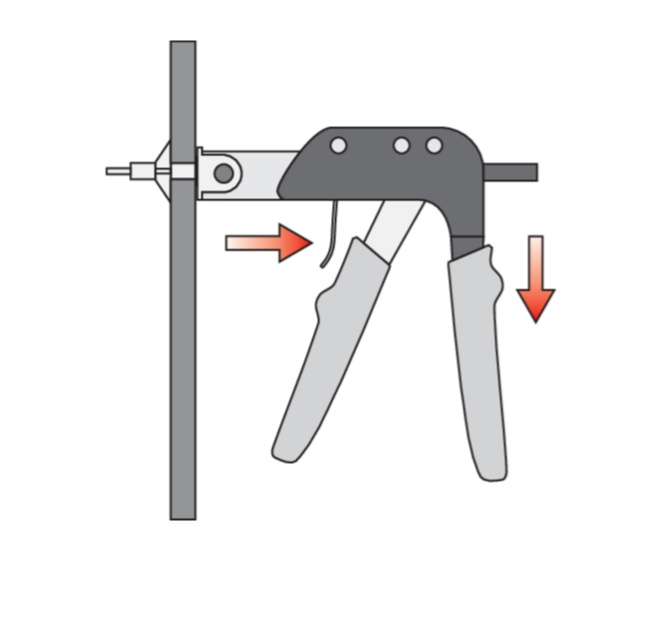

firmly squeeze the arms of the tool
the extractable screw tightens the pin, expanding it on the back side of the board
(1)
