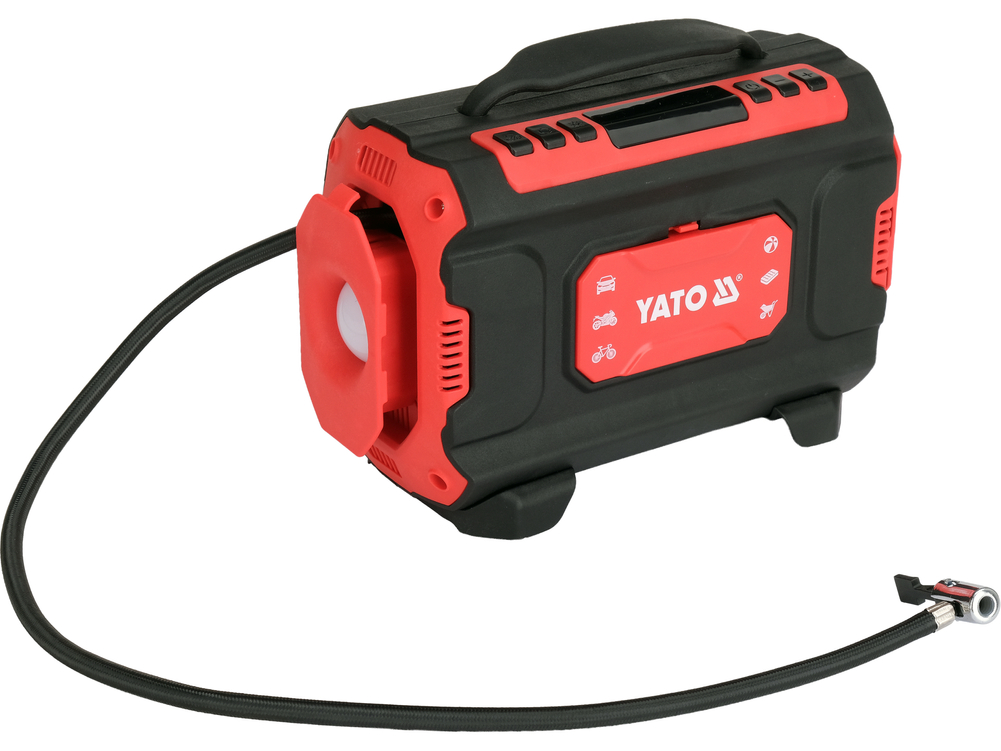

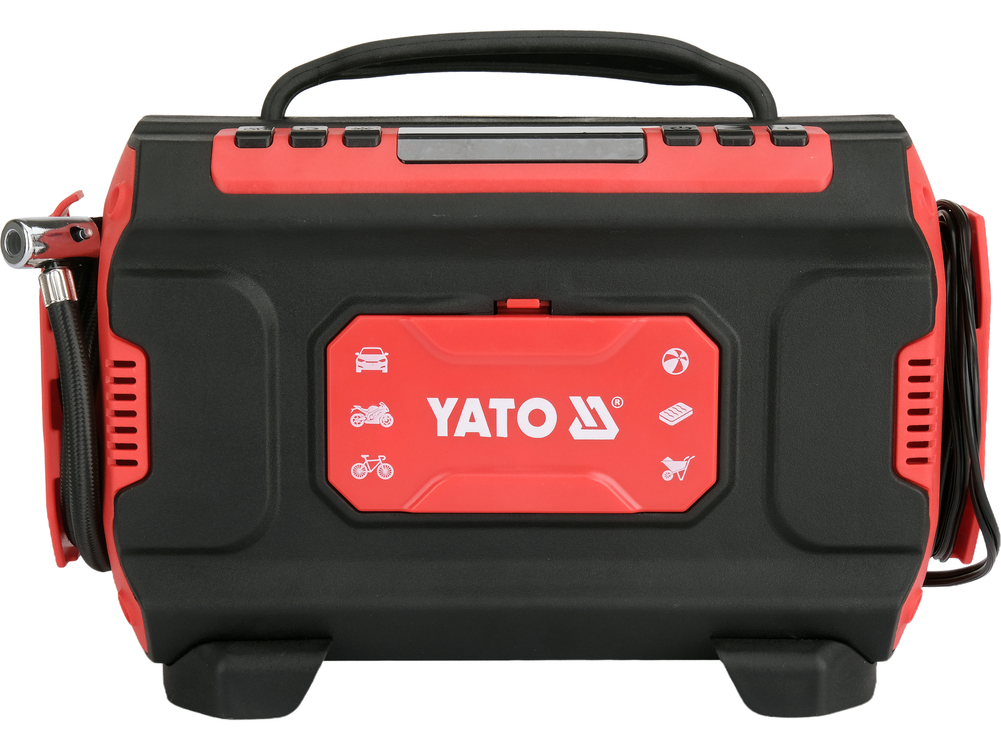

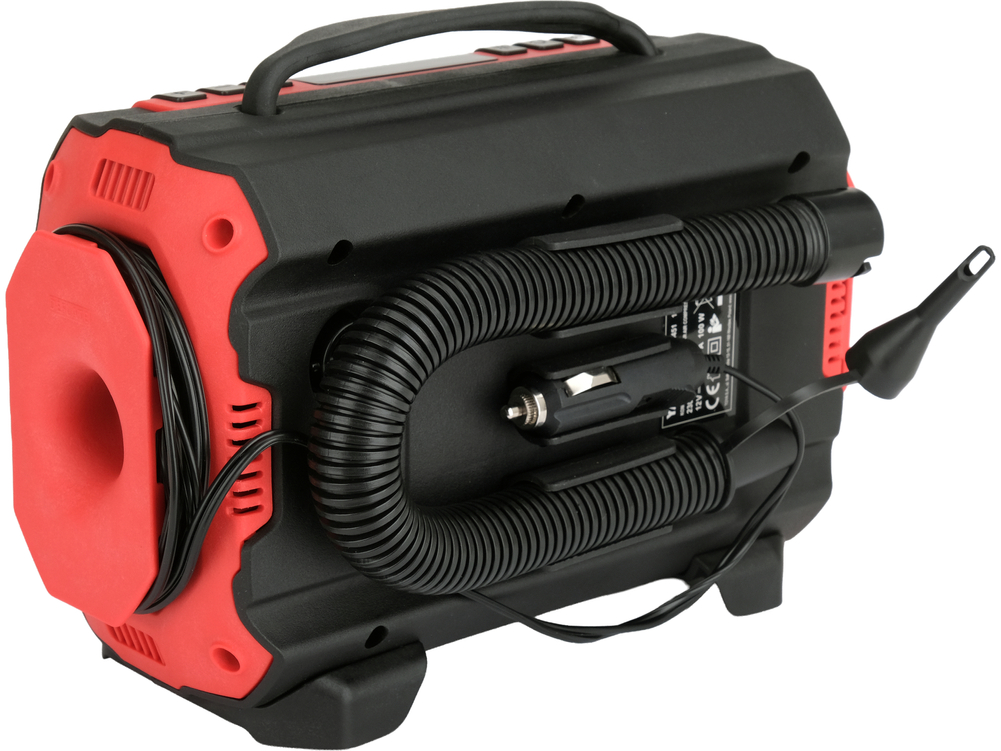

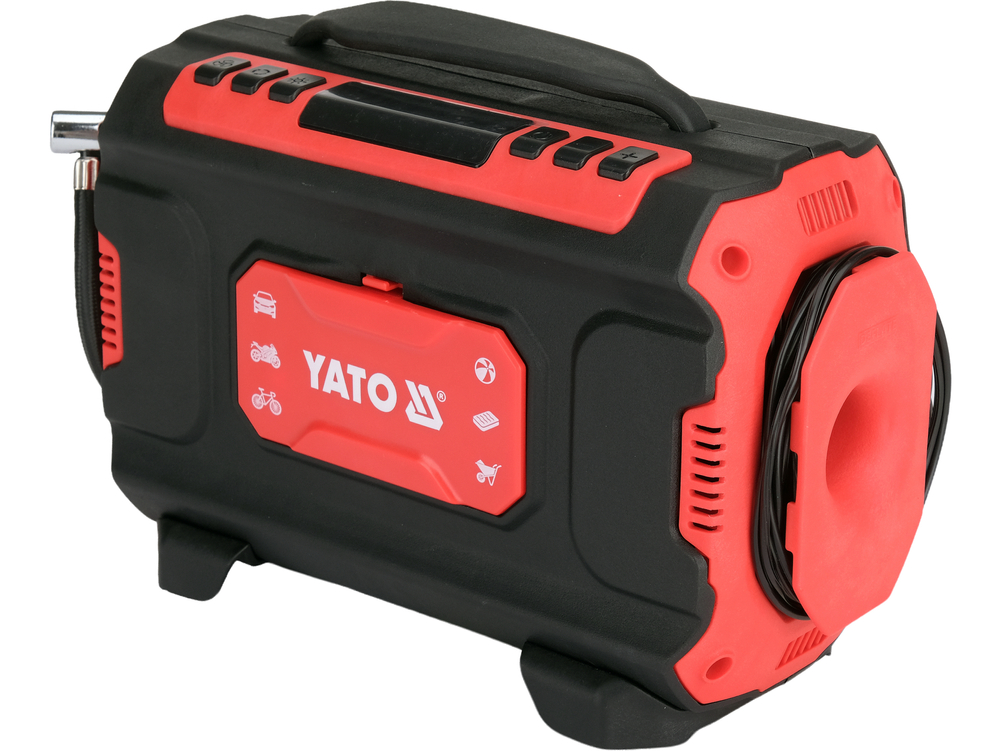

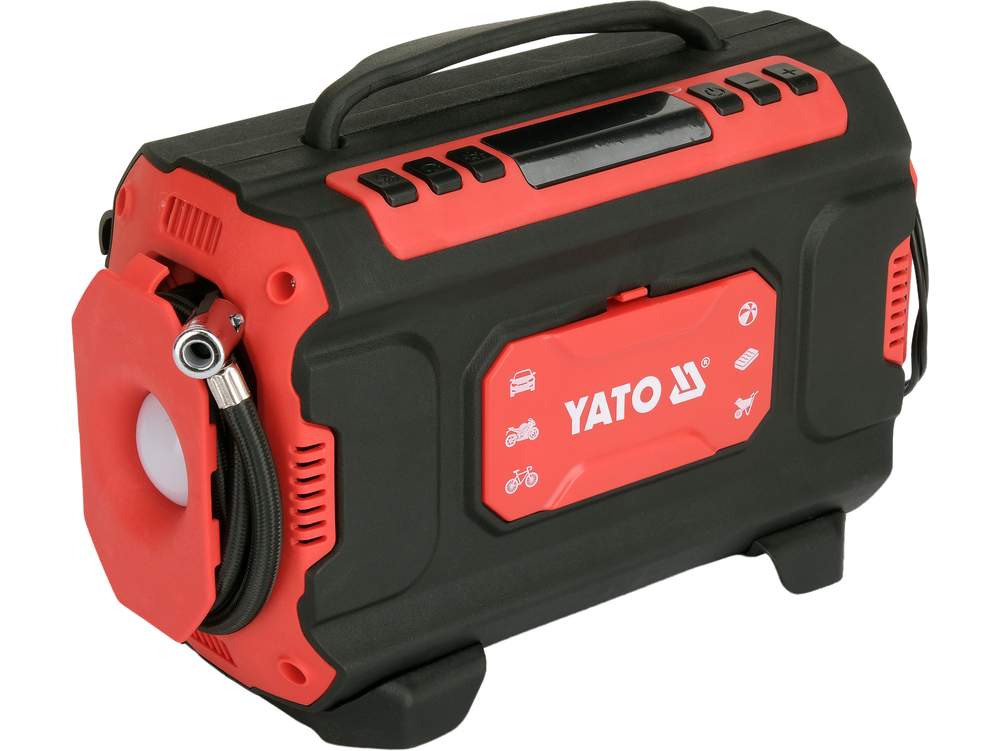

The YT-73451 Car Compressor is a multifunctional 3-in-1 device combining a pressure compressor, a high-flow pump, and air suction and blower functions. Powered by a 12V car socket or a 230V mains outlet, it can be used in the car, garage, workshop, or home. It allows for precise inflation of car, motorcycle, and bicycle tires, as well as balls and other accessories requiring the correct pressure, and also facilitates deflation before transport or storage.
The digital control panel allows for convenient setting of the desired pressure up to 150 PSI (1 MPa), and an automatic shut-off function stops inflation when the set pressure is reached. Built-in LED lighting enhances work comfort after dark and can act as a warning light in emergency situations.
Pressure Compressor
The compressor mode is designed for inflating items requiring higher pressure. It works on car, motorcycle, bicycle, and scooter tires, as well as sports balls and other accessories equipped with a suitable valve.
Maximum pressure: 150 PSI / 1 MPa
Setting range: 0-150 PSI
Capacity: 22 l/min
540 motor, 12V
Motor speed: 16,000 rpm
Maximum motor power: 100 W

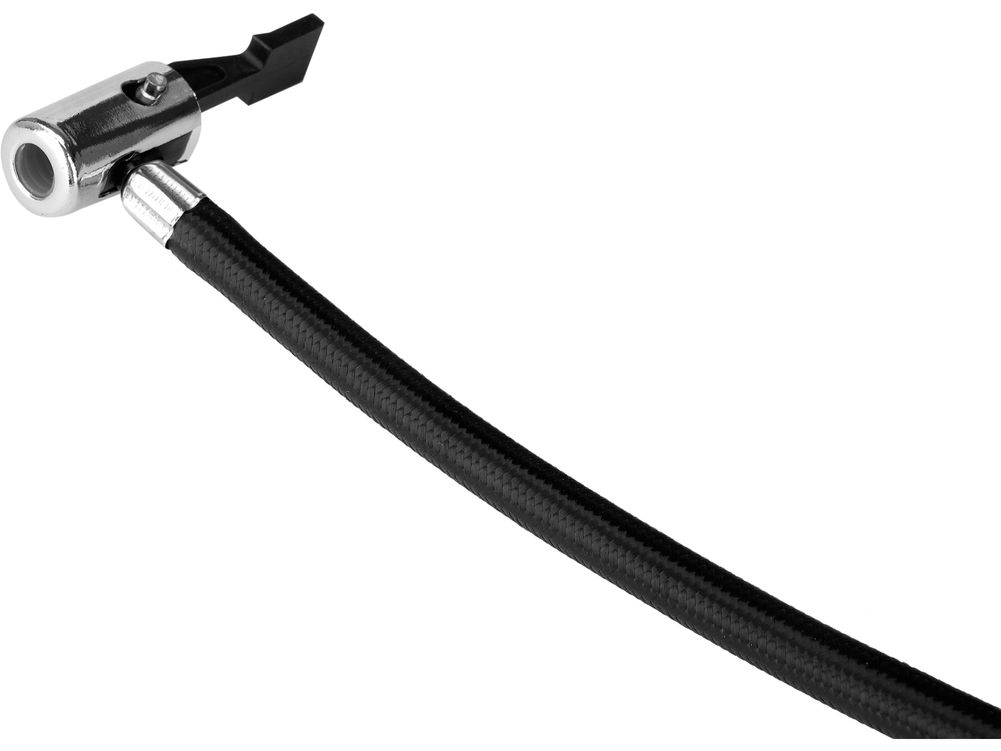

75 cm hose with quick-connect clamp

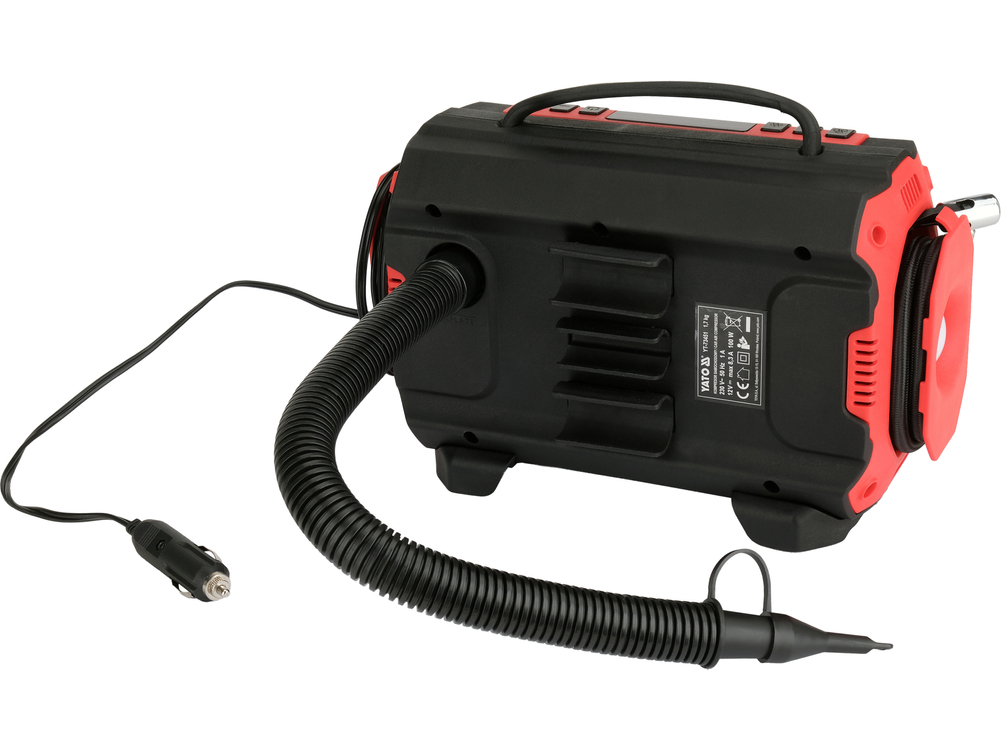

High-flow pump
The second mode uses high airflow to quickly inflate larger items. The pump is suitable for air mattresses, rafts, inflatable pools, toys, and other accessories requiring a large air volume.
Pumping capacity: 320 l/min
Type 380 motor
Rotation speed: 20,000 rpm
Maximum motor power: 80 W

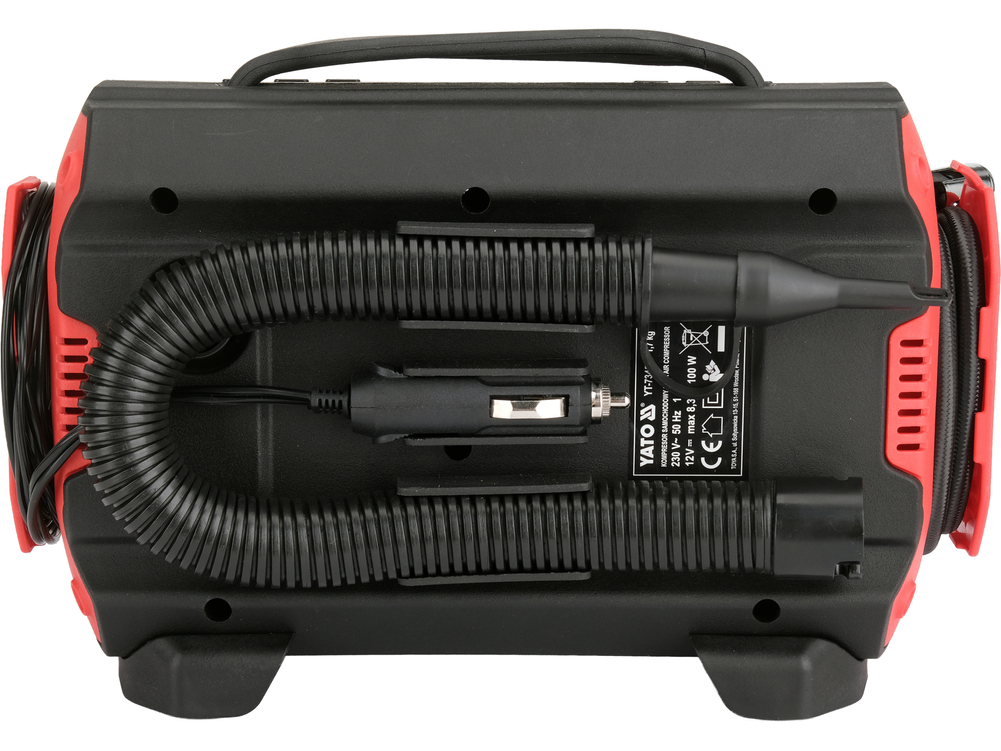

50 cm PVC hose
Internal hose diameter: 20 mm
Air extraction and blower
The air extraction function allows you to quickly remove air from mattresses, rafts, and other inflatable objects. This makes them easy to fold, transport, and store. The suction capacity is 300 l/min. It also allows you to use the device as a practical blower.

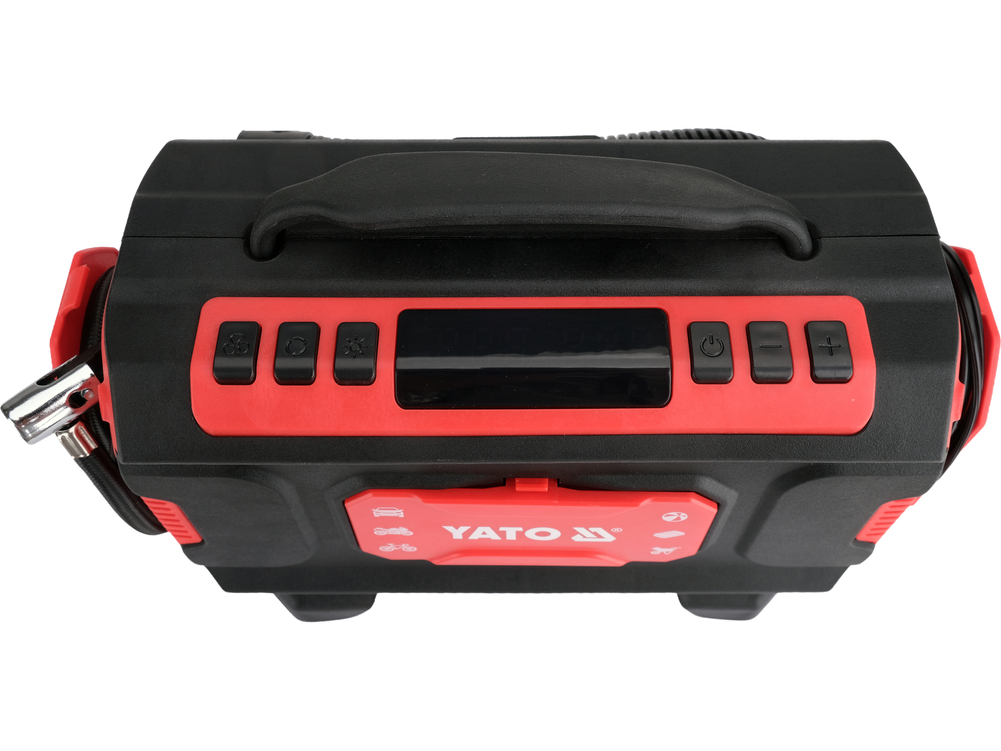

Digital pressure setting
The control panel with an LED display allows you to set the required pressure before starting operation. Once the programmed pressure is reached, the compressor automatically shuts off, reducing the risk of overinflation and allowing you to conveniently monitor the process. Available measurement units:
PSI
BAR
kPa
kg/cm²
Power Supply: 12V/230V

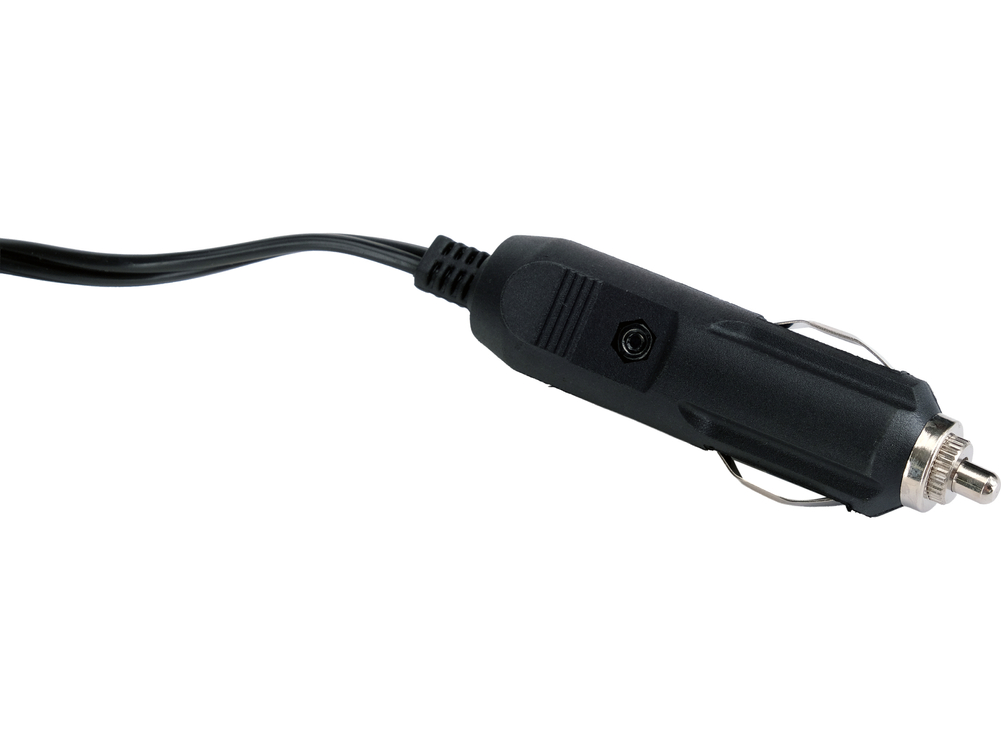

The device can be powered directly from a 12V vehicle electrical system or from a 230V mains socket. The 12V cable is 3m long, while the 230V cable is 2.8m long, allowing for easy access to inflatable components.

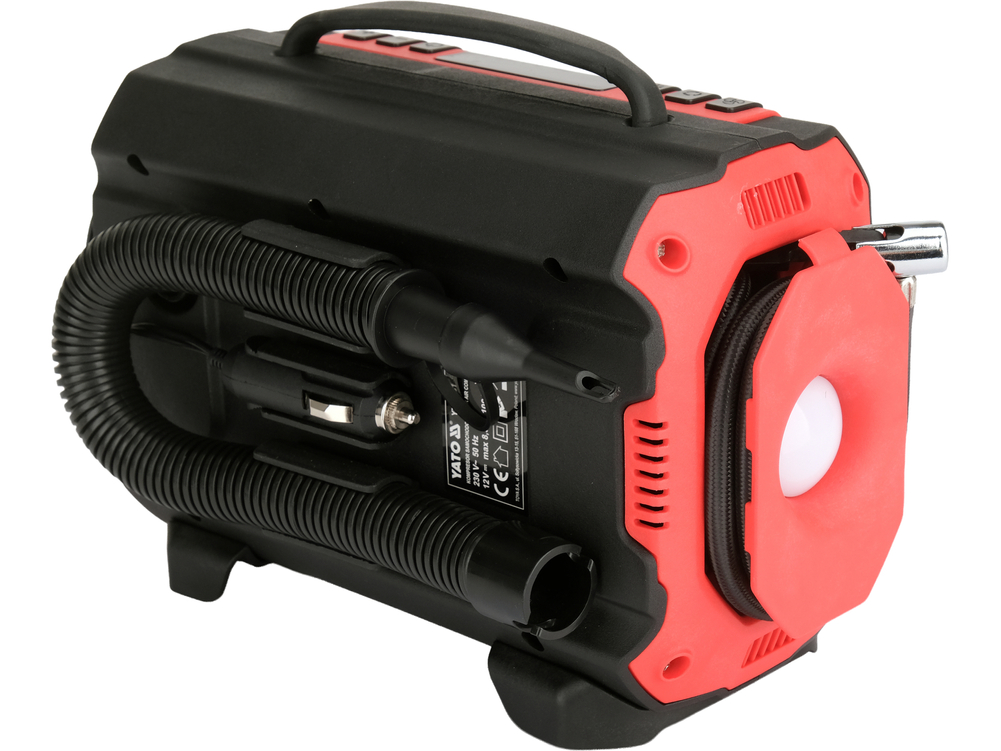

LED Lighting
Built-in lighting enhances the device's functionality when working in low visibility conditions. Two modes are available:
white LED light – for illuminating the work area
red flashing light – as a warning light, useful during emergency stops
Durable, compact design
The ABS housing provides adequate durability for everyday use. Weighing just 1.68kg, the device is easy to carry and store in a car or workshop. Noise level below 85 dB, measured from a distance of 1 meter.
Versatile use:
Inflating passenger car and motorcycle tires
Inflating bicycle and scooter tires
Inflating sports balls
Inflating air mattresses and rafts
Inflating pools and inflatable toys
Removing air from inflatable accessories
Working with vacuum bags and other accessories requiring air flow or extraction

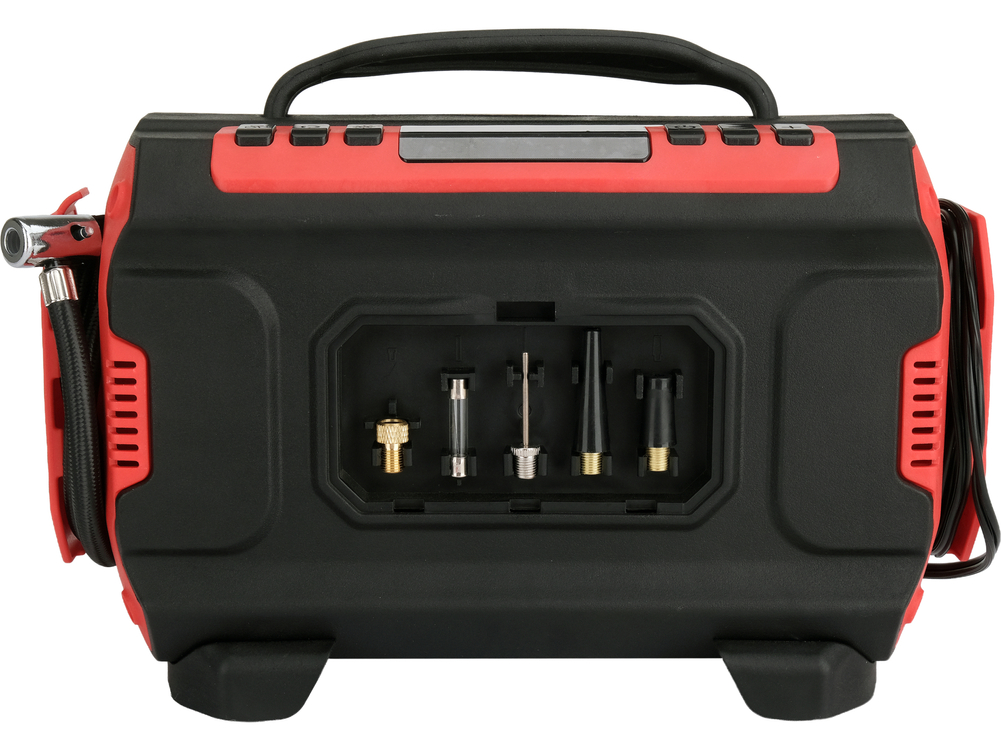

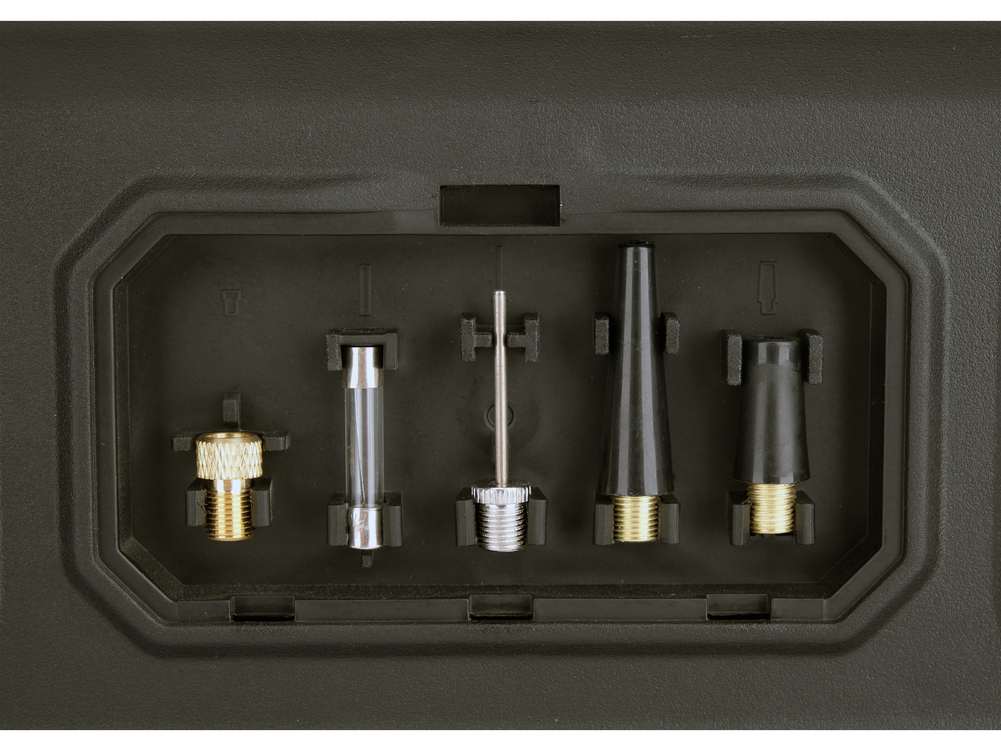

Equipment:

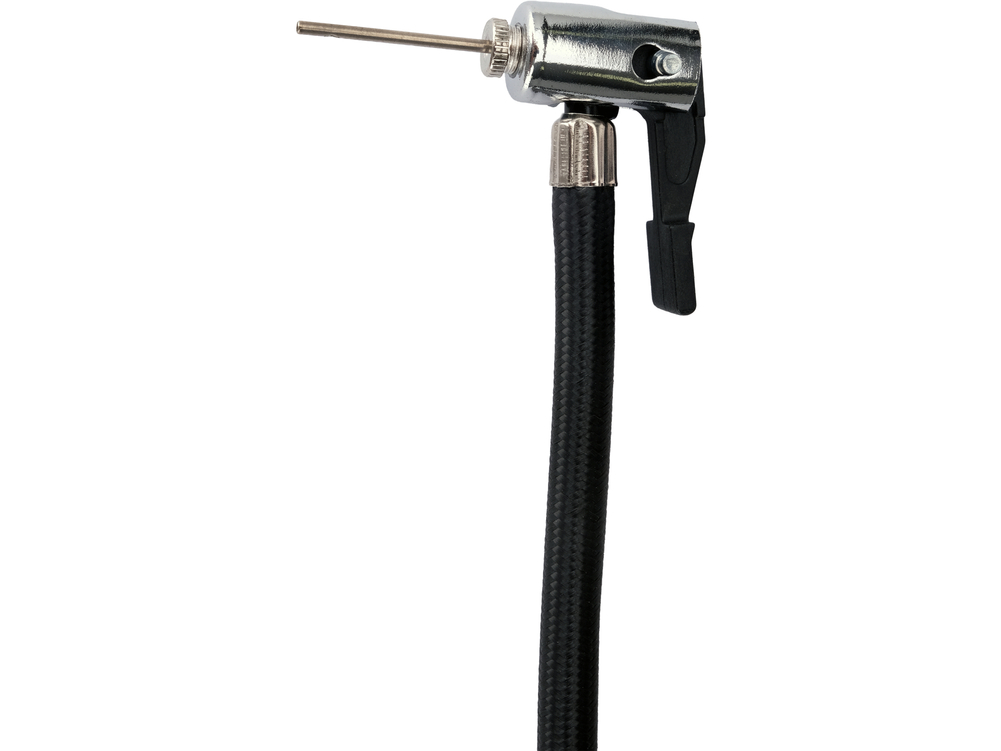

Metal ball inflating needle
Long plastic nozzle
Short plastic nozzle
Adapter for Presta (French) valves
15A fuse
